Elinz 1080P AHD Reversing Rear View 4PIN 8pcs IR LED Night Vision Car Truck Caravan CMOS Camera
120° FOV~IP68 Waterproof
SKU | RV4PIN8LEDAHD |
Barcode # | 0743966017087 |
Brand | Elinz |
Shipping Weight | 0.2500kg |
Shipping Width | 0.160m |
Shipping Height | 0.080m |
Shipping Length | 0.090m |
Shipping Cubic | 0.001152000m3 |
Help other users shop smarter by writing reviews for products you have purchased.

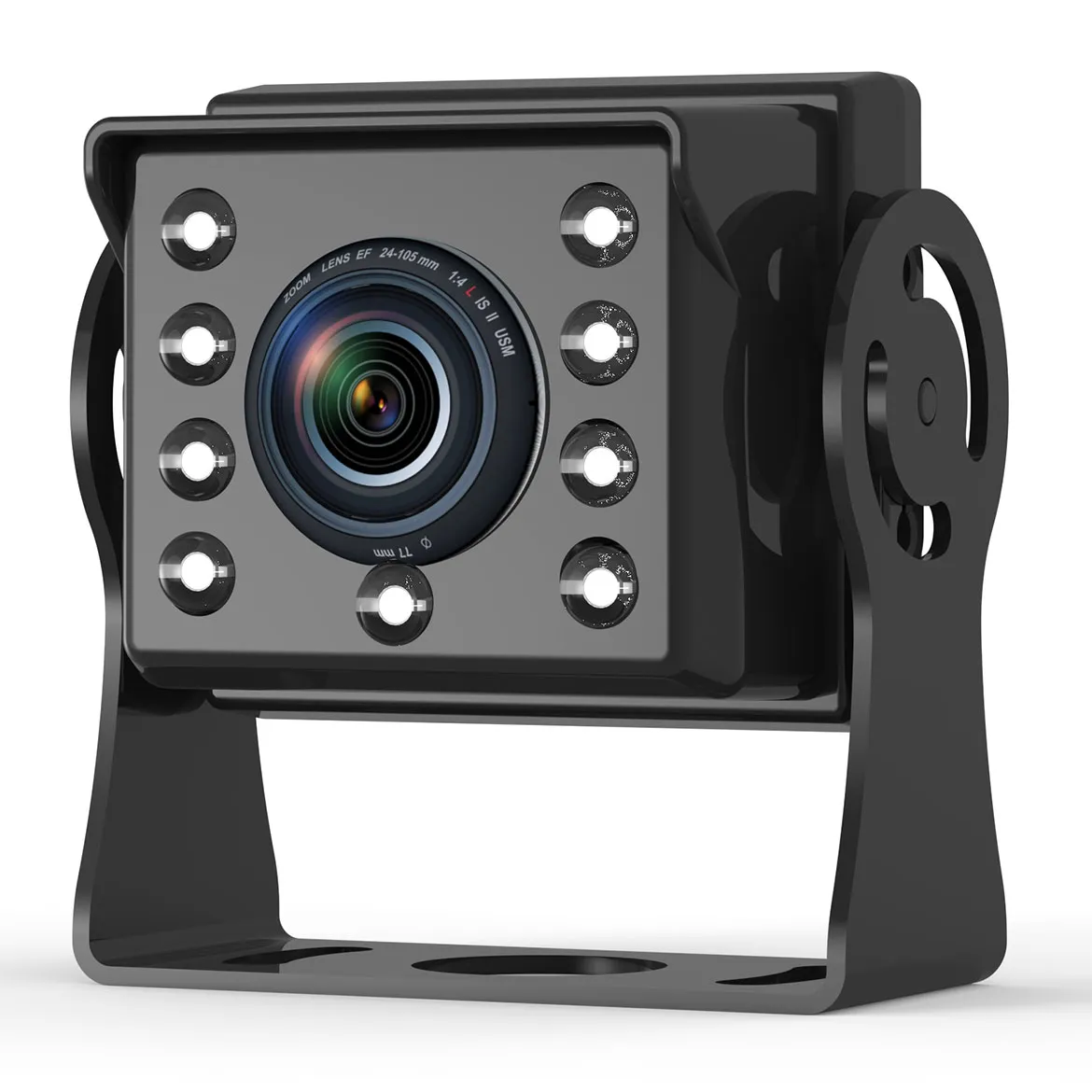

Elinz 1080P AHD Reversing Rear View 4PIN 8pcs IR LED Night Vision Car Truck Caravan CMOS Camera
The Elinz 1080P AHD Reversing Rear View Camera is a high-performance solution designed for enhanced safety and clarity while reversing. Equipped with 1080P Full HD resolution, a Starvis sensor for low-light visibility, and IP68 waterproof protection, this camera ensures reliable performance in all conditions.
PRODUCT HIGHLIGHTS
- AHD Camera
- This new AHD Analog High Definition reversing camera has a higher image resolution than the standard CVBS cameras in the market today.
- 1080P Full HD
- This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in a real 1080P Full High Definition.
- Starvis Sensor
- The Starvis sensor has a higher sensitivity to recognize colours that delivers sharper, clearer, and more detailed images during daytime.
- Perfect Field of View
- With a 1/2.8 sensor that provides you with a 120° field of view, reducing blind spots for reversing and a more realistic viewing angle. It's perfect for monitoring and reversing as it reduces distortions and fisheye effects, unlike other camera brands
- Night vision
- The night vision effect is enhanced with 8pcs IR LEDs to help you see black and white images at night using infrared technology.
- 4PIN Connector
- The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
- IP68 Waterproof
- This camera is completely protected against dust and can withstand fresh water immersion of up to 1 meter.
ITEM DESCRIPTION
- Technology: AHD
- Image sensor: Starvis 1/2.8" 1080P CMOS Sensor
- TV system: PAL/NTSC
- Effective Pixel: 1920(H)*1080(V)
- Pixels Size: 2.8μm*2.8μm
- Resolution: 2.0 Mega Pixels
- Minimum illumination: 0.01Lux/F1.8 (0 Lux With LED)
- Night Vision: IR
- Image: Mirror image
- View Angle: 120°
- Waterproof Level: IP68
- Working Voltage: DC12V
- Current Consumption: <150mA
- Waterproof Rating: IP68
- Gamma Factor: 0.45
- Vertical Sync Frequency: 50Hz / 60Hz
- Horizontal Sync Frequency: 15.625KHz / 15.734KHz
- Internal Sync Definition: 1000 TVL
- Connector: 4PIN
- Compatible Monitors: M7AHD, M500AHD, M525AHD, M725AHD, M1025AHD
WHAT'S INCLUDED
- 1x AHD Reversing Camera
- 1x Bracket
- 1x Screws
