Elinz 7" Clip on Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN Trailer Cable
12V~24V~2 Video Inputs~Strong Bracket Handle~600TVL
SKU | RCLIP7-CARAVANPKG |
Barcode # | 0650075756885 |
Brand | Elinz |
Wired or Wireless Transmission | Wired Transmission |
Monitor Type | Rearview Mirror Monitor |
Camera Type | CCD Camera |
Camera Type | CMOS camera |
Monitor Size | 7.0" |
Camera System | 4PIN System |
Shipping Weight | 3.0000kg |
Shipping Width | 0.020m |
Shipping Height | 0.050m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000100000m3 |
Help other users shop smarter by writing reviews for products you have purchased.

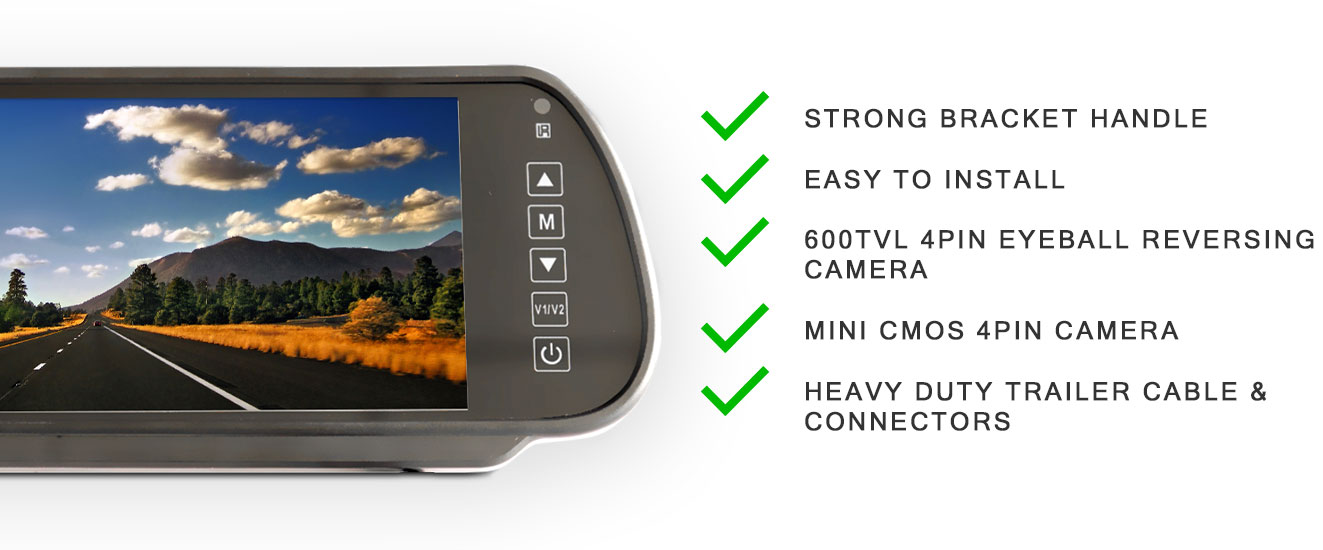

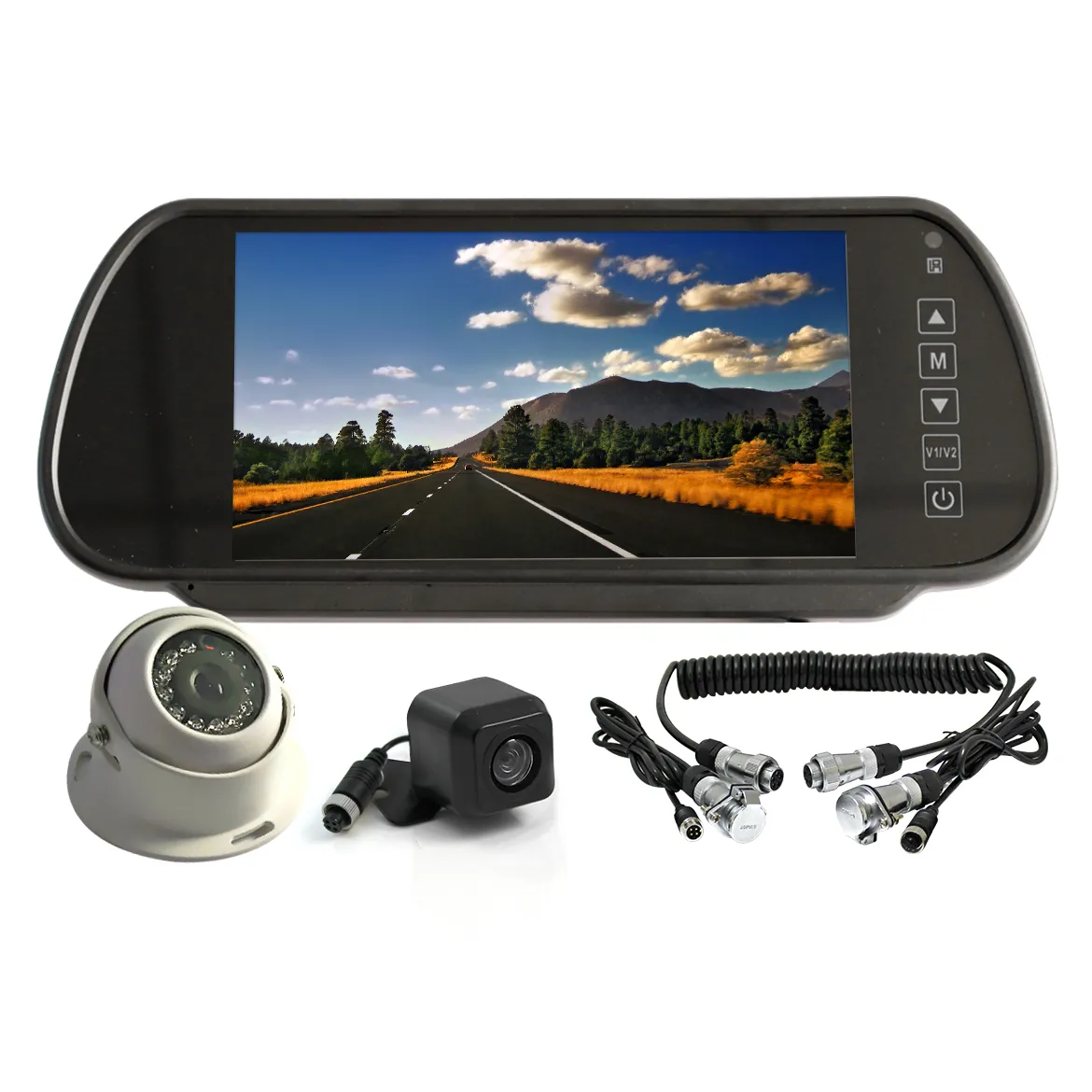

7" Clip on Rearview Mirror Monitor Caravan 2 Reversing Camera 4PIN CCD Trailer Cable
SKU: RCLIP7-CARAVANPKG
7" LCD monitor (LED digital panel)
- Anti-reflective clear vision rear view mirror
- Automatically shows rear view when reversing
- Rearview image can also be shown on screen at all times
- Resolution degree 800 x 3 (RGB) x 480
- Rearview mirror monitor will serve as your reaview mirror, you can view the back of your car clearly just like before
2 Video Inputs
- Can be connected up to 2 reversing cameras
Suitable for use with Trucks, Caravans, Cars and more
Easy to Install
- No need to replace your vehicles factory rearview mirror, upgrade it with this Clip on 7 inch Rearview mirror monitor.
- Rearview image can also be shown on screen at all times.
Rearview Mirror Monitor Label
- Rearview mirror monitor has easy touch buttons to operate.
Strong Bracket Handle
- Safely secure your rearview monitor with strong grip on your existing rearview mirror.
- It prevents the monitor to fall off easily.
Product Dimensions
Heavy Duty 600TVL 4PIN Eyeball Reversing Camera
- Powerful 12 LEDs for night vision.
- Colour: White.
- 120 degree wide vide angle
- Clear view day or night
- Colour infrared night vision waterproof CCD reverse camera
Mini CMOS 4PIN Camera
- 150 degreee wied angle view
- Small colour mini camera which can be mounted easily on vehicle's bumper
4PIN Cables Included
- It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.
Heavy Duty Trailer Cable & Connectors
- 5PIN AP-TP20 metal connector with male and female connector
- Waterproof function
- 4PIN metal connector for CCD camera
- With elasticity length from 2000mm to 4000mm
- Very tight connection, durable and reliable
Caravan Car Reversing Camera Connection
Wiring Diagram

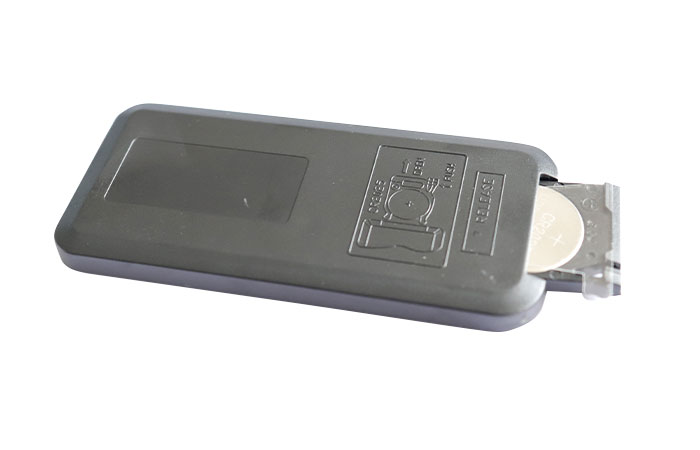

Remote
- * No Batteries included
MORE INFORMATION
A rearview monitor with 2 x cameras that can be easily installed. This 7" Clip-on rearview mirror monitor is suitable for all types of vehicles may it be 12V or 24V. It comes with an eyeball 4PIN CCD camera and a mini CMOS 4PIN camera.
Installing a reversing camera on your vehicle isimportant to keep you safer and more secure on the road. The monitor has an Anti-reflective clear vision rear view mirror plus a resolution degree 800 X 3 (RGB) X 480.
The eyeball camera has a 120° view angle with 600TV lines delivering a clear view day and night. It comes with a powerful 12 IR LEDs. The mini CMOS camera has a 150° wide view angle that you can install invisibly in the ourside areas of your vehicle.
This package comes with heavy duty trailer cable & connectors with 5PIN AP-TP20 metal connector with male and female connector. It has elasticity length from 2000mm to 4000mm.
Reversing camera kit is an important tool in driving, parking or reversing. Start getting one today.
** The remote control is powered by two AAA batteries.(Batteries not included.)
PRODUCT HIGHLIGHTS
- Screen size: 7" LCD monitor (LED digital panel)
- With grid line distance graph on/off.
- Anti-reflective clear vision rear view mirror.
- Rearview image can also be shown on screen at all times
- Resolution degree 800 X 3 (RGB) X480
- Easy to Install
- No need to replace your vehicles factory rearview mirror, upgrade it with this Clip on 7 inch Rearview mirror monitor.
- 2 Video inputs
- Can be connected up to 2 reversing cameras.
- Compatible to 12V & 24V Vehicles
- Suitable for use with trucks/caravans/cars etc.
- Heavy Duty 600TVL 4PIN Eyeball Reversing Camera
- Powerful 12 LEDs for night vision.
- Colour: White
- 120 degree wide vide angle.
- Clear view day or night.
- Colour infrared nigh vision waterproof CCD reverse camera.
- Mini CMOS 4PIN Camera
- 150 degreee wied angle view.
- Small colour mini camera which can be mounted easily on vehicle's bumper
- 4PIN Cable Included
- It comes with 2x 5 meters and 1x 10 meters 4PIN connecting cable.
- Heavy Duty Trailer Cable & Connectors
- 5PIN AP-TP20 metal connector with male and female connector.
- Waterproof function.
- 4PIN metal connector for CCD camera.
- With elasticity length from 2000mm to 4000mm.
- Very tight connection, durable and reliable.
ITEM DESCRIPTION
- Screen dimensions: 7inch TFT LCD
- Resolution: 800x480
- System: PAL&NTSC
- Power: DC12V-24V
- Consumption: 5W
- Video: Two way video input
- Operate mode: Key operation
- Eyeball camera: 12 IR LEDs , 600TVL, 4PIN, 120° view angle
- Mini CMOS Camera: 4PIN, 150° view angle

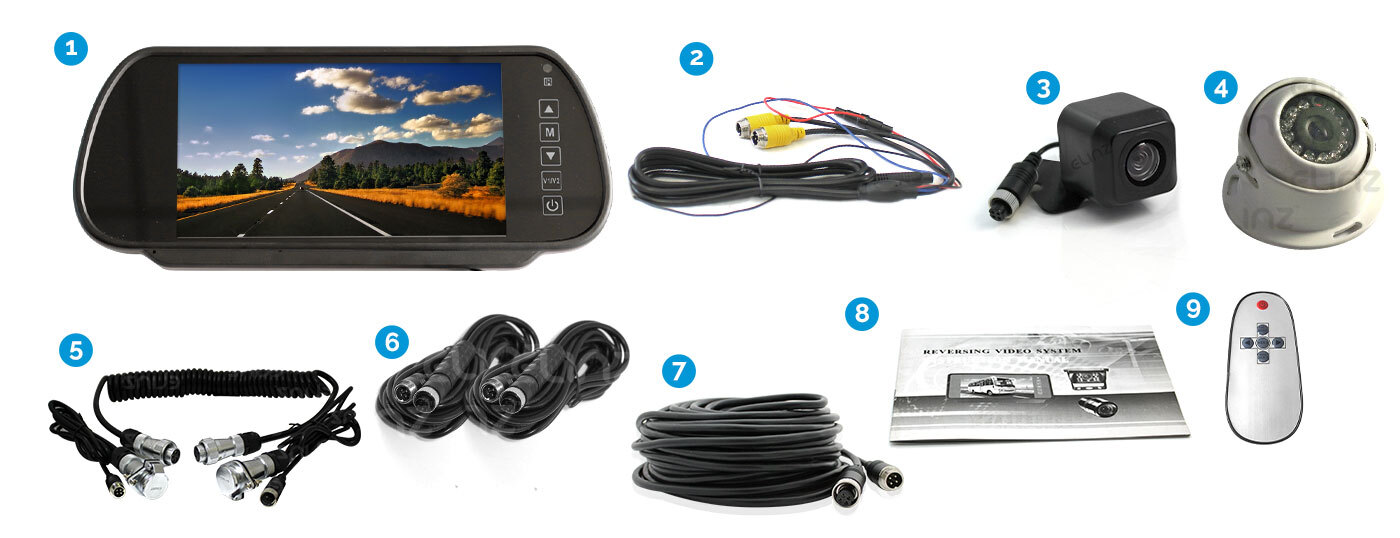

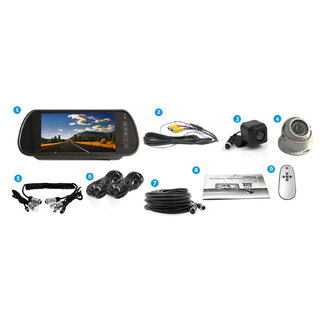

WHAT'S INCLUDED
1. 1x 7 inch Clip on Rearview Monitor
2. 1x Power Cord
3. 1x Mini CMOS Camera
4. 1x CCD Eyeball Camera
5. 1x Trailer cable suzy coil
6. 2x 5m 4-pin cables
7. 1x 10m 4-pin cables
8. 1x User Manual
9. Remote * No Batteries included
*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
