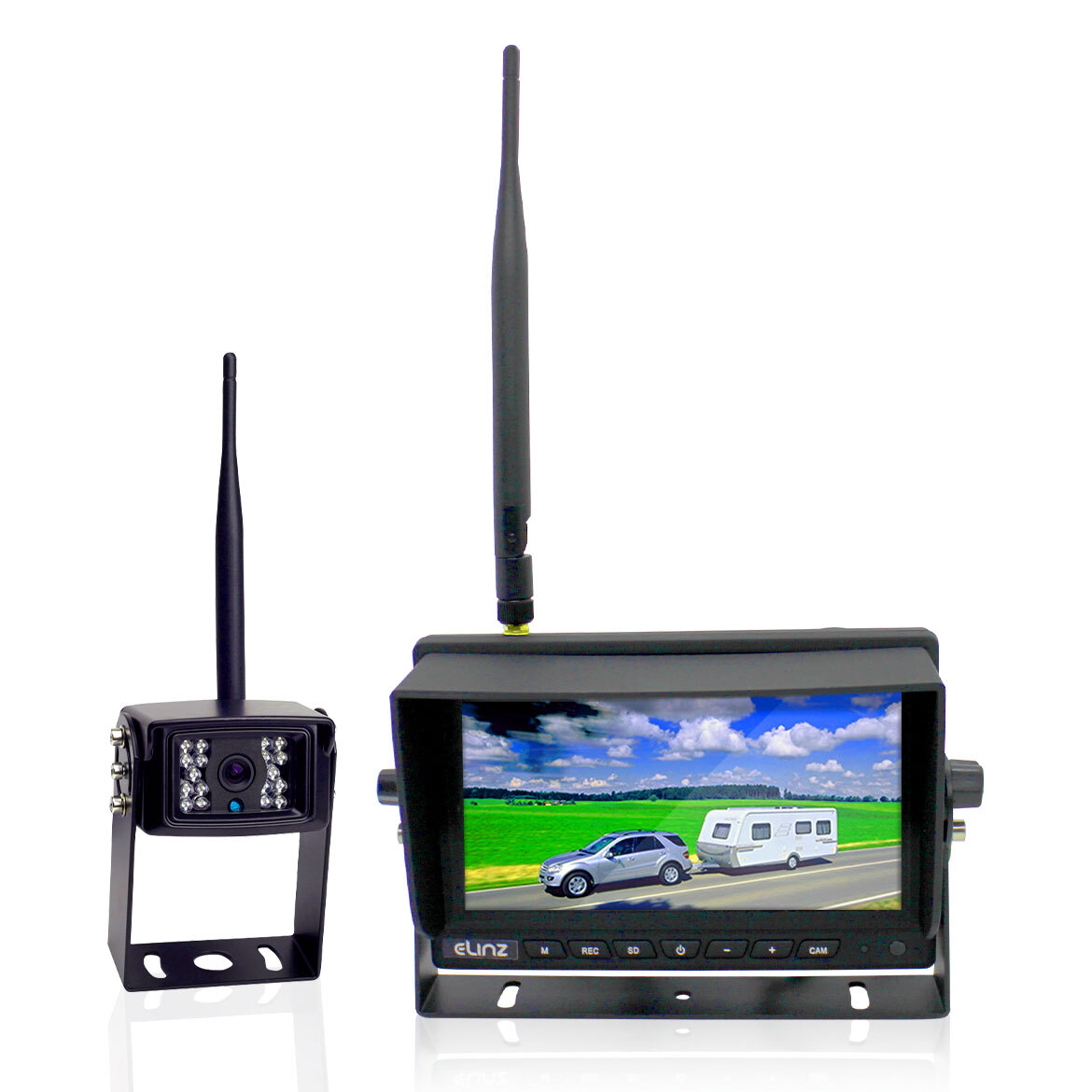

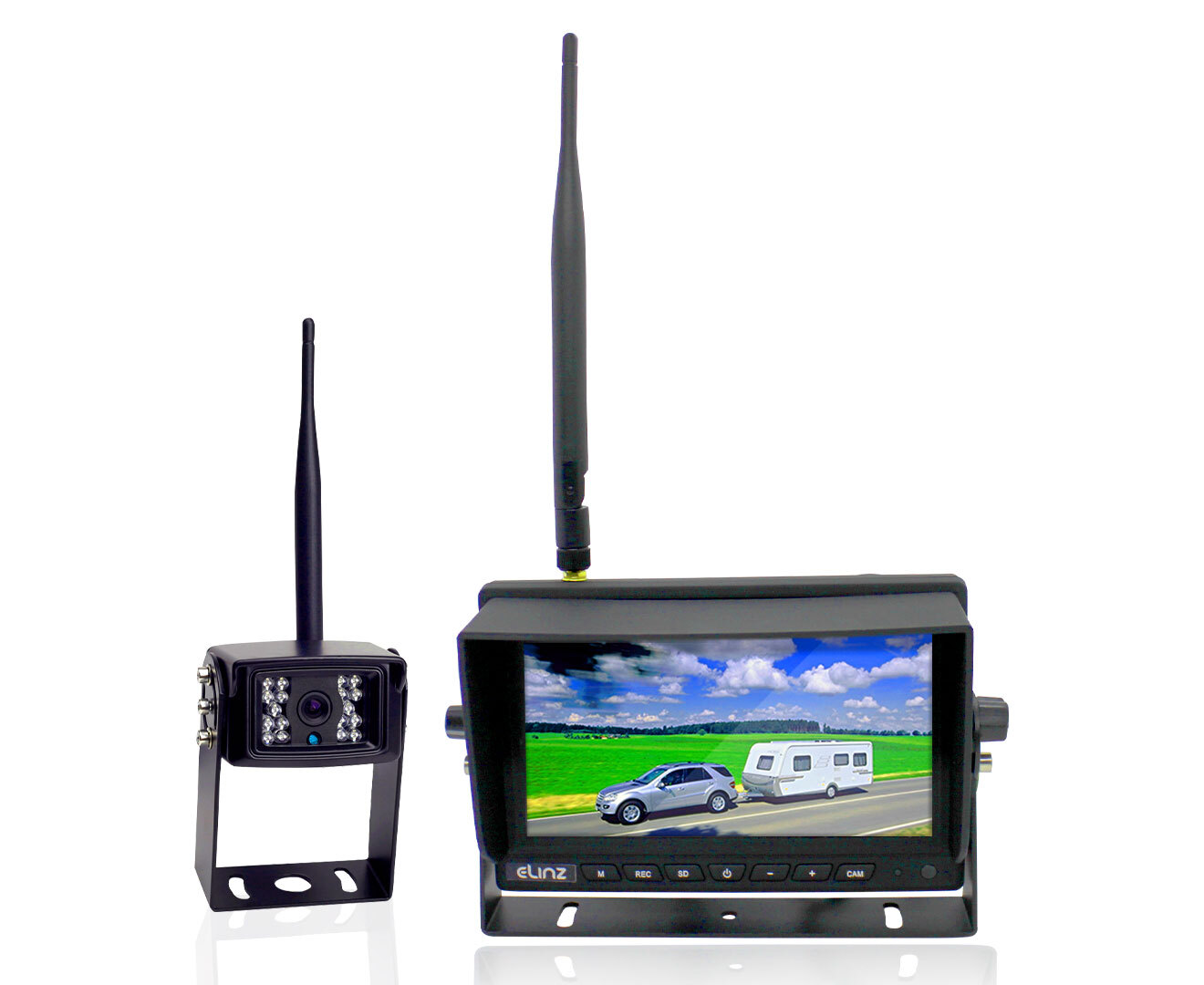

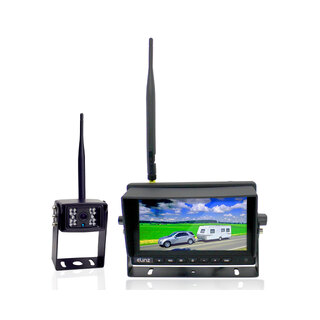

Elinz Digital Wireless 7" Splitscreen Monitor Reversing Camera CMOS 12V 24V 2.4GHz

SKU: M72CH-1xRVDWT

WiFi IP Camera 1080P CCTV

*Only 1x Camera included in the package

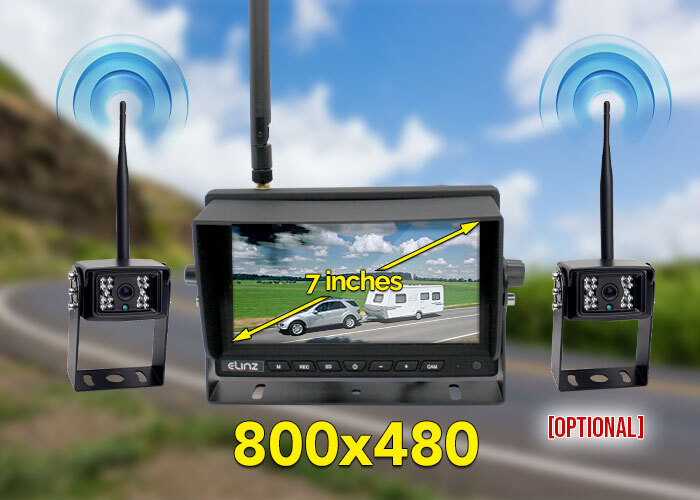

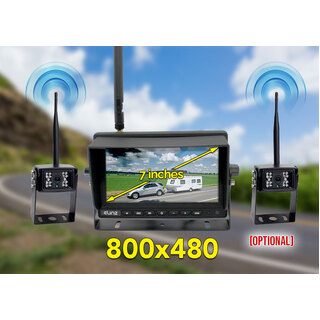

7 inches TFT-LCD Split Screen Monitor

7" TFT-LCD Monitor

  • 800 x 480 resolution
  • Audio recording for all 2 channels wireless cameras
7 inches Split Screen Monitor

Split Screen Monitor

  • It can be single screen or double screen.
1080P Full HD Video Camera

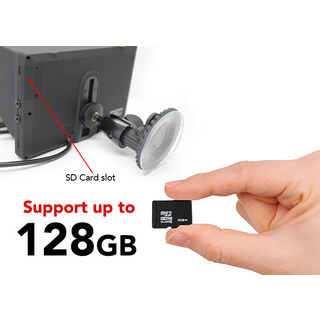

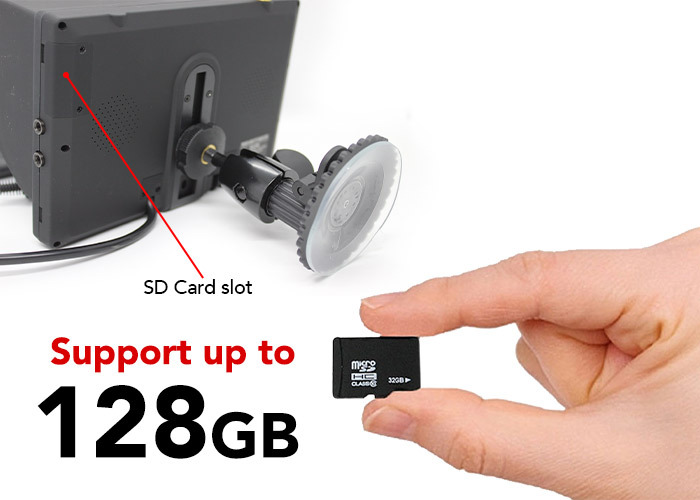

DVR Recording Function

  • Can support up to 128GB SD card (SD card not included), available to be purchased separately.

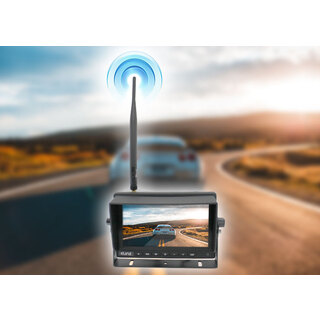

Wireless Rear View System

Wireless Rear View System

  • You do not need to run wires to connect the camera and monitor.

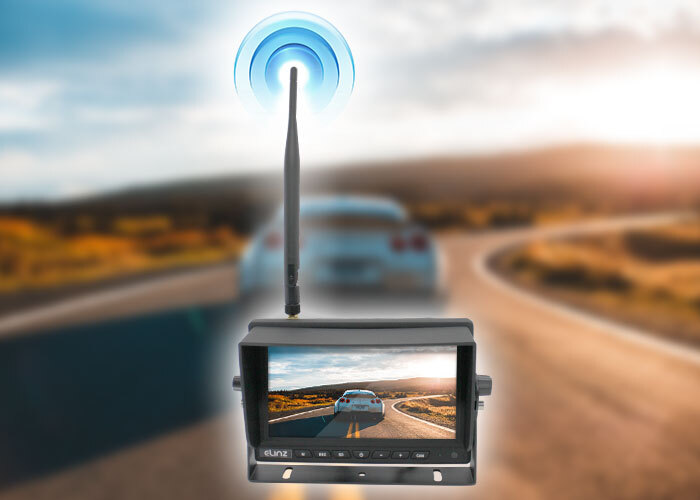

2.4GHz Digital Wireless Transmission Up to 200M

2.4GHz Digital Wireless Transmission Up to 200m

  • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
  • Stable signal and HD image
  • Improved wireless module to provide longer transmission distance of 30m-200m
  • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
  • Stable transmission up to 100km/h
Universal Fit Reversing Camera System

Universal Fit

  • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
  • Suitable with 12V/24V power supply

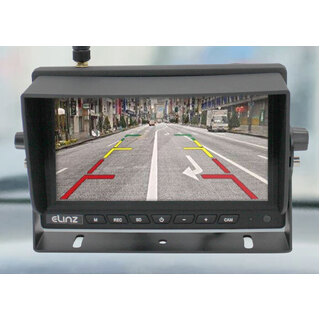

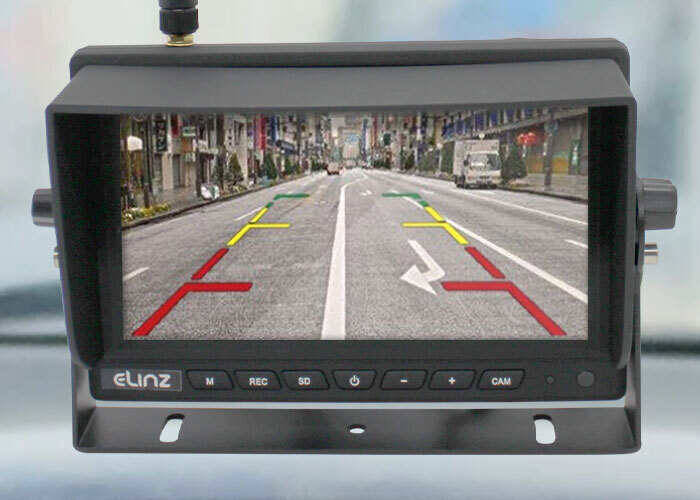

Wireless Reversing Camera Parking guideline

Parking guideline can be turned on / off

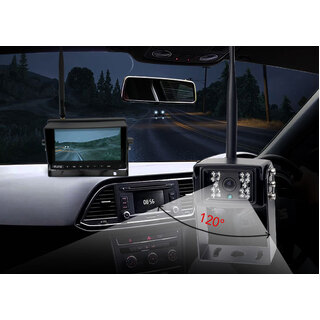

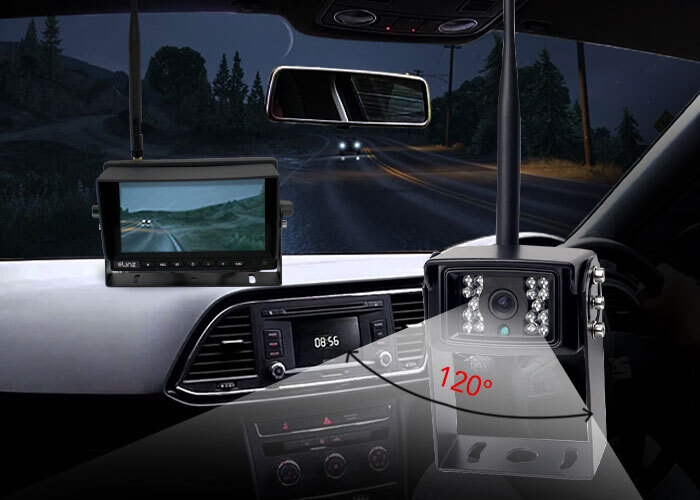

120 degrees Wide Angle View

120° Wide Angle View

  • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
Industrial Grade Heavy Duty CMOS Camera

Industrial Grade Heavy Duty CMOS Camera 800TVL

  • High resolution 800 TVL
  • Bigger bracket to provide much better angle
  • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • IP68 Waterproof Camera - very durable and suitable in all environments
Night Vision Camera

Night Vision Camera

  • 18 Built in IR LED
  • Automatic night vision distance at 10 metres
Easy to install Wireless Reversing Camera Kit

Easy to install

  • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
Monitor Labels and Dimensions

Monitor Dimensions

Camera Dimensions

Camera Dimensions

Monitor Labels and Dimensions

Monitor Views and Labels

Camera Dimensions

Camera Views and Labels

Camera Dimensions

Wiring Labels

Camera Dimensions

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

  • Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.
Camera Dimensions

Remote

  • * No Batteries Included

MORE INFORMATION

This Wireless monitor and camera kit is design for a long range signal monitor and cameras communications, it's about 30-200m. 200m when no barrier or even 170m at maximum range for high quality output for time to time audio and video recording.

This reversing camera kit has 2 wireless channels, so can connect up to 2 wireless cameras.

Uninterrupted connection in Multi-Angle of the cameras matched with 7" SplitScreen Monitor will give you asatisfactory output. It has a camera with 120 degree view angle and 2.4Ghz transmission.

PRODUCT HIGHLIGHTS

  • 7" TFT-LCD Split Screen Monitor
    • 800 x 480 resolution
    • Audio recording for all 2 channels wireless cameras
  • Split Screen Monitor
    • It can be single screen or double screen
  • DVR Recording Function
    • Can support up to 128GB SD card (SD card not included, available to be purchased separately
  • Wireless Rear View System
    • You do not need to run wires to connect the camera and monitor.
  • 2.4GHz Digital Wireless Transmission Up to 200m
    • 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
    • Stable signal and HD image
    • Improved wireless module to provide longer transmission distance of 30m-200m
    • Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
    • Stable transmission up to 100km/h
  • Universal Fit
    • It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
    • Suitable with 12V/24V power supply
  • Parking guideline can be turned on / off
  • 120° Wide Angle View
    • 120° wide angle rear view camera with infrared night vision help us parking our vehicles safely
  • Industrial Grade Heavy Duty CMOS Camera 800TVL
    • High resolution 800 TVL
    • Bigger bracket to provide much better angle
    • Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
    • IP68 Waterproof Camera - very durable and suitable in all environments
  • Night Vision Camera
    • 18 Built in IR LED
    • Automatic night vision distance at 10 metres
  • Easy to install
    • The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car
  • Optional cameras are available to be purchased from our store

ITEM DESCRIPTION

  • LCD size: 7"
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500 | 1
  • Brightness: 400cd/m²
  • Viewing Angle: U: 50 / D: 70, R/L: 70
  • Dot pitch: 0.0642(W) x 0.1790(H)
  • Aspect Ratio: 16 | 9
  • Channel: 2 channels
  • Operating Frequency: 2400 - 2483.5 MHz
  • Receiving Sensitivity: -89 dBm
  • Decompression Form: MPEG4
  • Transmit Output Power: 17 dBm
  • Modulation: 2.4G FSK/GFSK
  • Time Delay: 120ms
  • Transmitting Distance: 30-200M
  • Micro-SD /TF Card: Max. 128GB
  • System Format: PAL / NTSC
  • Power Supply: DC 10-32V
  • Power Consumption: Max. 6W
  • Loudspeaker: 1.5W/8Ω
  • Operating temperature: -20~+70ºC, RH90%
  • Storage temperature: -30~+80ºC,RH90%

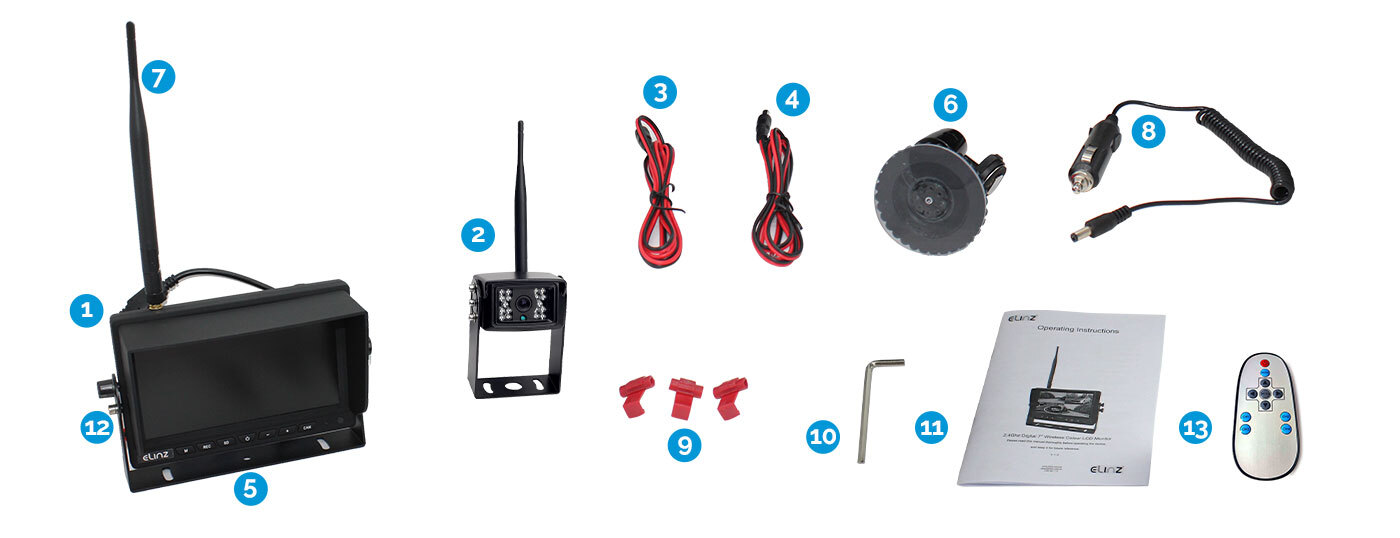

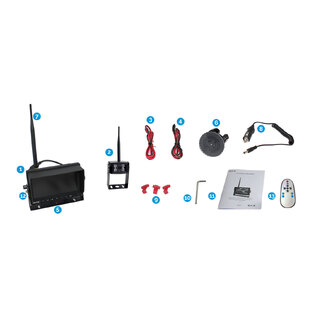

WHAT'S INCLUDED

1. 7” TFT LCD Monitor

2. 1x Monitor Antenna

3. Screws

4. 1x Monitor Stand

5. 1x Wireless Colour CMOS Camera

6. Camera Power Cord

7. Monitor Power Cord

8. 1x Monitor Suction Mount

9. 1x Car Charger

10. 3x Wire Tap Connectors

11. Allen Wrench

12. User Manual

13. 1x Remote (*Batteries Not Included)
