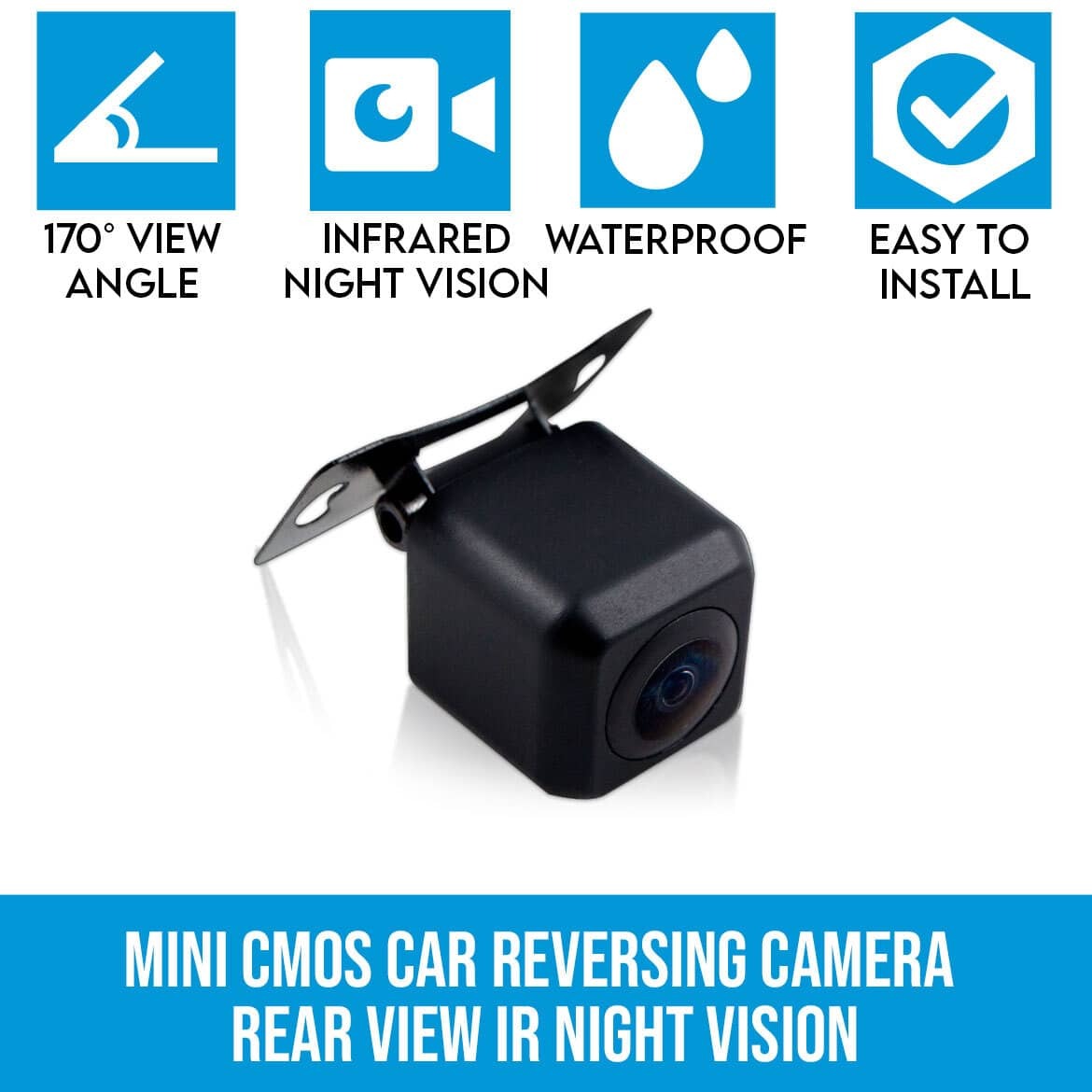

Mini CMOS Car Reversing Camera Rear View IR Night Vision

Payment made easy

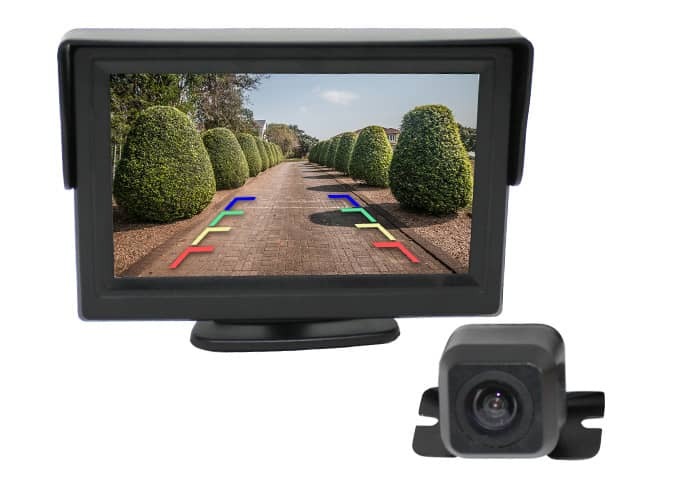

Brand New CMOS Car 12V Reverse Camera Colour Rear View IR Night Vision with Cable

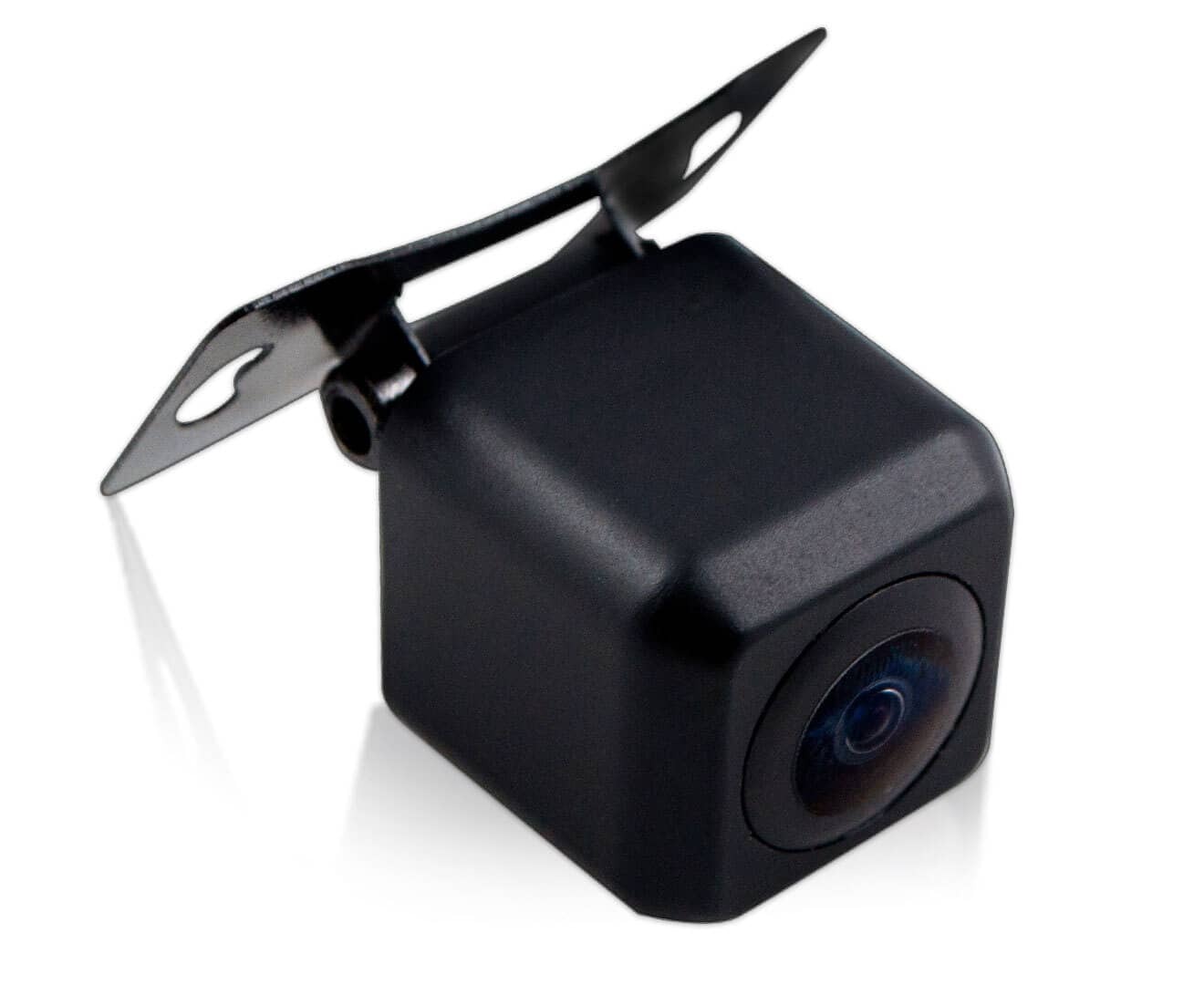

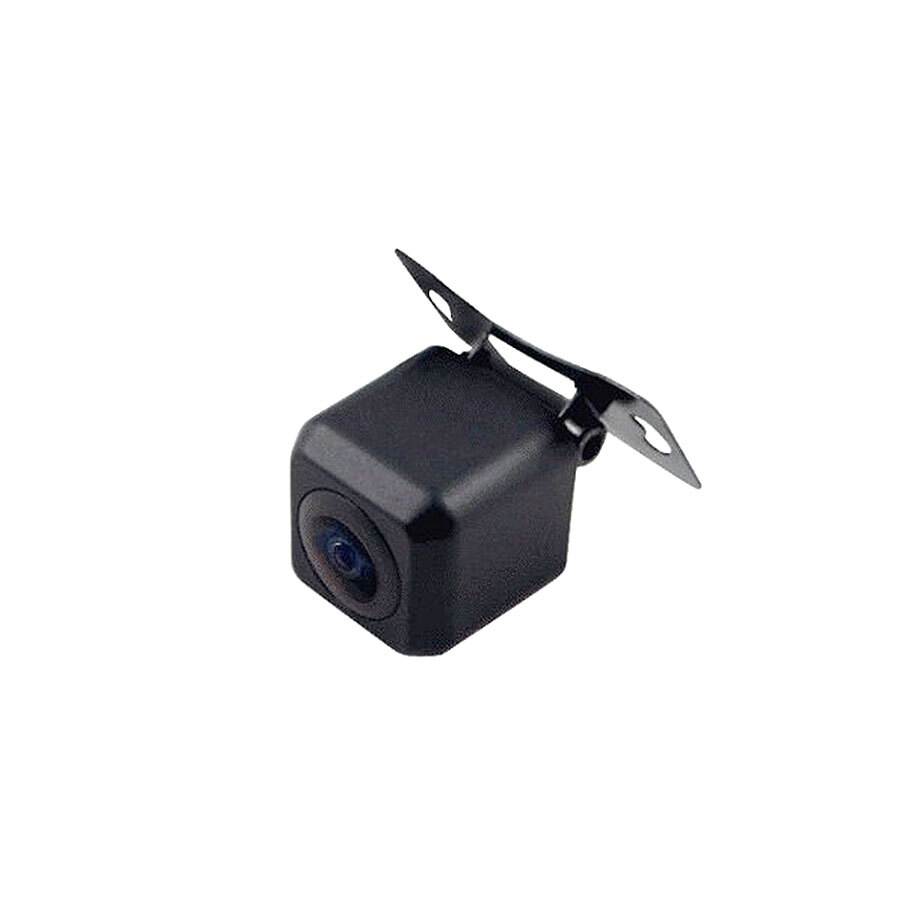

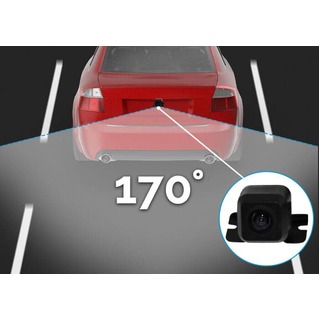

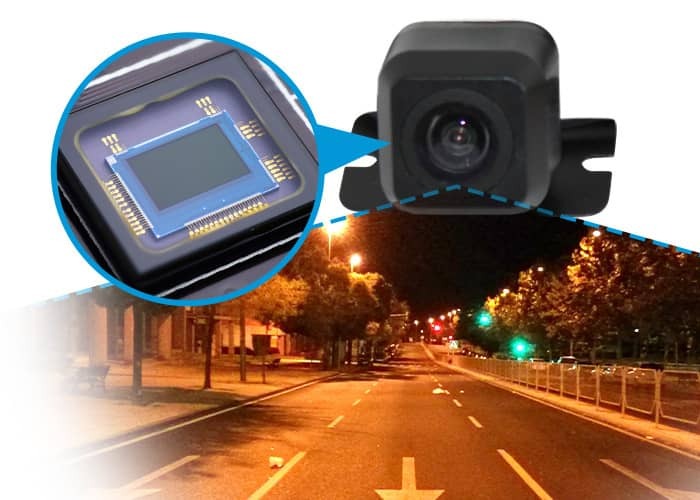

Small colour mini camera which can be invisibly mounted to the lower outside areas of a vehicle or to a vehicle's bumper. Its 170° lens provides a wide viewing angle to prevent accidents while parking or reversing. No more scratches or dents on the rear bumper bar! With an in-built photosensitive chip and infrared night vision the camera also provides night vision viewing.

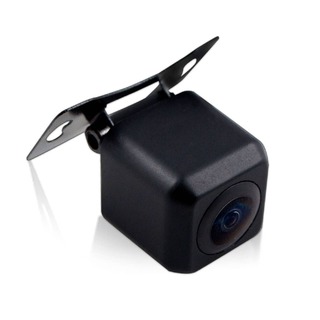

Compact and smartly designed this weatherproof camera comes with a mounting bracket to easily fit it in any discreet position. For example mount the camera above the number plate and run the cable through the existing cavity of the number plate lighting. No drilling on the bodywork is required!

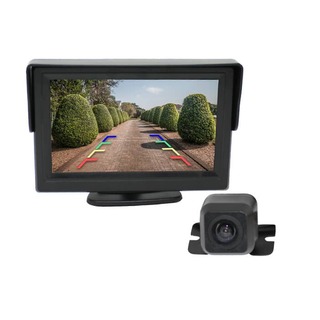

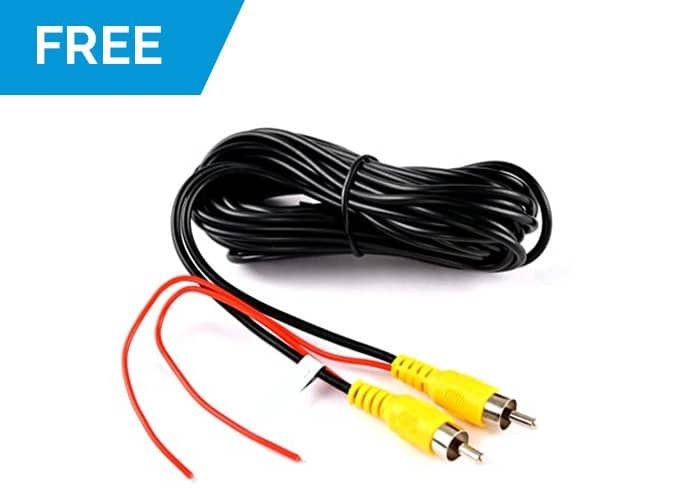

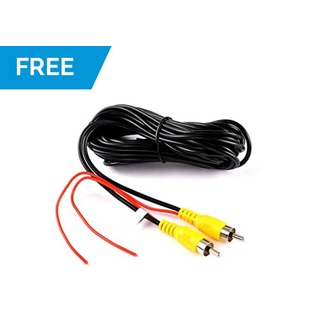

Also supplied is a 5m RCA video cable for connecting the camera to your own monitor.

Dimensions of reversing camera RVSMALL

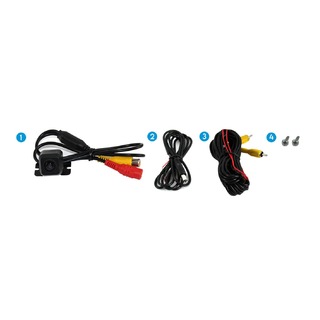

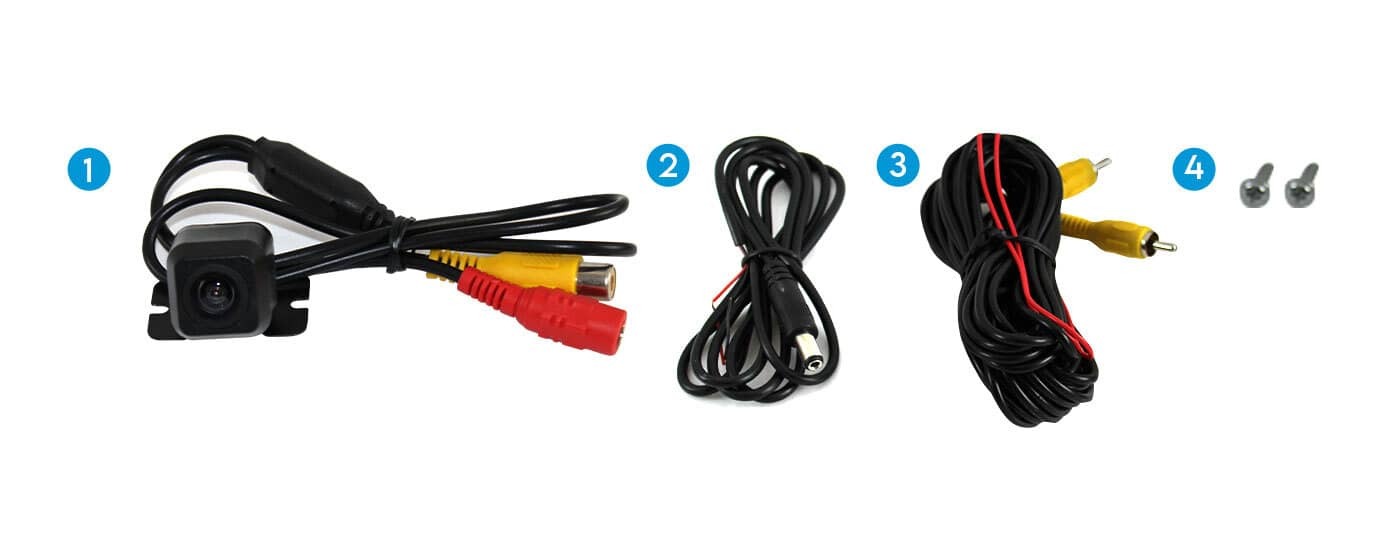

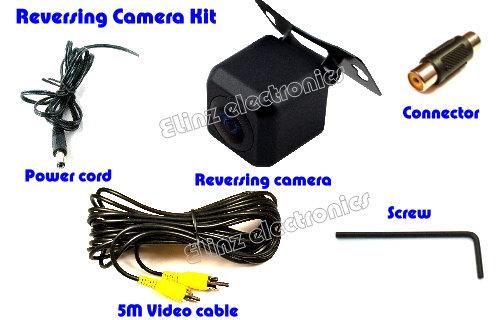

Reversing camera accessories RVSMALL

(RVSMALL)

Image Sensor: Colour CMOS
Resolution: 420 TV Lines
Min Illumination: 0.1 Lux/F=1.2 (0 Lux with IR Night Mode)
Mirror Image
Video Output: 1.0Vpp Composite Video at 75ohm
Operating Temp: -20C to 50C
Power: DC12V 60mA
Built-in photosensitive chip with IR Infra Red Night Vision no LED light
TV system: PAL

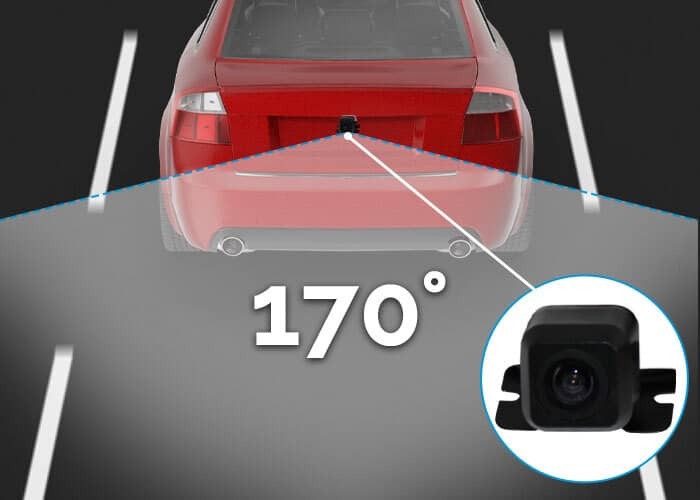

Lens angle: 170°
Sensing area: 4.08 mm *3.12 mm
Shutter speed: 1/60-1/5000
White balance:auto
Whiteproof: IP67/68
Dimensions: 20mm(w) x 20mm(l) x 20mm(h)

SKU	RVSMALL
Barcode #	0686494501706
Shipping Weight	0.2000kg
Shipping Width	0.090m
Shipping Height	0.065m
Shipping Length	0.100m
Shipping Cubic	0.000010m3
Unit Of Measure	ea

Good little camera for sunny condition

By: Anthony on 15 October 2014
Camera work great down fairly low light, Was purchased to replace one that died after the car when through the car wash. It's a pity the image strobe in bright sun light and becomes pretty unusable. But not a bad picture for the size of the camera

(3)

camera life

By: neil on 5 April 2013
excelent field of view , nut/bolt not corrosion resistant, lost colour picture after 12 months or so usage. now after 16 months black & white picture is washed out , but still I am replacing it with same camera . Reasonable value for money.

(5)

Write a product review

1. What’s the difference between this and the other CMOS camera (RV2)?
This camera uses a photosensitive chip instead of infrared lights—it still has night vision, although it isn’t as clear. However, this camera is much smaller, making it very easy to hide. This mini CMOS camera also has higher resolution and a wider angle in comparison to the other camera.

2. What if I require a longer video cable?
Although a 5M cable has already been included with the camera, you can get an extra or a longer cable (10M and 20M) from us for an additional price.

3. Is it easy to install?
Yes. The camera comes with a mounting bracket so you can easily install and place it in any discreet position.
