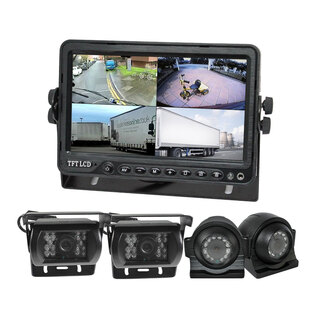

Elinz 7" DVR Quadscreen 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V Bus Truck Caravan

4 Cameras~Night Vision~HeavyDuty~For Bus & Trucks~10M

(SKU: DVR7N-RV4PIN-FWR-BUSIDEx2)
AUD $464.95
In Stock


Payment made easy


Share:


7" DVR Quadscreen 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V

SKU: DVR7N-RV4PIN-FWR-BUSIDEx2

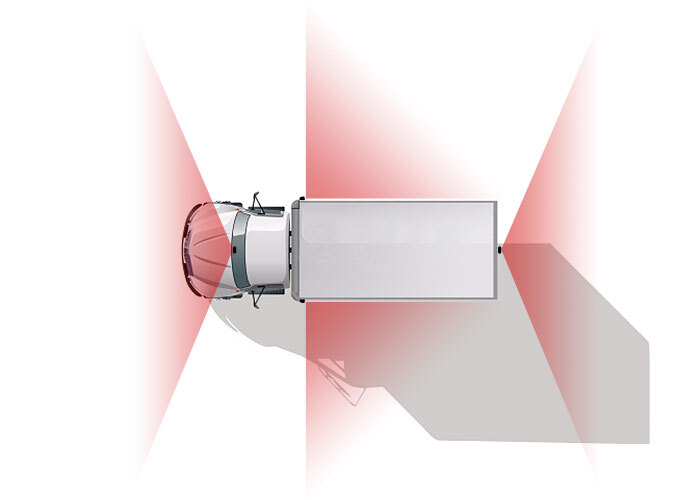

360° View for the Driver



  • One forward view camera, one reversing view camera, and 2 side view camera.

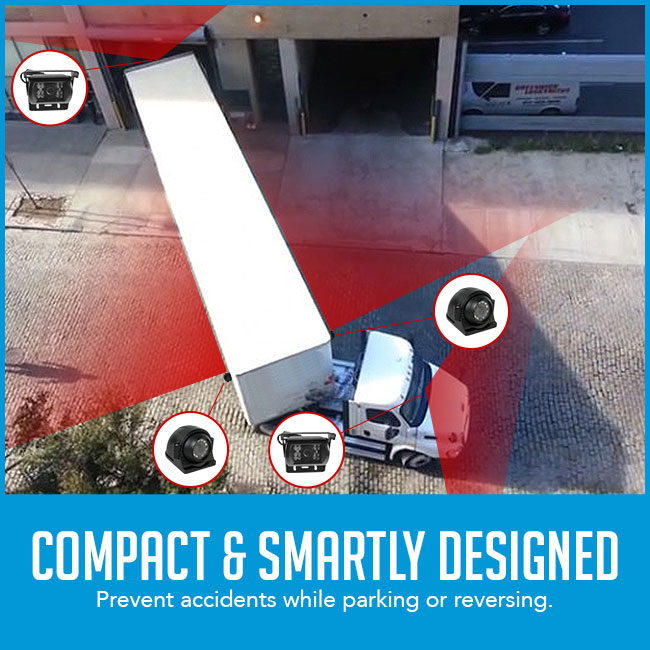

Compact & Smartly Designed

  • Prevent accidents while parking or reversing
4 Input 1 Output Reverse Camera Monitor

3 Video Input + 1 Audio Video Input

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
SD Card Slot

Save Recordings in SD Card

  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
  • It can support up to 256GB SD card. (SD card not included)

    Note: Monitor do not have built-in speakers

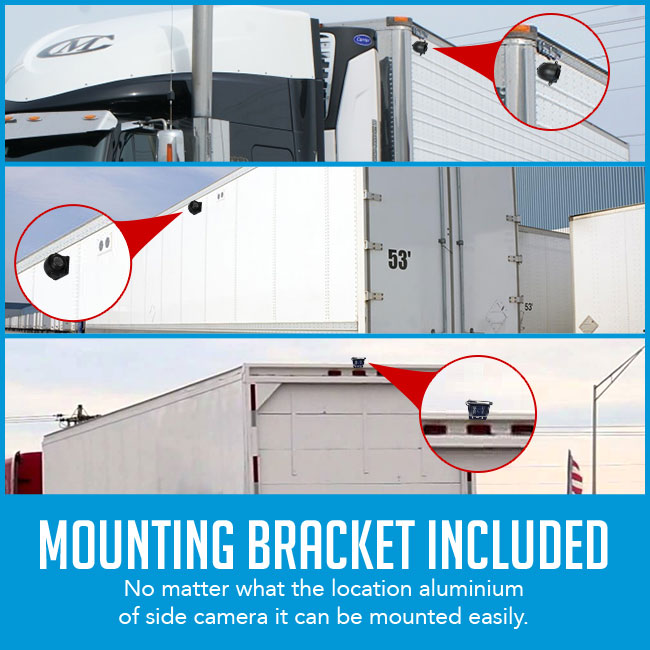

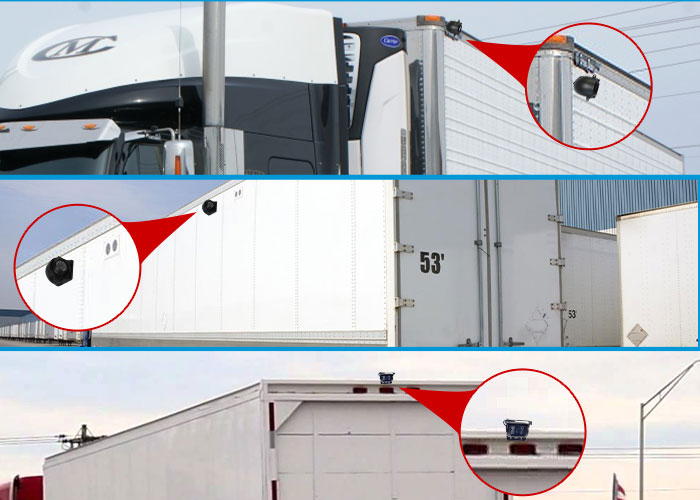

Mounting Bracket Included

  • No matter what the location aluminium of side camera it can be mounted easily

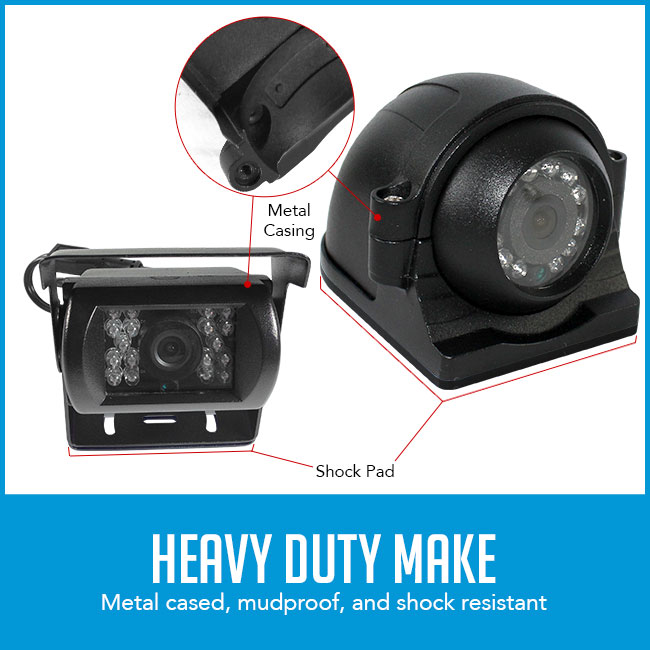

Heavy Duty Make

  • Metal cased, mudproof and shock resistant

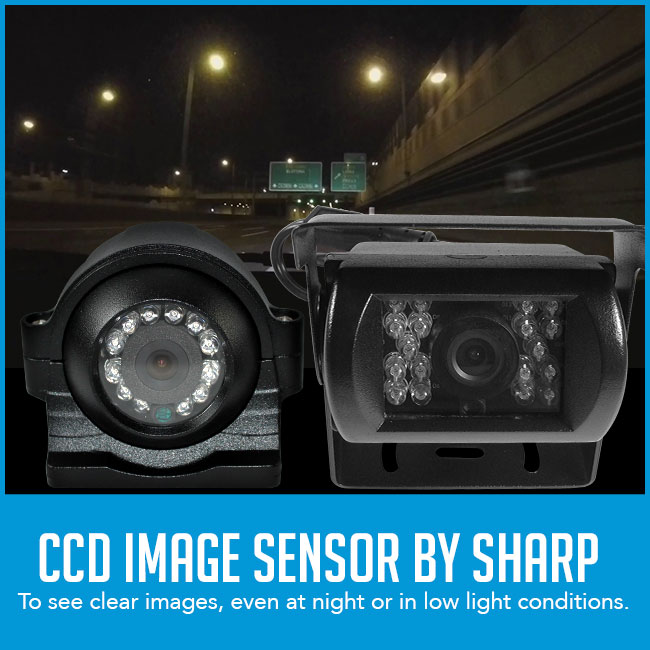

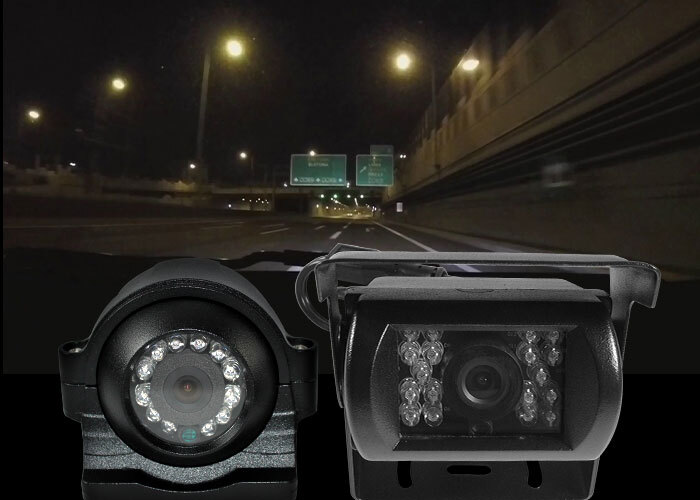

CCD Image Sensor by Sharp

  • To see clear images. even at night or in low light conditions

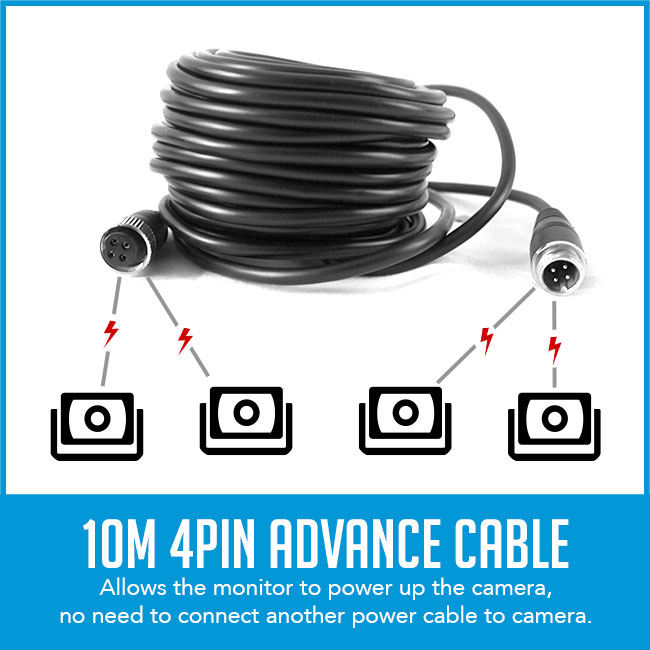

10M 4PIN Advance Cable

  • Allows the monitor to power up the camera, no need to connect another power cable to camera.

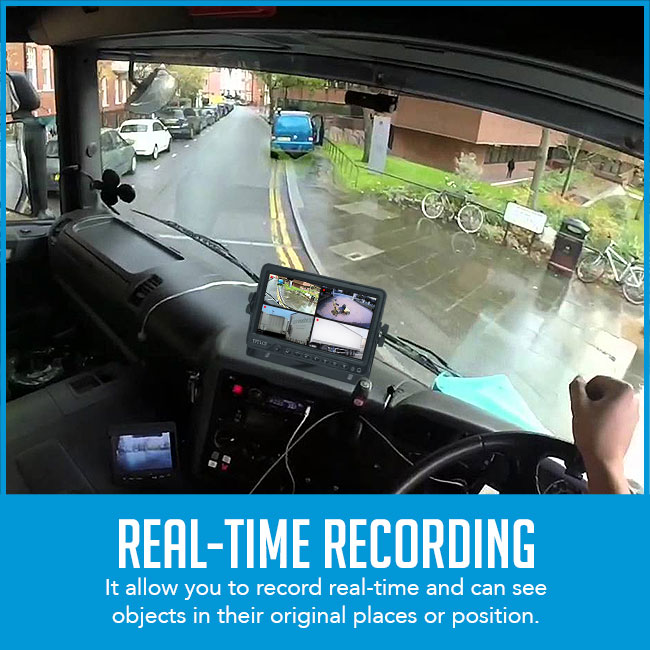

Real-time Recording

  • It allows you to record real-time and can see objects in their original places or position

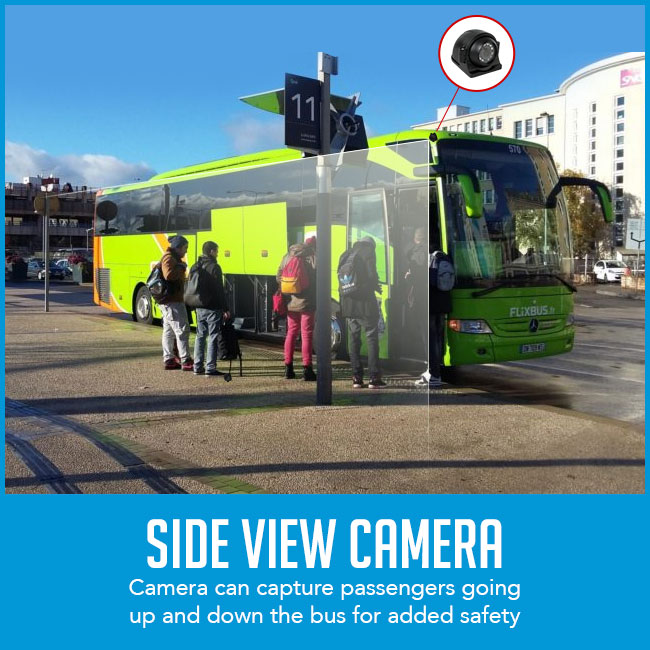

Side View Camera

  • Camera can capture passengers going up and down the bus for added safety.

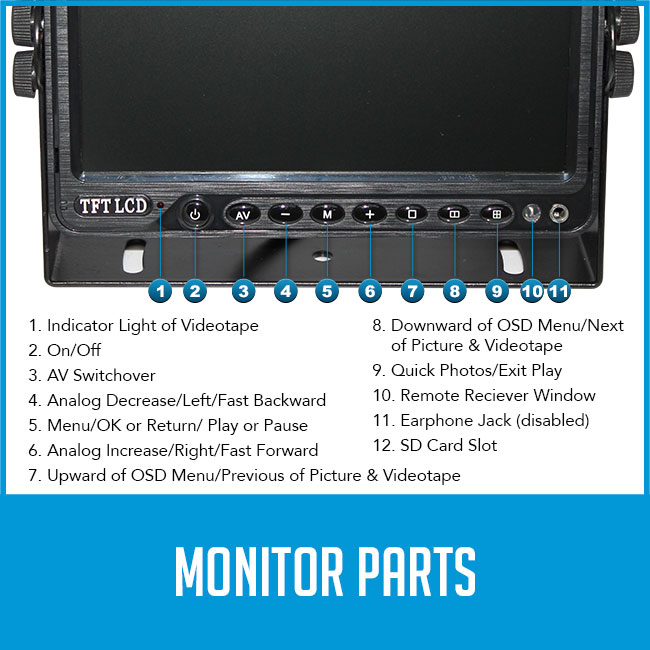

Monitor Parts

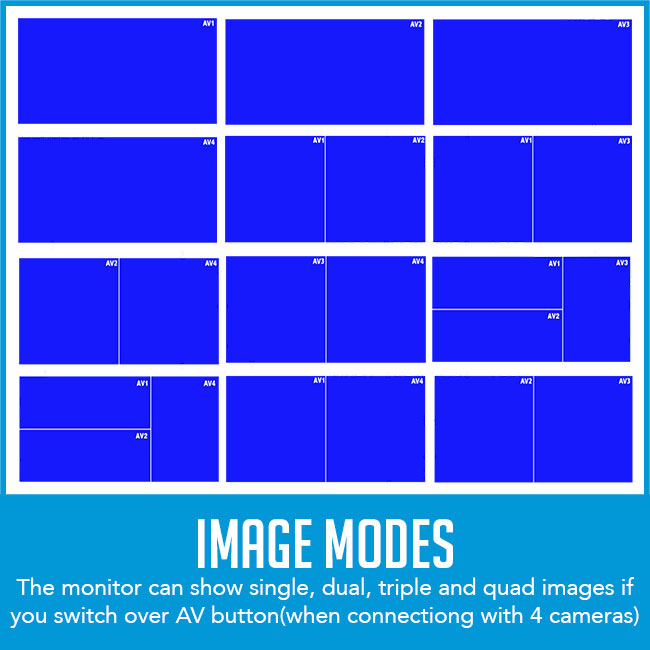

Image Modes

  • The monitor can show single, dual, triple and quad images if you switch over AV button (when connecting with 4 cameras)
Remote Control

Remote

  • * No Batteries included

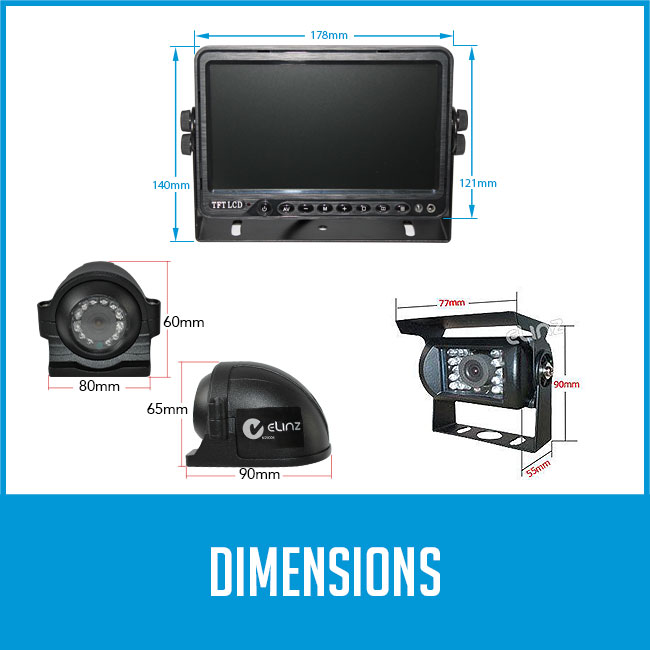

Product Dimensions

MORE INFORMATION

Quadscreen Reverse Camera to Accompany You in Your Fleet Management Service and Trucking Business

Being in a fleet management service and trucking business can be challenging. You need to invest in equipment and the latest technology to ensure full and efficient daily operations. More so, you don't just spend on the machines and innovations. You need to ensure the safety of both your vehicle and drivers. On top of these all, you need to guarantee the cost-efficiency of your trucking and fleeting activities. To address all these, you need an excellent-performing reversing camera kit to help your field workers get to their destination promptly and safely.

7" DVR Quadscreen 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V Bus Truck Caravan

Our 7-inch DVR reversing camera kits boasts of four cameras which include one forward view camera, one reversing view camera and two side view cameras that offer a 360-degree view for the driver. Meaning, this is perfect for your huge vehicles in a business like the truck or van. With 4 Channels simultaneously to full-time live record and 4 ways video input, 4 ways audio input, 1-way video output.

PRODUCT HIGHLIGHTS

  • 7 inch digital TFT panel with 4 Channels simultaneously to full time live recording
    • Quadscreen recording support up to 4 cameras
    • All camera views can be shown on the screen at all times when driving.
    • The monitor can show single, dual, triple and quad image if you switch over AV button
  • 3 Video Input + 1 Audio Video Input
    • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
    • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
    • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
    • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
  • Forward Camera real time images
    • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
  • Save Recordings in SD Card
    • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
    • It can support up to 256GB SD card. (SD card not included)

      Note: Monitor do not have built-in speakers
  • Car, Trucks, Bus rearview system + Real time recorder
    • Perfect for truck or Caravan that need to monitor the rearview all the time
  • Reversing camera image can show up automatically on screen when reversing gear is induced.
  • Tough and heavy-duty camera
    • The cameras are built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
  • CCD image sensor from Sharp
    • The reversing cameras feature a CCD image sensor from the Sharp Company for better picture clarity, colour contrast, and sharpness.
    • They also have night vision as each camera comes infrared LED to enable users to see clear images, even at night or in low light conditions.
    • Heavy duty CCD camera is hard metal cased waterproof and mud proof. Can last for longer without heating up so you can show the rearview at all time.
  • Cameras come with 10M advanced 4 PIN cable
    • Allowing the monitor to power up the camera no need to connect another power cable to camera.
  • Quad-screen recording support up to 4 cameras
  • All camera views can be shown on the screen at all times when driving.
  • Picture adjust with single and quad pictures
  • Perfect for a truck, caravan, and other large vehicles that need to monitor the rearview all the time
  • Reversing camera image can show up automatically on the screen when reversing gear is induced.
  • All cameras have CCD image sensor made by Sharp Company

ITEM DESCRIPTION

Monitor

  • 7 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 4 ways video input,4 ways audio input, 1 way video output
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in: 4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply

2x Side View Cameras

  • 2x Side View Cameras
  • Camera Angle: 90 degree wide angle
  • LEDs: 12 IR LEDs
  • IP68 waterproof rating
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Compatibility: NTSC/ PAL switch
  • Horizontal Resolution: 420 TV Lines
  • Connection: Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*
  • NTSC/ PAL switch
  • Robust Heavy Duty Make - 10G Vibration Ultra Bright Wavelength

Forward View Camera and Reverse Camera

  • Forward View Camera and Reverse Camera
  • Camera Angle 120 degree Wide angle
  • LEDs: 18 IR LEDs
  • Colour infrared night vision waterproof CCD reverse camera
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Suitable for use with trucks/ caravans/ cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*

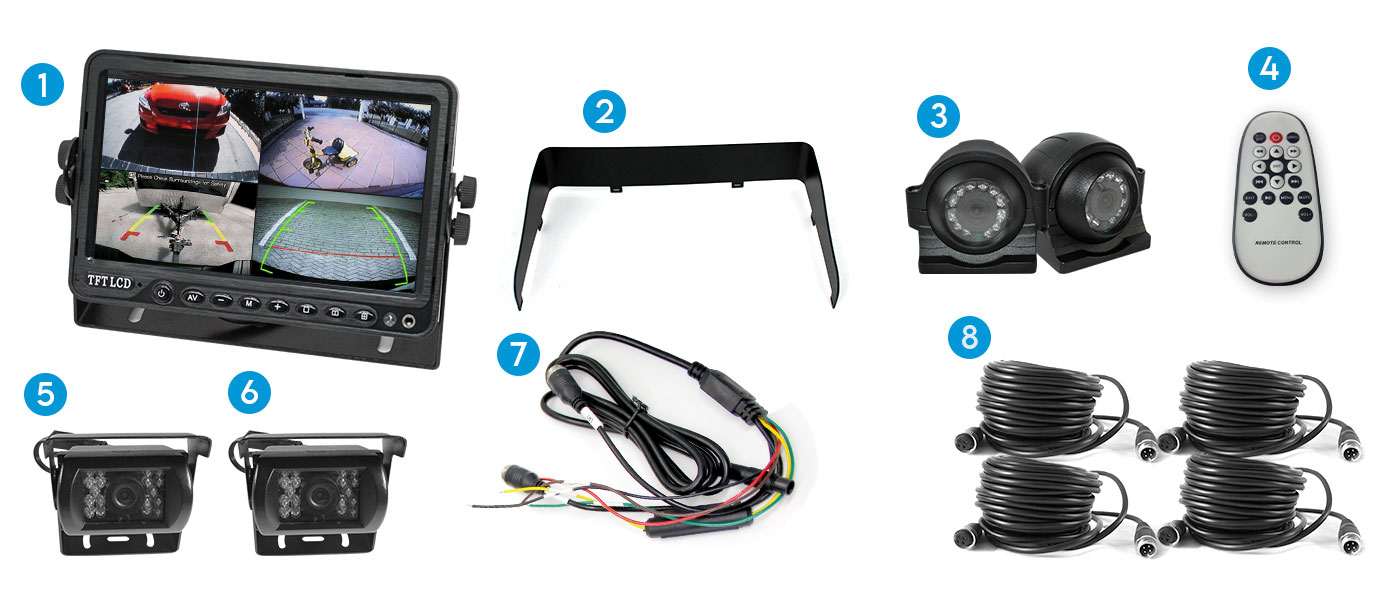

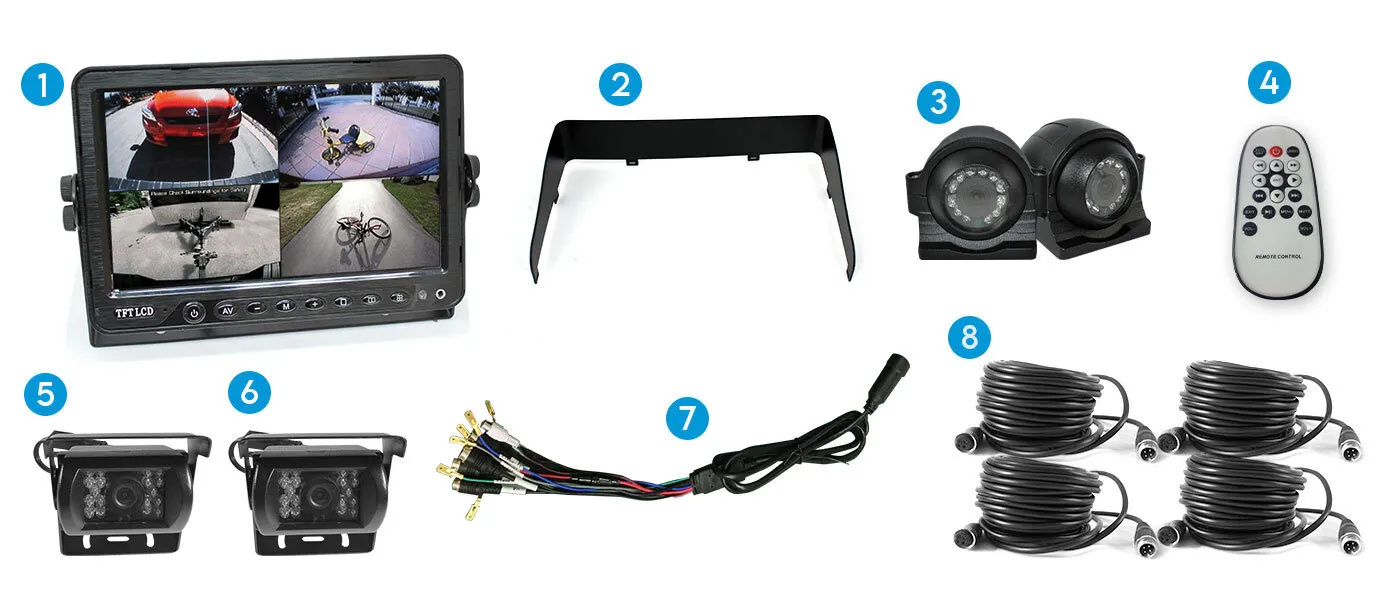

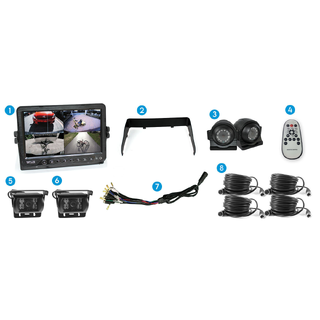

WHAT'S INCLUDED

1. 1x 7inch 4 Split DVR Monitor

2. 1x Sun Shade

3. 2x 90° Side View Cameras

4. Remote (* Batteries not included)

5. 1x Forward View Reversing Camera

6. 1x Reversing Camera

7. 1x Power harness

8. 4x 10M 4PIN Cable
