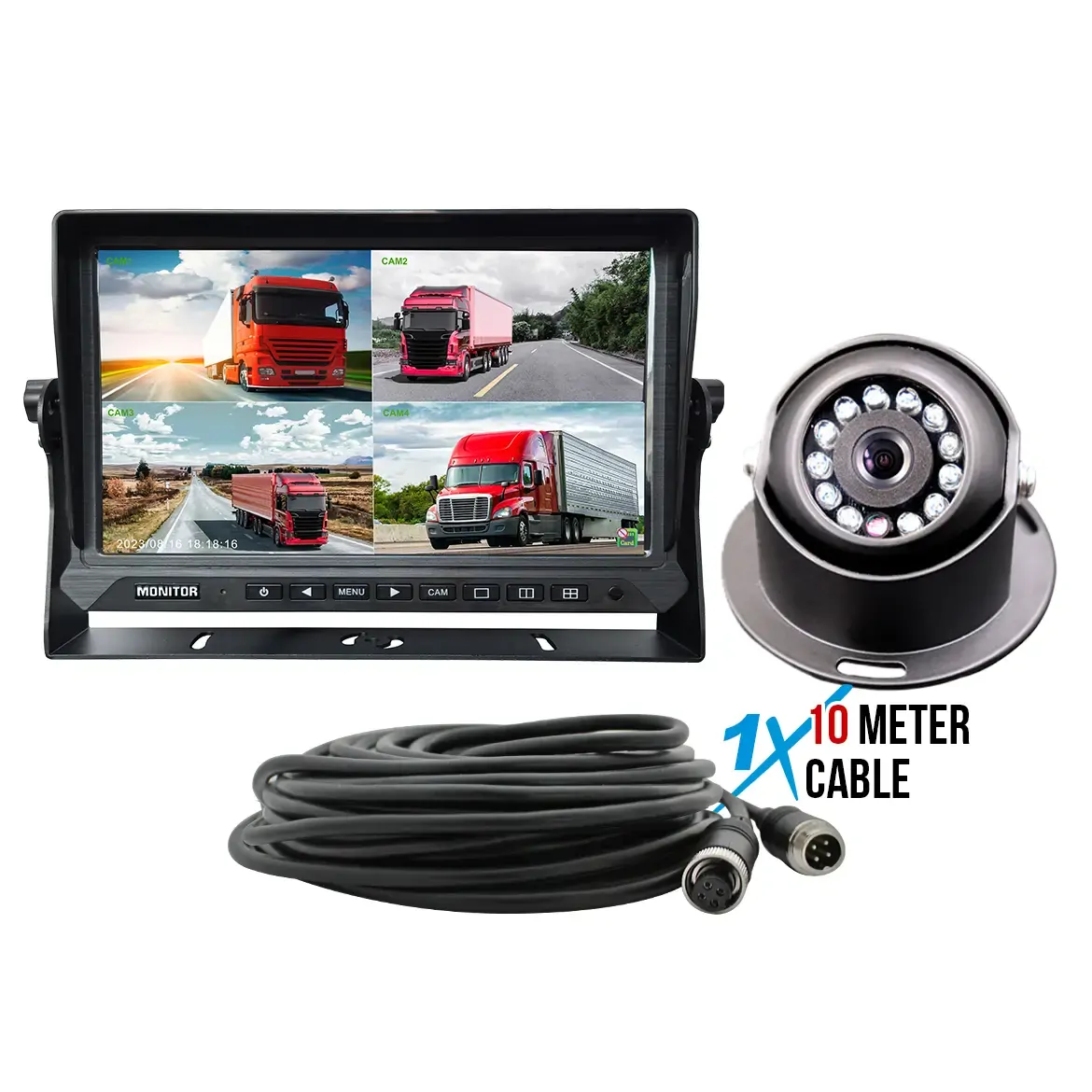

Elinz 10" 4CH DVR AHD Monitor 1080P Black Heavy Duty Dome Reversing Camera 10M Cable

The Elinz 10" 4CH DVR AHD Monitor with 1080P Heavy Duty Dome Reversing Camera provides clear, reliable visibility for trucks, caravans, buses, and other commercial vehicles. Featuring a large 10-inch quad-view monitor, 1080P AHD camera with a 120° viewing angle, night vision, IP68 waterproofing, and DVR support for up to 512GB SD storage, this kit is designed for safer and easier reversing.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Size: 10 inch
  • Monitor Type: AHD
  • Display Technology: LCD
  • Screen Resolution: 1024*600
  • Video Input: 720P/1080P
  • Video Channels: 4CH
  • Display: Full screen/2 or 3 Split/Quad View
  • Storage Capacity: Supports up to 512GB SD Card
  • Connection Type: 4PIN
  • Power Consumption: <5W
  • Operating Temperature: -30~ +70 ºC
  • Input Voltage: DC12V-36V
  • Output Voltage: DC12V

CAMERA

  • Heavy Duty Dome Camera
  • Video Signal: AHD (Analog High Definition)
  • Resolution: 1080P
  • Effective Pixels: 1920(H)*1080(V)
  • Eliminate Blind Spots
  • 120° Field of View Angle
  • Night Vision: IR
  • Image Sensor: CMOS
  • Video System: PAL
  • Connection: 4-PIN
  • Metal Case
  • Viewing Type: Reverse
  • Microphone: No
  • Working Voltage: DC 12V
  • Waterproof Rating: IP68

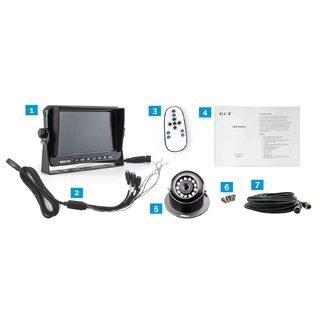

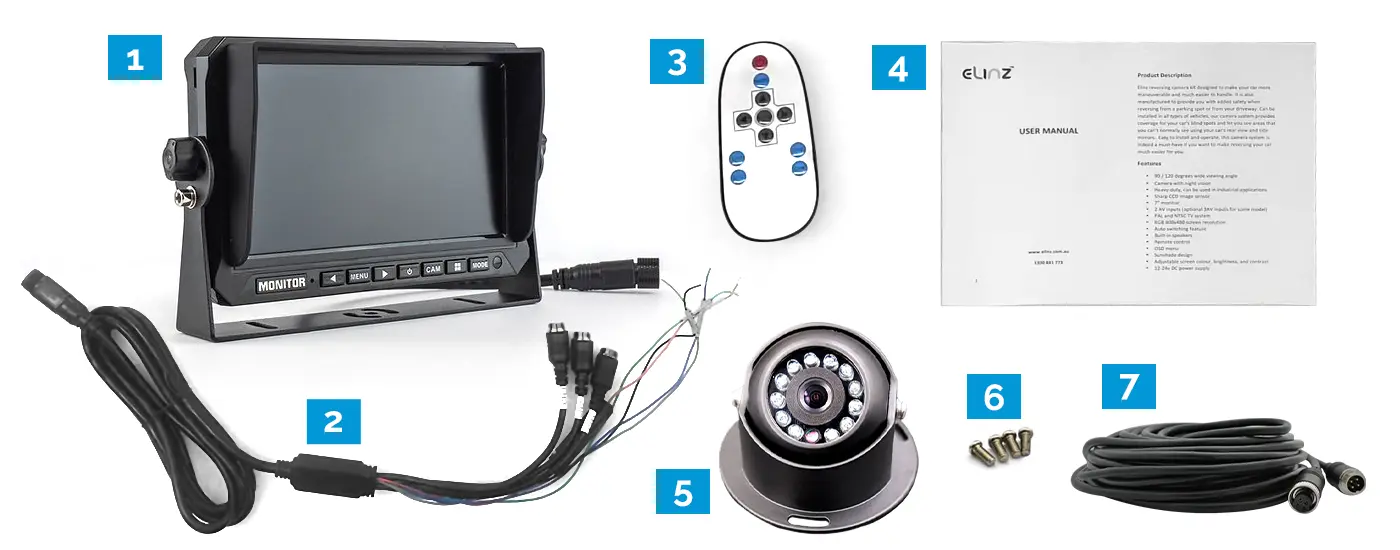

What’s Included

1. 1x Monitor

2. 1x Power Cord

3. 1x Remote (Batteries not included)

4. 1x User Manual

5. 1x Black Dome Reversing Camera

6. 4x Screws

7. 1x 4PIN Cable 10M
