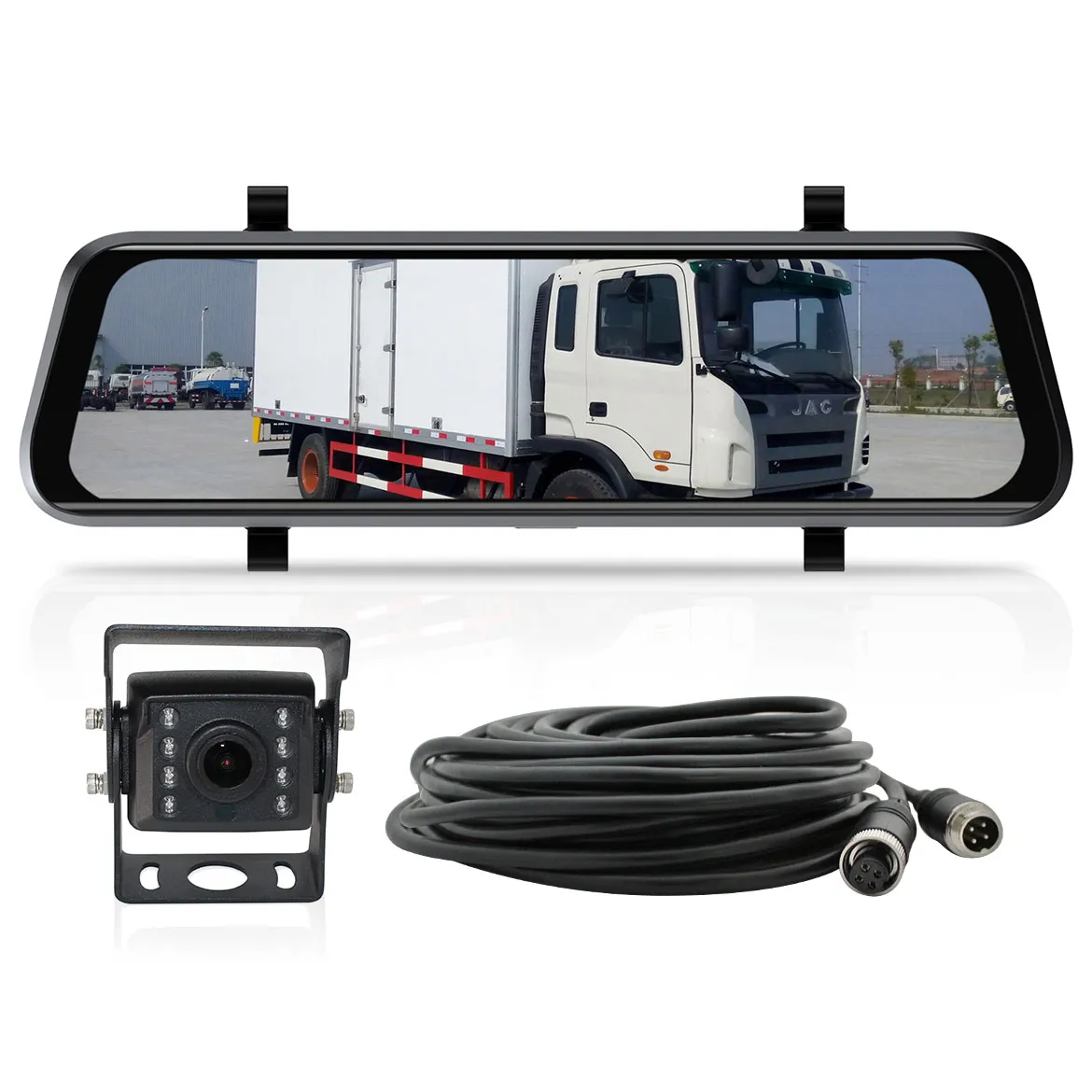

Elinz K Series 9.6" Full Screen Display Clip-on Mirror AHD Monitor Small 1080P Reversing Camera 10M Cable

The Elinz K Series 9.6" Full Screen Clip-on Mirror AHD Monitor delivers crisp, ultra-clear viewing with its high-resolution 320×1280 display, enhancing both rear and reverse visibility. Designed for seamless integration with K Series AHD cameras, it offers reliable performance, smart features, and all-weather durability for safer, more convenient driving.

The Elinz K Series Small Heavy Duty AHD 1080P Camera delivers sharp, full HD visibility with a wide 160° viewing angle for safer and more accurate vehicle monitoring. Built for continuous 24/7 use, it provides reliable performance in all lighting conditions and pairs seamlessly with all Elinz K Series AHD monitors.

PRODUCT FEATURES

Monitor

  • 9.6 Inch Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Power Wire Inverse Protection - Protects against incorrect power wiring.
  • Working Temperature - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cdm
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2
  • Camera Angles: Rear vision and reverse vision by trigger
  • Guideline: On / Off / Adjustable

Camera

  • High-Resolution Imaging - 1920×1080 resolution delivers crisp and clear video for detailed vehicle monitoring.
  • Wide Horizontal Viewing Angle - 160° field of view captures a broad area behind the vehicle, enhancing safety.
  • Reliable Low-Light Performance - Equipped with 8 IR LEDs and a 1/3" FHD image sensor supporting 0 Lux minimum illumination with F2.0 aperture.
  • Flexible Signal - Supports PAL and NTSC systems.
  • Fast Shutter Speed - Range from 1/50-60 to 1/15000 seconds, ensuring clear images even in varied lighting conditions.
  • 24/7 Operation - Designed to operate continuously, providing reliable surveillance at all times.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Storage Temperature: -30℃-80℃
  • Connector: 4PIN Aviation
  • Water Resistance: IP69K

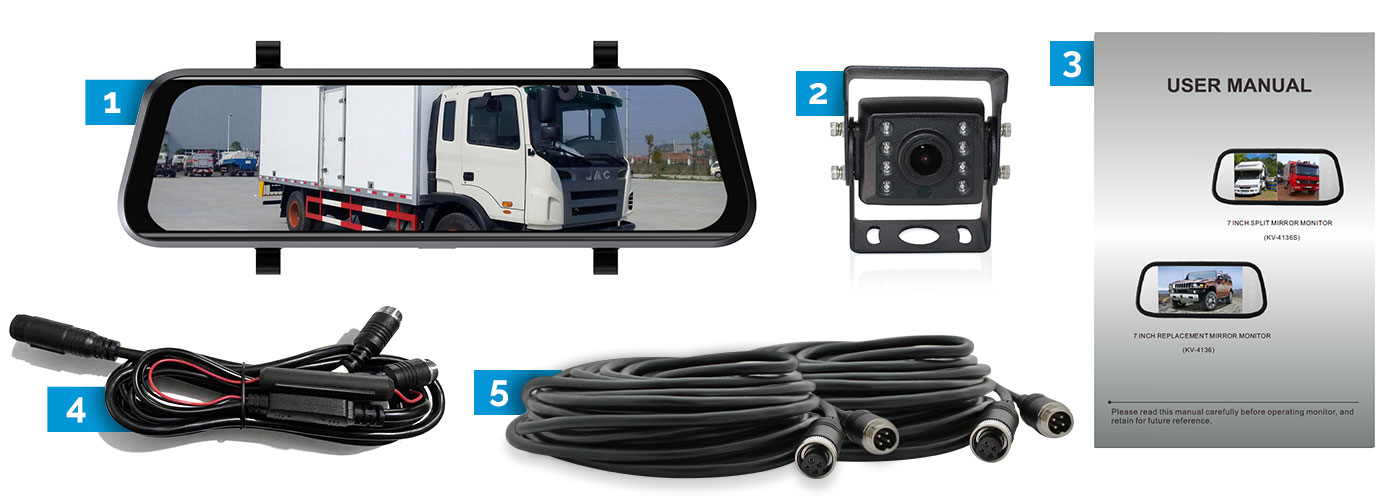

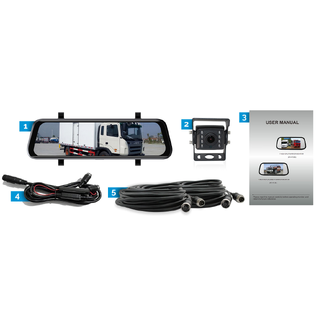

What's Included

1. 1x 9.6" Clip-on Mirror Monitor

2. 1x Small Heavy Duty Camera

3. 1x User Manual

4. 1x Power Cable

5. 2x 10M 4PIN cable
