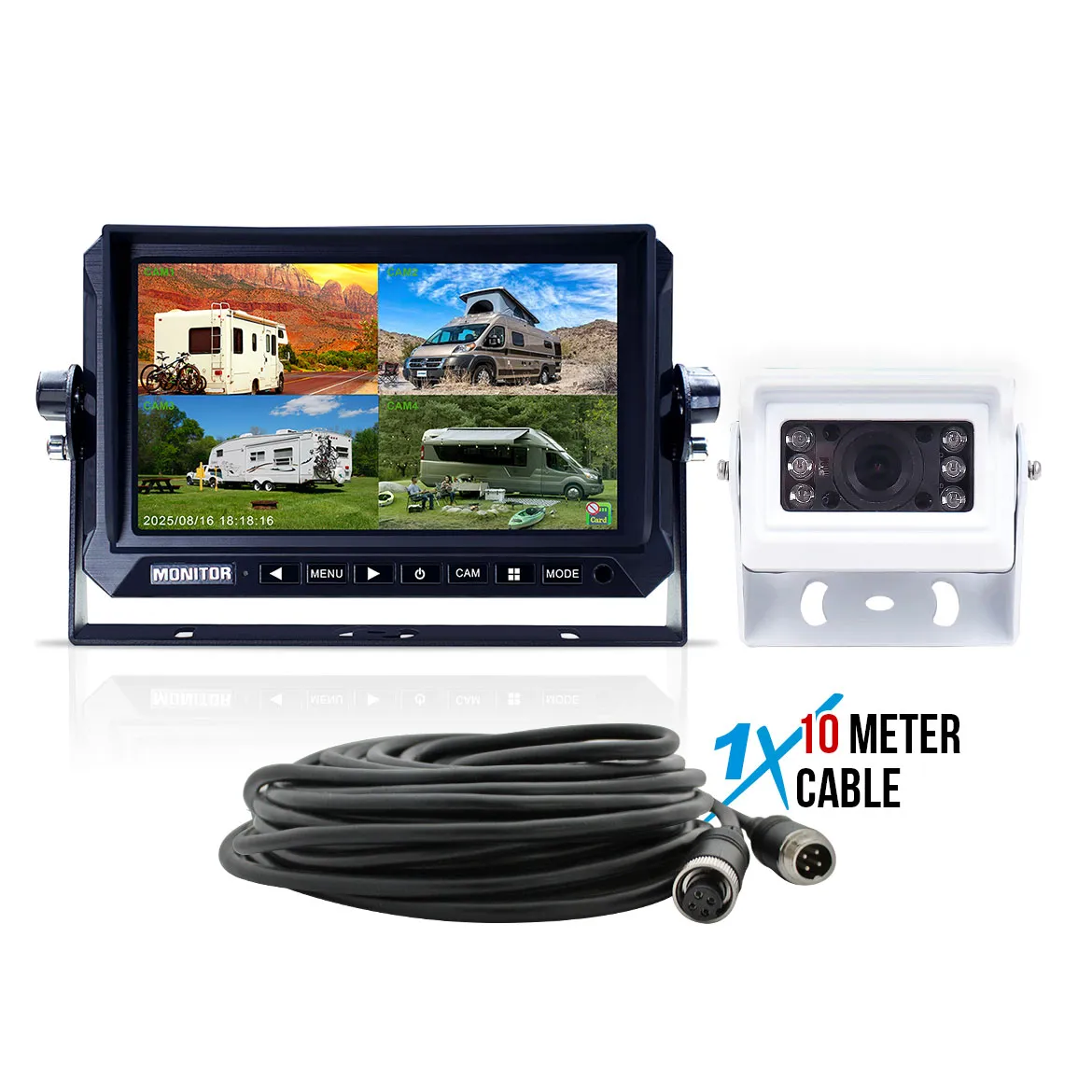

Elinz 7" AHD QuadScreen DVR Monitor Small Heavy Duty White 1080P Reversing Camera 10M Cable

The Elinz 10" AHD Quad Split Screen DVR Monitor is a powerful, all-in-one solution for enhanced vehicle visibility and safety. With high-definition AHD display, quad-view capability, and built-in DVR recording, it allows you to monitor up to four camera feeds simultaneously with clarity and ease. Designed for versatility, it supports 12V–36V systems and features a reliable 4-pin connection, making it ideal for trucks, RVs, caravans, and commercial vehicles.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Size: 7 inch
  • Screen Resolution: 1024 x 600
  • Video Signal: AHD
  • Video Channels: Supports up to 4 cameras
  • Video System: PAL
  • DVR Function: Yes
  • Recording: Real‑Time
  • Storage Capacity: Supports up to 256GB SD Card
  • Display Modes: Single, Split, Quad Screen
  • Connection: 4-Pin
  • Speakers: n/a

CAMERA

  • Image Sensor: CMOS
  • Video Signal: AHD
  • Camera Resolution: 1920*1080
  • Lens: f = 2.5mm
  • IR LED: 6pcs
  • Waterproof Rating: IP68
  • Connection: 4PIN
  • Lens Angle: 120°

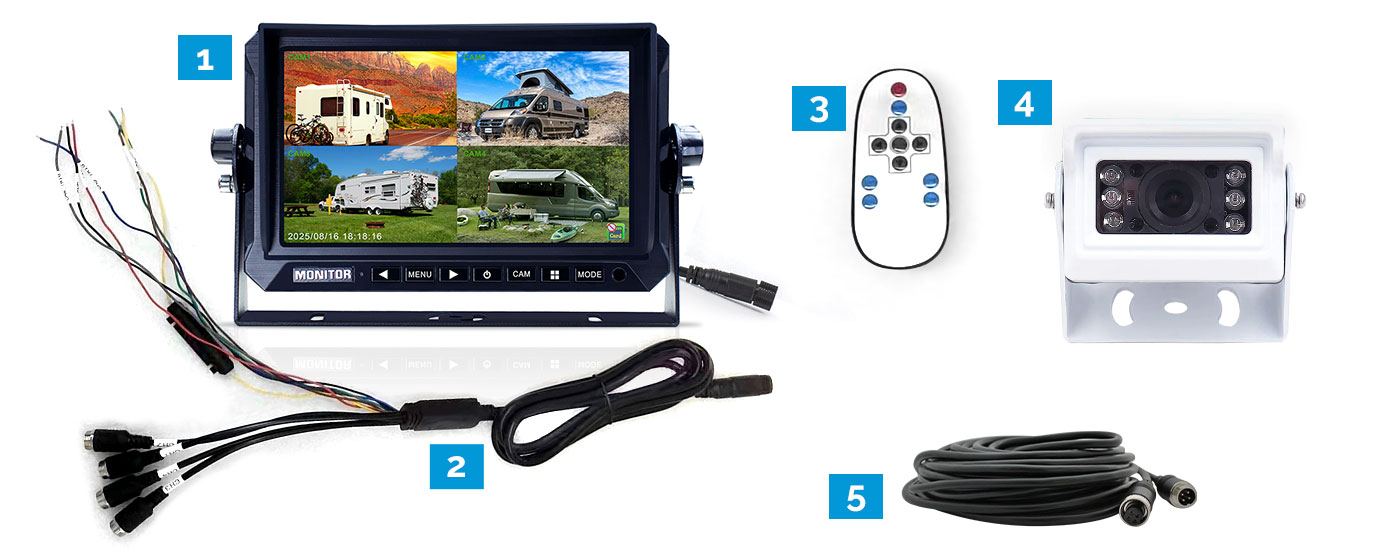

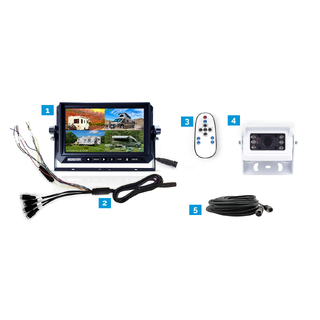

What’s Included

1. 1x 7" Monitor

2. 1x Power Cord

3. 1x Remote

4. 1x White AHD Reversing Camera

5. 1x 10M 4PIN Cable
