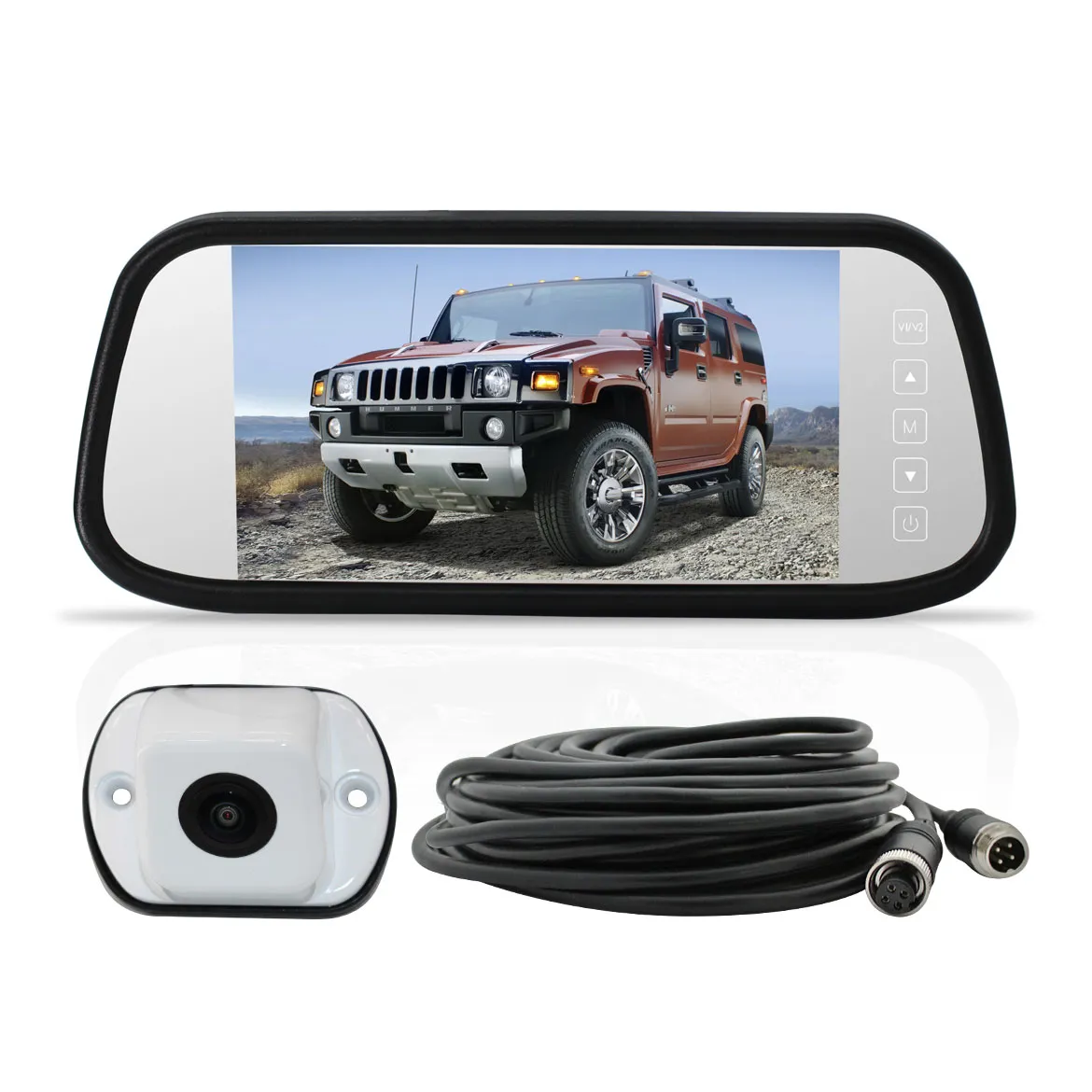

Elinz K Series 7" Replacement Mirror AHD Monitor Surface Mount 1080P Rear Camera White 10M Cable

The Elinz K Series 7" Replacement Mirror AHD Monitor delivers crisp, vibrant visuals with its IPS display, high resolution, and reliable anti-interference design. Built for seamless compatibility with Elinz K Series cameras, it offers dual-view functionality, wide voltage support, and user-friendly controls for dependable performance in any driving condition.

The Elinz K Series Surface Mount Car AHD 1080P Rear Camera in White delivers crisp 1920×1080 full HD footage with a wide 180° viewing angle for maximum rear visibility and safer driving. Built with an IP69K metal housing, low-light performance, and a secure 4-pin aviation connector, it ensures reliable, all-weather monitoring and seamless compatibility with all Elinz K Series AHD monitors.

PRODUCT FEATURES

Monitor

  • 7 Inch IPS Display - High-quality A+ panel ensures sharp images and vibrant colours for excellent visibility.
  • High Resolution and Brightness - 1024×RGB×600 resolution with 600 cdm brightness for clear viewing day or night.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by reducing interference.
  • Wide Operating Voltage and Output - Operates on DC 10-32V input and supplies DC 12V output to connected cameras.
  • Low Power Consumption - Working current under 300mA and idle current under 120mA for energy efficiency.
  • Temperature Tolerance - Operates reliably from -25°C to +70°C in various environments.
  • User-Friendly OSD Menu - Adjustable settings for brightness, contrast, saturation, tint, language, and screen rotation.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600cdm
  • Contrast Ratio: 400:1
  • Video Inputs: 2 channel AHD, NTSC/PAL/Auto signal systems
  • Camera Support: CVBS, 720P@25/30, 1080P@25/30 AHD cameras
  • Output Voltage: DC 12V to cameras
  • Working Current: <300mA
  • Idle Current: <120mA
  • Languages(OSD Menu): English, Chinese, Japanese
  • Flip Image: Mirror/Normal/Up/Down
  • Connector: 4PIN Aviation
  • Mounting: Replacement bracket for windshield + 1 over bracket

Camera

  • High-Resolution - Provides 1920×1080 full HD video with 180° horizontal angle for extensive coverage.
  • Continuous 24/7 Operation - Designed for reliable all-day performance to ensure constant monitoring.
  • Waterproof - IP69K rating for outstanding water and dust resistance in all conditions.
  • 4PIN Connector - The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
  • Low-Light Sensitivity - Supports a minimum illumination of 0.5 Lux at F2.0 aperture for clear images in low light.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Vertical Angle: 95°
  • Image Sensor: 1/3" AHD camera
  • Signal System: NTSC / PAL
  • Minimum Illumination: <0.2 Lux
  • SNR: ≥48 dB
  • Power Supply: 12V (customizable to 24V)
  • Current Consumption: <90mA
  • Operating Temperature: -25℃ to 70℃
  • Storage Temperature: -30℃ to 80℃
  • Humidity: Max 95% RH
  • Housing Material: Metal

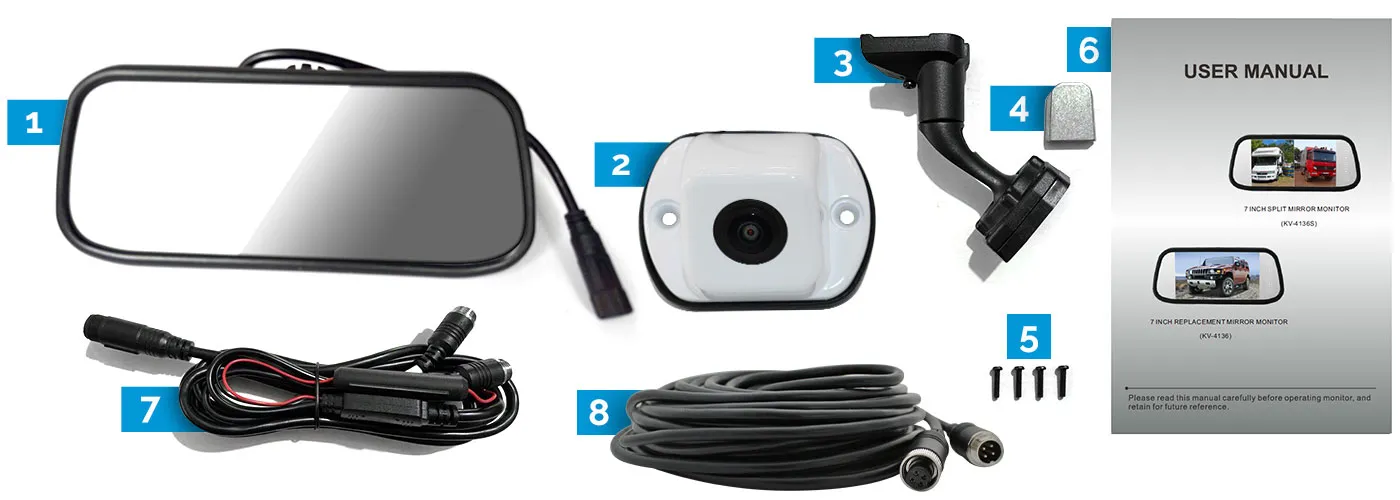

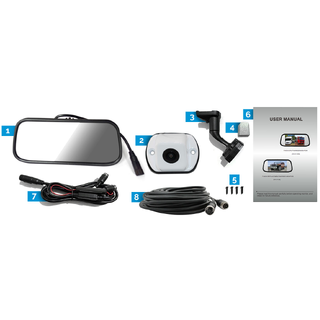

What's Included

1. 1x 7" Car Mirror Monitor

2. 1x Surface Mount Camera

3. 1x Bracket

4. 1x T-Slot

5. 4x Screws

6. 1x User Manual

7. 1x Power Cable

8. 1x 10M 4PIN Cable
