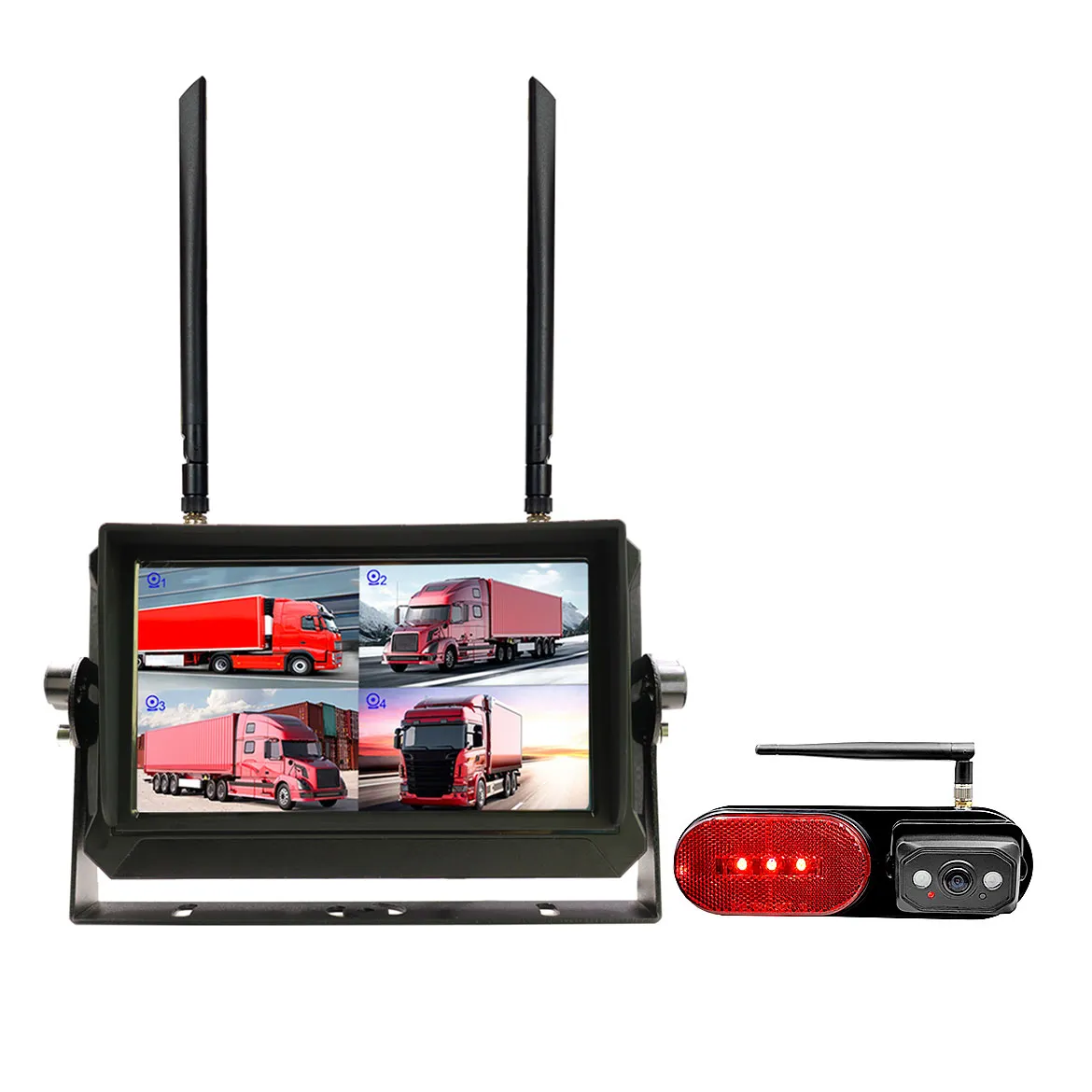

Elinz 7" Touch Screen Digital Wireless AHD Monitor 1080P Rear Marker Reversing Camera

The Elinz 7" Touch Screen Digital Wireless AHD Monitor and Reversing Camera System delivers crisp, full HD 1080p rear-view visibility through a high-resolution IPS display with quad-split view capabilities. Featuring a rugged, IP69K waterproof camera with infrared night vision and stable 2.4GHz wireless connectivity, it minimises interference to ensure seamless real-time monitoring. This versatile system supports up to a 256GB Micro SD card for video recording and operates on a wide 12V–24V voltage range, making it ideal for a variety of larger vehicles.

PRODUCT FEATURES

Monitor

  • 7" HD Display Touch Screen Monitor: IPS panel with 1024×600 resolution, delivering crisp and clear images for improved rear and reverse viewing.
  • Quad Split View Function
  • Wireless Connectivity: 2.412~2.4835 GHz ISM Band with 802.11b wireless standard, offering stable, cable-free video transmission.
  • Reliable Signal Performance: Uses CCK modulation and IEEE 802.11b: DSSS(Direct Sequence Spread Spectrum) spread spectrum technology to reduce interference and maintain signal integrity.
  • Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
  • Expandable Memory Support: Supports Micro SD cards up to 256GB for video recording and playback capabilities.
  • Wide Operating Voltage Range: DC 12V to 24V power input, suitable for various vehicle electrical systems.
  • Wireless data rate: 11Mbps
  • RF output power: 20dBm ±1dBm
  • Working mode: Ad-Hoc
  • Receiver Sensitivity: 11Mbps-86dBm@8%

Camera

  • Image sensor: 1/2.9" Colour CMOS
  • Resolution: 1920×1080
  • Video Format: AHD
  • View angle: 130° (Horizontal)
  • Wireless Frequency: 2.412–2.4835 GHz
  • Output power: 20dBm ±1dBm
  • Working voltage: DC 12V–24V
  • Waterproof Rating: IP69K
  • Night Vision: 2 IR LEDs

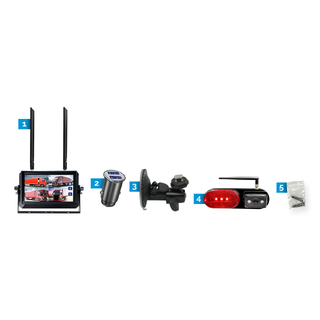

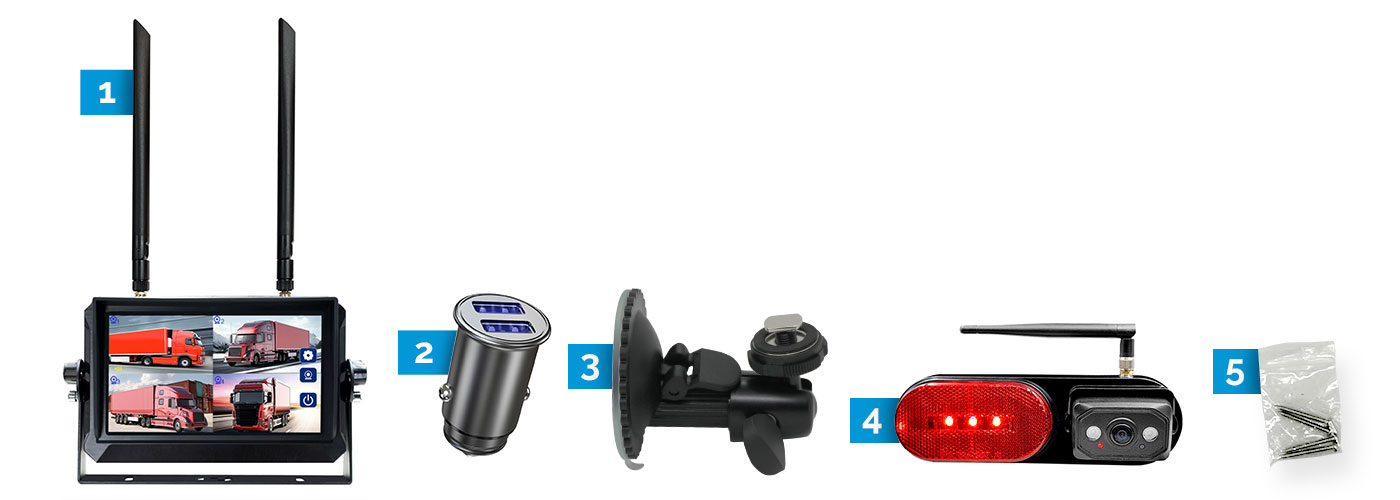

What's Included

1. 1x 7" Monitor

2. 1x Car USB Charger

3. 1x Suction Cup Mount

4. 1x AHD Camera

5. 4x Screws
