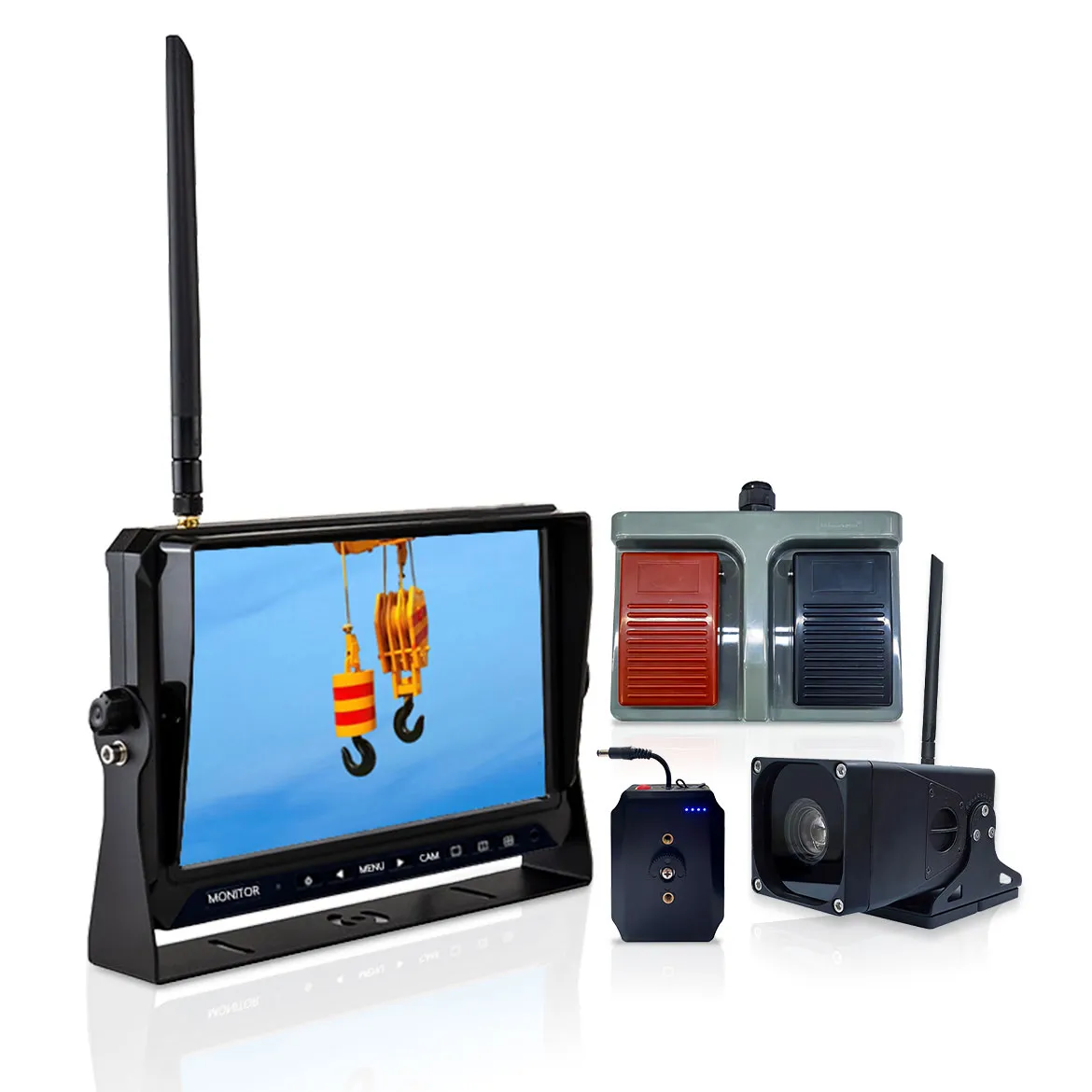

Elinz 10.1" Digital Wireless AHD 1080P Camera Monitor System for Cranes 12V~36V

The Elinz 10.1" Digital Wireless AHD 1080P Camera Monitor System for Cranes delivers clear, reliable visibility to help operators work with greater safety and precision. Featuring a 30× motorised zoom camera, 1080P AHD resolution, and a large 10.1" monitor, it provides a detailed real-time view of loads even at long distances. With digital wireless technology and up to 300 m transmission range, installation is quick and operation remains stable in demanding job site conditions.

PRODUCT FEATURES

  • Digital Wireless Technology
    • This battery-powered magnetic-mounted camera can be attached to a crane boom head or on a trolley in minutes, avoiding the need for complex wiring. It operates on an RF frequency of 2400–2483.5 MHz using FSK/GFSK modulation for stable and superior data transmission.
  • 30x Motorised Zoom
    • Featuring a 30x motorised zoom camera that can be controlled by a foot pedal. Allowing operators to see distant details clearly, enhanced safety, improved precision and allowed them to work more efficiently.
  • 10.1" High-Definition Display
    • Features a 10.1-inch screen with 1024×600 resolution for sharp, clear video and to reduce the risk of accidents.
  • AHD 1080P Camera
    • This high-definition crane camera can capture 1920x1080 pixel resolution to eliminate blind spots. Providing the operator with a clear, real-time, and zoomable view of the load.
  • 300M Transmission Distance
    • Offers up to 300 metres in open spaces, ensuring a stable long-distance connection.
  • DVR Function
    • This crane monitor has a built-in DVR function that serves as a digital witness which enhances safety, accountability, and operational efficiency. Supports SD card storage up to 128GB. Note: SD card is not included.
  • IP69 Waterproof
    • This robust crane camera is designed for harsh construction environments, ideal for all-weather conditions.
  • 12-36V DC
    • Designed for Truck-Mounted Cranes, All-terrain Cranes or any cranes with 12V DC, 24V DC, or 36V DC power source.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Dimensions: 10.1"
  • Resolution: 1024*600
  • Video Signal: AHD
  • Operating Frequency: 2400-2483.5Mhz
  • Modulation Type: FSK/GFSK
  • RF Bit Rate: 4MHz BER<1E-3
  • Output Power: 17±1dBm(Standard) 20dBm(Max)
  • Receiver Sensitivity: -78dBm(Typ.) @12MHz,16QAM BER<1E-3
  • -86dBm(Typ.)@12MHz QPSK BER<1E-3 BER<1E-3
  • SD Card Storage: Max 128GB
  • Coding: H.264
  • Working Temperature: -40℃~+70℃
  • Working Voltage: DC12-36V
  • Operating humidity: 85%RH

BATTERY

  • Capacity: 9450 mAh
  • Charging Voltage: DC5V/2A or DC12V/1A
  • Output Voltage: DC12V/2A
  • Waterproof Rate: IP68
  • Magnetic Base: 8 Strong Magnets

CAMERA

  • Resolution: 1920*1080
  • Video Signal: AHD
  • Magnification: 30x
  • Current Consumption: 240mA(Typ.)@12V (No-load state)
  • Antenna: 5dB
  • Center frequency range: 2.4GHz~2.4835GHz
  • Output Power: TX Power = 23dBm±1dBm
  • Modulation Type: 16QAM/QPSK/BPSK
  • RX Sensitivity: -81dBm(Typ.) @12MHz,16QAM BER<1E-3 -86dBm(Typ.) @12MHz QPSK BER<1E-3
  • RF Bit Rate: Richwave 3MHz/6MHz/12MHz BER<1E-3（Optional）
  • Spread Spectrum: FHSS (Adaptive Frequency Hopping)
  • Waterproof Rate: IP69
  • Working Voltage: DC+9V~50V
  • Operating Temperature: -20~+70 ºC
  • Storing Temperature: -40~+85 ºC
  • Operating humidity: 85%RH

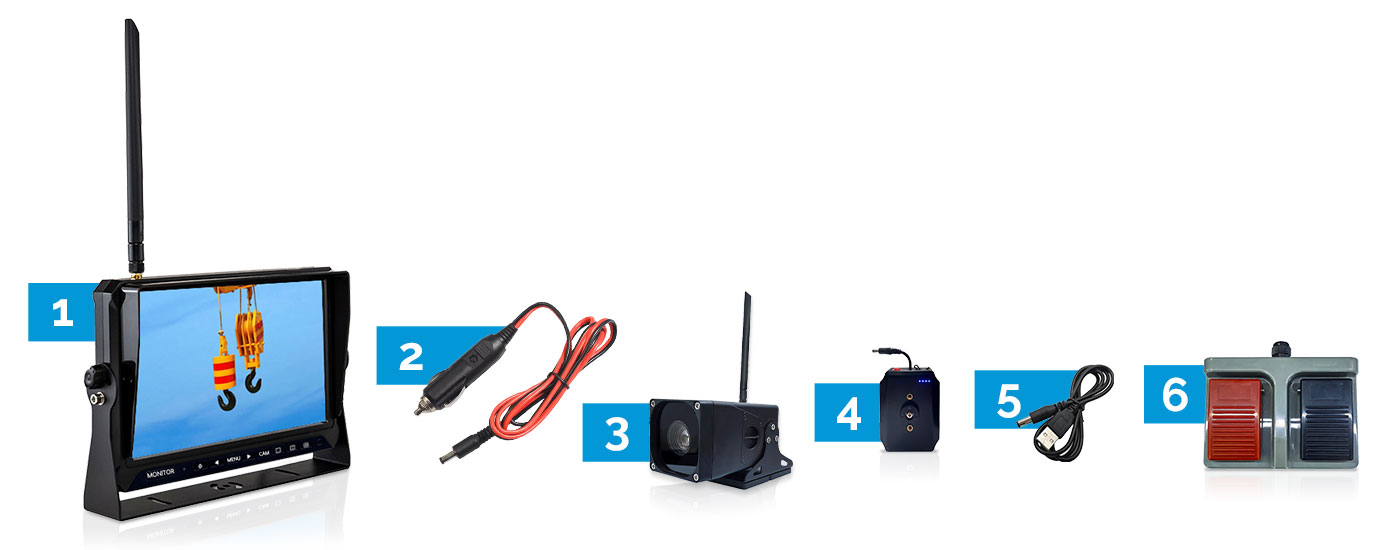

What’s Included

1. 1x 10.1" Monitor

2. 1x Power Cord

3. 1x Camera

4. 1x Battery

5. 1x USB Charging Cable

6. 1x Foot Switch
