Elinz 5" Touch Screen Digital Wireless AHD Monitor

The Elinz 5" Touch Screen Digital Wireless AHD Monitor delivers clear, reliable rear and reverse viewing in a compact, easy-to-install design. Featuring an intuitive touch screen, quad split view, and stable 2.4GHz wireless connectivity, it provides flexible multi-camera monitoring for a wide range of vehicles.

PRODUCT FEATURES

• 5" Touch Screen Display Monitor: Equipped with an 800×480 resolution IPS panel, this 5-inch touch screen monitor offers clear and vibrant images for rear and reverse viewing in a compact form factor.
• Touch Screen Interface: Intuitive capacitive touch controls for quick menu access, settings adjustments, and seamless operation.
• Quad Split View Function
• Wireless Connectivity: Works on the 2.4 GHz ISM band with 802.11b wireless standard, providing reliable cable-free connectivity.
• Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
• Modulation method: Utilises CCK modulation and DSSS spread spectrum to minimise interference and maintain strong signal quality.
• Memory Expansion Support Compatible with Micro SD cards up to 256GB for recording and playback purposes.
• Wide Operating Voltage: Supports DC 12V to 24V input voltage, making it adaptable to various vehicle electrical systems.
• Wireless data rate: 11Mbps
• Spread spectrum: IEEE 802.11b:DSSS(Direct Sequence Spread Spectrum)
• RF output power: 20 dBm ±1 dBm
• Working mode: Ad-Hoc
• Receiver Sensitivity: 11Mbps-86dBm@8%
• SD Card Capacity: Max 256GB (Micro SD Card)

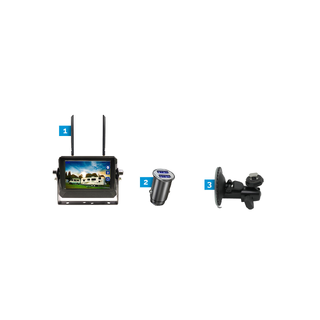

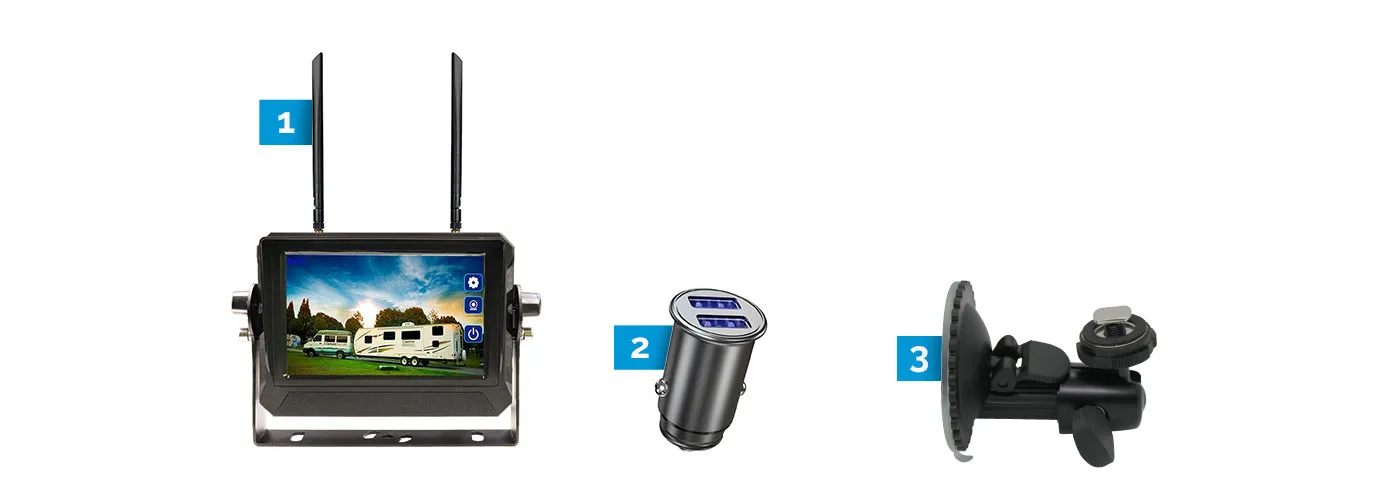

What’s Included
