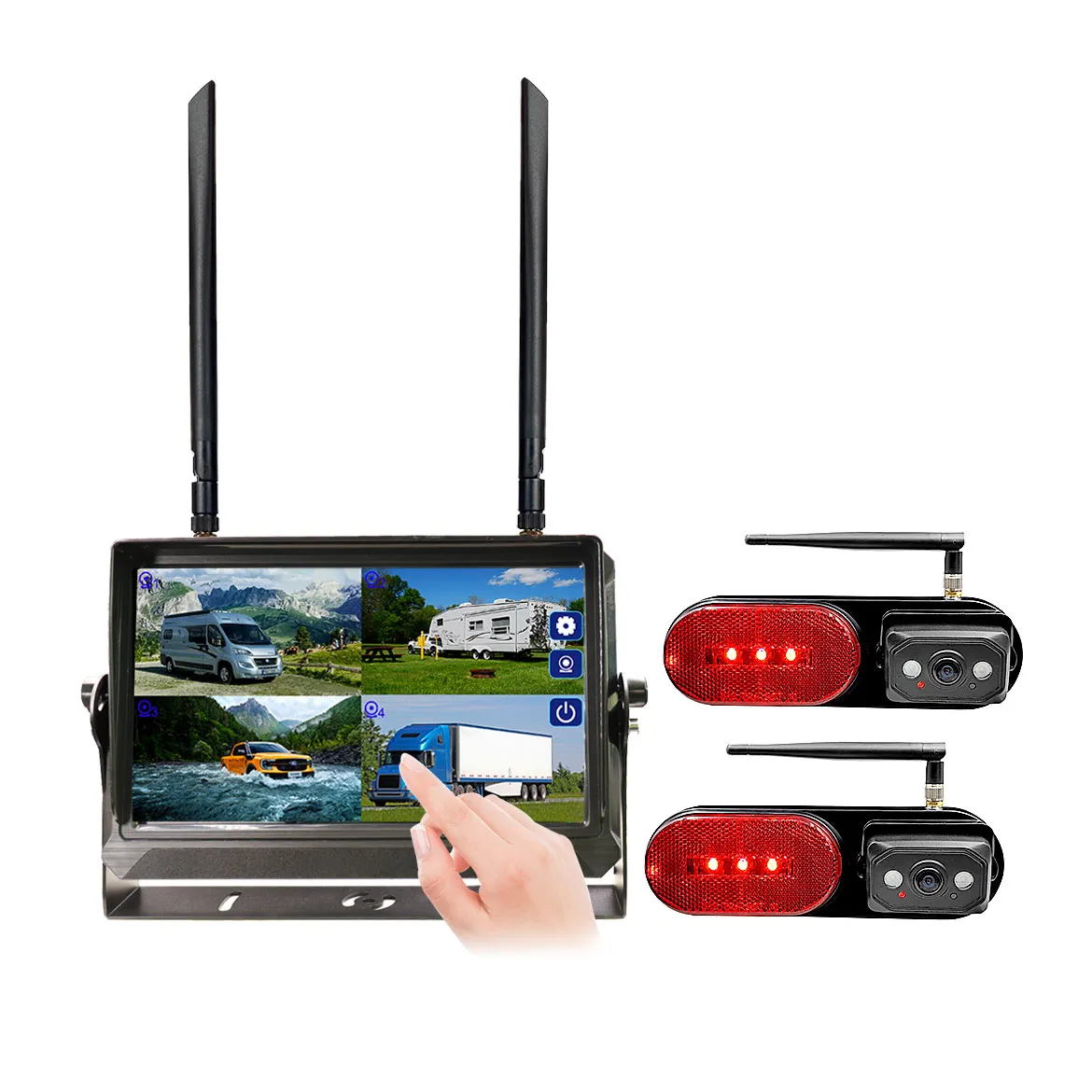

Elinz 10" Touch Screen Digital Wireless AHD Monitor 2x 1080P Rear Marker Reversing Camera

This heavy-duty vehicle safety setup combines the Elinz 10-inch touchscreen digital wireless AHD 4-channel monitor with a matching 1080P wireless AHD rear marker reversing camera. Operating seamlessly on 12V–24V systems, the system provides a crystal-clear Full HD view with a 130° wide perspective and enhanced infrared night vision for reliable all-weather monitoring. Designed primarily for large setups like caravans, trailers, and commercial trucks, it offers a secure, interference-free connection without the hassle of running complex cables through your entire vehicle.

PRODUCT FEATURES

Monitor

  • 10" HD Display Touch Screen Monitor: High-resolution 1024×600 screen provides sharp, detailed images for superior rear and reverse viewing clarity.
  • Touch Screen Interface: Intuitive capacitive touch controls for quick menu access, settings adjustments, and seamless operation.
  • Quad Split View Function
  • Wireless Connectivity: Operates on 2.4GHz ISM band using 802.11b wireless standard for reliable, cable-free video transmission.
  • Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
  • Wireless Performance: CCK modulation and IEEE 802.11b:DSSS (Direct Sequence Spread Spectrum) spread spectrum for stable signal and minimal interference.
  • Expandable Storage: Supports Micro SD cards up to 256GB for video recording and playback functionality.
  • Wide Operating Voltage: DC 12V to 24V input, compatible with various vehicle electric systems.
  • Wireless frequency : 2.412~2.4835 GHz ISM Band
  • Wireless date rate: 11Mbps
  • RF output power: 20dBm ±1dBm
  • Working mode: Ad-Hoc
  • Receiver Sensitivity: 11Mbps-86dBm@8%
  • SD Card Capacity: Max 256GB (Micro SD Card)

Camera

  • Image sensor: 1/2.9" Colour CMOS
  • Resolution: 1920×1080
  • Video Format: AHD
  • View angle: 130° (Horizontal)
  • Wireless Frequency: 2.412–2.4835 GHz
  • Output power: 20dBm ±1dBm
  • Working voltage: DC 12V–24V
  • Waterproof Rating: IP69K
  • Night Vision: 2 IR LEDs

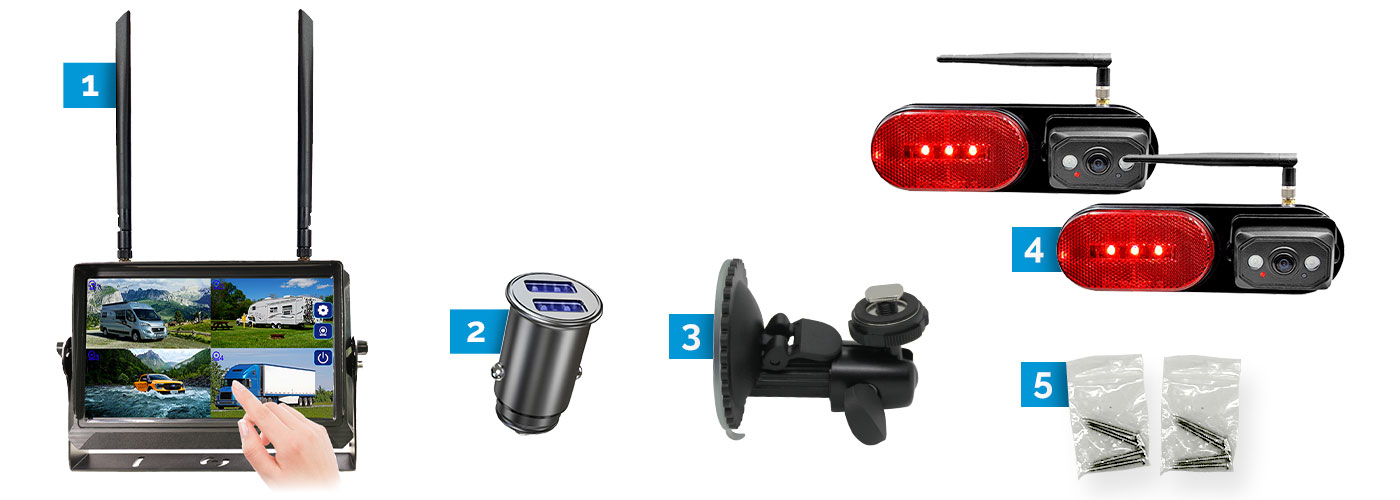

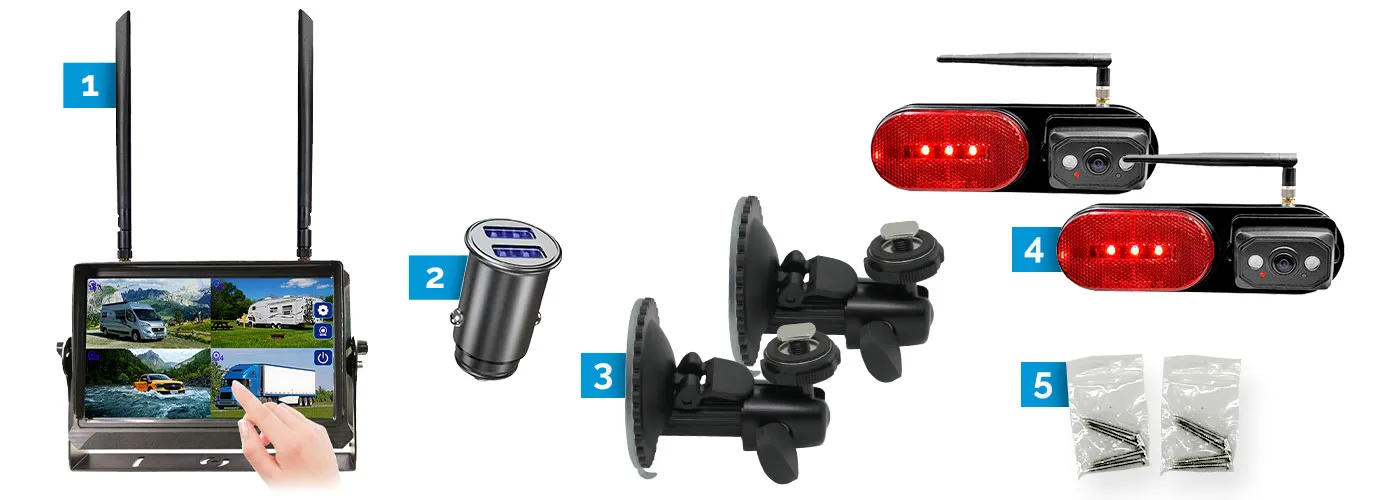

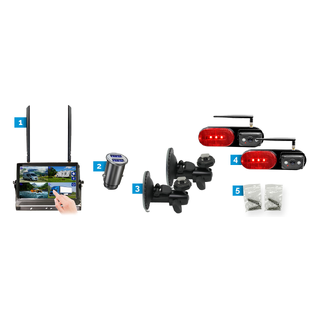

What's Included

1. 1x 10" Monitor

2. 1x Car USB Charger

3. 1x Suction Cup Mounts

4. 2x AHD Cameras

5. 8x Screws
