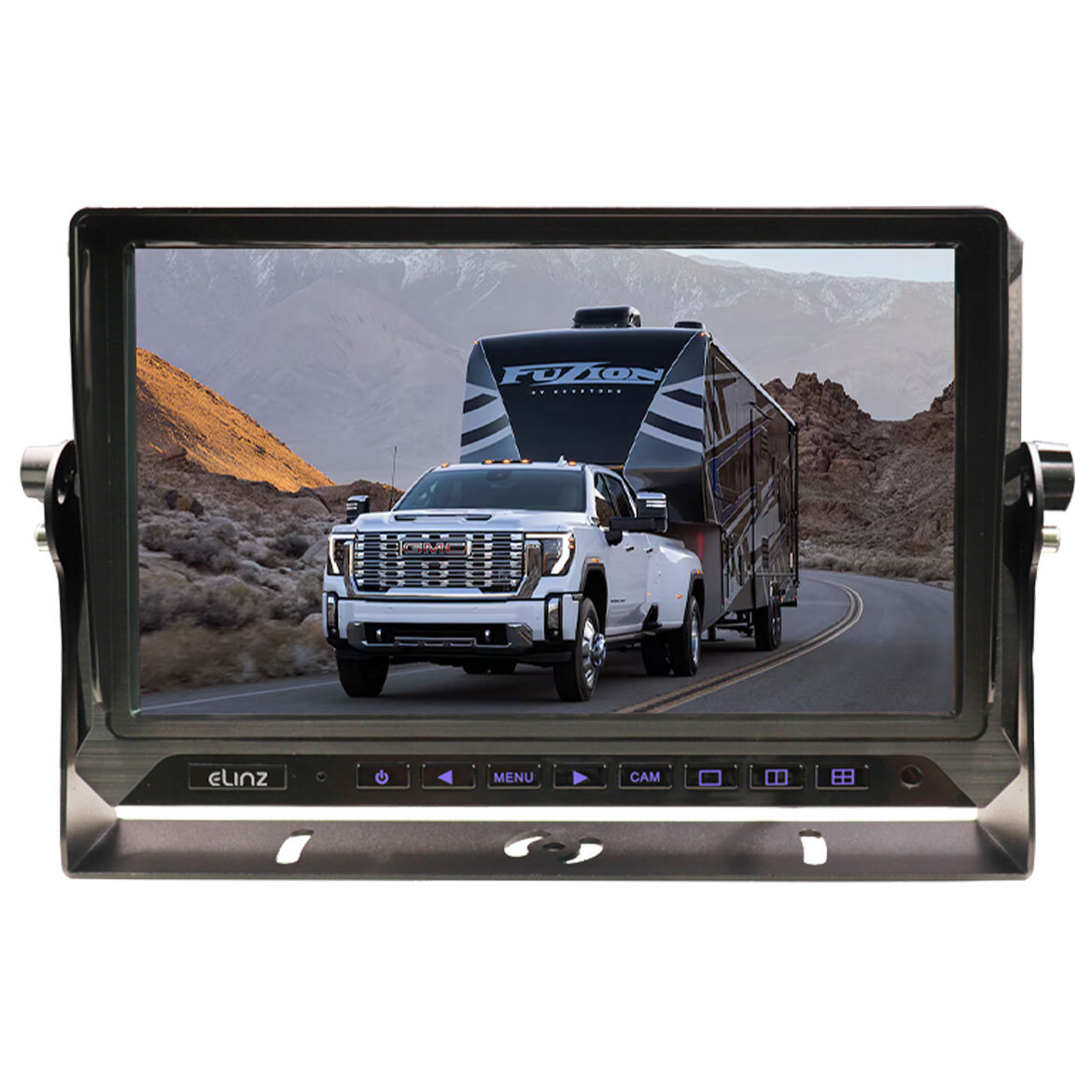

Elinz 10" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single Screen View 12V 24V 1024*600 Dashboard Mount
U Bracket~Guidelines On/Off
SKU | M1025AHD |
Barcode # | 0743966017032 |
Brand | Elinz |
Shipping Weight | 1.4800kg |
Shipping Width | 0.230m |
Shipping Height | 0.140m |
Shipping Length | 0.065m |
Shipping Cubic | 0.002093000m3 |
Help other users shop smarter by writing reviews for products you have purchased.
Elinz 10" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single Screen View 12V 24V 1024*600 Dashboard Mount
The Elinz 10" AHD Monitor provides a high-definition (1024x600) display, delivering superior video quality compared to standard analog monitors. It's ideal for vehicles like cars, SUVs, RVs, utes, and trucks, offering clear, real-time views for enhanced visibility and safety.
PRODUCT HIGHLIGHTS
- AHD (Analog High Definition)
- AHD Analog High Definition monitors offer a higher resolution and quality video footage than standard analog monitors.
- 10" LCD Display
- This 10" AHD Monitor offers 1024*600 screen resolution, perfect for enhancing visibility on Cars, SUVs, RVs, Utes, and Trucks providing real-time images so you can have a clear view of what's behind your vehicle.
- 3CH Single View
- Supports up to three AHD cameras.
- Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD.
- Guidelines On/Off
- The monitor has built-in parking guidelines to make it easier and safer for you when reversing. Guidelines can be turned ON/OFF.
- DC 12-24V Power Source
- Compatible with most vehicles with a power input range of DC12-24V. The monitor supplies DC12V power to the cameras.
- U Shape Bracket
- This monitor is equipped with a U bracket that allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image. With this type of mount, this monitor can be mounted on the dashboard or roof of a truck/caravan/car or anywhere suitable.
ITEM DESCRIPTION
- Screen Size: 10 inch
- Monitor Type: AHD
- Display Technology: LCD
- Screen Resolution: 1024*600
- Video Input: 720P/1080P
- Video Channels: 3CH
- Connection Type: 4PIN
- Power Consumption: <5W
- Operating Temperature: -30~ +70 ºC
- Input Voltage: DC12V-24V
- Output Voltage: DC12V
- Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD
WHAT'S INCLUDED
- 1x Monitor
- 1x U Bracket
- 1x Power Cord
- 1x User Manual
- 1x Remote (* No Batteries included)
