Elinz 10" AHD Quad Split Screen DVR Monitor 12V~36V

The Elinz 10" AHD Quad Split Screen DVR Monitor delivers clear, high-definition visuals and reliable multi-camera monitoring for safer driving. Its large 10-inch display with quad-view capability lets you see up to four camera feeds at once, while the built-in DVR supports extended recording. Designed for 12V–36V systems, it’s an ideal solution for trucks, RVs, and other commercial vehicles.

PRODUCT FEATURES

  • AHD (Analog High Definition)
    • This AHD Analog High Definition monitor offers a higher resolution and better quality video footage than standard analog monitors.
  • 10" Display
    • This massive 10-inch screen provides significant safety and convenience advantages over smaller screens, making it ideal for larger vehicles like SUVs, Trucks, and RVs.

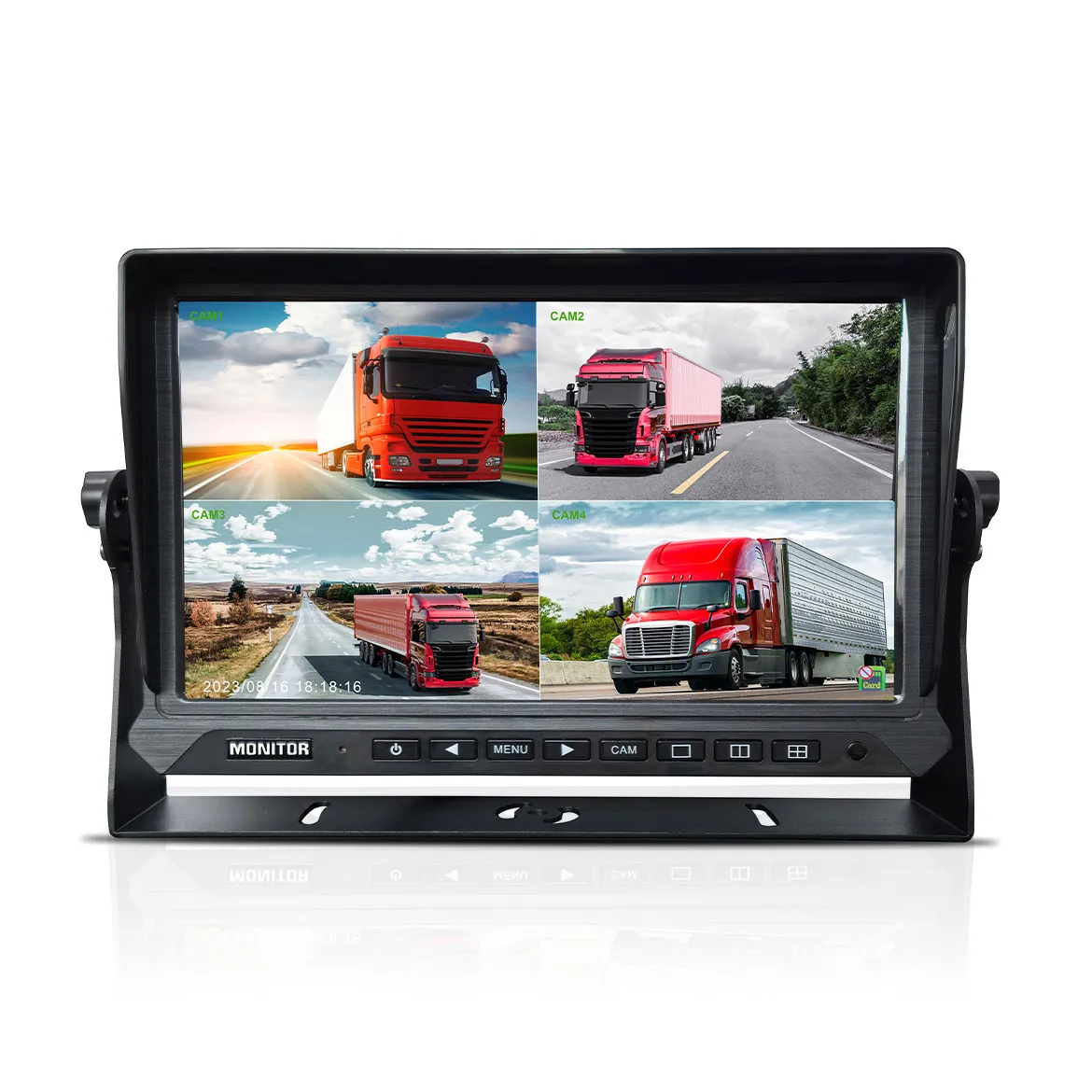

  • Quad-View Display
    • This 4-Channel monitor can display up to four cameras, allowing drivers to view camera feeds simultaneously, with single, split, or quad-screen view options.
  • Built-in DVR
    • Support high-capacity SD cards up to 512GB, providing extended recording for Caravans, Trucks, RVs, and other commercial vehicles.
  • DC 12V~36V Compatible
    • This reversing monitor is compatible with DC 12V, 24V, or 36V vehicles.
  • 4 PIN Connection
    • A highly recommended connection for reversing cameras.

PRODUCT SPECIFICATIONS

  • Screen Size: 10 inch
  • Monitor Type: AHD
  • Display Technology: LCD
  • Screen Resolution: 1024*600
  • Video Input: 720P/1080P
  • Video Channels: 4CH
  • Display: Full screen/2 or 3 Split/Quad View
  • Storage Capacity: Supports up to 512GB SD Card
  • Connection Type: 4PIN
  • Power Consumption: <5W
  • Operating Temperature: -30~ +70 ºC
  • Input Voltage: DC12V-36V
  • Output Voltage: DC12V

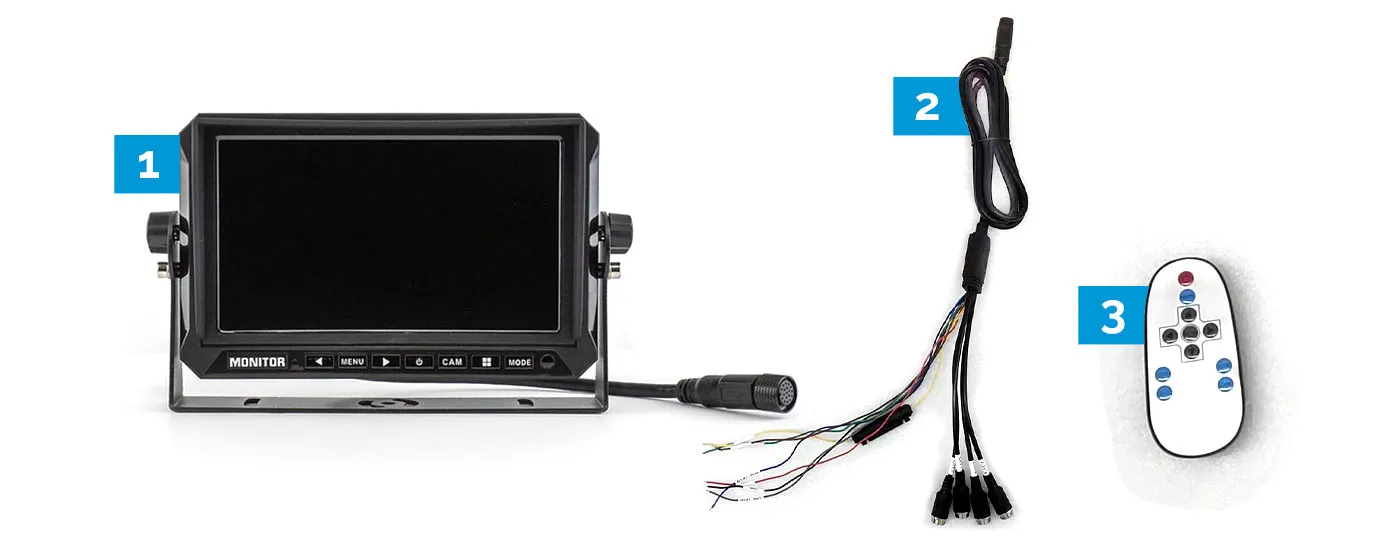

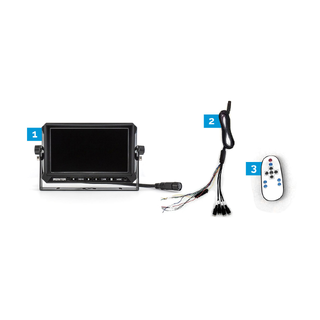

What’s Included

1. 1x 10" Monitor

2. 1x Power Cord

3. 1x Remote
