Elinz AHD Reversing Camera 4PIN 12V24V CCD Night Vision Forward View Car Truck Caravan 120° View

IP68~1280x960~Can be turned on at all times

(SKU: RV4PINAHDFWRMASTER)
From AUD $58.00
AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View
AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View
(SKU: RV4PINAHDFWR)
AUD $58.00
In stock

AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 5M Cable
AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 5M Cable
(SKU: RV4PINAHDFWR5M)
AUD $68.00
In stock

AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 10M Cable
AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 10M Cable
(SKU: RV4PINAHDFWR10M)
AUD $70.00
In stock

AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 20M Cable
AHD Reversing Forward View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View 20M Cable
(SKU: RV4PINAHDFWR20M)
AUD $75.00
In stock


Payment made easy


Share:


Elinz AHD Reversing Camera 4PIN 12V24V CCD Night Vision Forward View Car Truck Caravan 120° View

SKU: RV4PINAHDFWRMASTER

AHD Reversing Camera Forward View
AHD Camera with CCD Image Sensor from Sharp

AHD Camera with CCD Image Sensor from Sharp

  • This Heavy Duty AHD Camera features CCD Sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
  • 1/3" 1.3MP CCD Sensor
IR LED Night Vision

IR LED Night Vision

  • This camera comes 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
Improved Resolution 1280x960

Improved Resolution 1280x960

  • The improved resolution would make images and videos clearer and can capture sharp detailed footage.
  • 1200TVL camera resolution.
Forward View Camera

Forward View Camera

  • It allows you to see images in forward view.
  • It basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
Waterproof Rating IP68 Camera

Waterproof rating: IP68

  • This camera has complete protection against dust and can withstand water immersion of up to 1 meter.
120° Wide Angle Viewing

120° Wide Angle Viewing

  • This new line of reversing camera features a 120-degree viewing angle so it does not produce fish-eye view.
  • When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.
Advanced 4 PIN Cable

Advanced 4 PIN Cable (Optional)

  • This camera comes with a 4PIN cable that enables the monitor to power up the device by itself. In addition, the camera will stay switched on for as long as your vehicle is running.
  • To enjoy this special feature, make sure that you will connect the camera to a monitor with a 4PIN connector.
  • 5M 4PIN Cable, 10M 4PIN Cable, 20M 4PIN Cable.
Compatible with 12V/24V Vehicles

Compatible with 12V/24V Vehicles

  • Suitable for use with trucks, caravans, cars etc.
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera.

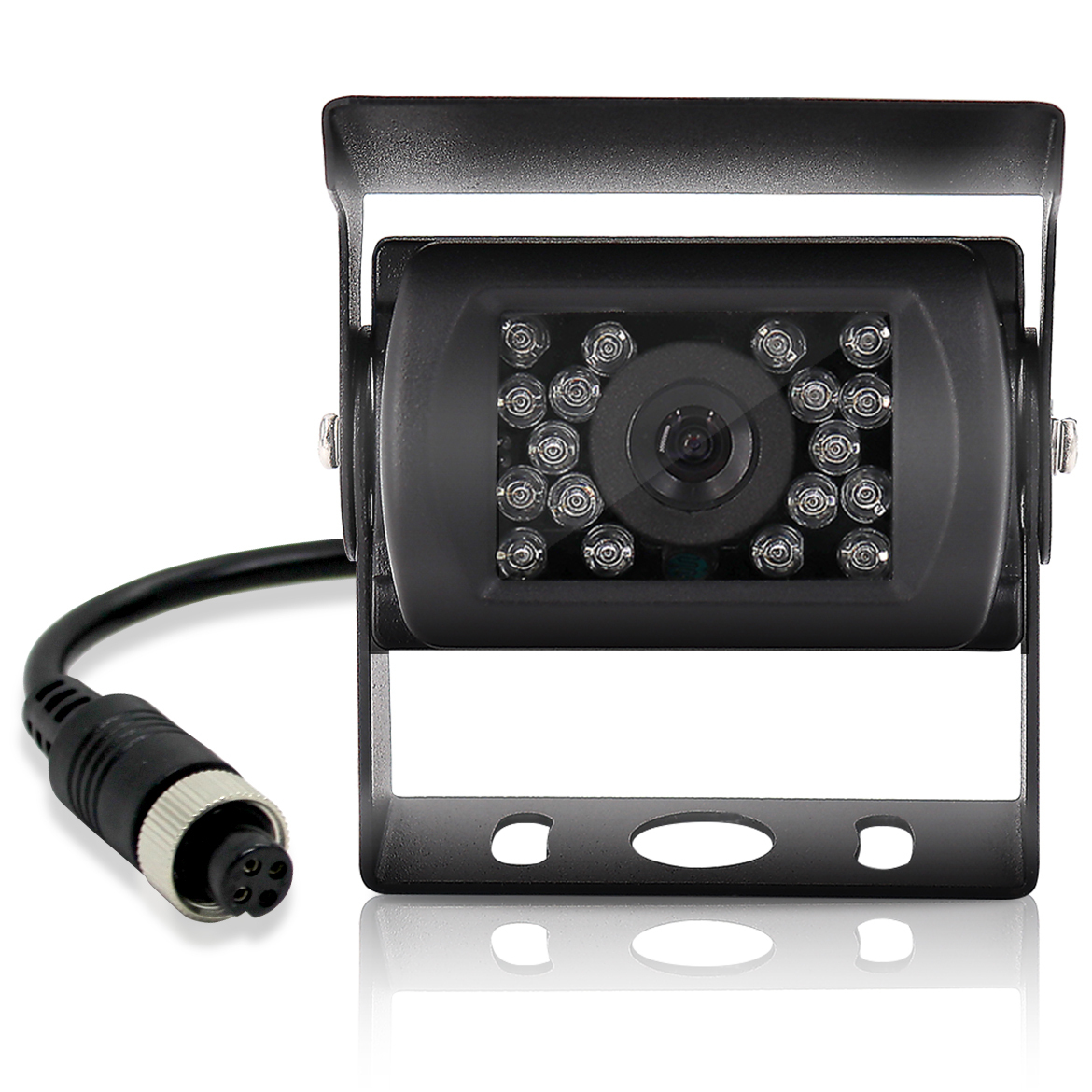

Product Views AHD Reversing Camera Forward

Product Views

Product Views AHD Reversing Camera Forward 2

Product Views 2

AHD Reversing Camera Forward View Dimensions

Dimensions



MORE INFORMATION

AHD Reversing Camera Forward View 4PIN CCD 12V/24V Night Vision Car Truck Caravan 120° View 600TVL Heavy Duty

Safety and security not just for drivers but also for pedestrians and people around, that is what a reversing camera. AHD CCD Reverse camera that uses 4PIN cable to transmit HD video from AHD camera to AHD monitor with anti-interference and non-distorted images.

This Forward View Camera allows you to see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.

It has 1.3MP image sensor with infrared night vision that gives you clear images day and night. This heavy duty camera is 100% waterproof that has an IP68 rating. This AHD Camera features CCD Sensor with 18pcs IR LED lights providing a perfect view when the light is low or even on darkest night (black and white) to guarantee safe driving.

You can have a safer driving and you can reduce blind spots. Get this back up camera now.

*Disclaimer: This is an AHD camera and can only be used with AHD monitor like our M7AHD1080RV4PIN

PRODUCT HIGHLIGHTS

  • AHD Camera with CCD Image Sensor from Sharp
    • This Heavy Duty AHD Camera features CCD Sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
    • 1/3" 1.3MP CCD Sensor
  • IR LED Night Vision
    • This camera comes 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
  • Improved Resolution 1280x960
    • The improved resolution would make images and videos clearer and can capture sharp detailed footage
    • 1200TVL camera resolution
  • Forward View Camera
    • It allows you to see images in forward view.
    • It basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
  • Waterproof rating: IP68
    • This camera has complete protection against dust and can withstand water immersion of up to 1 meter.
  • 120° Wide Angle Viewing
    • This new line of reversing camera features a 120-degree viewing angle so it does not produce fish-eye view.
    • When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.
  • Advanced 4 PIN Cable (Optional)
    • This camera comes with a 4PIN cable that enables the monitor to power up the device by itself. In addition, the camera will stay switched on for as long as your vehicle is running.
    • To enjoy this special feature, make sure that you will connect the camera to a monitor with a 4PIN connector.
    • 5M 4PIN Cable, 10M 4PIN Cable, 20M 4PIN Cable
  • Compatible with 12V/24V Vehicles
    • Suitable for use with trucks, caravans, cars etc.
    • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera

ITEM DESCRIPTION

  • Image Sensor: 1/3" 1.3MP CCD Sensor
  • Pixels: 1.3 Mega
  • Horizontal resolution: 1280(H)*960(V)
  • Min illumination: 0.01 Lux
  • Lens: 2.8 mm
  • View Angle: 120 Degree
  • IR distance: 30 ft.
  • Waterproof Rate: IP68
  • Working Voltage: DC12V
  • Current Consumption: 100mA/12V
  • Operating Temperature: -20°C~60°C
  • Storage Temperature: -30°C~70°C

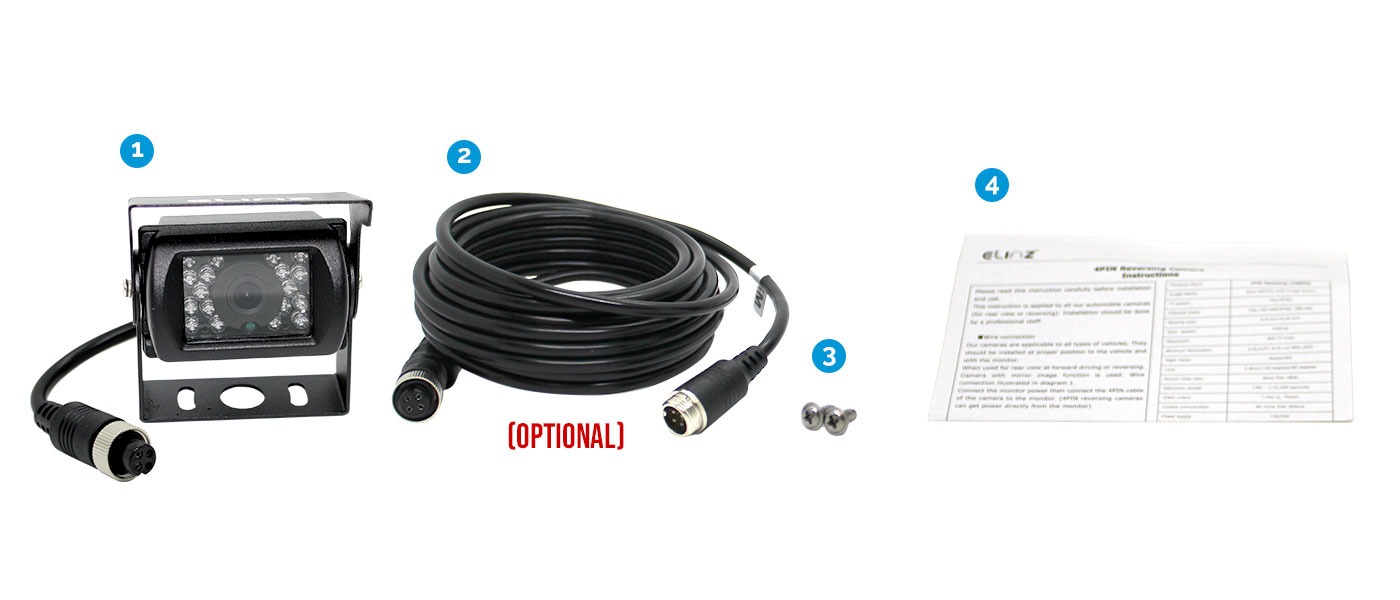

WHAT'S INCLUDED

1. 1x AHD Forward View Reversing Camera

2. 1x Advanced 4 PIN Cable (Optional)

3. Screws and Bolts

4. User Manual

Dome Camera, 4PIN Cable
