Replace the Existing Rearview Mirror~3AV INPUTS~4PIN

(SKU: R7MI-RV4PIN10M)
Share:
WAS From AUD $199.00
NOW AUD $179.00
Sale Ends in
00:00 am, 11 February 2021
In Stock

Payment made easy


Share:


Elinz 7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

SKU: R7MI-RV4PIN10M

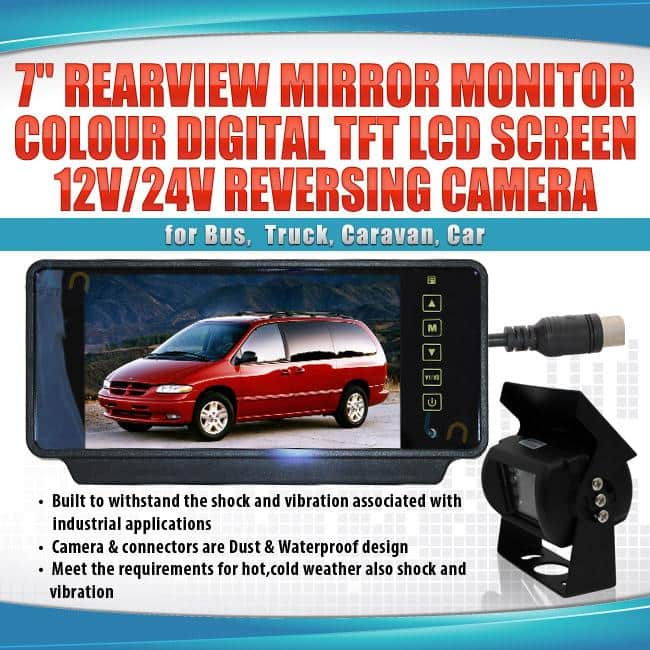

7 inches Rearview Mirror Monitor Reversing CCD Camera

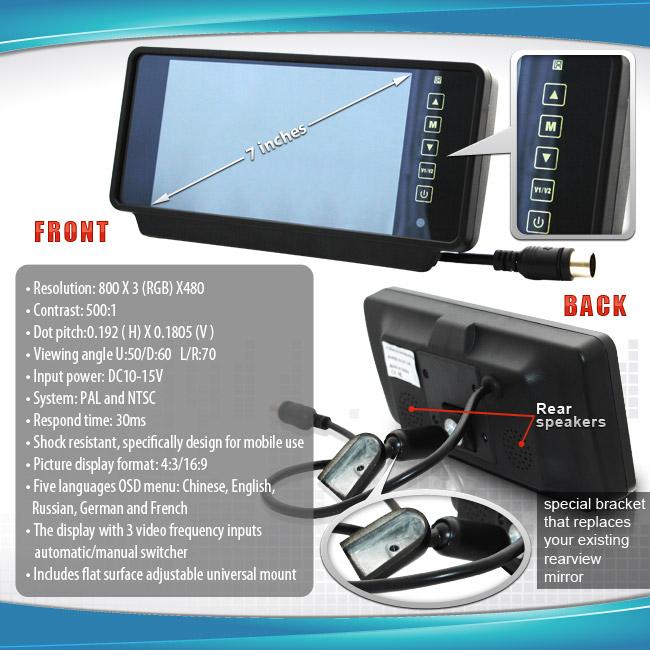

7 inches LCD monitor Rearview Mirror Monitor

7" LCD Monitor

  • Anti-reflective clear vision rear view mirror
  • Automatically shows rear view when reversing
  • Rearview image can also be shown on screen at all times
  • Resolution degree 800 x 3 (RGB) x 480
  • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
Night Vision Reversing Camera

Night Vision

  • The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
  • With 18 IR LED it shows clear images in low light especially at night circumstances.
120 Degree Wide Angle View

120 Degree Wide Angle View

  • Helps avoid accidents & injuries, providing safe driving day and night
  • Heavy Duty CCD Rear Camera
  • Shock resistant, designed specifically for heavy duty vehicle use

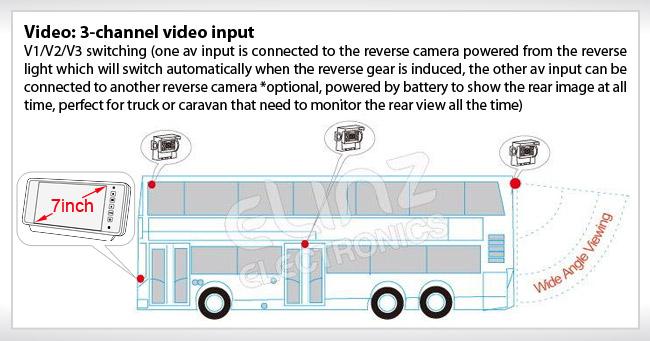

3AV Inputs Monitor

3AV Inputs

  • Can be connected up to 3 reversing cameras
Advanced 4 PIN cable

Advanced 4 PIN Cable

  • Allows the monitor to power up cameras. No need to connect another power cable.
600 TV lines camera

600 TV Lines

  • High resolution image and video
  • Clear view day or night
Reversing Camera Kit Compatibility

Suitable for use with Trucks, Caravans, Cars and more

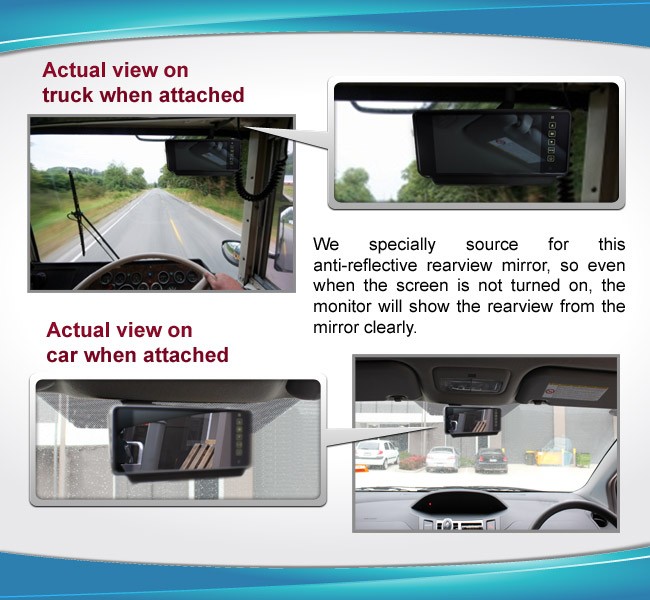

Rearview Mirror Monitor Adjustable bracket

Adjustable Mounting Bracket

  • Original bracket replaces your existing rearview mirror
  • The mounting bracket at the back, you can adjust the height
Remote Control Label

Remote Control Labels

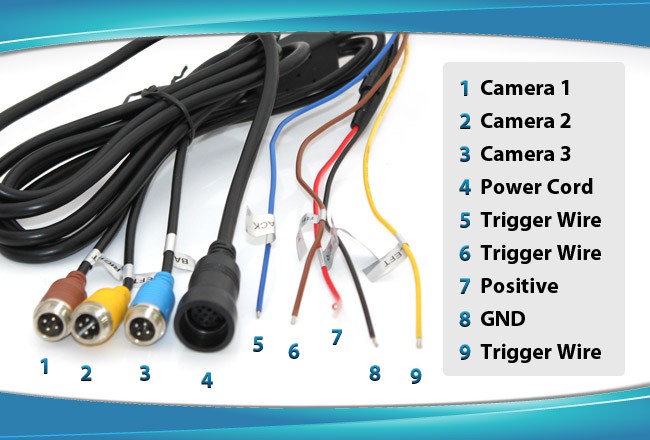

Wiring Labels

Wiring Labels

Rearview Mirror Monitor Label

Monitor Labels

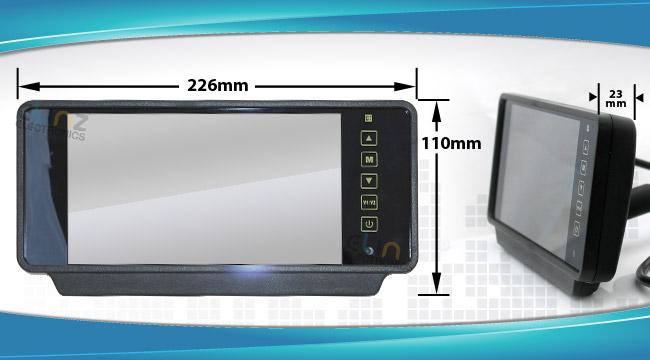

Camera and Monitor Dimensions

Product Dimensions

Product views camera and rearview monitor

Product Views



MORE INFORMATION

7" Rearview Mirror Monitor 12V 24V Reversing CCD Camera Truck Caravan

Installing a reversing camera on your vehicle is important. It can help to keep you safer and more secure on the road. With this 7" Rearview Mirror Monitor Reversing Camera kit, you can reduce blind spots , maneuver easily and park like a piece of cake.

Reverse camera monitor has 3 AV inputs that allow you to connect up to 3 cameras. This package comes with 1 4PIN CCD image sensor reversing camera with 120 degree wide angle view helps avoid accidents & injuries, providing safe driving day and night. The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Colour contrasting and sharpness better than CMOS Camera.

The rearview mirror monitor has an anti-reflective clear vision. This camera is suitable for use with Trucks, Caravans, Cars and more. The camera provides you clear image day and night with 600TV lines.

Start installing a reverse camera now and get it from Elinz, your trusted and reliable partner in the road.

PRODUCT HIGHLIGHTS

  • 7" LCD monitor
    • Anti-reflective clear vision rear view mirror
    • Automatically shows rear view when reversing
    • Rearview image can also be shown on screen at all times
    • Resolution degree 800 x 3 (RGB) x 480
    • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before
  • Night Vision
    • The CCD image sensor (made by SONY company) outputs digital signals that has better picture clarity, Color contrasting and sharpness better than CMOS Camera.
    • With 18 IR LED it shows clear images in low light especially at night circumstances.
  • 120 Degree Wide Angle View
    • Helps avoid accidents & injuries, providing safe driving day and night
    • Heavy Duty CCD Rear Camera
    • Shock resistant, designed specifically for heavy duty vehicle use
  • 3AV Inputs
    • Can be connected up to 3 reversing cameras
  • Advanced 4 PIN cable
    • Allows the monitor to power up cameras. No need to connect another power cable.
  • 600 TV lines
    • High resolution image and video
    • Clear view day or night
  • Suitable for use with Trucks, Caravans, Cars and more
  • Original bracket replaces your existing rearview mirror
    • The mounting bracket at the back, you can adjust the height
  • T- Slot
    • Allows your rearview to fit on on your windscreen nicely

ITEM DESCRIPTION

  • Rearview Mirror Monitor
    • Screen size: 7" LCD monitor (LED digital panel)
    • Resolution degree: 800 X 3 (RGB) X480
    • Contrast: 500:1
    • System: PAL/NTSC
    • Power supply: 10VDC to 32VDC
    • Power: About 5W
    • Working temperature: +0°C-+60°C
    • Storage temperature: -20°C-+70°C
    • Dot pitch:0.192 ( H) X 0.1805 (V )
    • Viewing angle U:50/D:60 L/R:70
    • Video: Three-way video inputs
    • Anti-reflective rearview mirror
    • Shock resistant
    • 20G force for vibration an 100G for shock
    • Respond time: 30ms
    • Picture display format: 4:3/16:9
    • Five languages OSD menu: Chinese, English, Russian, German and French
    • The display with two video frequency input Automatic/manual switcher
    • Front panel controls with on-screen menu
    • Operation temperature:- 30 ℃ ~+70 ℃
  • Reversing Camera
    • 1/4 Colour CCD reversing camera
    • System: 656X492
    • Minimum illumination:0.5 LUX
    • Electron shutter:1/60s-1/20US
    • Resolution: 600 TV lines
    • S/n ratio: More than 48dB
    • Voltage: DC12V (+/-10%)
    • Waterproof: IP67
    • View of angle: 120 degree
    • License installation

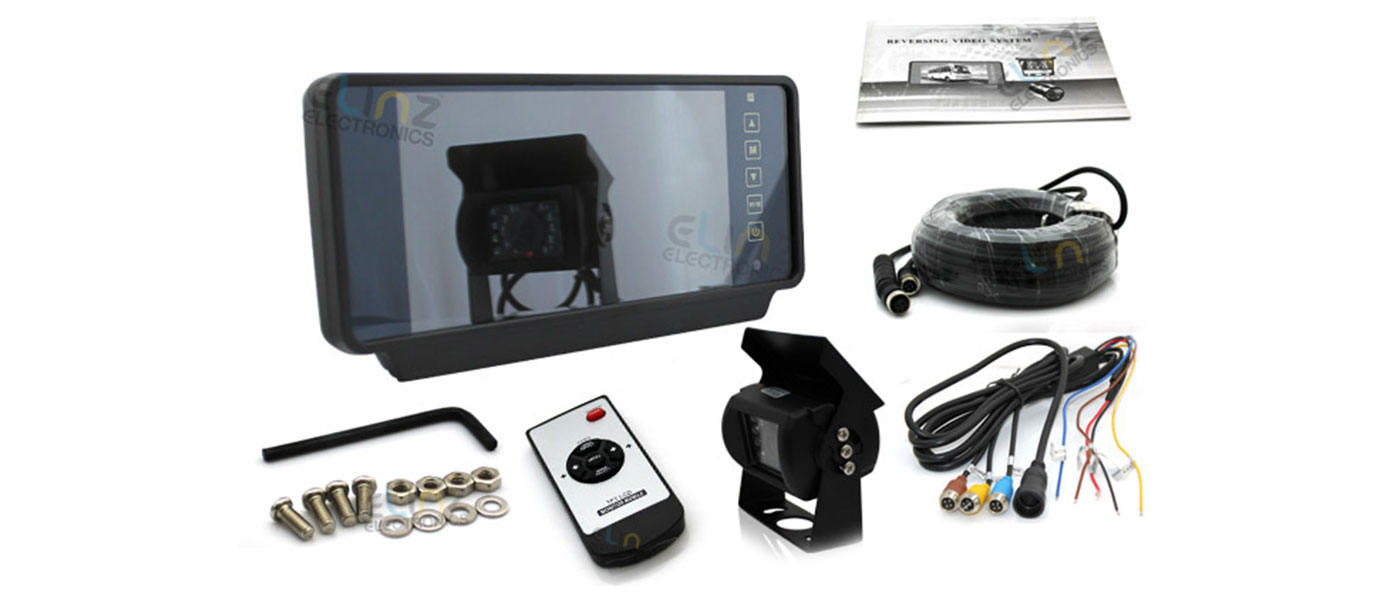

WHAT'S INCLUDED

1. 1x 7" LCD Rearview Mirror Monitor

2. 1x Reversing Camera

3. 1x Power Cord

4. 1x 10M 4PIN Cable

5. 1x Remote Controller

6. Screws

7. 1x T-Slot

8. 1x User Manual

Rearview Mirror monitor, reversing camera , 4 PIN cable

Frequently Asked Questions

A. Does the images show automatically when the vehicle is in reverse?

Yes. The reverse image shows automatically on the screen when you put the car's transmission in reverse.

B. Can the unit be used for industrial vehicles?

Yes. The unit is shock resistant and is designed specifically for industry and heavy duty vehicle use.

C. How many AV inputs does the unit have?

This camera kit has 3 AV inputs. This basically means that you can connect it to up to three reversing cameras.

Troubleshooting Guides

A. No image

  1. Check power lead of monitor if connected properly to source 12 or 24v
  2. Check channel camera is assigned. Be sure the same toggle channels
  3. If different camera available, try using on same channel
  4. Call or email customer support if all TS fails.

B. Flickering image, distorted image

  1. Make sure Power being used is stable for camera
  2. Test power flowing on screen
  3. If different camera is available, try using
  4. Call or email customer support if all TS fails.

C. Blue screen only/no signal

  1. Make sure camera is connected on selected channel
  2. Check if camera is connected secured.
  3. Transfer camera to different channel
  4. Call or email Customer support if all TS fails.
