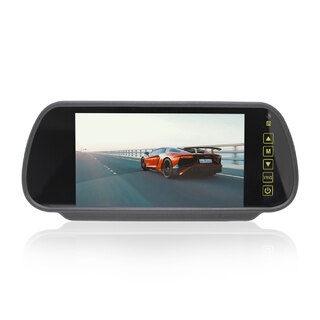

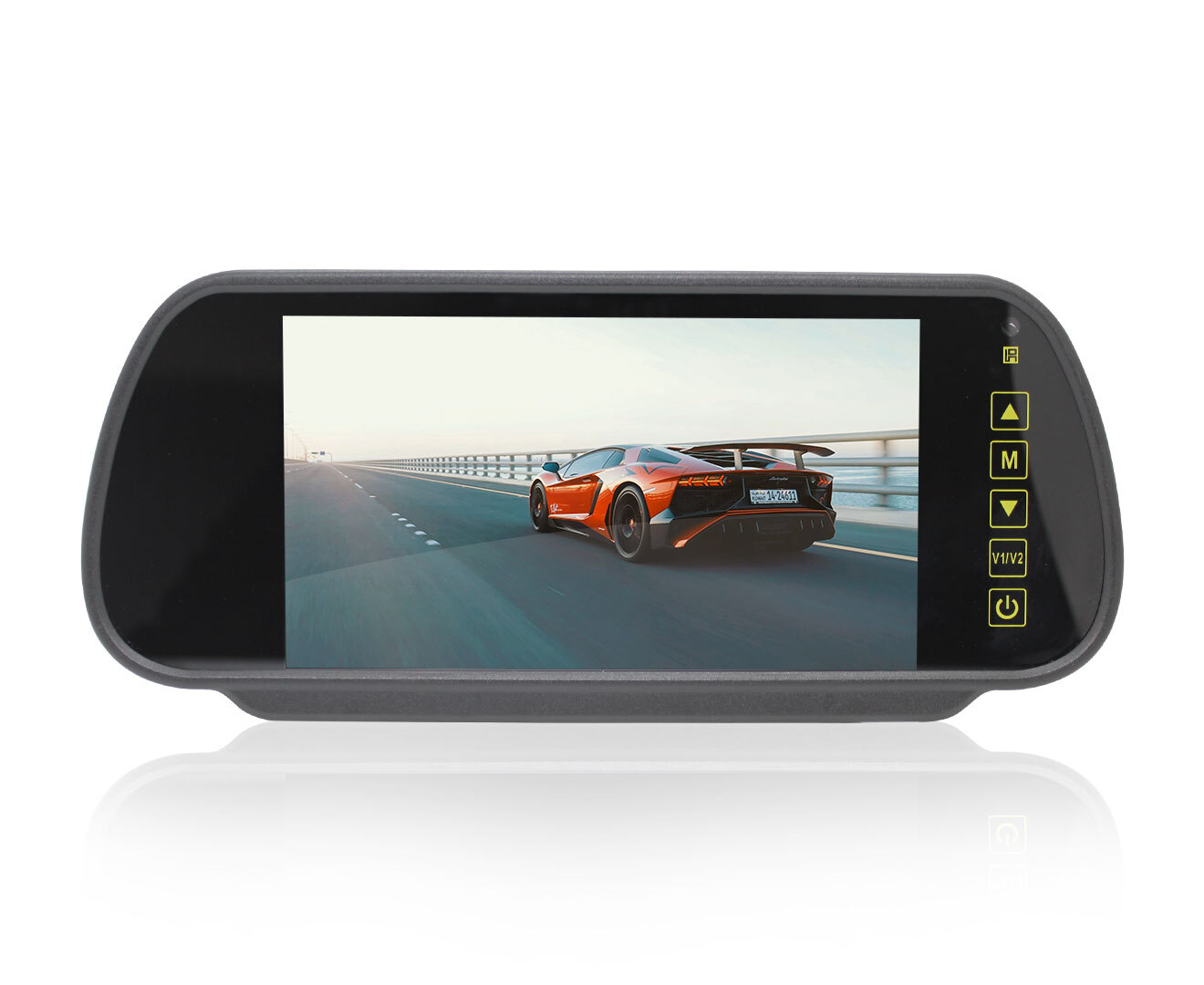

7" Rearview Mirror Monitor 12V 24V 3 AV inputs 4PIN advanced

One rearview monitor only, camera and cable are sold sep

(SKU: R7MI)
AUD $150.00
In Stock


Payment made easy



*Please note that this comes with one 7" LCD Monitor only, Camera and Cable are not included.

Key Features:

  • Huge 7" LED screen display picture behind vehicle
  • Reverse image will show on the screen automatically when the reverse gear is induced
  • Rearview image can also be shown on screen at all times
  • Shock resistant, designed specifically for heavy duty vehicle use
  • Input power: 10VDC to 32VDC
  • With grid line distance graph on/off
  • Original bracket replaces your existing rearview mirror
  • Anti-reflective clear vision mirror
  • 3 AV inputs, can be connected up to 3 reversing cameras

Specification of Mirror:

  • Screen size: 7" LCD monitor (LED digital panel)
  • Resolution degree: 800 X 3 (RGB) X480
  • Contrast: 500:1
  • System: PAL/NTSC
  • Power supply: 10VDC to 32VDC
  • Power: About 5W
  • Working temperature: +0°C-+60°C
  • Storage temperature: -20°C-+70°C
  • Dot pitch:0.192 ( H) X 0.1805 (V )
  • Viewing angle U:50/D:60 L/R:70
  • Video: Three-way video inputs
  • We specially source for this anti-reflective rearview mirror,so even when the screen is not turned on, the monitor will show the rearview from the mirror clearly
  • Special glass ,could see clearly even in sunlight
  • Shock resistant- Built to withstand shock and vibration associated with industrial applications
  • 20G force for vibration an 100G for shock
  • Respond time: 30ms
  • Picture display format: 4:3/16:9
  • Five languages OSD menu: Chinese, English, Russian, German and French
  • The display with two video frequency input Automatic/manual switcher

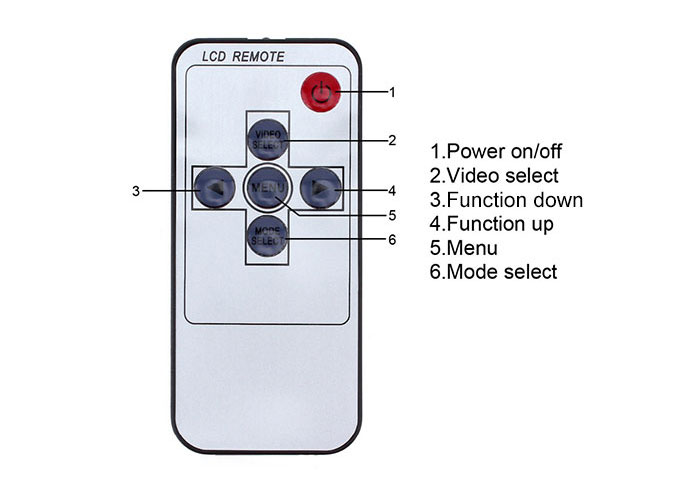

  • Front panel controls with on-screen menu
  • Operation temperature:- 30 ℃ ~+70 ℃

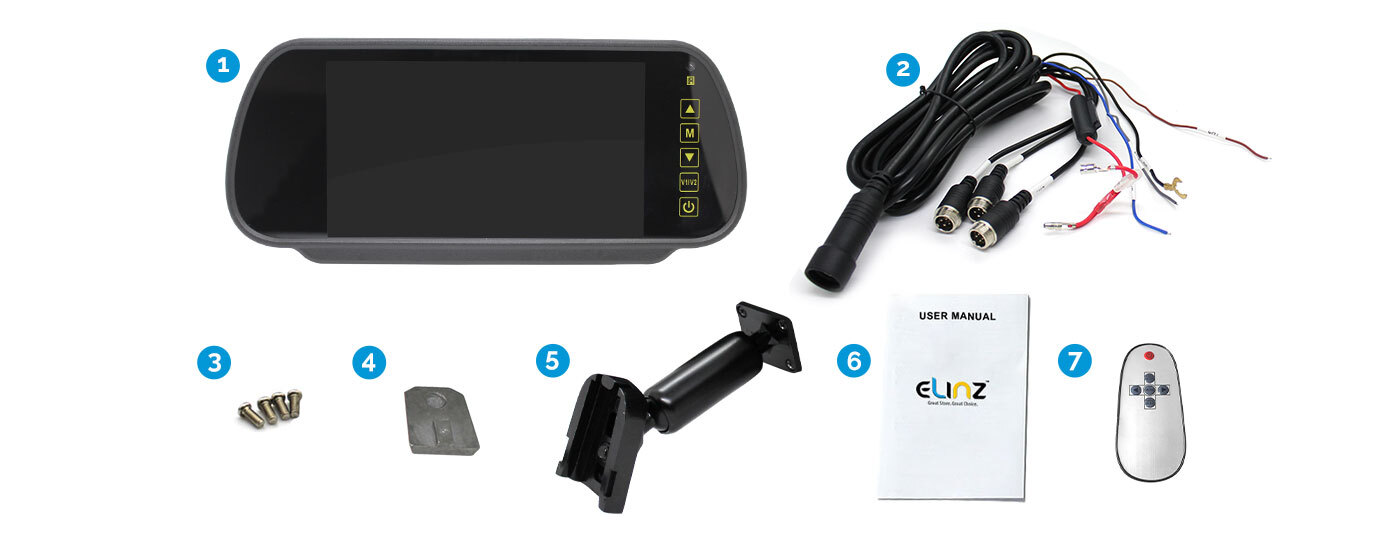

Reversing camera kit monitor specifications R7MI
Rearview reversing camera 1x T-slot R7MI
Actual view on rearview reversing camera R7MI
Reversing camera set up R7MI
Reverse camera system dimensions  R7MI

*Please note that this comes with one 7" LCD Monitor only, Camera and Cable are not included.



Auto camera switch:
This sytem also comes with 3 trigger wires for cameras. Once a trigger wire is activated e.g. when the reverse gear is induced, it will show the rearview automatically, or when the vehicle is put on the turn Right signal, the monitor will switch to the Right side camera automatically to give clear view on the right side of vehicle before making a turn.

Please contact us if you need a camera or cable, 12 months warranty.

Car reversing cameras accessories R7MI
