wireless receiver/transmitter with cables
wireless transmitter
wireless transmitter/receiver connecting to reversing camera

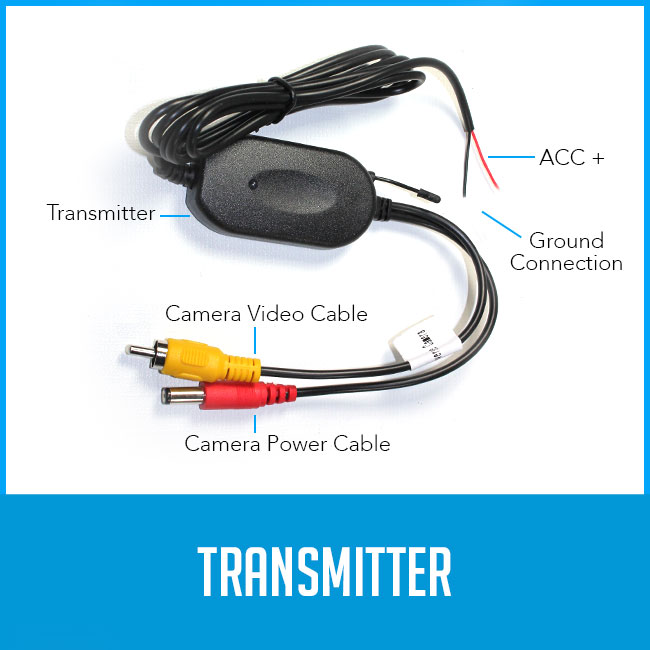

transmitter with video cables
wireless receiver with monitor video cable

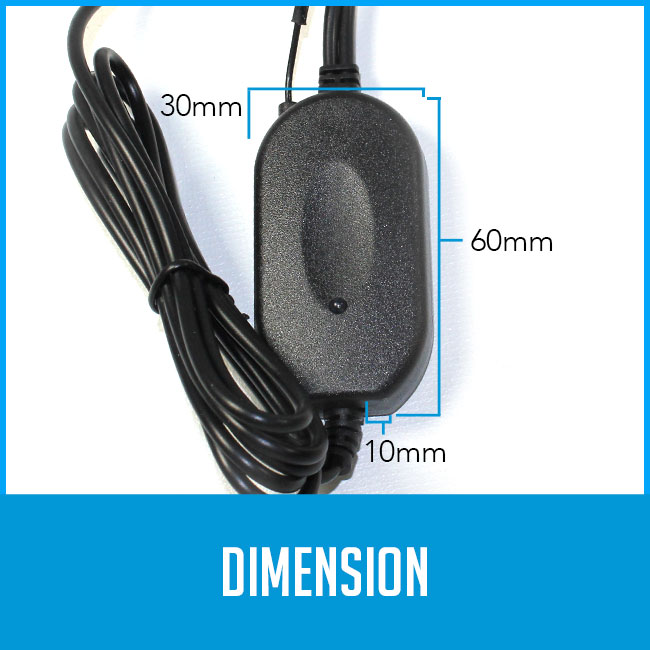

receiver/transmitter dimensions. 10mm thick 60mm long 30mm wide
wireless receiver/transmitter captioned "what's included"



led tail light with 0.4m cable
wiring labels for led tail lights



More Information

This 2.4G Wireless Receiver and Transmitter can be used for RCA video connection and have 12V DC power input. This receiver/transmitter has a frequency range of 2370MHZ with a transmitting power of 10mW/CE 2mW/FCC.

You can easily connect your reversing camera & monitor and save time. No more worrying about the tangled cables. *This listing is for Wireless Receiver and Transmitter only.



PRODUCT HIGHLIGHTS

  • 2.4G wireless receiver/transmitter connect with Monitor & Reversing Camera
  • Transmitting frequency: 2370MHZ
  • Transmit Power: 10mW/CE 2mW/FCC
  • Frequency Range: 2370MHZ
  • Operating frequency: 2414MHz/2432MHz/2450MHz/2468MHz (optional)
  • Signal-to-noise ratio: 38dB
  • Harmonic Distortion: 1.5% (100HZ to 15kHz) input terminal integrated antenna (external Antenna)
  • The channels control: fixed frequency circuit Jigging
  • Video output level: 1Vp-p 0.2V AT 75Omega
  • Power Input: DC 12V
  • Power output: DC 5V (RCA) 1.5A
  • RCA video
  • Easy to install



WHAT'S INCLUDED

1. 1x 2.4G Wireless Transmitter

2. 1x 2.4G Wireless Receiver
