Toyota Hilux 2020-2025 Elinz Reverse Camera T537 Only - Requires T-Harness and Power Cable

Upgrade your Toyota Hilux (2020-2025) with the Elinz Reverse Camera T537. Compatible with all models, it offers plug-and-play installation using a T-Harness and Power Cable (sold separately), ensuring no factory wiring modifications.

With 800TVL resolution, IP68 waterproofing, and a CMOS sensor, enjoy clear, reliable images in any weather. Features like auto-activation, adjustable viewing angles, and parking guidelines make reversing safer and easier.

Enhance your Hilux effortlessly with this durable and high-performance camera!

PRODUCT HIGHLIGHTS



Toyota Hilux 2020-2025 Compatible

Fits all Toyota Hilux 2020-2025 models like WorkMate, Rogue, SR, SR5, Rugged X whether you have a Single, Double Cab or Cab-Chassis that did not come with a camera from factory with this type of factory screen.

• Plug and Play Installation
  • Seamlessly integrate the reverse camera with your Toyota Hilux factory screen without cutting the factory wiring or removing the factory head unit from your dashboard.
  • T-Harness is NOT INCLUDED.
• Auto-Activation
  • The reverse camera will automatically turns on and images will be displayed instantly when you put the gear in reverse.
• 800TVL Resolution
  • With high quality 800TVL resolution it ensures that you can see every detail clearly when reversing.
• CMOS Sensor
  • This reliable and high-quality reverse camera is equipped with 1/3" CMOS sensor to provide you with quality and detailed images and greater clarity than other aftermarket reversing cameras in the market.
• IP68 Waterproof Connectors
  • The threaded and O-ring sealed connectors between the camera and power cable makes it more durable and secure connection. It fully protects your reverse camera in all kinds of weather conditions.
  • Power Cable is NOT INCLUDED.
• Parking Guidelines ON/OFF
  • You can cut the GREEN wire loop to enable/disable parking lines on a reverse camera.
• Viewing Options
  • Camera comes with blue and white wire loops which allows you to flip the image horizontally or vertically without changing the camera bracket. So whether you are installing the camera on the bumper or underneath the tray you can easily manage the viewing options by cutting the wire loops.
  • Blue Wire Loop: Vertical Image Flip
  • White Wire Loop: Horizontal Image Flip.
• Angle of View
  • The camera has a horizontal viewing angle of 120°, vertical viewing angle of 90° and diagonal viewing angle of 170°. Perfect angle so you can better understand the situation behind your vehicle.
• IP68 Waterproof Camera
  • Leave your worries about heavy rains and other weather conditions, camera can withstand different weather situations.

ITEM DESCRIPTION

• Image Sensor: 1/3" CMOS
• Resolution: 800 TVL
• Angle of View: 170° Diagonal, 120° Horizontal, 90° Vertical
• Power Supply: DC 12V
• Vehicle Connection: 26 Pin (T-Harness NOT INCLUDED)
• Connector IP Rating: IP68
• Operating Temperature: -30°C to +80°C
• Camera IP Rating: IP68
• Camera Wire Loops:
  • BLUE Wire Loop = Vertical Image Flip
  • WHITE Wire Loop = Horizontal Image Flip
  • GREEN Wire Loop = Parking Guidelines On/OFF

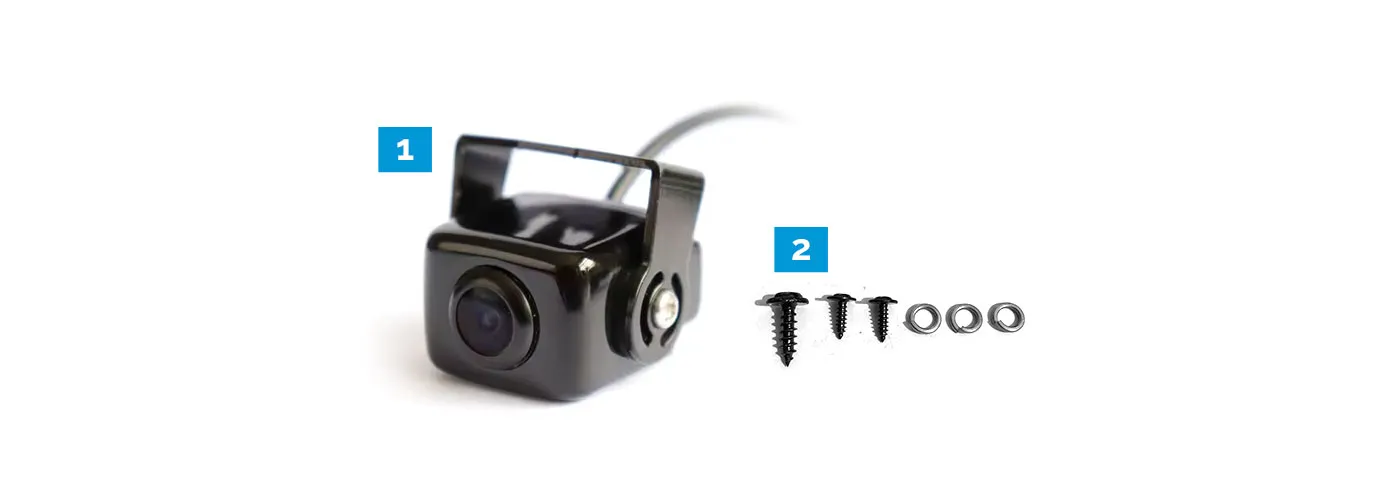

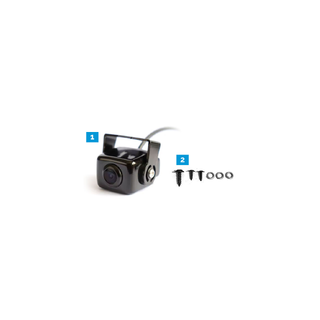

WHAT'S INCLUDED

1. 1x Reverse Camera
2. Set of Screws & Washers
