Elinz K Series Dual Lens AHD 1080P Reversing Camera

The Elinz K Series Dual Lens AHD 1080P Camera delivers full HD clarity with two lenses providing wide rear and reverse views for complete vehicle coverage. Built with an IP69K waterproof metal housing and 24/7 reliability, it ensures clear, dependable monitoring in any environment.

PRODUCT FEATURES

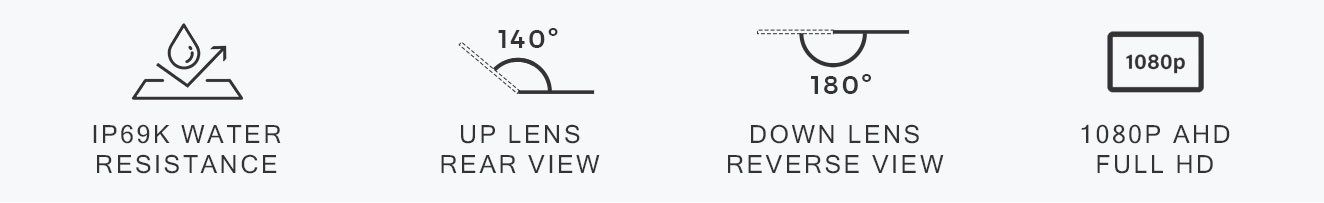

  • High-Resolution Dual Lens - Offers 1920×1080 full HD resolution with two lenses
  • Horizontal Angle - upper lens has a 140° horizontal rear view and the downward lens features a 180° reverse view for comprehensive coverage.
  • Waterproof - Rated IP69K for water resistance
  • Power and Connectors - Operates on DC 12V power supply via 4PIN Aviation connectors for flexible installation.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Image Sensor - 1/3" AHD Full HD camera supporting 1080P resolution
  • Minimum Illumination -0.5 Lux / F2.0 aperture for clear visibility in low light. Signal-to-noise ratio is ≥48 dB.
  • Working Hours - 24/7 continuous operation
  • Current Consumption - <180mA (two cameras)
  • Connectors - 4PIN Aviation
  • Working Environment - 25°C to 70°C, RH 95% max
  • Storage Temperature - -30°C to 80°C
  • Housing - Metal

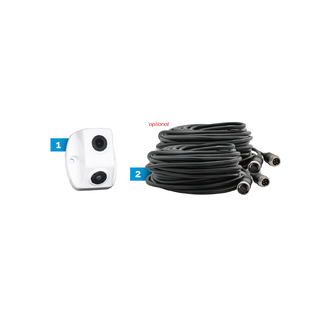

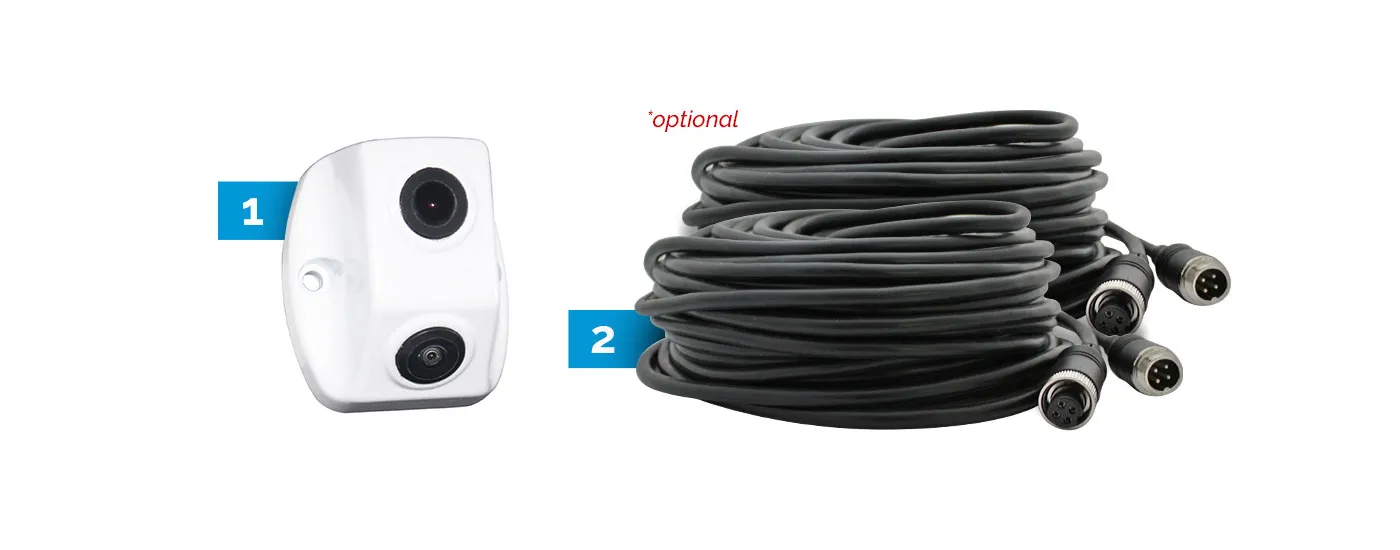

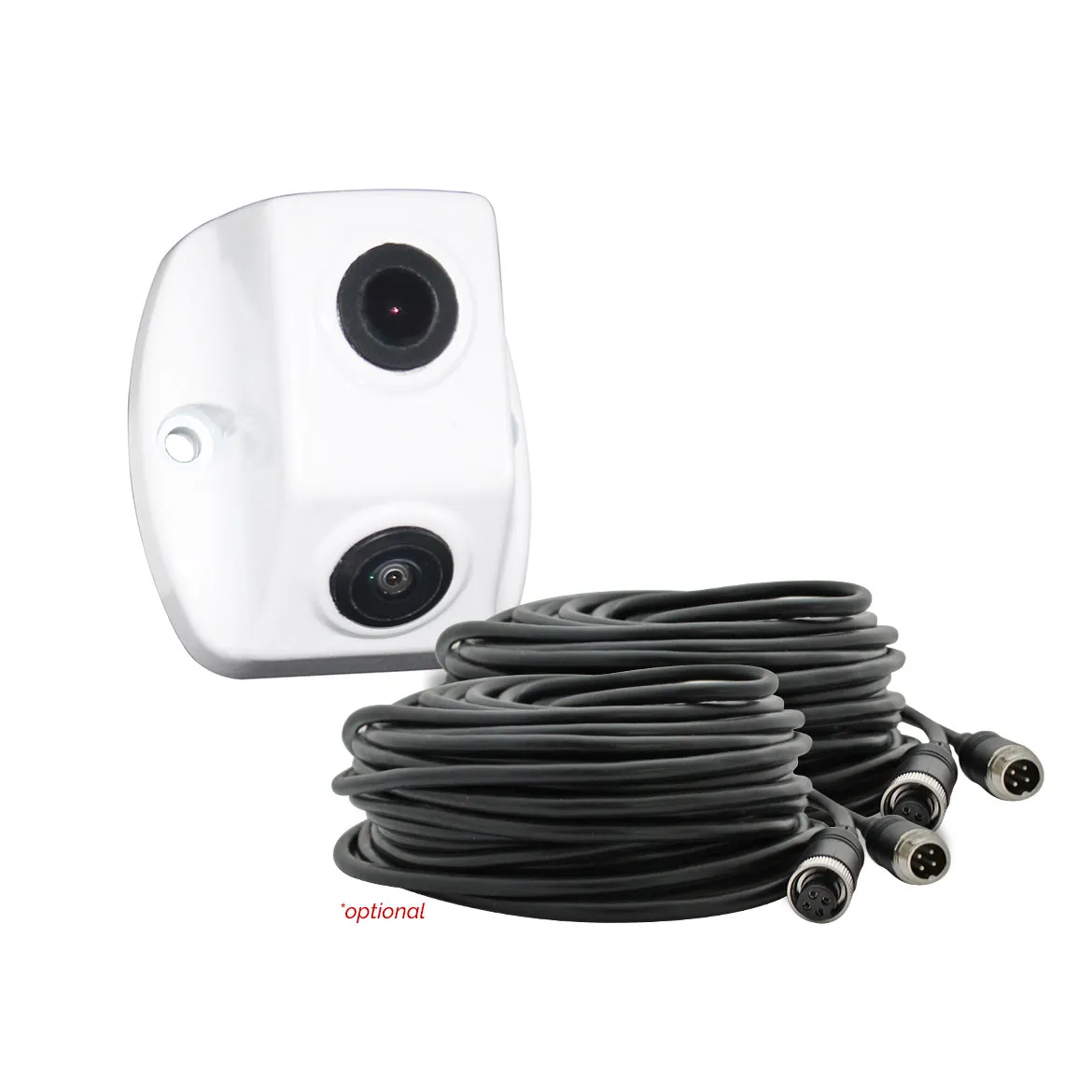

What’s Included

1. 1x Dual Lens Camera

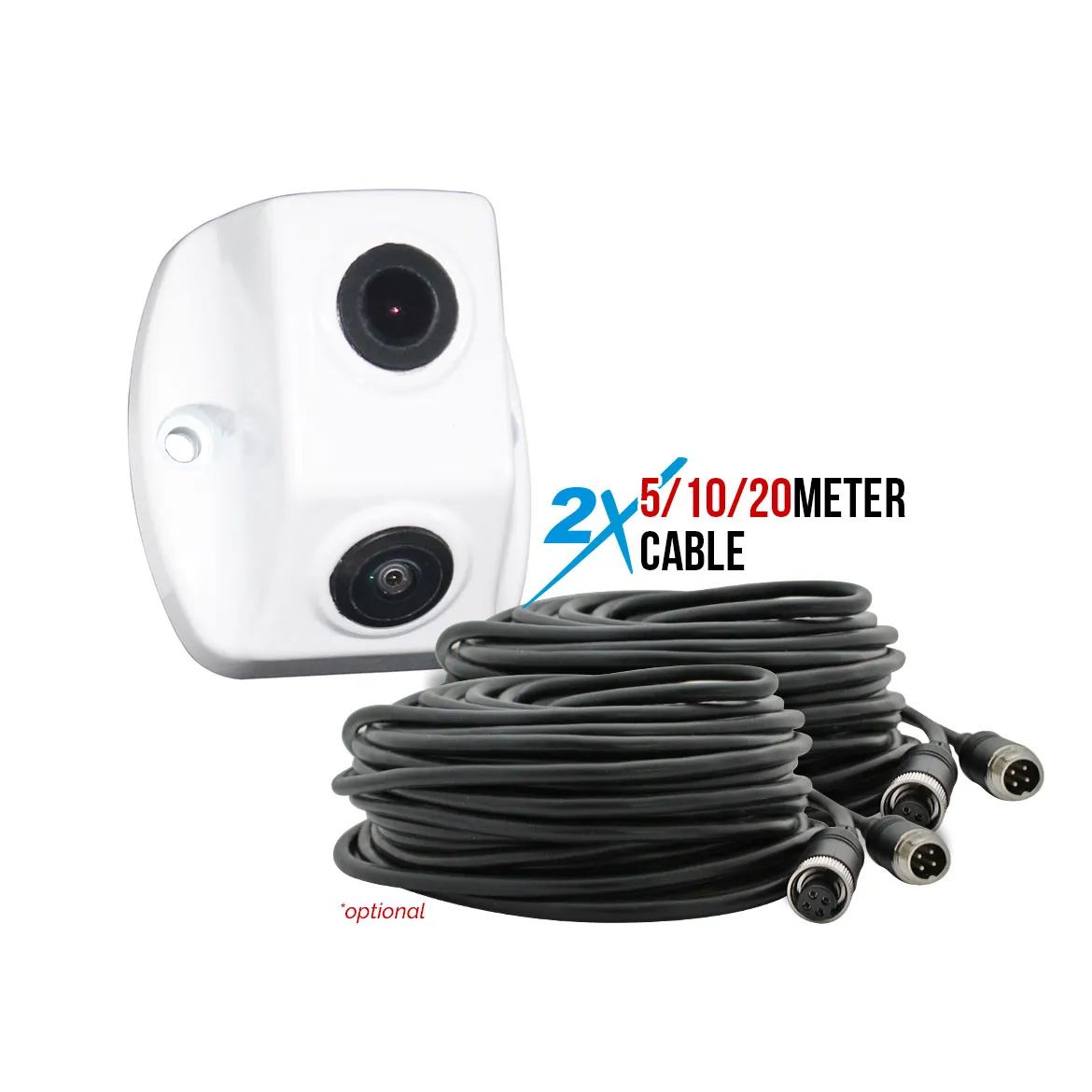

2. 2x 4PIN Cable (Cable length varies from the option selected)
