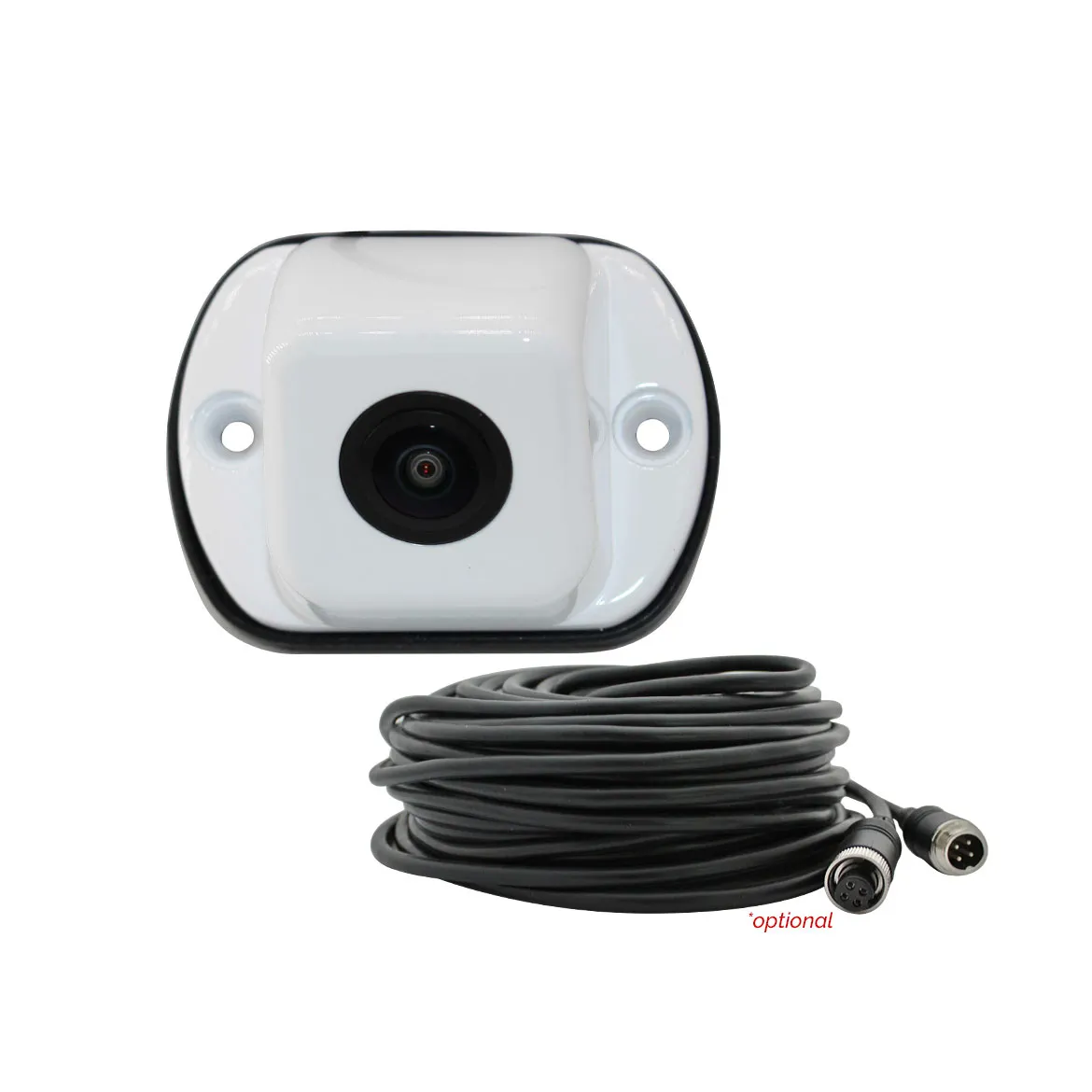

Elinz K Series Surface Mount Car AHD 1080P Rear Camera White

The Elinz K Series Surface Mount Car AHD 1080P Rear Camera in White delivers crisp 1920×1080 full HD footage with a wide 180° viewing angle for maximum rear visibility and safer driving. Built with an IP69K metal housing, low-light performance, and a secure 4-pin aviation connector, it ensures reliable, all-weather monitoring and seamless compatibility with all Elinz K Series AHD monitors.

PRODUCT FEATURES

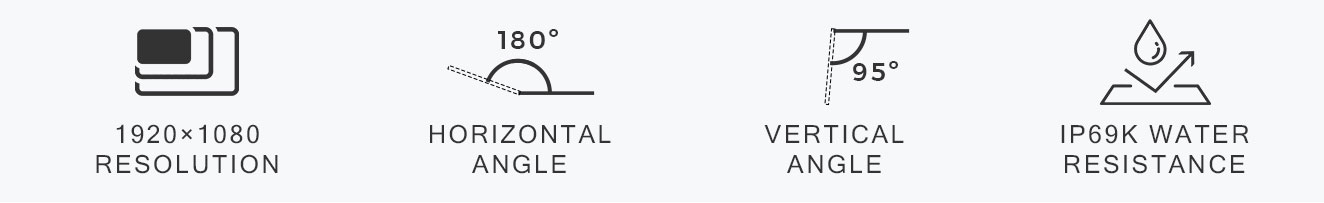

  • High-Resolution - Provides 1920×1080 full HD video with 180° horizontal angle for extensive coverage.
  • Continuous 24/7 Operation - Designed for reliable all-day performance to ensure constant monitoring.
  • Waterproof - IP69K rating for outstanding water and dust resistance in all conditions.
  • 4PIN Connector - The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
  • Low-Light Sensitivity - Supports a minimum illumination of 0.5 Lux at F2.0 aperture for clear images in low light.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Vertical Angle: 95°
  • Image Sensor: 1/3" AHD camera
  • Signal System: NTSC / PAL
  • Minimum Illumination: <0.2 Lux
  • SNR: ≥48 dB
  • Power Supply: 12V (customizable to 24V)
  • Current Consumption: <90mA
  • Operating Temperature: -25℃ to 70℃
  • Storage Temperature: -30℃ to 80℃
  • Humidity: Max 95% RH
  • Housing Material: Metal

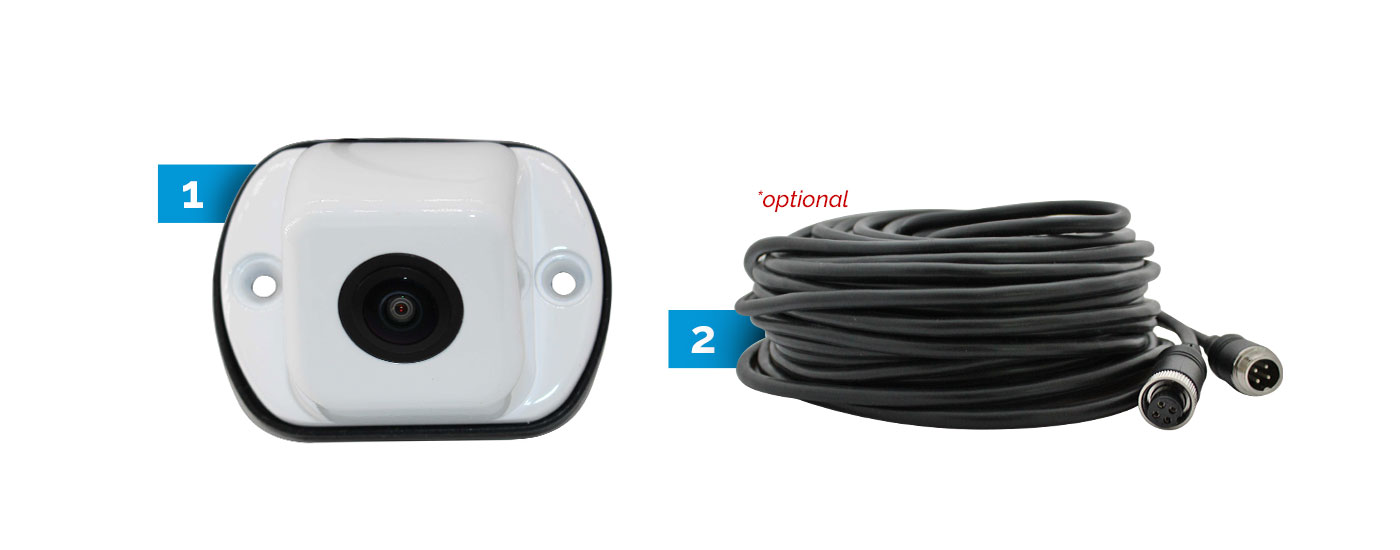

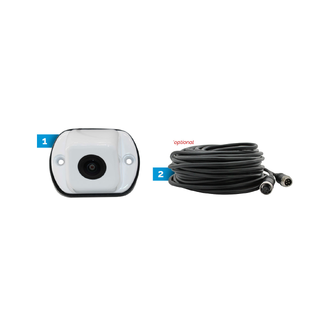

What’s Included

1. 1x Surface Mount Camera

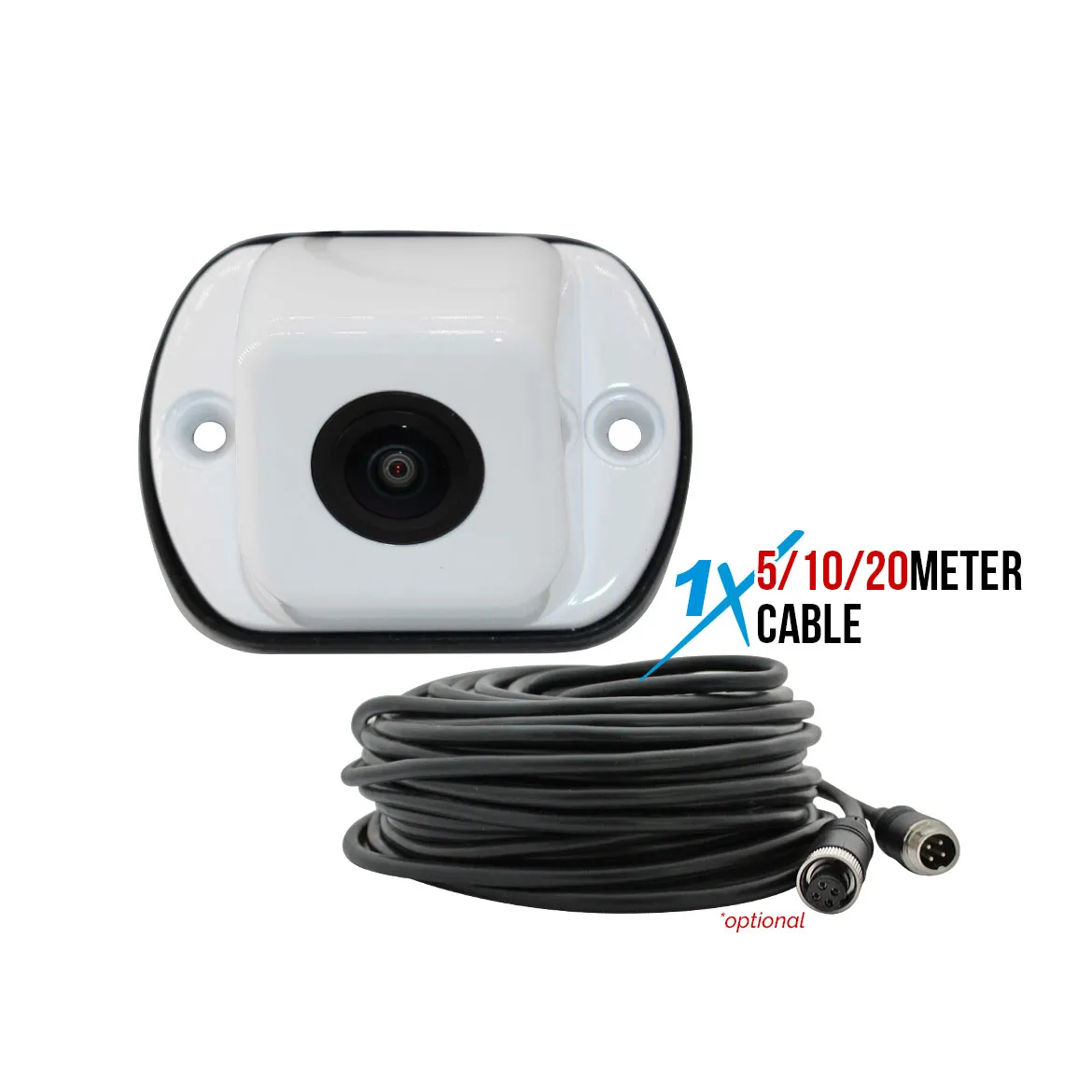

2. 1x 4PIN Cable (Cable length varies from the option selected)
