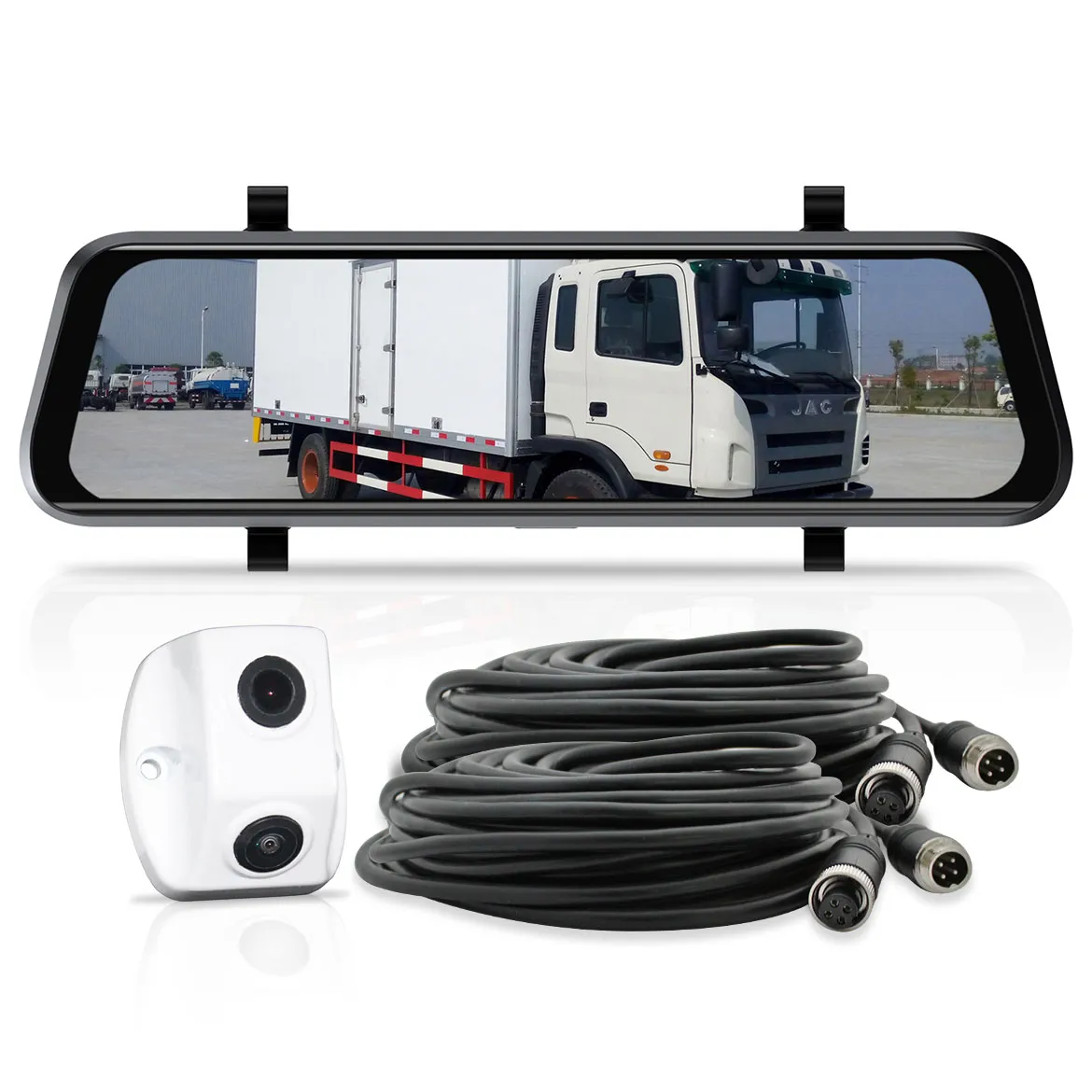

Elinz K Series 9.6" Full Screen Display Mirror Monitor Dual Lens AHD 1080P Reversing Camera 10M Cable

The Elinz K Series 9.6" Full Screen Clip-on Mirror AHD Monitor delivers crisp, ultra-clear viewing with its high-resolution 320×1280 display, enhancing both rear and reverse visibility. Designed for seamless integration with K Series AHD cameras, it offers reliable performance, smart features, and all-weather durability for safer, more convenient driving.

The Elinz K Series Dual Lens AHD 1080P Camera delivers full HD clarity with two lenses providing wide rear and reverse views for complete vehicle coverage. Built with an IP69K waterproof metal housing and 24/7 reliability, it ensures clear, dependable monitoring in any environment.

PRODUCT FEATURES

Monitor

  • 9.6" Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Temperature Tolerance - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cd/m²
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2, supports CVBS, 720P, 1080P cameras
  • Camera Angles: Rear Vision(always on) and reverse vision(auto switch by trigger)
  • GuideLine: On / Off / Adjustable
  • Output Voltage: DC 12V to cameras

Camera

  • High-Resolution Dual Lens - Offers 1920×1080 full HD resolution with two lenses
  • Horizontal Angle - upper lens has a 140° horizontal rear view and the downward lens features a 180° reverse view for comprehensive coverage.
  • Waterproof - Rated IP69K for water resistance
  • Power and Connectors - Operates on DC 12V power supply via 4PIN Aviation connectors for flexible installation.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Image Sensor - 1/3" AHD Full HD camera supporting 1080P resolution
  • Minimum Illumination -0.5 Lux / F2.0 aperture for clear visibility in low light. Signal-to-noise ratio is ≥48 dB.
  • Working Hours - 24/7 continuous operation
  • Current Consumption - <180mA (two cameras)
  • Connectors - 4PIN Aviation
  • Working Environment - 25°C to 70°C, RH 95% max
  • Storage Temperature - -30°C to 80°C
  • Housing - Metal

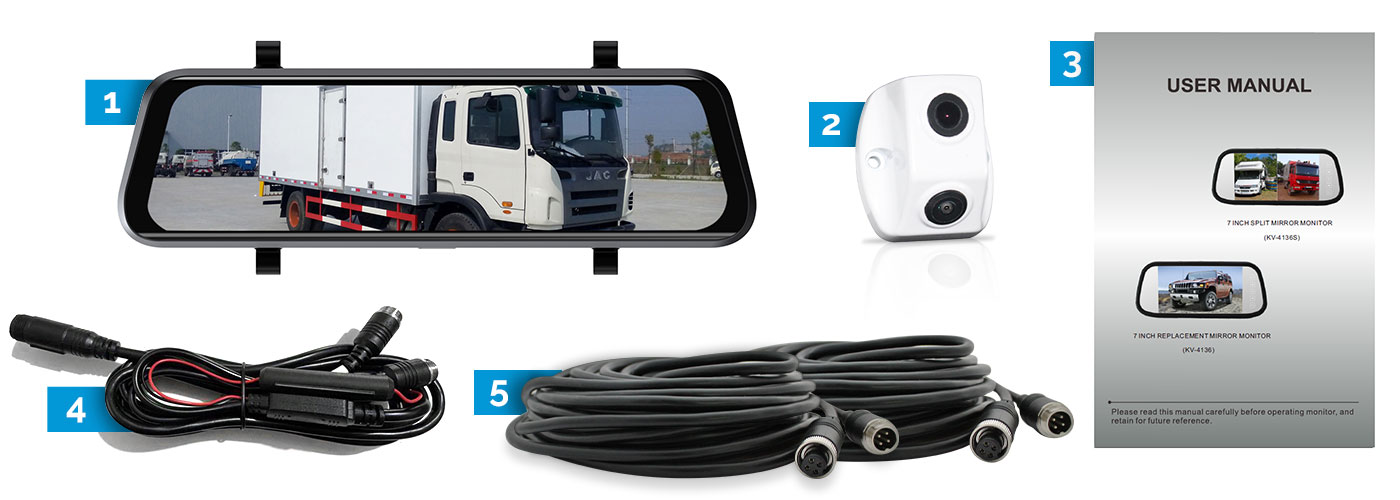

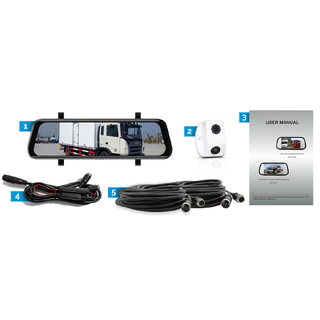

What's Included

1. 1x 9.6" Clip-on Mirror Monitor

2. 1x Dual Lens Camera

3. 1x User Manual

4. 1x Power Cable

5. 2x 10M 4PIN cable
