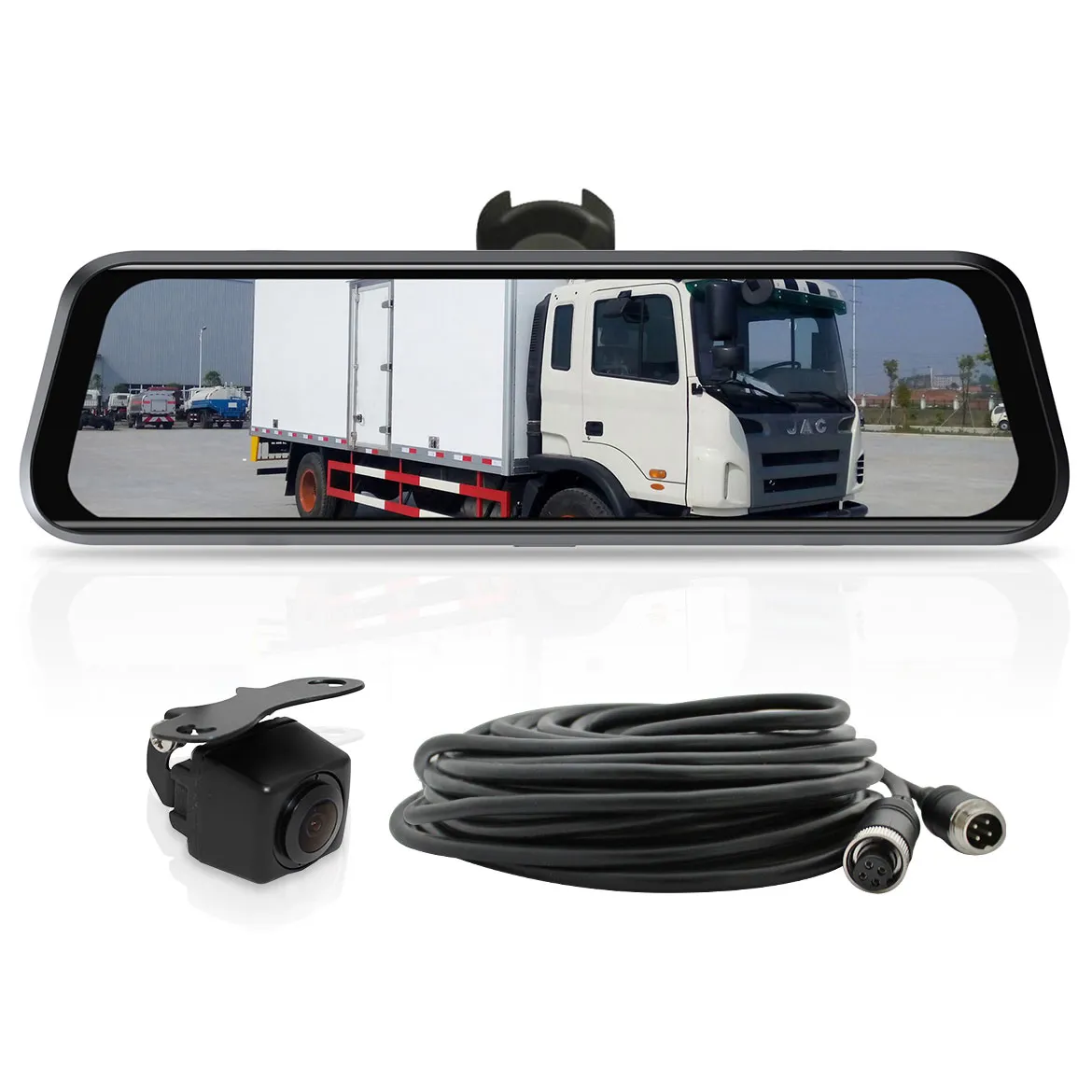

Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor 1080P Reversing Camera 10M Cable

The Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor delivers ultra-clear rear visibility with its high-resolution 320×1280 display and smart dual-view functionality. Built for reliability and seamless compatibility with K Series AHD cameras, it ensures stable performance, safer reversing, and dependable operation in any weather.

The Elinz K Series Car Reversing AHD 1080P Camera delivers exceptionally clear, wide-angle visibility with its 180° field of view and full HD resolution. Built for reliability, it performs confidently in low light, harsh weather, and demanding vehicle environments.

PRODUCT FEATURES

Monitor

  • 9.6 Inch Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Power Wire Inverse Protection - Protects against incorrect power wiring.
  • Working Temperature - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cdm
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2
  • Camera Angles: Rear vision and reverse vision by trigger
  • Guideline: On / Off / Adjustable

Camera

  • High-Resolution Imaging - 1920×1080 resolution delivers crystal-clear video.
  • Ultra-Wide Viewing Angle - 180° horizontal field of view captures a broad area behind the vehicle.
  • Low-Light Capability - 1/3" Full HD image sensor with 0.2 Lux minimum illumination (F2.0 aperture) ensures visibility in low light.
  • Fast Shutter Speed - Shutter speed range 1/50-60 to 1/15000 seconds.
  • Water Resistance - IP69K-rated for water and dust resistance.
  • Wide Voltage Operation - Powered by DC 6-24V with inverse polarity protection for flexible vehicle compatibility.
  • Energy Efficient - Consumes less than 40mA current for low power usage.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Minimum Illumination: 0.2 Lux / F2.0 aperture
  • Signal System: PAL / NTSC
  • Shutter Speed: 1/50-60 to 1/15000 seconds
  • Connector: Mini 4PIN to Aviation 4PIN
  • Image Switch: Mirror/Normal
  • Guideline: On/Off
  • Operating Temperature: -20°C to 65°C

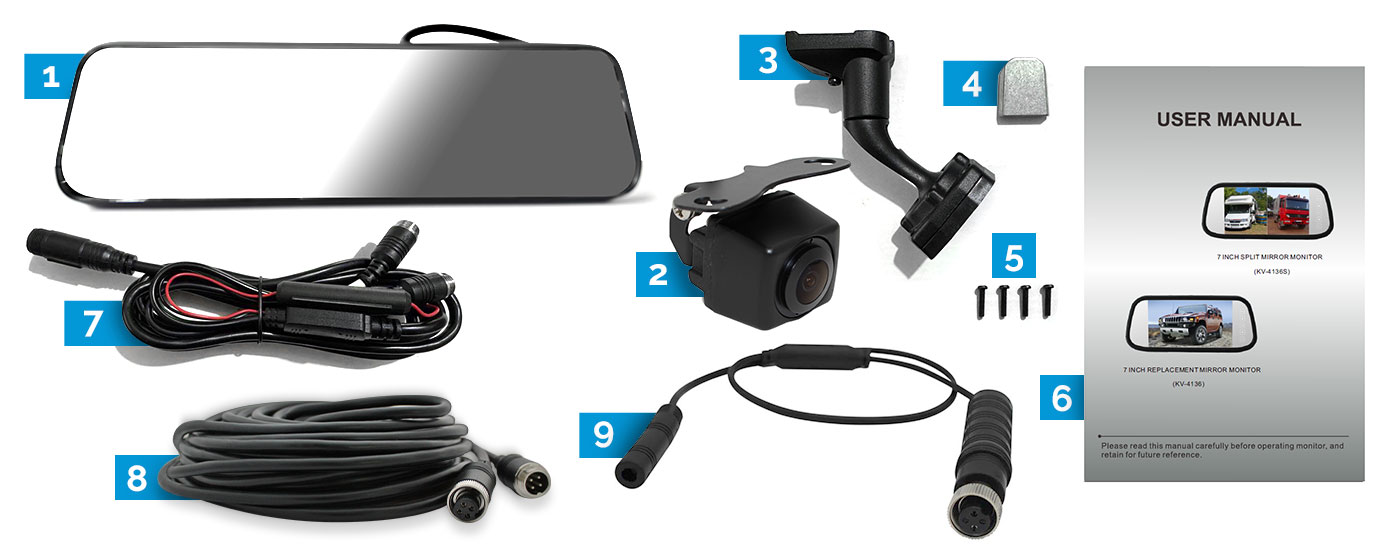

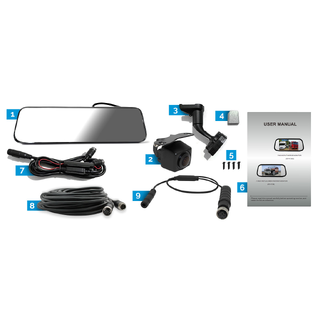

What's Included

1. 1x 9.6" Car Mirror Monitor

2. 1x Reversing Camera

3. 1x Bracket

4. 1x T-Slot

5. 4x Screws

6. 1x User Manual

7. 1x Power Cable

8. 1x 10M 4PIN Cable

9. 1x Adapter
