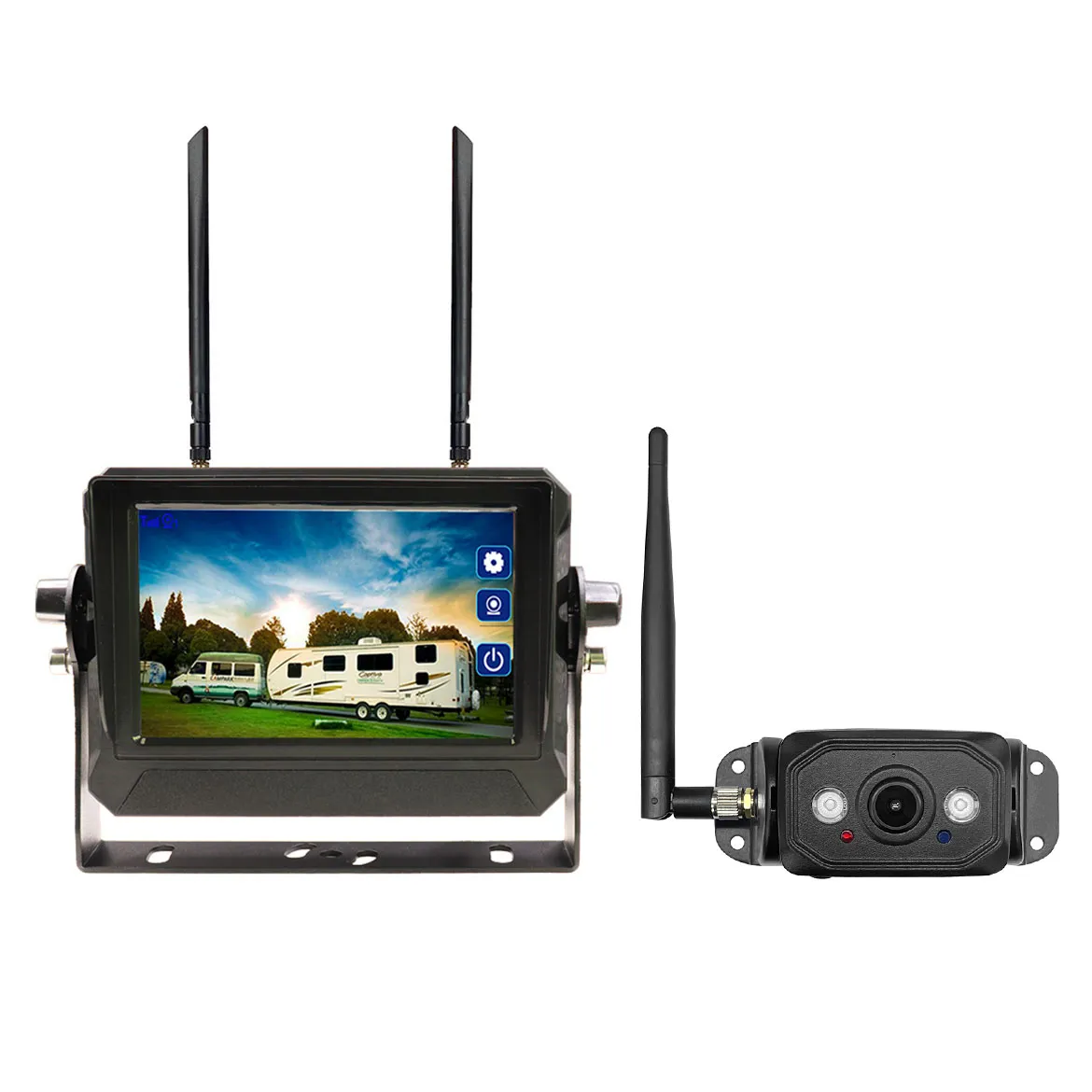

Elinz 5" Touch Screen Digital Wireless AHD Monitor 1080P Reversing Camera

Featuring a compact 5-inch IPS touch screen monitor that delivers vibrant, high-definition views of your surroundings. The system is paired with a rugged, IP69K waterproof 1080P Full HD camera equipped with IR night vision and a wide 130° viewing angle for maximum visibility in any lighting condition. Engineered for seamless installation and reliable performance, it utilises advanced wireless technology and supports a wide 12V–24V voltage range, making it the perfect choice for caravans, RVs, and trailers.

MONITOR SPECIFICATIONS

• 5" Touch Screen Display Monitor: Equipped with an 800×480 resolution IPS panel, this 5-inch touch screen monitor offers clear and vibrant images for rear and reverse viewing in a compact form factor.
• Touch Screen Interface: Intuitive capacitive touch controls for quick menu access, settings adjustments, and seamless operation.
• Quad Split View Function
• Wireless Connectivity: Works on the 2.4 GHz ISM band with 802.11b wireless standard, providing reliable cable-free connectivity.
• Compatibility: Supports digital AHD wireless cameras, enhancing installation flexibility and convenience. Not compatible with RVDWT and RVDWRL cameras.
• Modulation method: Utilises CCK modulation and DSSS spread spectrum to minimise interference and maintain strong signal quality.
• Memory Expansion Support
  • Compatible with Micro SD cards up to 256GB for recording and playback purposes.
• Wide Operating Voltage: Supports DC 12V to 24V input voltage, making it adaptable to various vehicle electrical systems.
• Wireless data rate: 11Mbps
• Spread spectrum: IEEE 802.11b:DSSS(Direct Sequence Spread Spectrum)
• RF output power: 20 dBm ±1 dBm
• Working mode: Ad-Hoc
• Receiver Sensitivity: 11Mbps-86dBm@8%
• SD Card Capacity: Max 256GB (Micro SD Card)

CAMERA SPECIFICATIONS

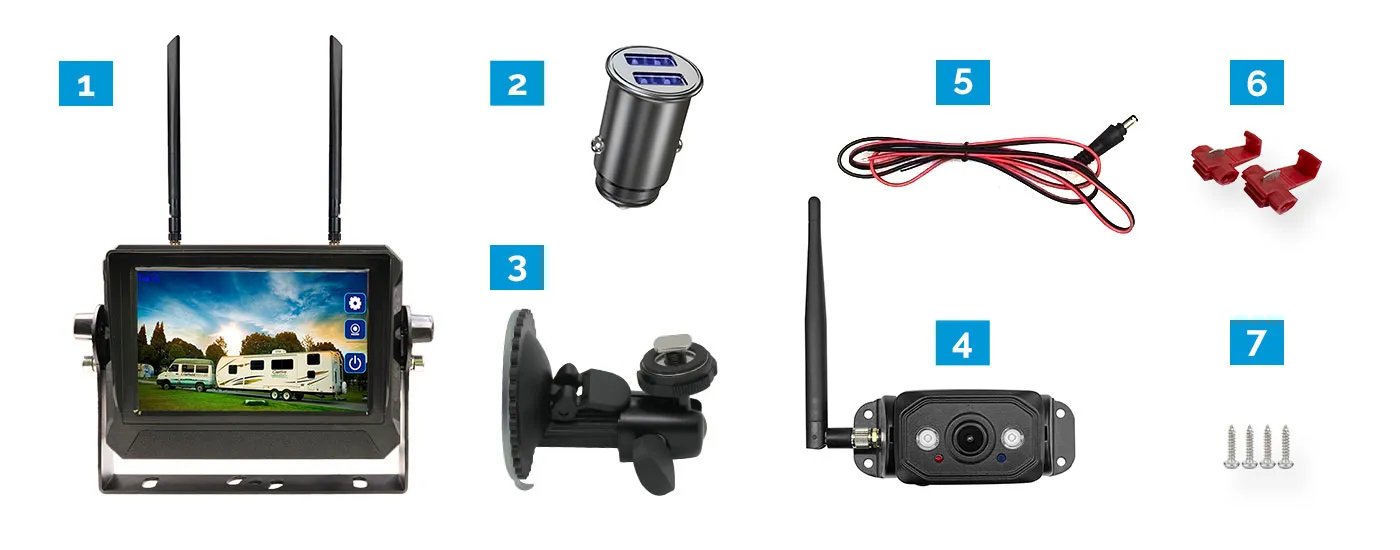

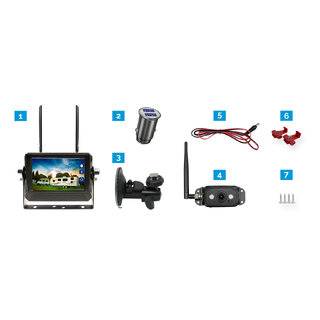

What's Included
