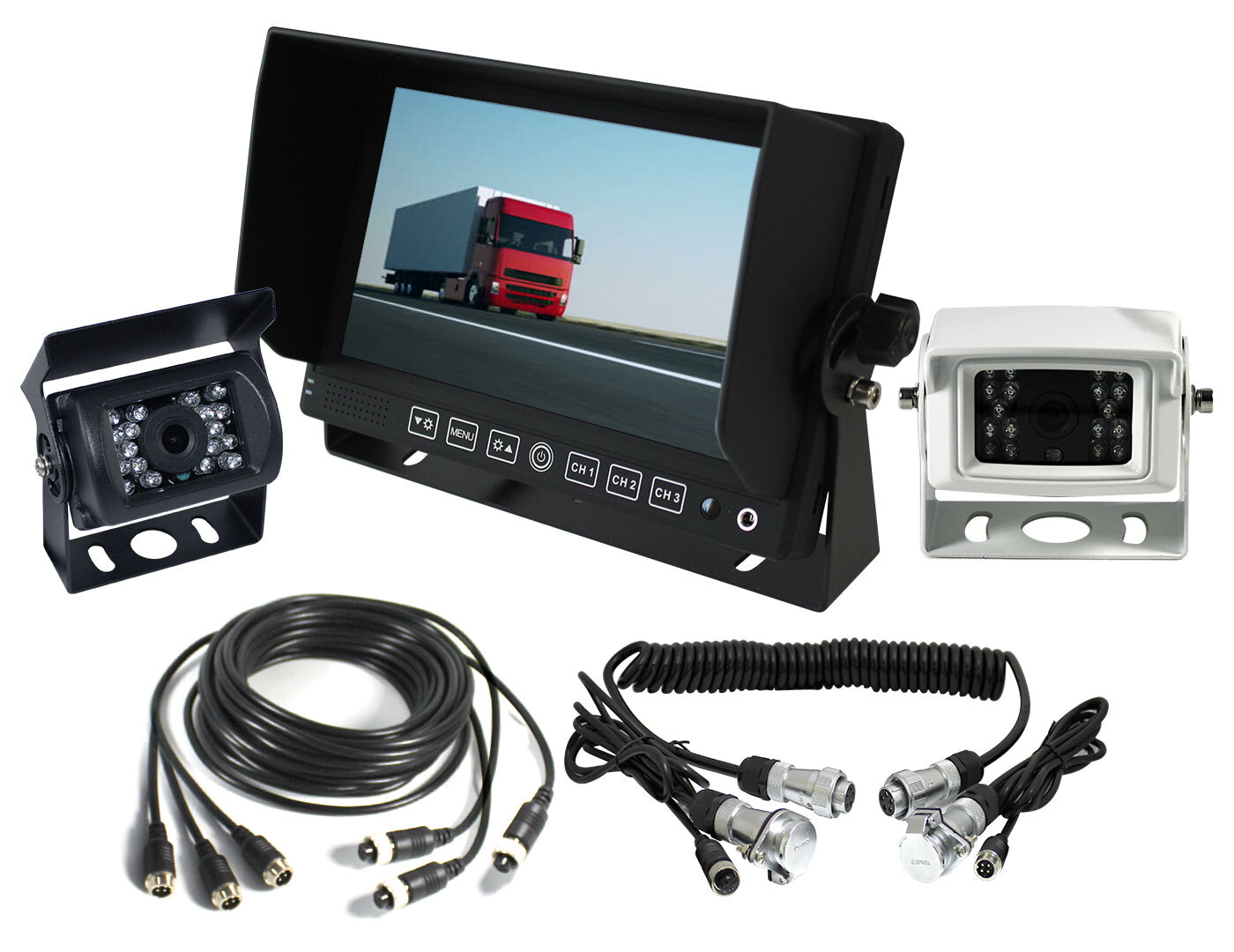

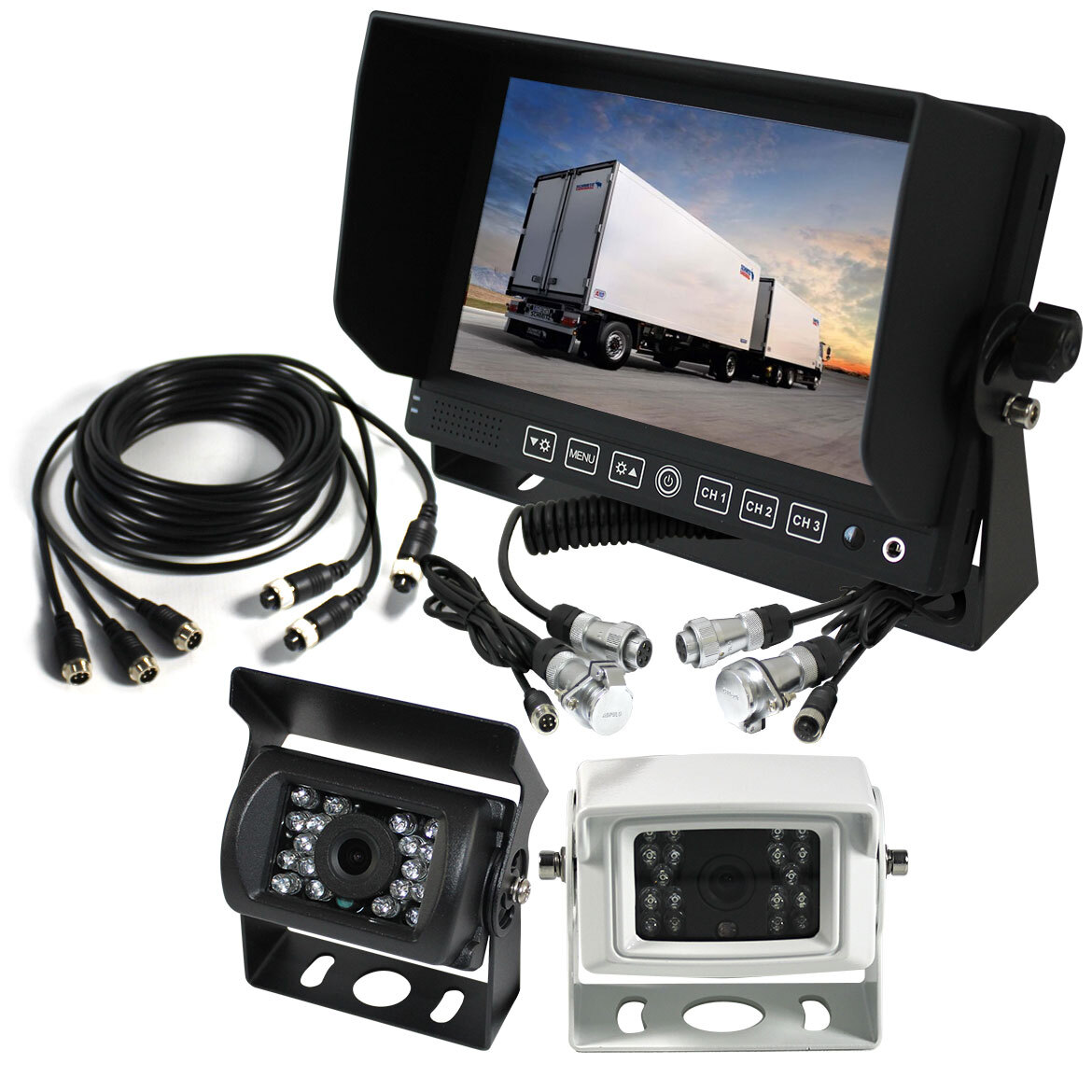

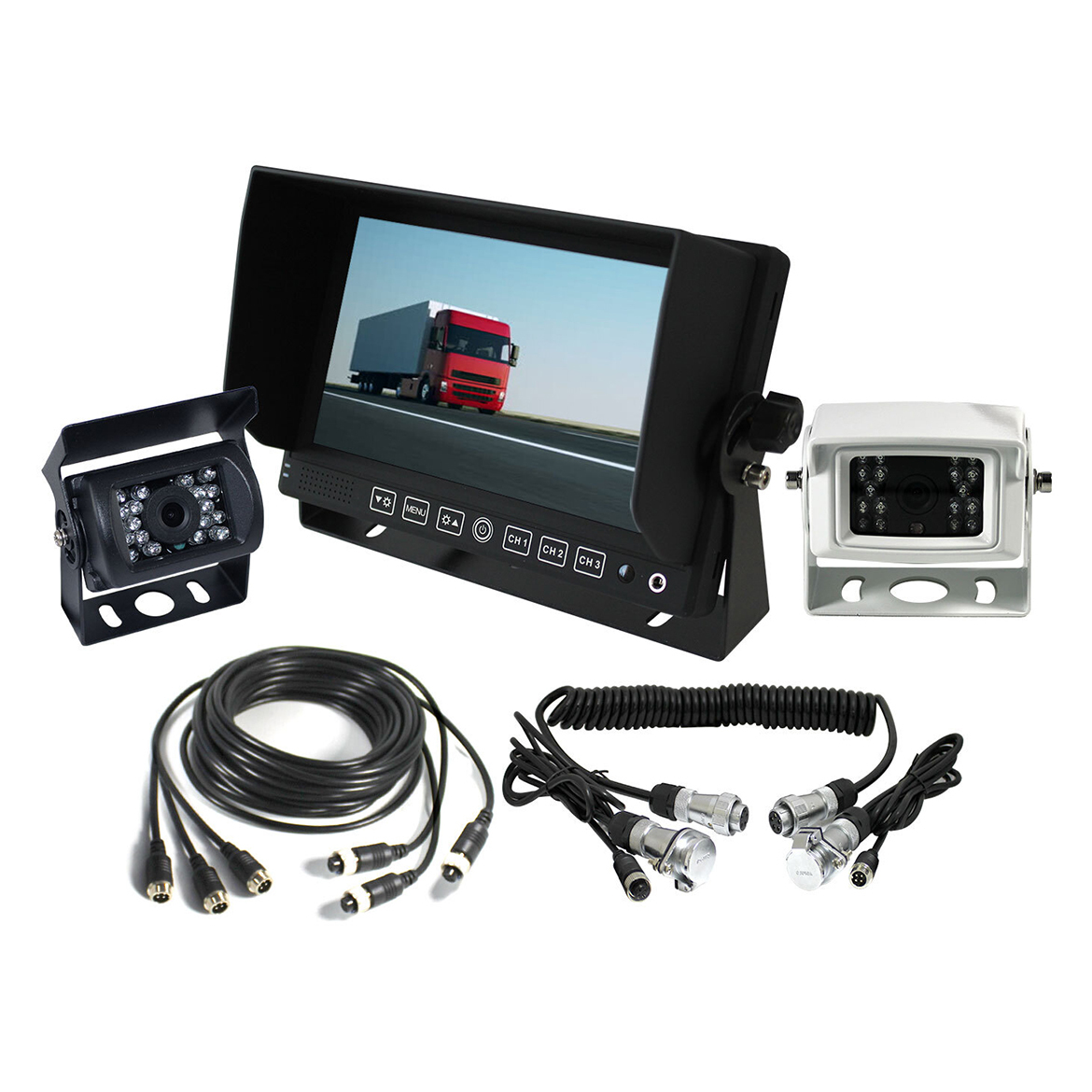

7" Monitor Caravan 2 Reversing Camera 4PIN 3AV MIC 12V 24V Trailer Cable Coil WHITE camera

SKU: GEAR7RV4PIN10-RVQWH-CBLTR

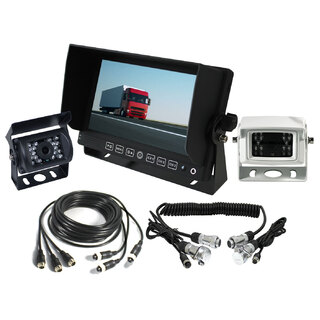

7" Caravan 2 Cameras System Reversing
Monitor Sun Visor

7" Digital Screen w/ Sun Visor

  • High definition 800x480 with Sunshade design to avoid sun glare.
CCD Image Sensor Reverse Camera

CCD Image Sensor

  • Capture clear audio and sharp image or video footage with 120° wide view angle.
4 PIN Cables

3x10M advanced 4 PIN cables

  • Allows the monitor to power up the cameras no need to connect another power cable

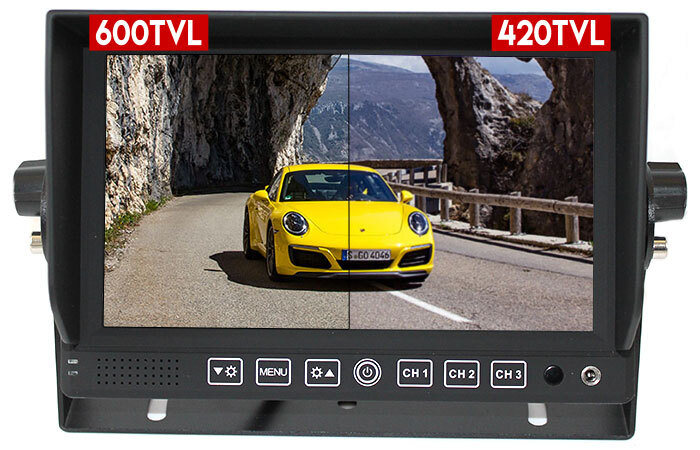

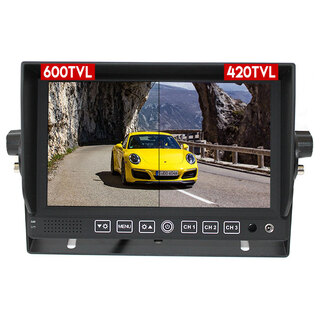

600 TVL Reversing Camera

New Upgraded Model

  • 600TVL camera that provide high quality and clear images
3 AV Inputs Monitor

3 AV inputs

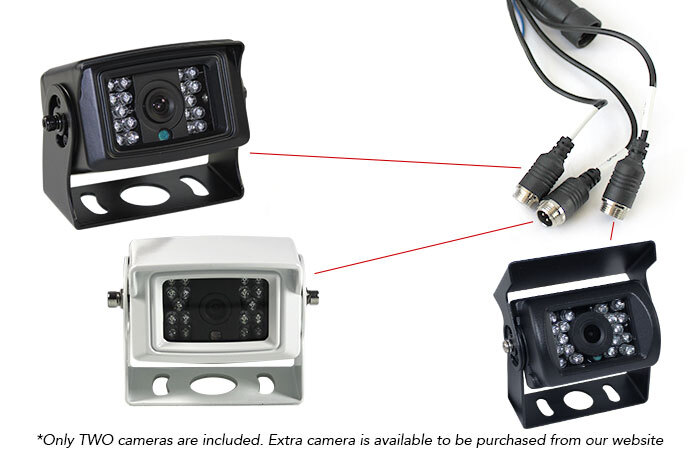

  • Can be connected up to 3 reversing cameras
IR Night Vision Camera

IR Night Vision Camera

  • It comes with 18 IR LEDS to provide better night vision.

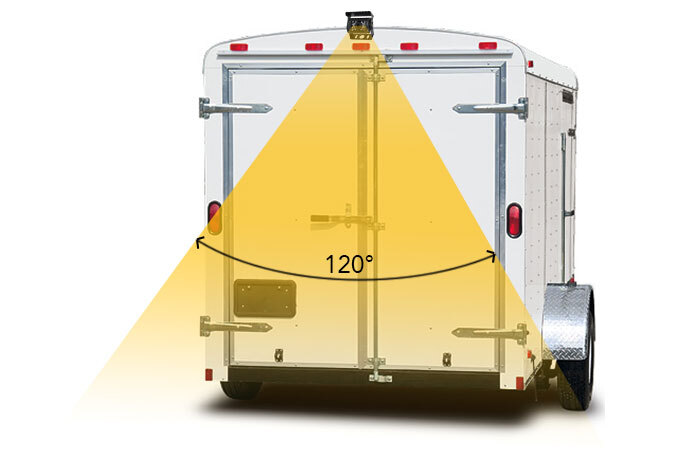

  • 120 degree wide field of view CCD camera.

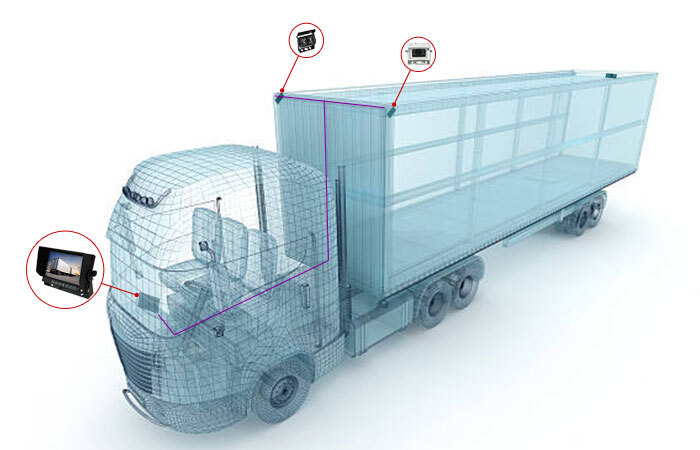

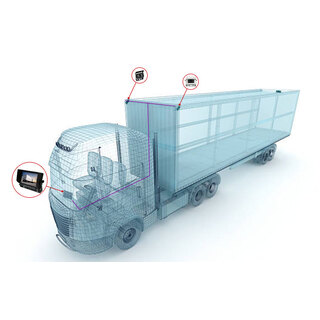

Reverse Camera Application

For Buses, Trucks, Heavy Vehicles

  • Reduce blind spots for larger vehicles and added safety.
Built-in Light Sensor

Built-in Light Sensor

  • The monitor will dim itself automatically at night to avoid glare.
4 Angle Rever Camera Monitor

4 Angle Viewing Switch

Monitor Removable Sun Visor

Removable Sun Visor

Monitor Rotational Bracket

Rotational Bracket

Built-in Loud Speakers

Built-in Loud Speakers

Monitor Parts & Labels

Monitor Parts & Labels

Wiring Labels

Wiring Labels

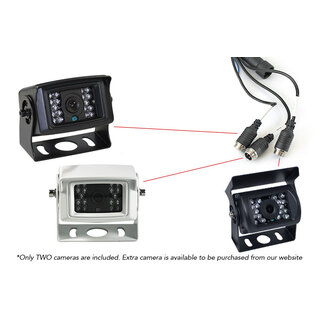

2x Camera Package

2x Camera Package

  • 1x Camera with MIC (choice of black or white) & 1x Camera w/o MIC
  • Conveniently communicate on the person behind the vehicle
  • Reduce blind spots when parking, backing up or maneuvering
Built-in MIC Reverse camera

Built-in MIC

  • Easy communication with the driver and the person behind the vehicle.
Monitor Camera Dimensions

Remote

  • * No Batteries included
Reverse Camera Dimensions

Trailer Cable

  • Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
  • Cast alloy connector can be mounted adjacent on same bracket
  • Suitable for truck trailer, semitrailer or caravan applications
Reverse Camera Dimensions

Dimensions



MORE INFORMATION

Get an added safety and convenience with this reversing camera kit that uses 7" TFT monitor with high definition colour LCD panel which offers almost 4 times more pixels than the other standard 7" screens. The monitor has 3 AV inputs, 2 of which are sound enabled, which means that you can hook up the monitor to a DVD player., mp4 player etc. , to play video or hook it up to a reverse camera with microphone for better security.

It uses standard 4PIN connectors to connect to the cameras which will provide power to each camera attached. There are trigger wires with adjustable time delays on the inputs to enable indicators to be used to trigger an AV channel.

This 7" monitor reverse camera kit is suitable for 12V or 24V vehicle. It has voltage overload protection and reverse polarity protection to ensure the monitor and cameras are not damaged by fitting errors. It is mounted by a substantial U-bracket and sunshade to keep the sun off the monitor.

It has stylish touch button control on the front panel of monitor. It has built-in light sensor with automatic adjustment, the monitor will dim itself automatically at night to avoid glare.

Package with 2x heavy duty reverse camera with high-resolution 120° wide field of view camera with in-built infrared LED night vision capability plus CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness. 1 camera has built-in MIC which you can also choose from white or black colour camera depending on preference and the other camera has no built-in MIC.

ITEM DESCRIPTION

Monitor

  • Screen Size: 7" Digital TFT panel with Sunvisor
  • Resolution: 800x480
  • Aspect Ratio: 16:9 image
  • Video Input: 3 way video input- 2 way audio input, with AV-IN
  • Power Supply: DC9V-32V
  • Recording time: 70 Min
  • System: PAL/NTSC Auto –Switching
  • Menu: OSD
  • Speaker: Built-in Loud speaker
  • Varying languages display
  • Bracket: with stand and U-shape bracket
  • Light Sensor: Automatic adjustment

2x Camera

  • 1x Camera with built-in mic and 1x camera without mic
  • Day and night colour CCD camera
  • 1/4 CCD sharp sensor
  • 18 LEDs infrared night vision
  • System: PAL:752(H)*582(V) and NTSC:768(H)*494(V)
  • Resolution: 600 TV Lines
  • Minimum Light: 0 Lux(LED ON)
  • Electron shutter: 1/100,000 ,ON/OFF
  • S/N ratio; More than 48 Db
  • Video output: 1Vp-p 75Ω
  • Voltage: 12V/24V
  • Vibration resistant, especially designed for mobile usage
  • 120 degree angle

Trailer Cable

  • 5 PIN AP-TP20 metal connector with male and female connector
  • Waterproof function
  • 4 PIN metal connector for CCD Camera
  • Length selectable
  • With elasticity length from 2 000mm to 4 000mm
  • Very tight connection durable and reliable
  • Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
  • Cast alloy connector can be mounted adjacent on same bracket
  • Suitable for truck trailer semitrailer or caravan applications

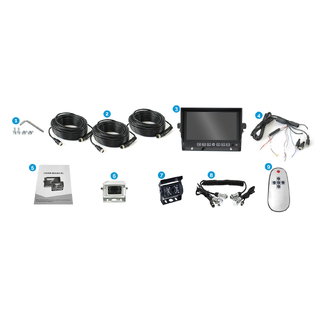

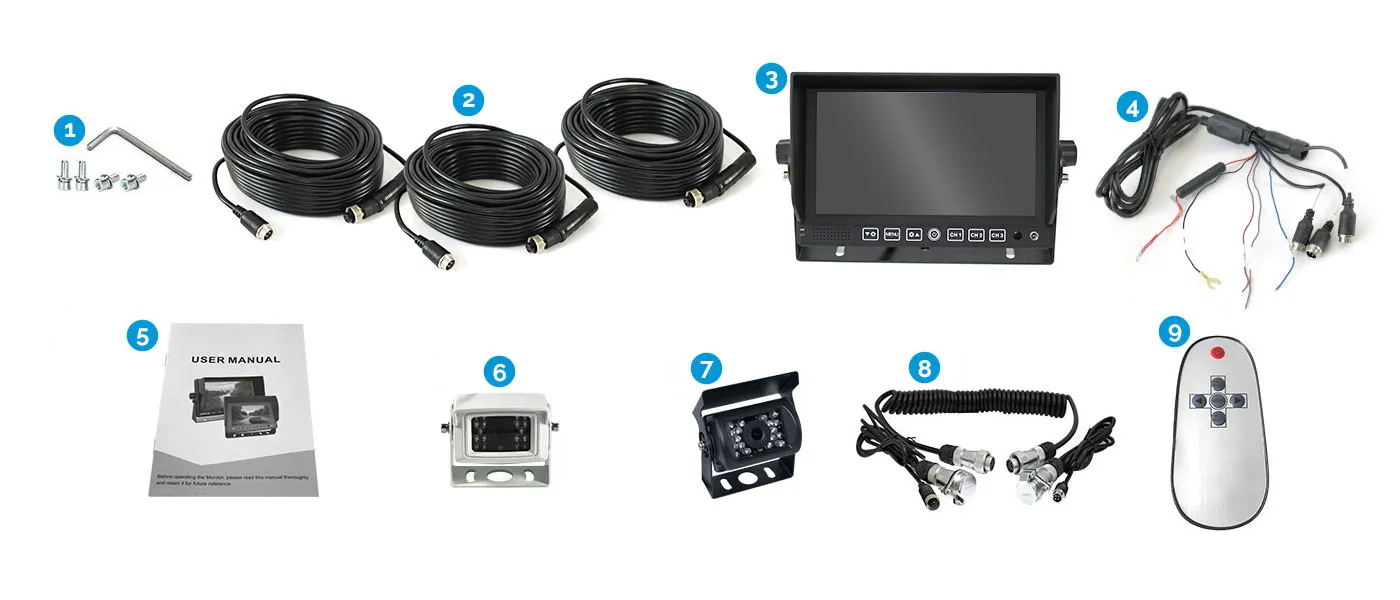

WHAT'S INCLUDED

1. Screws

2. 3x 10M 4PIN cable

3. 7inch digital monitor

4. Power Harness

5. User manual

6. 1x CCD Reversing Camera with built-in MIC (White)

7. 1x CCD Reversing Camera without built-in MIC

8. 1x Trailer Cable

9. 1x Remote ( * No Batteries included )

7" Caravan 2 Cameras  Reversing
