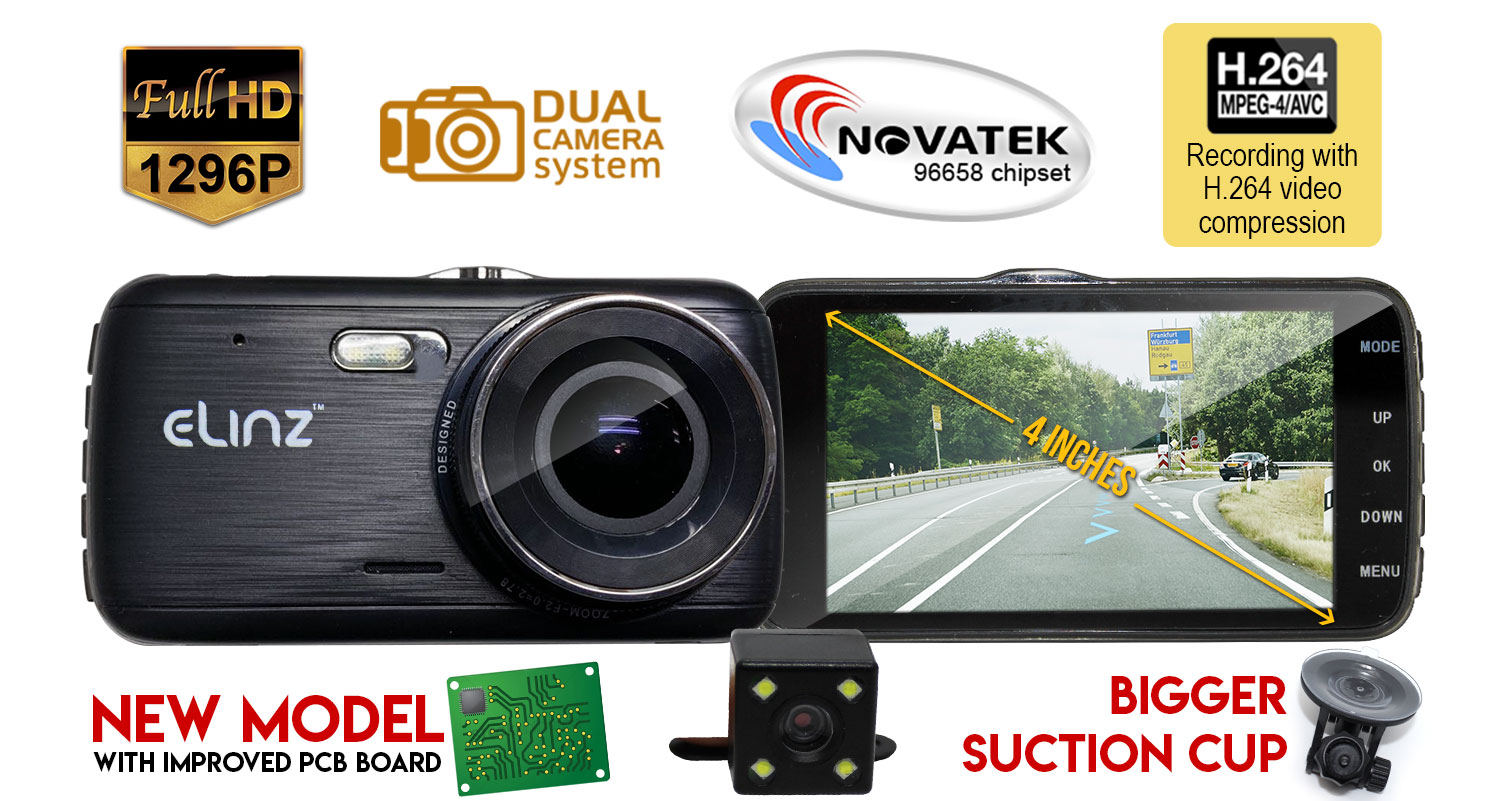

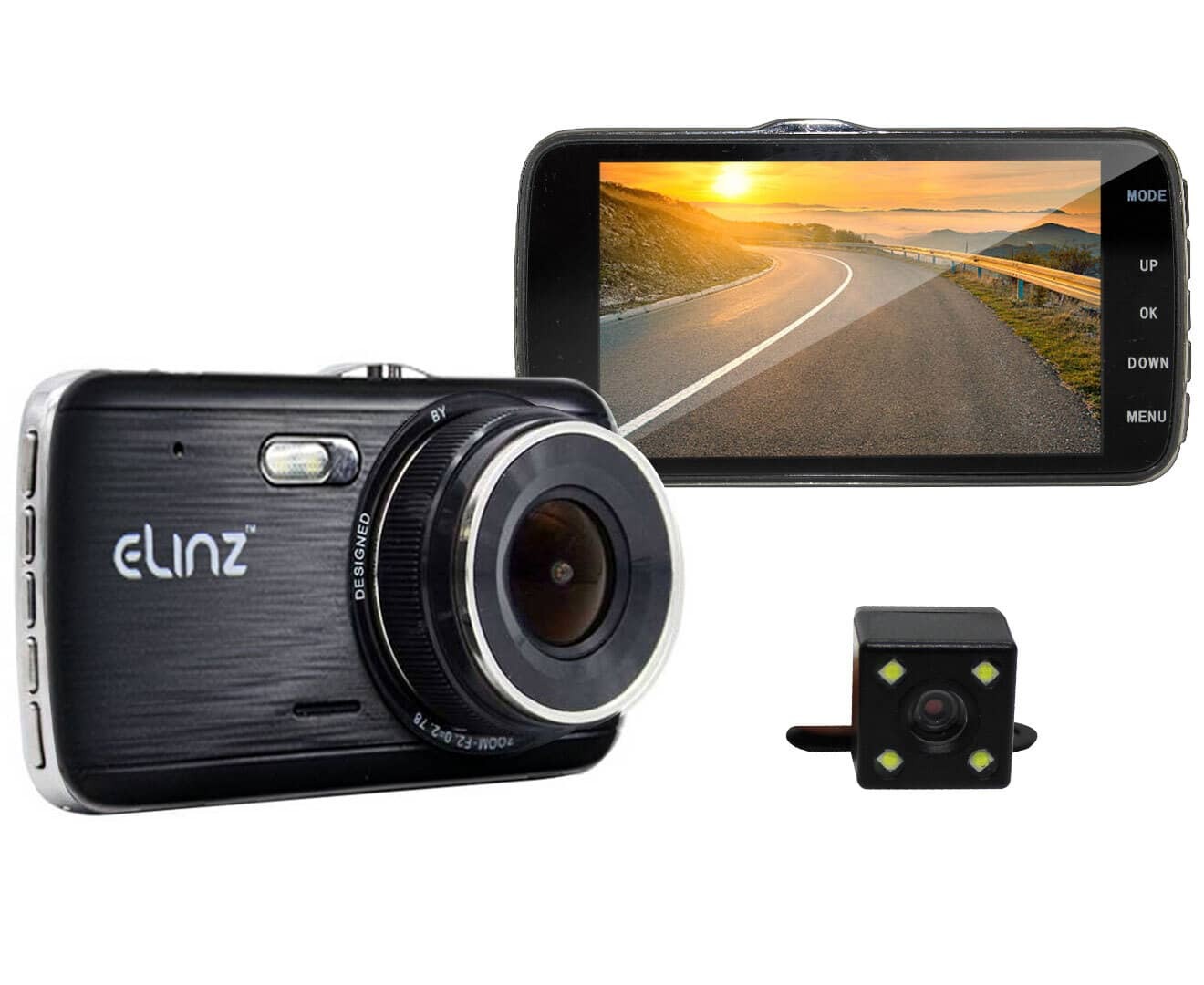

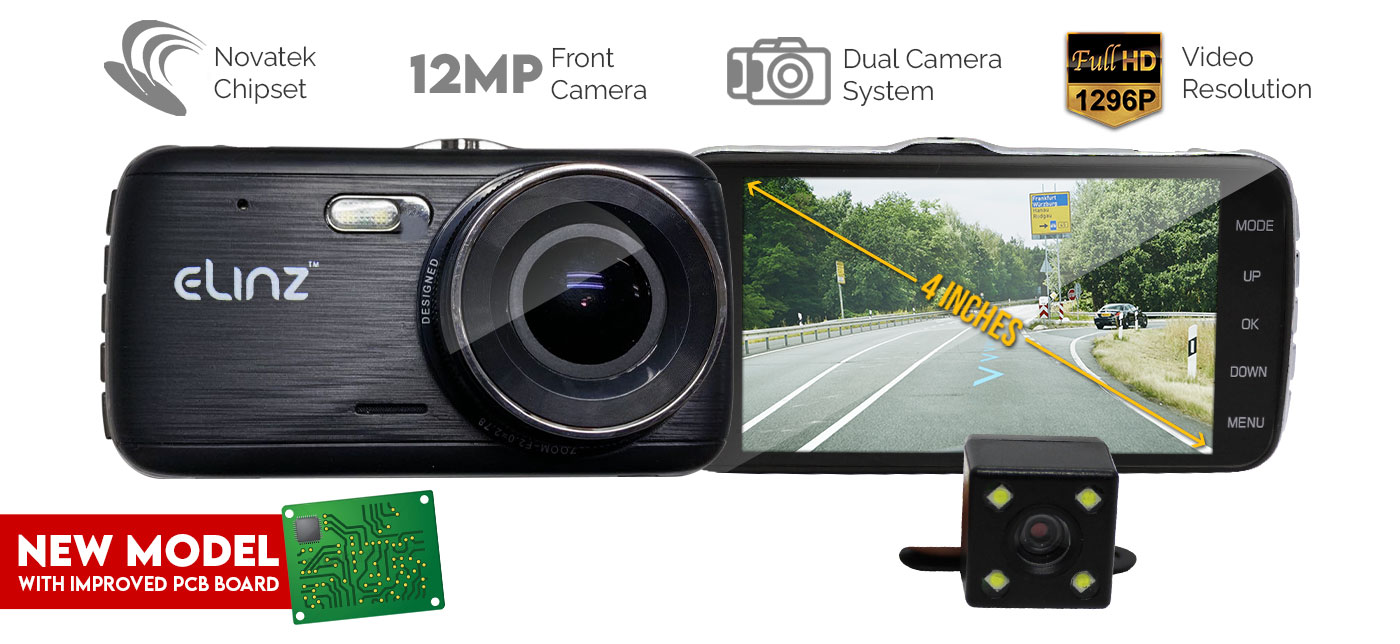

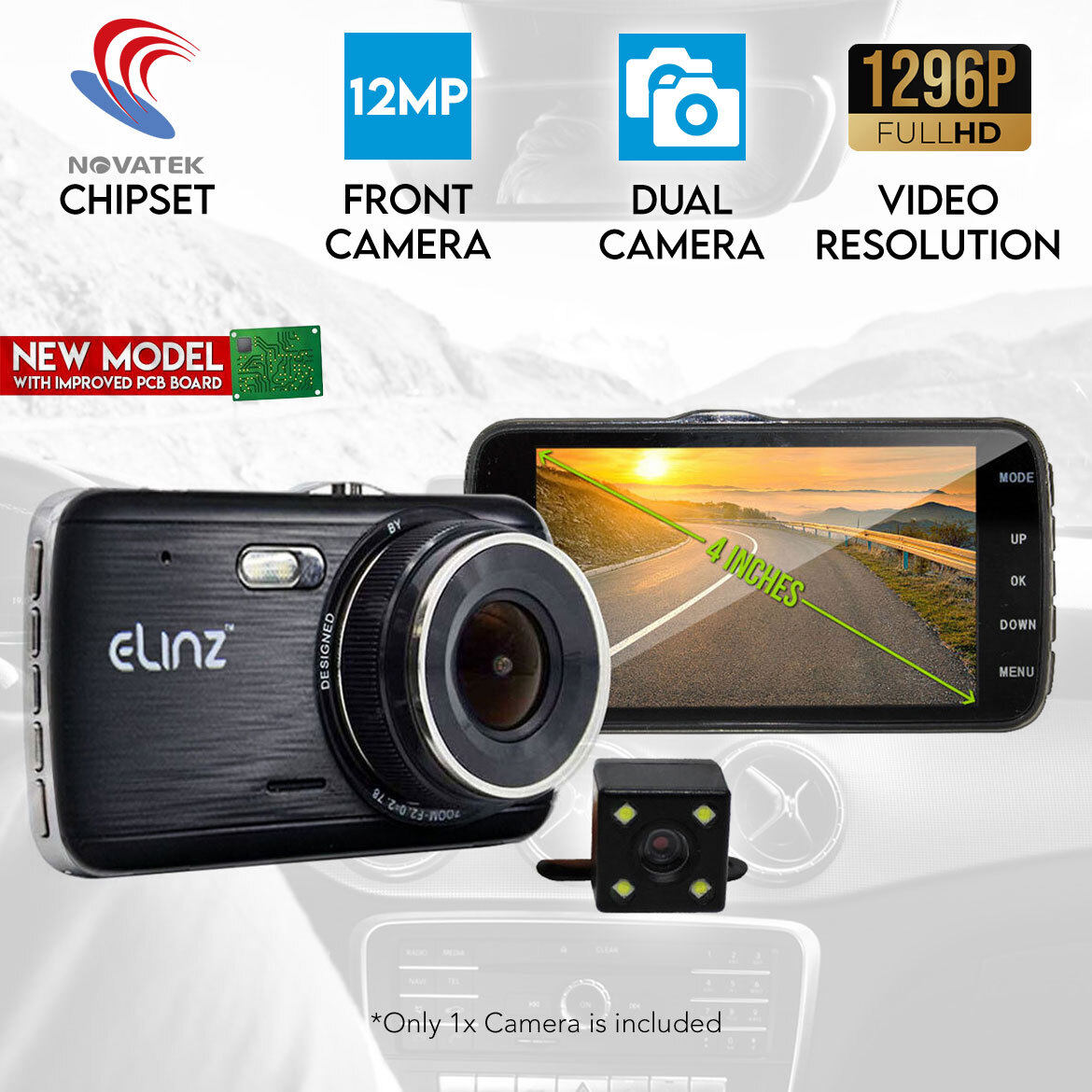

Elinz 4.0" LCD Car Dash Cam Dual Camera Reversing 1296P FHD DVR Video Recorder 170°
No Hardwire Charger~NTK 96658~WDR~12MP~Night Vision
Notify me when back in stock
Dash Cam Dual Camera Reversing Recorder Car DVR Video 170° FHD 1296P 4.0 LCD
Dash camera have been a neccessity for all car owners now a days. Each of us install a reliable dash cam to gain security and confidence while on the road.
This car camera also comes with a reversing camera that can help you in reversing, parking and backing up. It features a 4inch LCD screen plus a 1296P high resolution that can deliver videos clearly.
Camera have night vision wherein you can see videos clearly at night and even in low light conditions. It even supprt loop recording and gravity sensor that activates video lock to protect evidence video.
**This dash cam does not come with hardwire kit charger.You can purchse the hardwire kit separately.
*SD card is not included

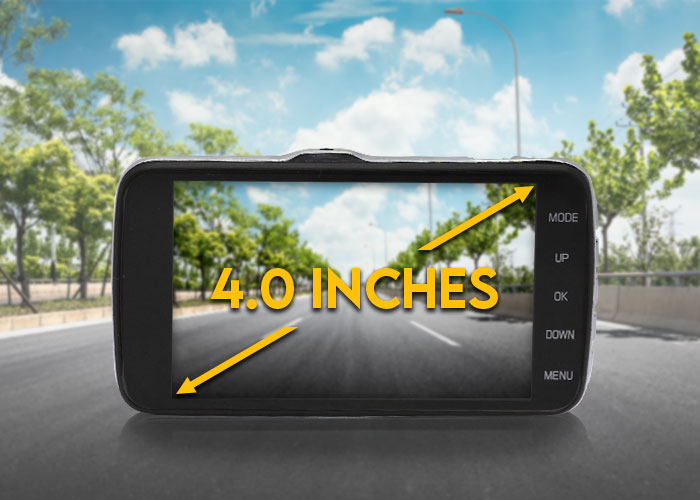

- LCD Size
- 4.0 Inch LCD screen

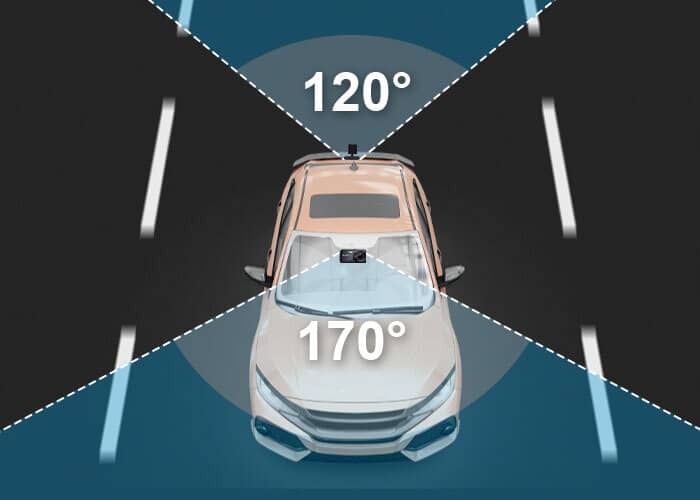

- Wide Angle View
- Front: 170 degree wide angle (6 fisheye lens)
- Back: 120 degree
- Video resolution : 1920x1296 HD 1296P high resolution that can display video clearly.
- Automatic Recording
- When engine is switched on, the recorder automatically starts to open the recording function.
- When engine is switched off, the recorder automatically saves the contents of the recorder and shut down. Recorded video segment is stored in the TF card.
- When the memory is full, the recorder will cover the earlier recorded image.
- Loop Recording
- Support Gap-Less Loop Recording
- Full 1296P High Definition video (Loop) recording you don’t need to worry on limited storage.
- Gravity Sensor
- Automatically activate video lock to protect evidence video.
- Motion Detection
- When the lens senses a moving object, the state of the machine will change into camera and will start recording.
- Night Vision
- Support night vision which gives you a clear video even at night
- Support TF card: (SD Card not included)
- You can use a High Speed Memory card, Class 10 to save important videos to protect it from being overwritten.
- Battery: Built-in battery
- 3.7V 200mAh high rate polymer battery

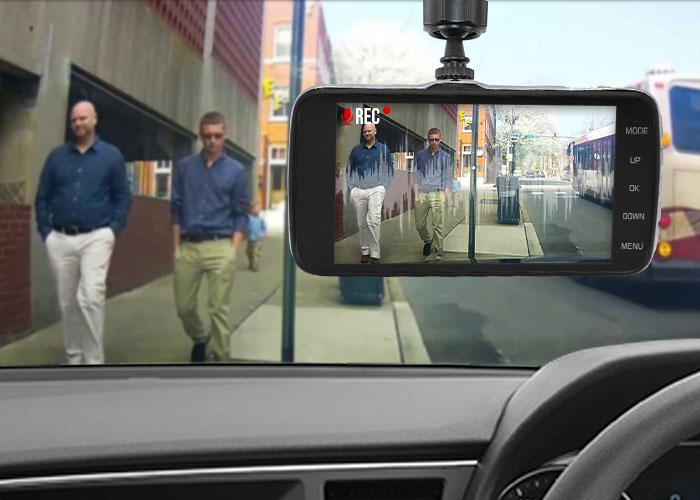

- Audio: Built-in Microphone /Speaker

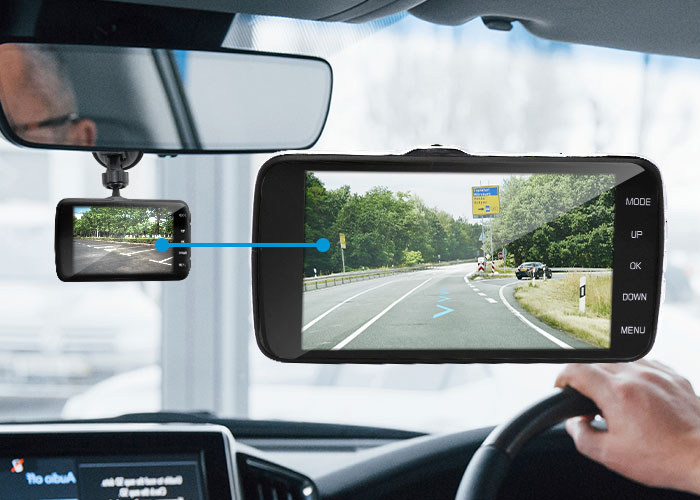

- Rear View Function
- In any state if there is reverse, reverse image is displayed on screen
- Emergency Locking Function
- Protect the current video from being covered or overwrite.
- Camera Switching Function
- Suction Cup mount
- Keeping it intact & in place as you drive, making it safe easy to operate.
- Anti-shake technology with the newest and best technology to effectively avoid image blurring caused by moving objects.
- Chipset : Novatek 96658
- (BEST CHIPSET) 1296P 30fps, MOV format, H.264 compression, support WDR(HDR). Adopt 55nm processing technology, the chipset integrates cutting-edge technologies, including 4x FHD video decoding technology, intelligence power performance scaling system, HD multi-screen display processing, High speed and efficiency system architecture.
- Image Processing : WDR (Wide Dynamic Range)
- Adopt internationally advanced double (long & short) exposure techniques, reformat video images to be optimal. Images is commonly overexposed in the strong sunshine, and hardly to be taken in the dim light conditions, WDR capability gets the issue resolved.
- Connect to PC: Insert TF card case with a USB cable to connect computers , you can watch or copy videos to your computer.
- Size: 109.9×62.2×11.87mm
- Weight: 58g
- Front camera: 1296P/720P/480P@30FPS 12MP
- Back camera: 720*480@30fps 5MP
- Video Format: MOV
- Video Code:H.264
- Power Frequency:50-60 Hz
- USB port :Micro USB2.0
- Power Supply Port:5V /1.5A
- TV output: NTSC/PAL
- TF card: Support up to 32GB
- Video voice: On/Off
- Languages: English, Chinese, western, Portuguese, German, Italian, simplified, traditional, Russian, Japanese
- System Requirement: Windows XP/7/8 SP3/Vista and Mac10.2 or above
- Operating temperature: -10 C ~ 60 C
- Storage temperature: -10 C ~ 70 C
- Power Supply: Vehicle mounted power 5V/1.5A
Product Sample Video
4 Types of Display Mode
Wide Dynamic Range
6G Camera Lens
Parking Mode Sensor and Motion Detection
Wide Angle View
Functionality and Advantages
Dash Cam Installation Step by Step Instructions
- Connect one end of the car charger to your USB port on the car DVR.
- Connect the other end to your cigarette lighter, start your car engine, start the DVR automatically.
- Fix the chuck bracket onto somewhere near your rearview mirror to avoid line of sight.
- Plug the USB pin into the USB port on the DVR. Lay down charger lead along wire direction.
- Wiring till the top right corner of car door, slightly separate side plate to get the lead hidden. It works in all vehicles.
- Going to the edge of door, slightly push adhesive tape aside to hide the lead.
- Arriving at the base, measure the approximate location/length of charger plug and cigarette lighter, keep all the rest of lead here.
- Plug car charger into cigarette lighter. Recording gets started.
