Truck TPMS Tyre Pressure Monitoring System with High-Pressure Flow-Thru Sensors 0-188 PSI

The Truck TPMS Tyre Pressure Monitoring System with High-Pressure Flow-Thru Sensors (0–188 PSI) delivers real-time tyre pressure and temperature monitoring for up to 38 tyres, helping prevent blowouts and improve fuel efficiency. Designed for heavy-duty trucks, trailers, and commercial vehicles, it features a large LCD display, rechargeable battery, and five safety alarm modes for reliable on-road protection.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 189 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 38 tyres
  • Perfect for Heavy-duty Commercial Vehicles, B-Doubles, Heavy Trucks, Semi-trucks, Tractor-Trailer, etc.
• High Pressure Flow-Thru Sensors (0-188 PSI)
  • It comes with High Pressure Flow-Thru Sensors that helps you add or adjust tire pressure without removing the sensor. Accurately detects tyre pressures from 0 to 188 PSI these are designed for RVs, trailers, or commercial trucks, where pressures might exceed 100 PSI.
• Large LCD Screen
  • With a large 3.5 inch LCD screen, this tpms tire pressure monitor system ensures visible and audible warning when abnormal conditions occur.
• Connecting/Disconnecting Trailer
  • When the trailer is not connected to the tractor, press the "LINK" and "-" buttons at the same time to remove temporarily. Press the "LINK" and "+" buttons at the same time when the trailer is connected again to the tractor.
• Repeater Installation
  • To overcome signal range limitations we highly recommend installing a repeater in the battery box of every trailer. Repeater is sold separately.
• Built-in Rechargeable Battery.
  • The monitor has a built-in 850mAh lithium-ion rechargeable battery which will function for up to 60 hours before requiring a re-charge.
• Easy Sensor Programming
  • Programming the sensors is easy and you can do it even before installing the sensors.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power saving mode and will automatically turn on as soon as vibration is detected.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press and hold the "CODE" button for 3 seconds to enter learning ID mode.
  • Step 2: Press the "+"/"-" button to select the desired tyre.
  • Step 3: Place the sensor close to the monitor then press the "CODE" button.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "CODE" button for 3 seconds to save the settings.
• Wide Sensor Compatability
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Hardwire Kit
  • Connects the display to your vehicle's fuse box, provides a clean, permanent power source to TPMS monitor even when the vehicle is parked. Hardwire kit power cable is included.

PRODUCT SPECIFICATIONS

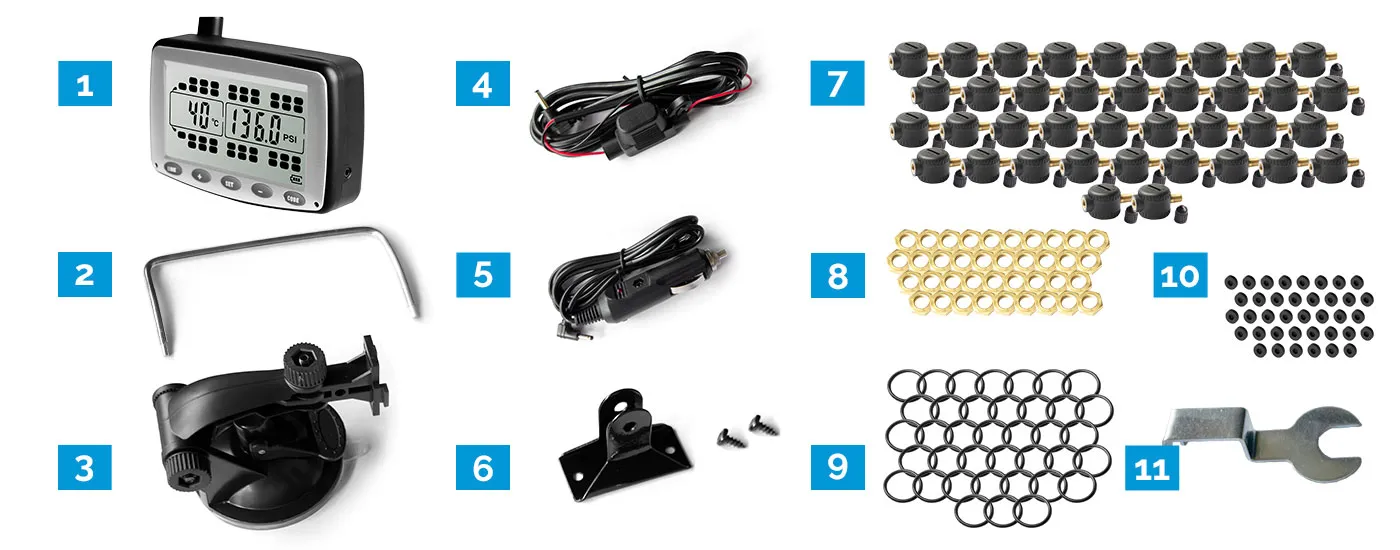

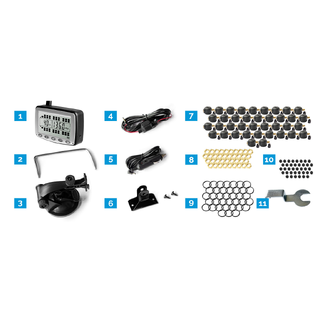

What's Included
