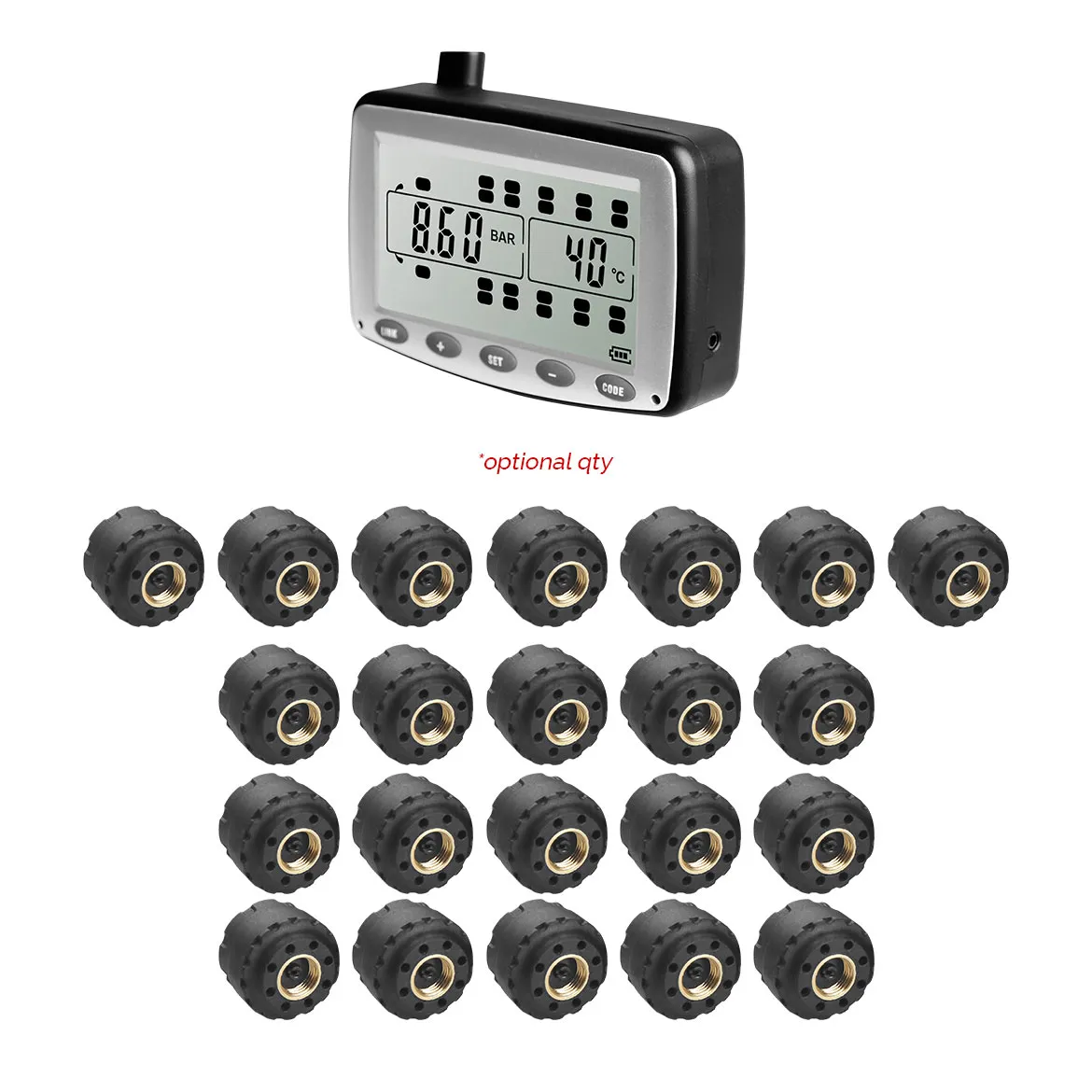

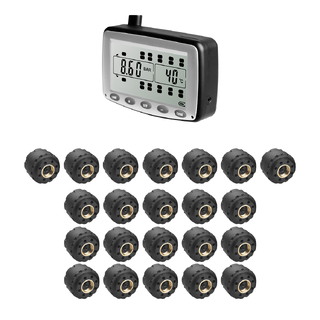

Truck TPMS Tyre Pressure Monitoring System with Low-Pressure External Sensors 0-87 PSI

The Truck TPMS Tyre Pressure Monitoring System with Low-Pressure External Sensors delivers accurate, real-time tyre pressure and temperature monitoring for up to 22 tyres, helping prevent blowouts, improve fuel efficiency, and extend tyre life. Designed for vehicles operating within 0–87 PSI, it provides clear visual and audible alerts through a large LCD display for enhanced safety and confidence on every journey.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, and extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 189 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 22 tyres
  • Perfect for Caravans, Trailers, Heavy-duty Commercial Vehicles, Heavy Trucks, Semi-trucks, Tractor-Trailer, etc.
• Low Pressure External Sensors (0-87 PSI)
  • It comes with Low Pressure External Sensors that accurately detect tyre pressures from 0 to 87 PSI. These are designed for typical passenger cars, SUVs, Utes, etc.
• Large LCD Screen
  • With a large 3.5 inch LCD screen, this TPMS tyre pressure monitor system ensures visible and audible warning when abnormal conditions occur.
• Connecting/Disconnecting Trailer
  • When the trailer is not connected to the tractor, press the "LINK" and "-" buttons at the same time to temporarily remove it. Press the "LINK" and "+" buttons at the same time when the trailer is connected again to the tractor.
• Repeater Installation
  • To overcome signal range limitations, we highly recommend installing a repeater in the battery box of every trailer. The repeater is sold separately.
• Built-in Rechargeable Battery.
  • The monitor has a built-in 850mAh lithium-ion rechargeable battery, which will function for up to 60 hours before requiring a recharge.
• Easy Sensor Programming
  • Programming the sensors is easy, and you can do it even before installing the sensors.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power-saving mode and will automatically turn on as soon as vibration is detected.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press and hold the "CODE" button for 3 seconds to enter learning ID mode
  • Step 2: Press the "+"/"-" button to select the desired tyre.
  • Step 3: Place the sensor close to the monitor, then press the "CODE" button.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "CODE" button for 3 seconds to save the settings.
• Wide Sensor Compatibility
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Hardwire Kit
  • Connects the display to your vehicle's fuse box, providing a clean, permanent power source to the TPMS monitor even when the vehicle is parked. The hardwire kit power cable is included.

PRODUCT SPECIFICATIONS

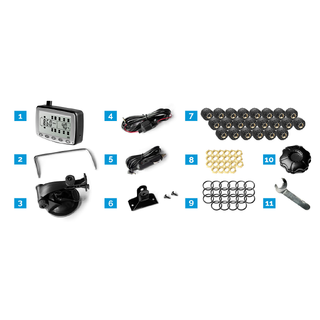

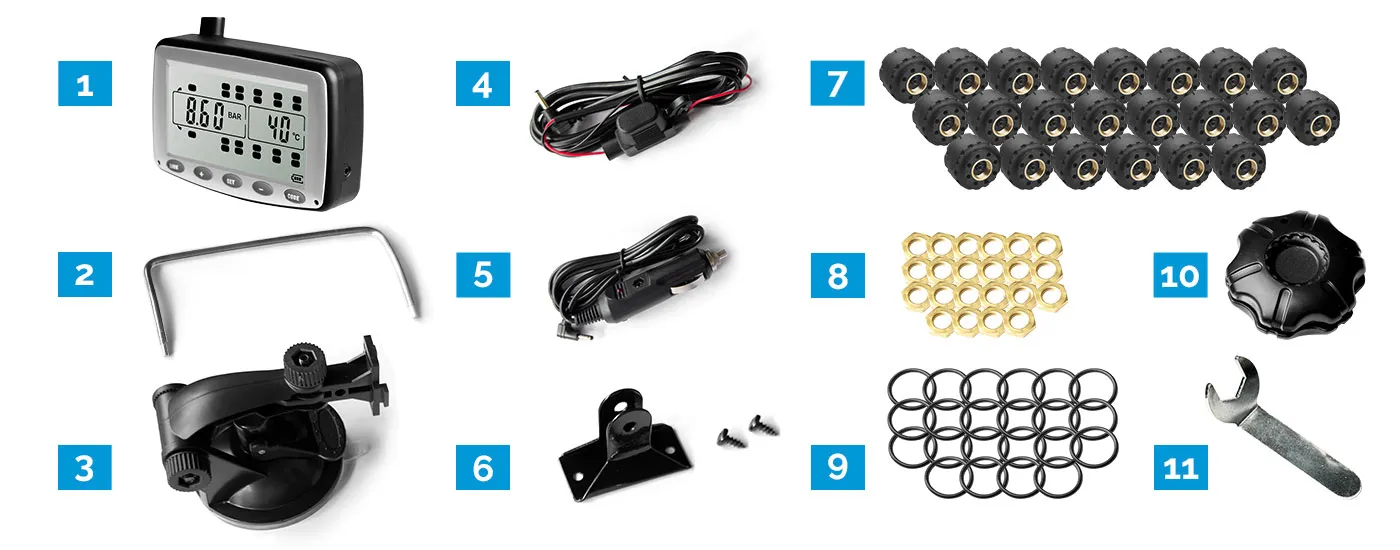

What's Included
