Touchscreen Truck TPMS Tyre Pressure Monitoring System with High-Pressure Anti-Theft External Cap Sensors 0-188 PSI

The Touchscreen Truck TPMS provides real-time tyre pressure and temperature monitoring for up to 76 tyres, helping prevent blowouts and improve safety for heavy-duty vehicles. With a 5-inch full-colour touchscreen, high-pressure anti-theft sensors, and multiple alarm modes, it delivers accurate, reliable performance for commercial fleets and road trains.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 218 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 76 tyres
  • A must have for Heavy-duty Commercial Vehicles like 10-tyre prime mover pulling up to five tri-axle semi-trailers, Long Combination Vehicle (LCV) Road Train, Quins, Five-trailer Road Trains, Quad Road Trains, B-Triple Road Train, B-Doubles, Heavy Trucks, Semi-trucks, Rigid Trucks, Tractor-Trailer, etc.
• High Pressure Anti-Theft External Cap Sensors (0-188 PSI)
  • It comes with High Pressure Anti-Theft External Cap Sensors making them difficult to unscrew without the tool. Accurately detects tyre pressures from 0 to 188 PSI these are designed for RVs, Trailers, or commercial trucks, where pressures might exceed 100 PSI.

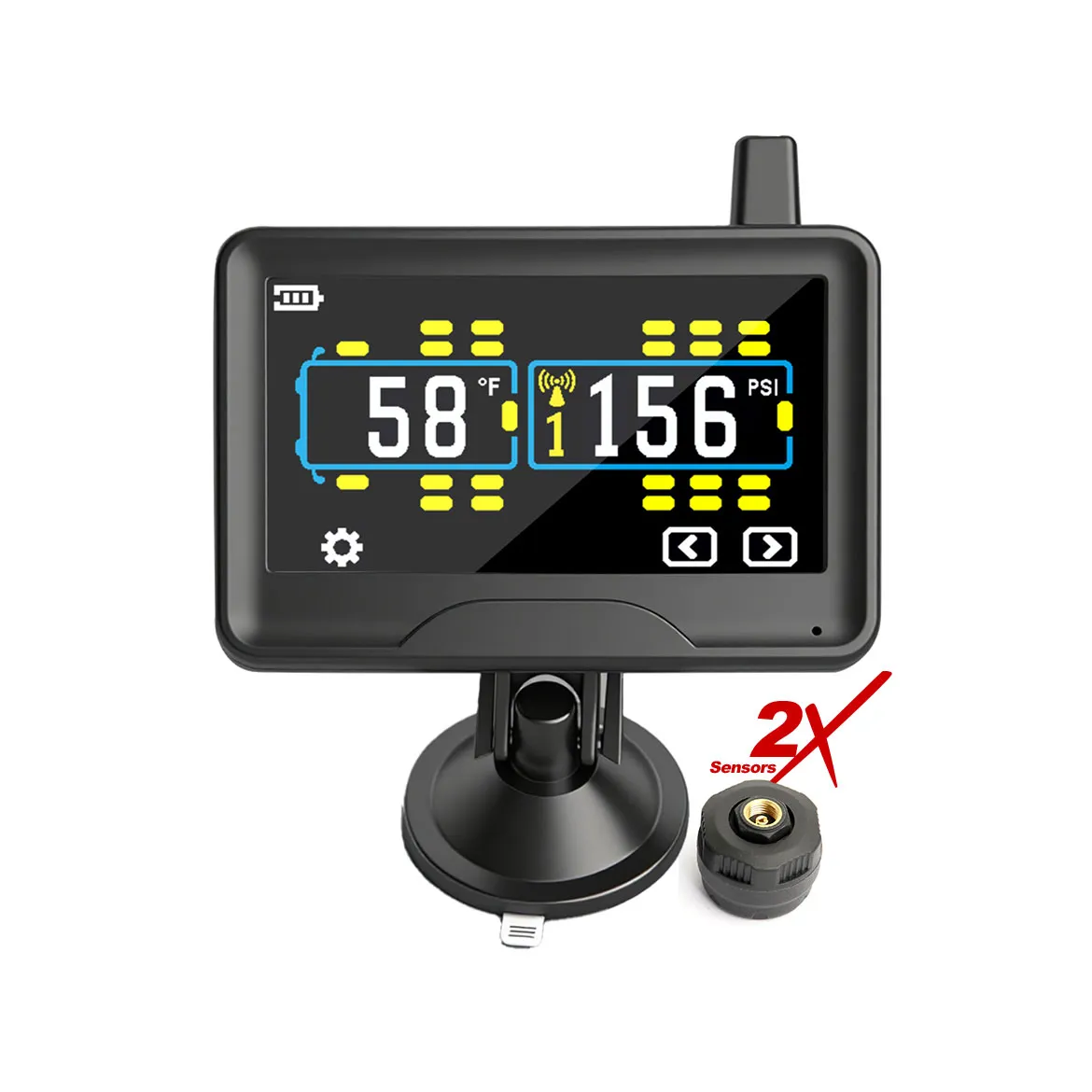

• Full-Colour LCD Touchscreen
  • With a massive 5 inch Full-Colour LCD Touchscreen, this tpms tire pressure monitor system ensures clear monitoring from the driver’s seat. Offering improved ease of use and interactive control over the system's settings.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power saving mode and will automatically turn on as soon as vibration is detected.
• Repeater Installation
  • To overcome signal range limitations we highly recommend installing a repeater in the battery box of every trailer. Repeater is sold separately.
• Built-in Rechargeable Battery.
  • The monitor has a built-in 3000mAh lithium-ion rechargeable battery which will function for up days before requiring a re-charge, depending on the number of sensors paired.
• Display Auto-Hide.
  • If the display does not receive data from paired sensors, power unit or trailer for 15 consecutive minutes, the display will automatically "hide" those sensors. Sensors will appear when they are in range.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• Easy Sensor Programming
  • Programming the sensors is easy, and you can do it even before installing the sensors.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, touch "Settings" and select "Automatic Code Learning" icon.
  • Step 2: Select the tyre you want to code to the sensor then touch "Learn" icon.
  • Step 3: Tap the sensor to the monitors Sensor Pairing Area, wait for sensor code to appear then select Exit and Save.
  • Step 4: Repeat for the remaining tyre positions.
• Connecting/Disconnecting Trailer
  • Steps on how to Disconnect or Connect a trailer to the tractor. Tap on Settings > Connect /Disconnect > Select the trailer to select which one you want to Disconnect or Connect.
• Wide Sensor Compatibility
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)

PRODUCT SPECIFICATIONS

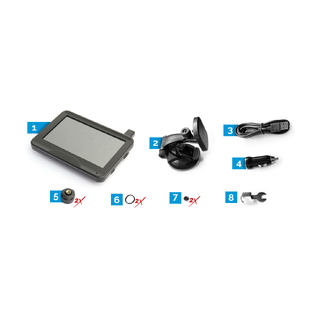

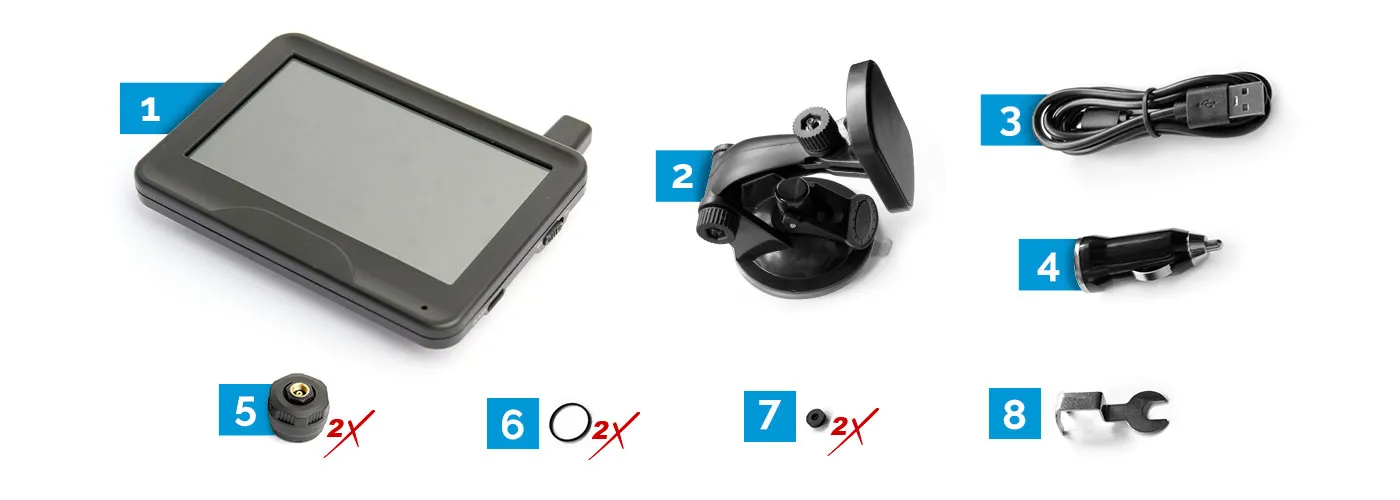

What's Included
