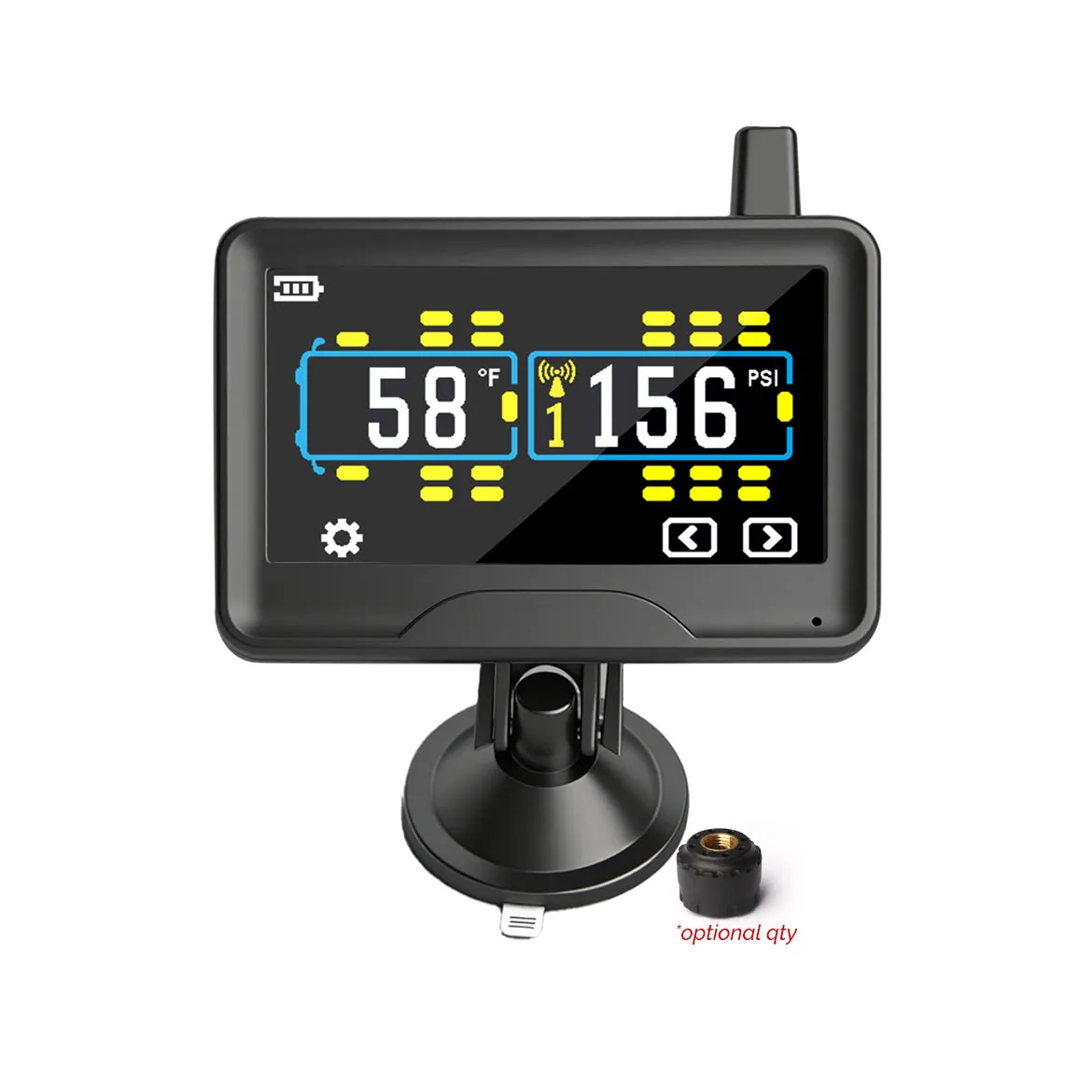

Touchscreen Truck TPMS Tyre Pressure Monitoring System with Low-Pressure External Sensors 0-87 PSI

Stay in complete control of your fleet with this Touchscreen Truck TPMS Tyre Pressure Monitoring System, designed for heavy-duty commercial vehicles and complex trailer combinations. Featuring a large 5-inch full-colour touchscreen and real-time pressure and temperature monitoring, it helps prevent blowouts, reduce downtime, and improve tyre life and fuel efficiency. Scalable to monitor up to 76 tyres, it’s the ideal safety and performance solution for long-haul and multi-trailer operations.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 218 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Monitors up to 76 tyres
  • A must have for Heavy-duty Commercial Vehicles like 10-tyre prime mover pulling up to five tri-axle semi-trailers, Long Combination Vehicle (LCV) Road Train, Quins, Five-trailer Road Trains, Quad Road Trains, B-Triple Road Train, B-Doubles, Heavy Trucks, Semi-trucks, Rigid Trucks, Tractor-Trailer, etc.
• Low Pressure External Sensors (0-87 PSI)
  • It comes with Low Pressure External Sensors that accurately detects tyre pressures from 0 to 87 PSI, these are designed for typical passenger cars, SUVs, Utes, etc.
• Full-Colour LCD Touchscreen
  • With a massive 5 inch Full-Colour LCD Touchscreen, this tpms tire pressure monitor system ensures clear monitoring from the driver’s seat. Offering improved ease of use and interactive control over the system's settings.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power saving mode and will automatically turn on as soon as vibration is detected.
• Repeater Installation
  • To overcome signal range limitations we highly recommend installing a repeater in the battery box of every trailer. Repeater is sold separately.
• Built-in Rechargeable Battery.
  • The monitor has a built-in 850mAh lithium-ion rechargeable battery, which will function for up to 60 hours before requiring a recharge.
• Display Auto-Hide.
  • If the display does not receive data from paired sensors, power unit or trailer for 15 consecutive minutes, the display will automatically "hide" those sensors. Sensors will appear when they are in range.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• Easy Sensor Programming
  • Programming the sensors is easy, and you can do it even before installing the sensors.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, touch "Settings" and select "Automatic Code Learning" icon.
  • Step 2: Select the tyre you want to code to the sensor then touch "Learn" icon.
  • Step 3: Tap the sensor to the monitors Sensor Pairing Area, wait for sensor code to appear then select Exit and Save.
  • Step 4: Repeat for the remaining tyre positions.
• Wide Sensor Compatibility
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)

PRODUCT SPECIFICATIONS

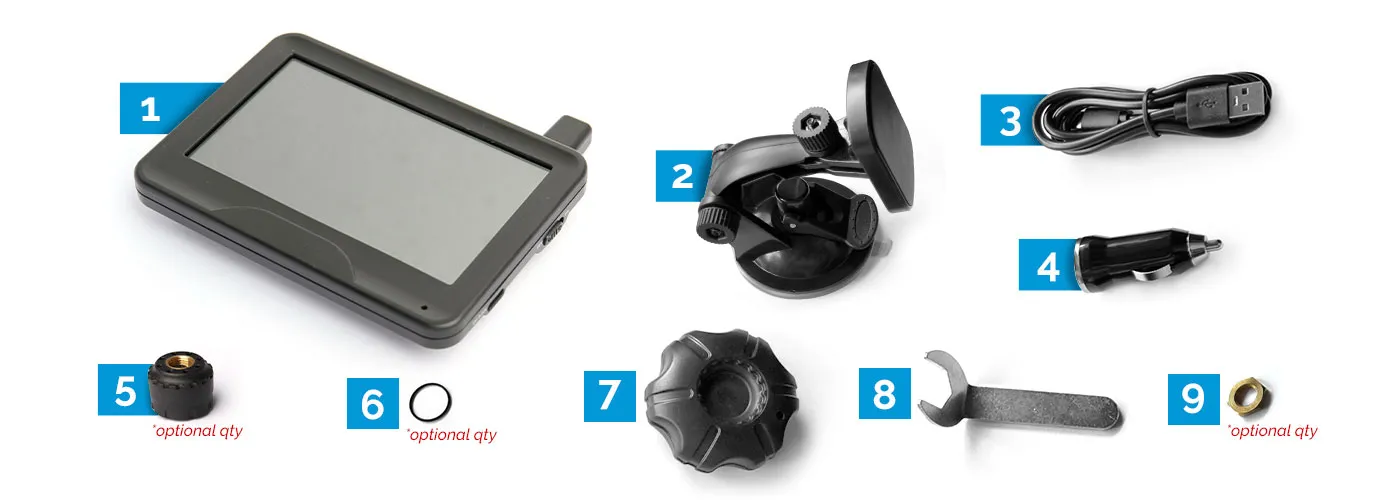

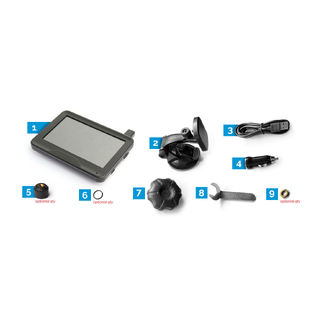

What's Included
