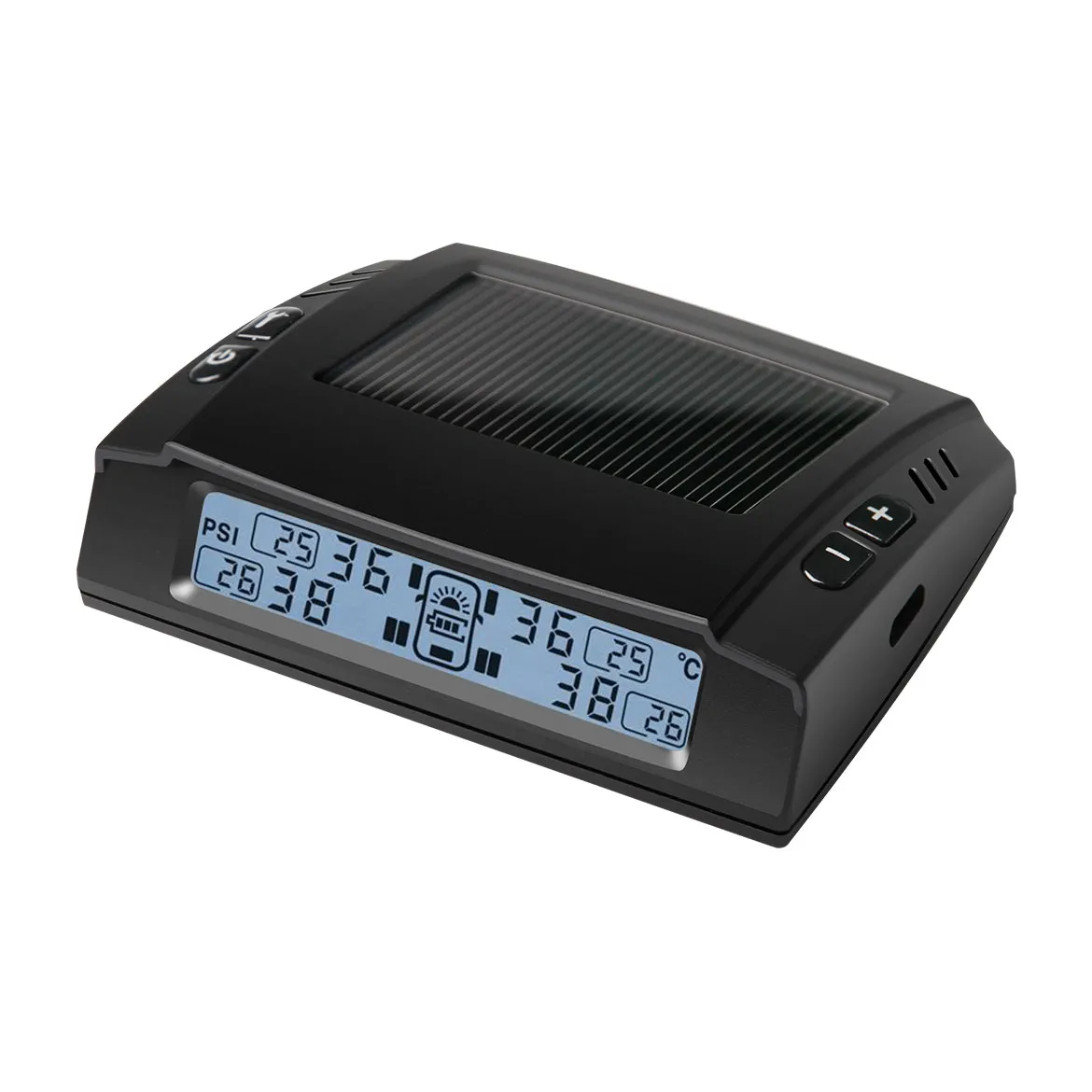

Solar TPMS Tyre Pressure Monitor

Solar TPMS Tyre Pressure Monitor delivers real-time tyre pressure and temperature tracking with precise alerts to help prevent blowouts, improve fuel efficiency, and extend tyre life. Featuring solar charging, smart auto-dimming display, power-saving mode, and support for up to 7 tyres, it provides reliable, wire-free monitoring for RVs, caravans, trailers, and work vehicles.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 99 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.
• Solar Charging Monitor
  • With built-in solar panel that charges the monitor's internal battery using sunlight, eliminating the need of using 12v socket or deal with messy wires.
• Monitors up to 7 Tyres
  • Monitors up to 7 tyres including spare, perfect for RVs, Caravan, Trailers, Dually Utes, etc.
• Smart Screen
  • The screen automatically illuminates in low-light conditions, like at night, and dims in bright sunlight, ensuring visibility. The screen backlight will automatically change to colour red as indicator of an active alert, such as low pressure, high pressure, high temperature, fast leakage or low battery sensor.
• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor will automatically go on power-saving (Auto-sleep) mode to conserve battery power and wakes up as soon as movement is detected.
• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.
• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press and hold the "CODE" button for 3 seconds to enter learning ID mode.
  • Step 2: Press the "+"/"-" button to select the desired tyre.
  • Step 3: Place the sensor close to the monitor, then press the "CODE" button.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "CODE" button for 3 seconds to save the settings.
• Wide Sensor Compatibility
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)
• Micro USB Charging Port
  • With a built-in micro USB charging port, ensuring the device can still be powered up during extended periods of cloudy weather or indoor parking.

PRODUCT SPECIFICATIONS

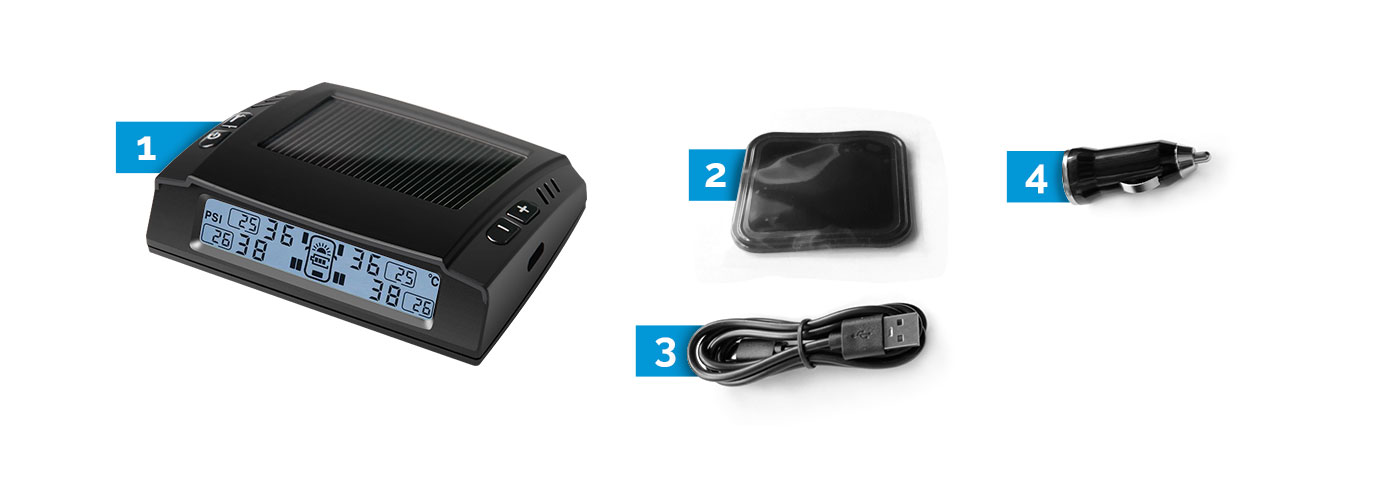

What's Included
