Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 iPhone Android
ARM Chipset~View real-time vehicle data~OBDII compliant
Notify me when back in stock






Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 iPhone Android
Product Details








More Information
Scanning your vehicle will be easier and affordable now. With this NEW Mini OBD2 Bluetooth 4.0 Wireless Diagnostic Scanner, you can now perform different scans on your car and do a health check.
A stylish diagnostic scan tool and real-time monitor with a third-party OBD2 App like Torque, OBD Car Doctor, DashCommand, Auto Doctor for Android and Auto Doctor, Dashcmd, OBD Car Doctor for iOS. ScanMaster-ELM for Windows. You can scan your car using your iPhone, iPad or Android phone/tablet.
Using Bluetooth 4.0 which is faster than any other Bluetooth versions and more reliable than WiFi. No complicated settings or delicate connections plus much lower power consumption. It uses Bluetooth and you can have access to internet via your cellular data or WiFi when the phone is connected to ELINZ OBDII Diagnostic Scanner.
Why settle for an expensive scanning method when you can easily do it at home? Try Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner.
Product Highlights
- Bluetooth 4.0 OBD II Diagnostic Scanner
- Allows this scanner to connect to Apple iOS devices
- ARM Chipset
- Same chipset used on expensive brands
- Advanced RISC Machines optimises performance and low power consumption
- V1.5 firmware
- It supports all 9 OBD2 protocols
- Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
- Connect to your iOS or Android devices using one of the many free compatible apps or a Bluetooth® enabled computer

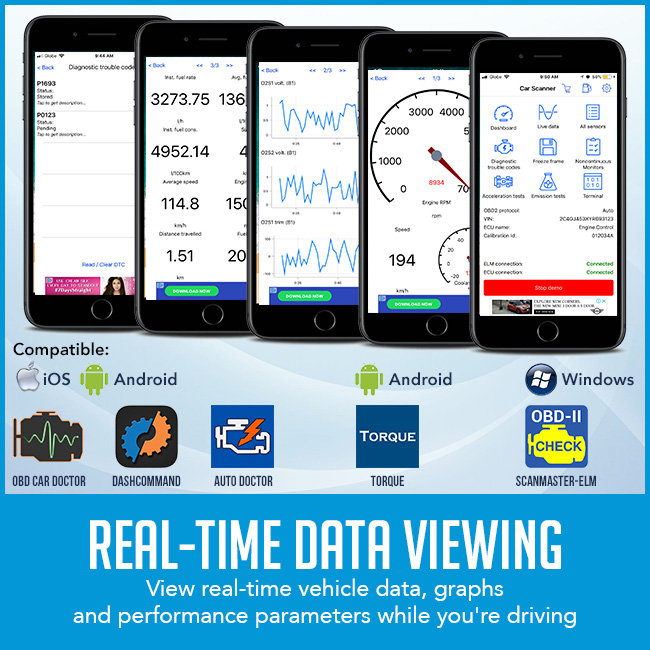

- View real-time vehicle data, graphs and performance parameters while you're driving
- Compatible* with most OBDII compliant vehicles
- Contains QR code to download the recommended Mini OBDII app for android
- Pays for itself with one use
- Multi-Protocol Support:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4Kbaud)
- ISO14230-4 (fast init, 10.4Kbaud)
- ISO15765-CAN (11bit ID, 500Kbaud)
- ISO15765-CAN (29bit ID, 500Kbaud)
- ISO15765-CAN (11bit ID, 250Kbaud)
- ISO15765-CAN (29bit ID, 250Kbaud)
- Compatible software:
- Android: Torque, OBD Car Doctor, DashCommand, Auto Doctor
- iOS: Auto Doctor, Dashcmd, OBD Car Doctor
- Windows: ScanMaster-ELM
- What operation you can Perform on this Scanner?
- Read diagnostic trouble codes, both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL or malfunction indicator lamp ("Check Engine light")
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure AND Many others...
- User-friendly and Easy to learn
- Basically extract the files into a folder on your computer's hard drive and you are ready to go. To uninstall the program, just delete the entire contents of the folder where the program is.
Product Specifications
- Bluetooth 4.0 OBD II Diagnostic Scanner
- Chipset: ARM
- Firmware: V1.5
- Bluetooth 4.0
- Colour: Black
- Unit Size: 49*25*23mm
- Compatible Devices: Android/Windows/iOS
What's Included
- 1x Mini Diagnostic Car Scanner
Frequently Asked Questions
No FAQs AvailableTroubleshooting Guides
A. Does not pair with IOS devices.
- Make sure iphone bluetooth is on.
- Install "Auto Doctor" app
- Open App
- Tap "Extras" on the lower right corner
- Choose connectivity
- Tap bluetooth
- Tap MicroTech
- Tap back arrow on the top left
- Under the status screen, tap "status" on the lower left corner
- Then tap the chain/link icon on the top right corner.
