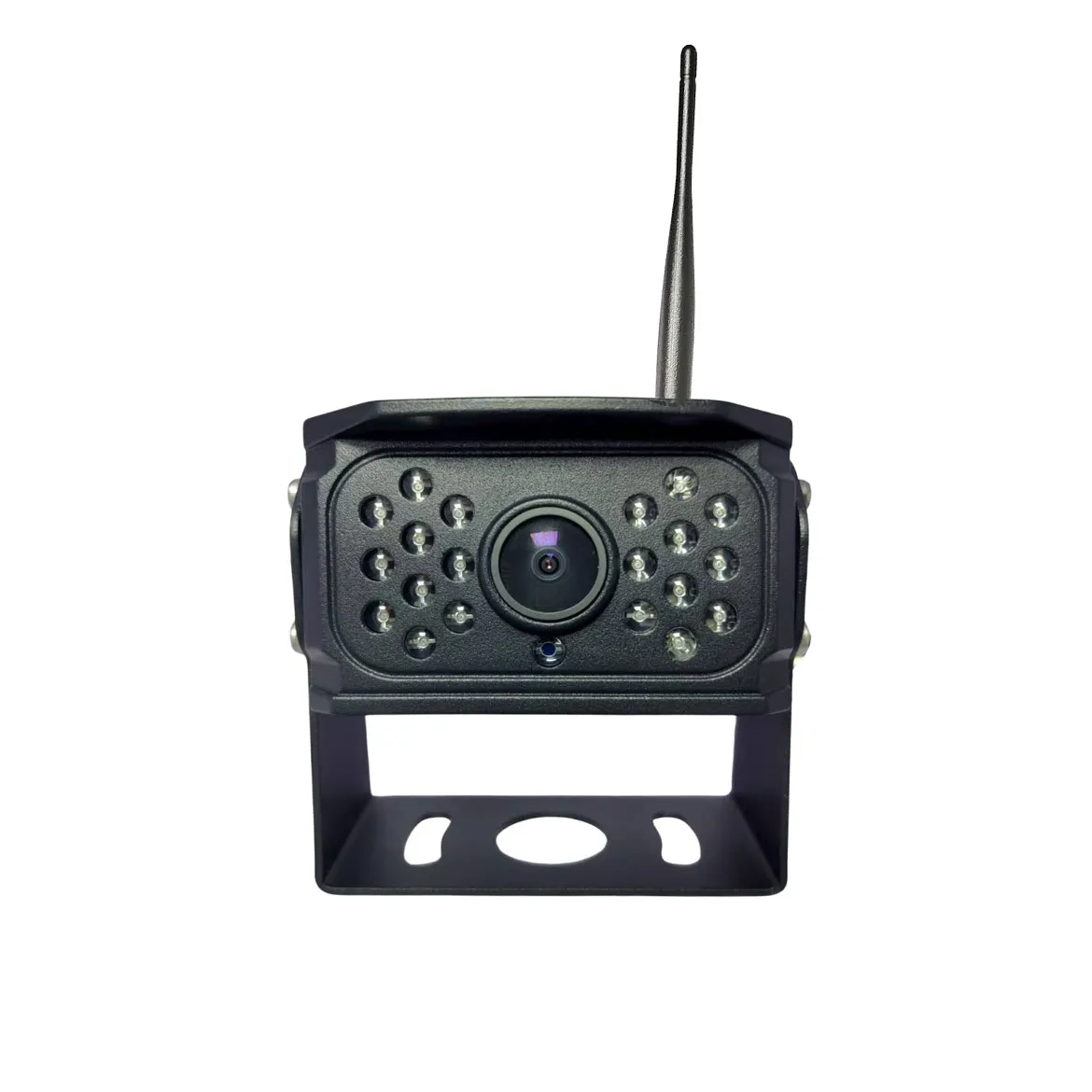

Elinz WIFI Wireless Backup Camera AHD 1080P

The Elinz WiFi Wireless Backup Camera delivers clear AHD 1080P HD video for safer reversing and improved visibility. With built-in WiFi, you can view real-time footage directly on your iOS or Android smartphone or tablet through an easy-to-use app. Its simple 12V/24V installation makes it ideal for cars, trucks, RVs, and heavy machinery.

PRODUCT FEATURES

• High-Resolution WiFi Camera - Offers 1080P HD resolution with 1/3 image sensor view for improved visibility and reduced blind spots.
• WiFi Connection with Real-Time Viewing via APP - With built-in WiFi module that allows direct connection to the camera via the App on smartphones or tablet for real-time video streaming with low latency. No additional monitor or complex video cable installation needed.
• Easy to Install - Only a DC 12V/24V power supply is required, eliminating the need to route video cables to the driver's cabin.
• iOS and Android Compatible - Compatible with both iOS and Android systems and supports smartphones, tablets, and other mobile devices.
• Wide Range of Applications - Suitable for various applications, including reversing cameras for passenger cars, rear or side view for trucks/commercial vehicles, blind spot monitoring for agricultural & construction machinery, and driving and reversing assistance for RVs/motorhomes.

ITEM DESCRIPTION

• Image Sensor:1/3 sensor
• Resolution: 1080P
• System: AHD
• Night Vision Distance: 5 meters with IR
• Power: DC 12V~24V
• Power Consumption: Less than 5W
• Max Current: Less than 450mA
• Storage temperature: -30°C〜80°C
• Working temperature: -20°C to 70°C
• Working Distance: About 25 metres
• Operating Power: 2.4GHz~2.4835GHz
• Output Power: 17±1dBm @TYp 20dBm@max
• Modulation Type: FSK/GFSK
• RX Sensitivity: -89dBm(Typ.)@4MHz BER<1E-3
• RF Bit Rate: 4MHz BERlt;1E-3
• Spread Spectrum: FHSS
• Viewing Method: Mobile App
  • BackCam App for IOS
  • Backcarmonitor for Android

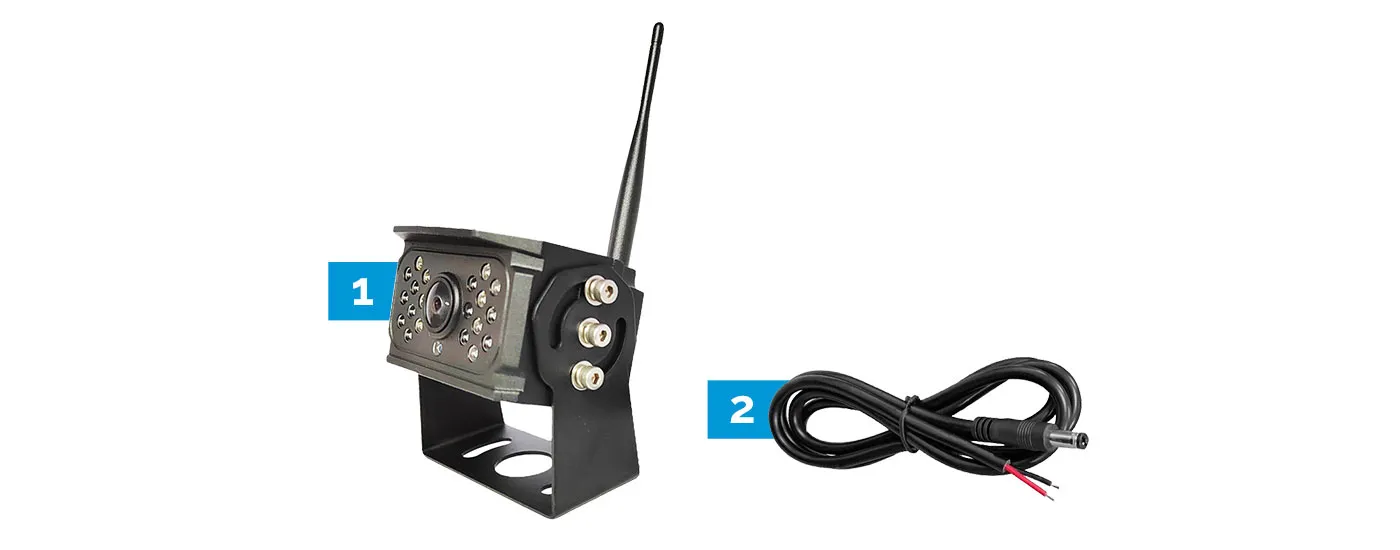

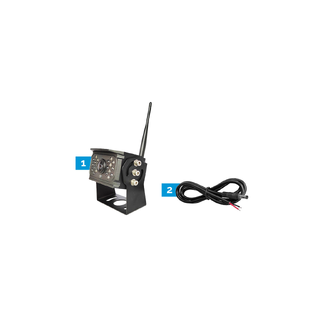

What’s Included
