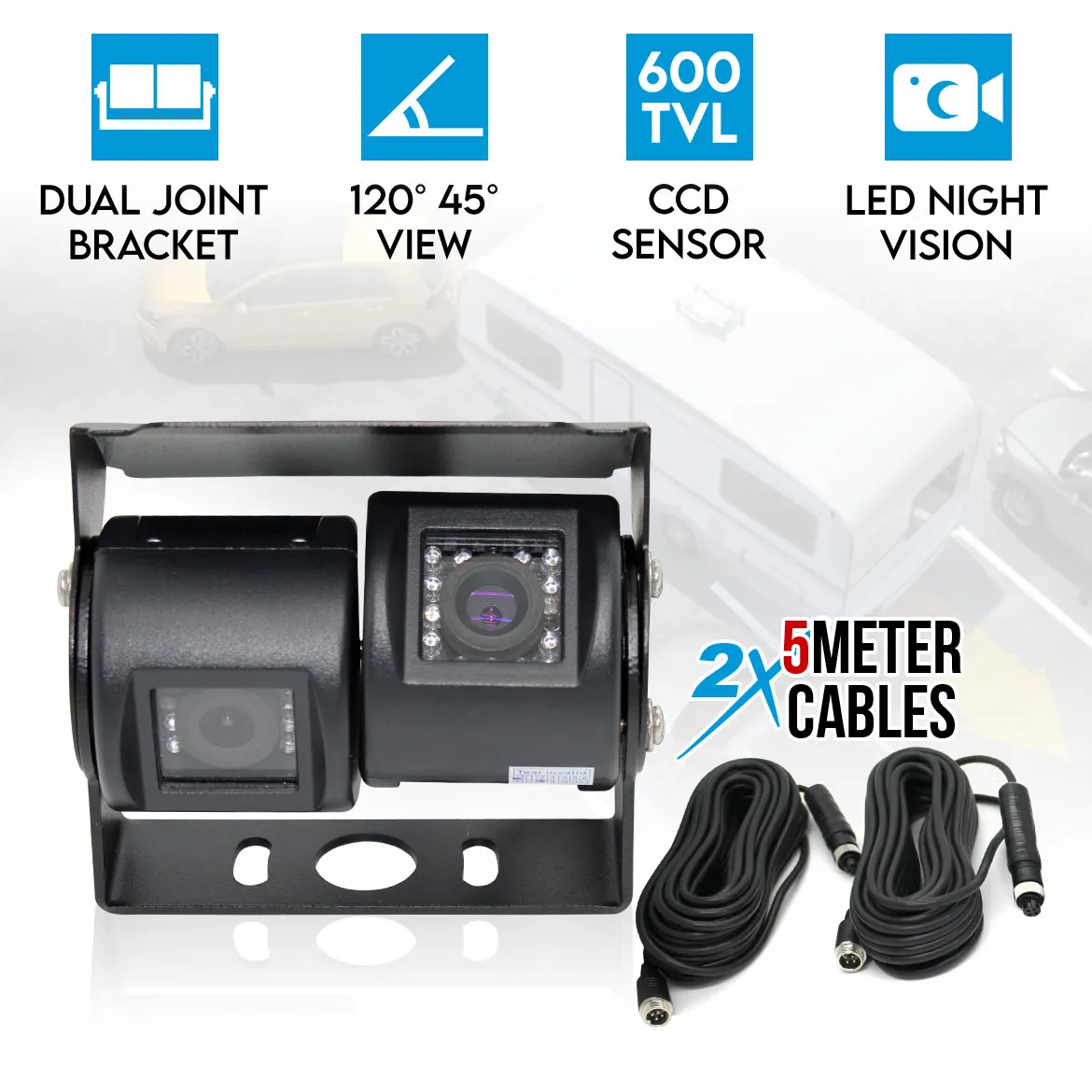

Elinz Dual Twin Joint Bracket CCD 4PIN Reversing Camera MIC 600 TVL 2x 5M Cable 12V/24V Car Truck
Night Vision~Connect Split Monitor~IP68~Rotatable Lens
SKU | RV2LMIC5M |
Barcode # | 0743966775147 |
Brand | Elinz |
Wired or Wireless Transmission | Wired Transmission |
Cable Length | 5M |
Colour | Black |
Camera System | 4PIN System |
Camera Type | CCD Camera |
Camera Viewing Angle | 120 degree |
Camera Resolution | 600TVL |
Built-in MIC | With Built-in MIC |
Shipping Weight | 1.3000kg |
Shipping Width | 0.270m |
Shipping Height | 0.070m |
Shipping Length | 0.200m |
Shipping Cubic | 0.003780000m3 |
Help other users shop smarter by writing reviews for products you have purchased.
Elinz Dual Twin Joint Bracket CCD 4PIN Reversing Camera MIC 600 TVL 2x 5M Cable 12V/24V Car Truck
SKU: RV2LMIC5M

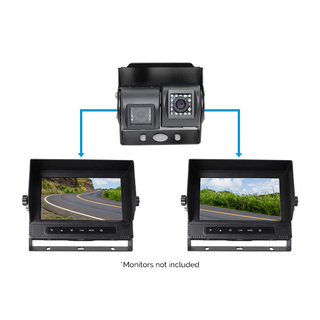

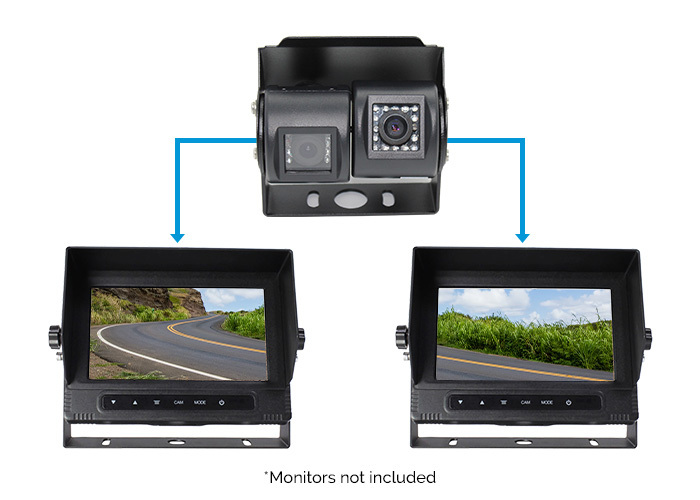

Dual Joint Twin Bracket
- It allows you to connect it to one or 2 monitors and gives you a super wide viewing angle with 2 images

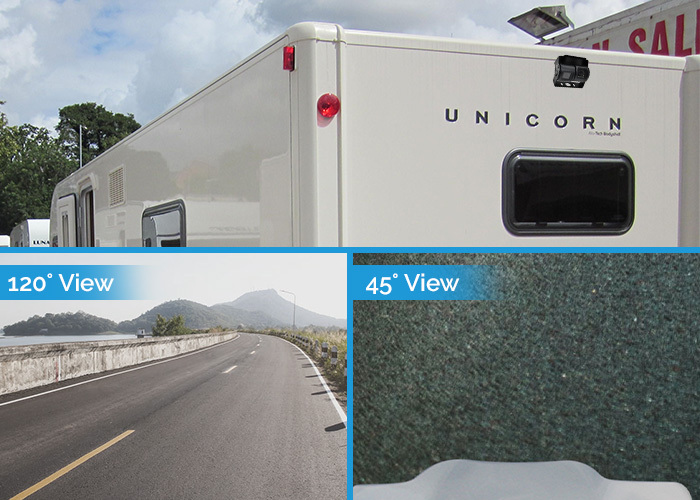

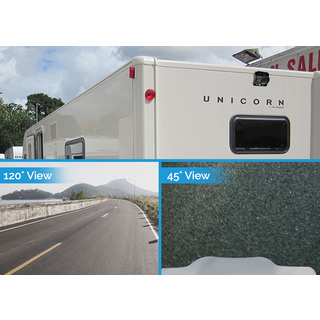

Dual Angle Viewing Camera
- The 120 Degree Angle provides clear wide view so you can see any vehicles, person or obstacle on your rear view.
- The 45-degree angle helps greatly in reversing so you can maneuver safely and easily

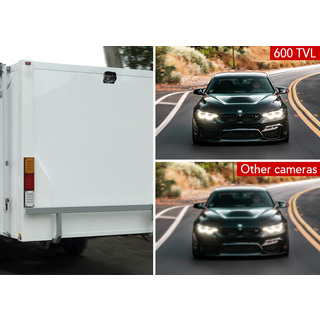

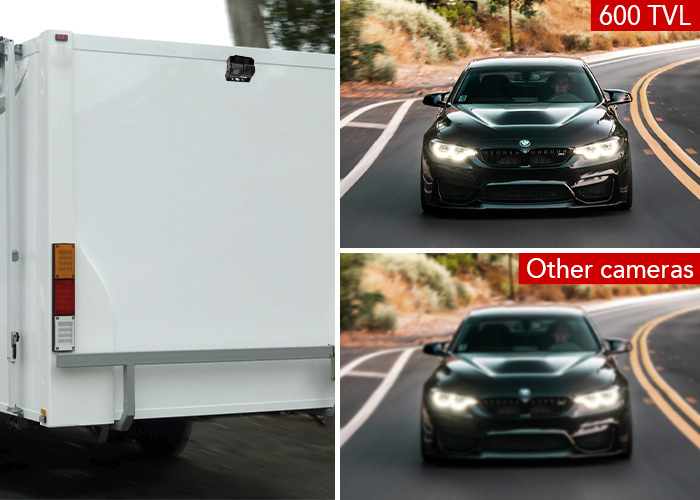

600 TVL 4PIN CCD Camera System
- The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
- High resolution 600 TVL camera for clear image and video

LED Night Vision
- The 32pcs (16 each camera) bright IR LED lights turn on automatically when visibility is low.
- Provide maximum visibility and will turn off automatically in well-lit areas.

Tough and Heavy-duty Camera
- This camera is built and designed to last.
- Each camera comes in a hard metal case

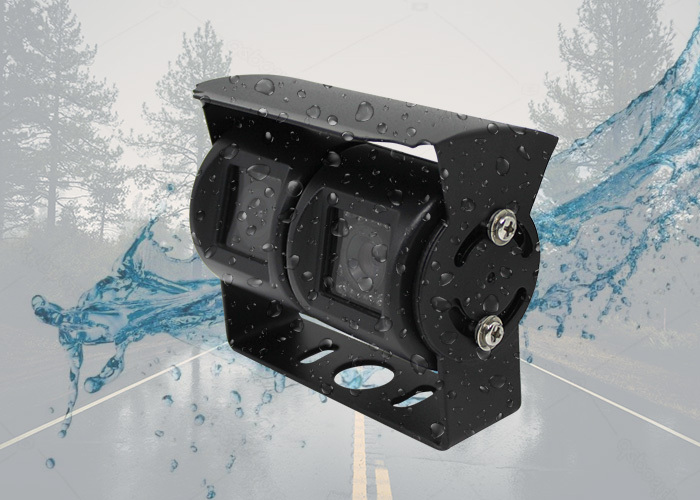

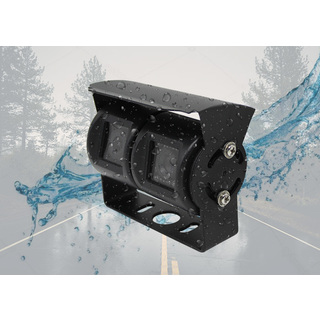

IP68 Waterproof
- IP68 Waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time.
- The reversing camera is shock resistant to withstand strong vibrations without affecting picture quality.

Suitable for 12V/24V Vehicles
- Suitable for use with trucks/ caravans/ cars etc.
- Heavy duty CCD crystal clear 12/24-volt applicable reverse camera

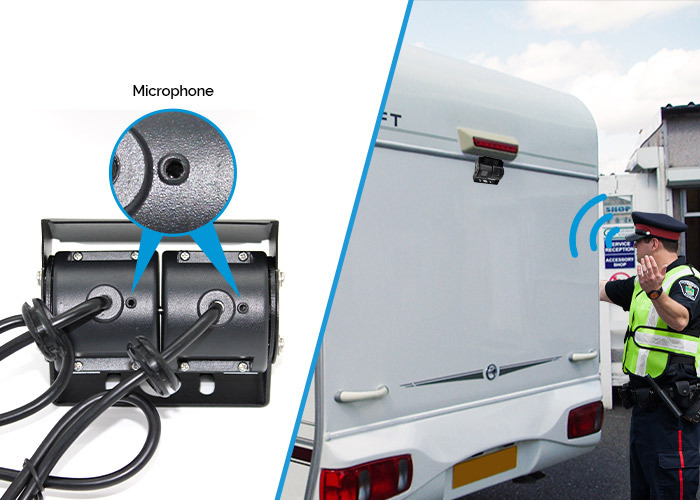

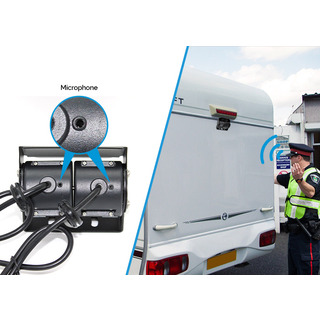

Built-in Mic
- Allows the driver to hear someone at the back of the caravan giving instructions when reversing

Rotatable Lens
- You may rotate the camera lens up to 180 degree

Safer Reversing and Increased Awareness
- Feel safer reversing and increased awareness, see your child behind the car or the vehicle behind your caravan or trailer.

Product Dimensions

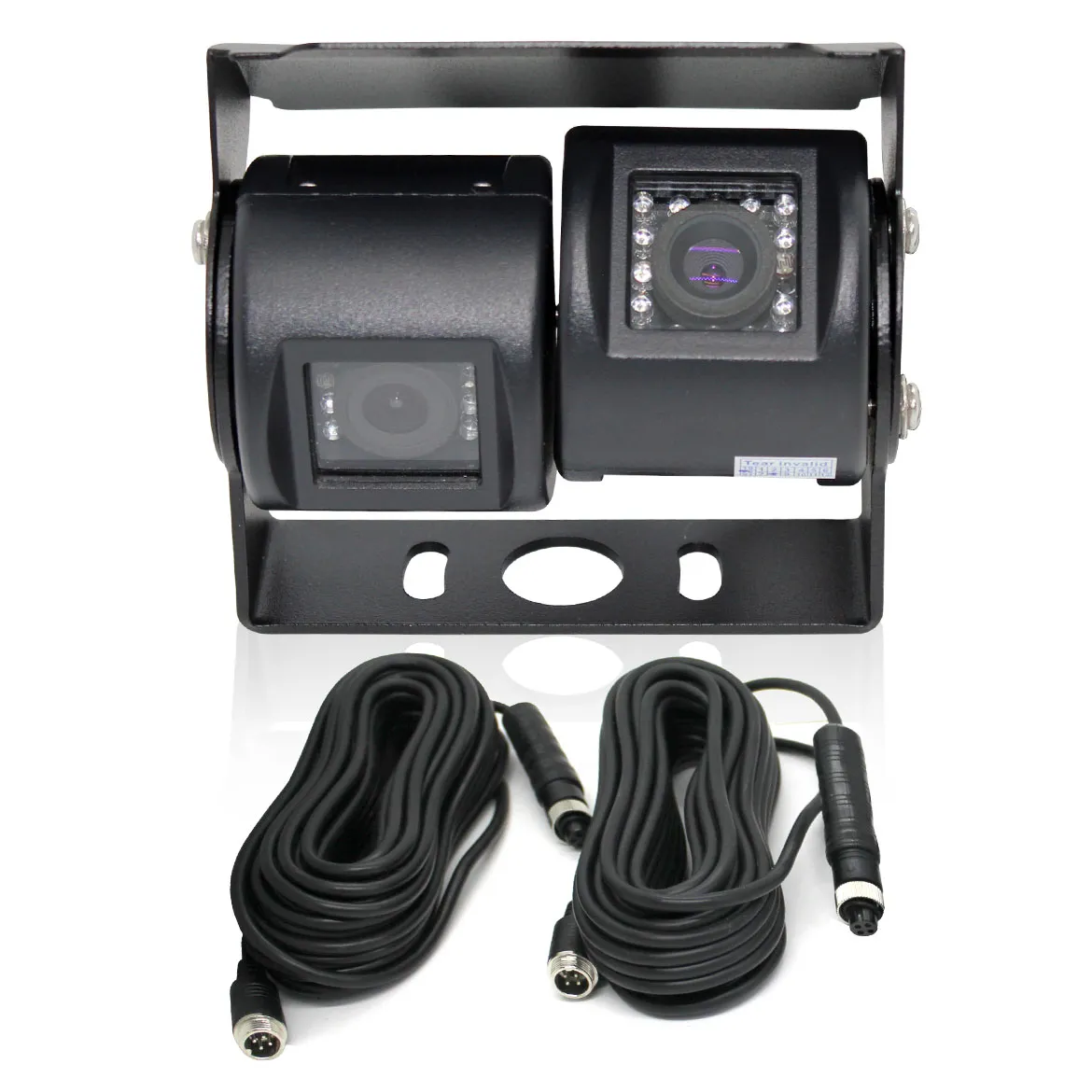

Product Views
MORE INFORMATION
Elinz Dual Twin Joint Bracket CCD 4PIN Reversing Camera MIC 600 TVL 2x 5M Cable 12V/24V Car Truck
The reversing cameras feature a 600TVL CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness. They also have night vision as each camera comes 16 individual infrared LED to enable users to see clear images, even at night or in low light conditions.
This camera is built and designed to last. In addition, each camera comes in a hard metal case. it is waterproof and mud proof. It can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
This new line of reversing camera features a 120-degree viewing angle so it does not produce fish-eye view. Then a 45 angle helps greatly in reversing so you can maneuver safely and easily. When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror. Plus it has a built- in MIC for easier communication.

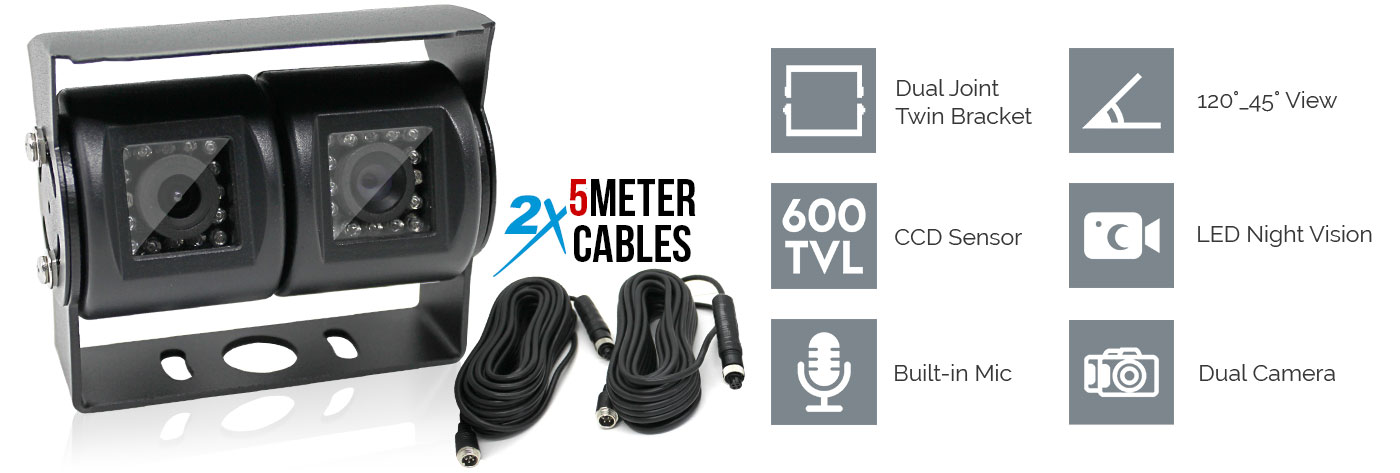

PRODUCT HIGHLIGHTS
- Dual Joint Twin Bracket
- It allows you to connect it to one or 2 monitors and gives you a super wide viewing angle with 2 images
- Dual Angle Viewing Camera
- The 120 Degree Angle provides clear wide view so you can see any vehicles, person or obstacle on your rear view.
- The 45-degree angle helps greatly in reversing so you can maneuver safely and easily
- 600 TVL 4PIN CCD Camera System
- The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
- High resolution 600 TVL camera for clear image and video
- LED Night Vision
- The 32pcs (16 each camera) bright IR LED lights turn on automatically when visibility is low.
- Provide maximum visibility and will turn off automatically in well-lit areas.
- Tough and Heavy-duty Camera
- This camera is built and designed to last.
- Each camera comes in a hard metal case
- IP68 Waterproof
- IP68 Waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time.
- The reversing camera is shock resistant to withstand strong vibrations without affecting picture quality.
- Suitable for 12V/24V Vehicles
- Suitable for use with trucks/ caravans/ cars etc.
- Heavy duty CCD crystal clear 12/24-volt applicable reverse camera
- Built-in Mic
- Allows the driver to hear someone at the back of the caravan giving instructions when reversing
- Rotatable Lens
- You may rotate the camera lens up to 180 degree
- Safer Reversing and Increased Awareness
- Feel safer reversing and increased awareness, see your child behind the car or the vehicle behind your caravan or trailer.
ITEM DESCRIPTION
- IR LED: 32pcs (16 each camera)
- 2x 5m 4PIN cable
- Image feature: Sharp CCD
- TV system: PAL
- Effective pixels: N: 512(H)*492(V) P:512(H)*582(V)
- Horizontal Resolution(TV lines): 600 TV lines
- Lens angle: 2.8mm 120°
- Waterproof: IP68
- Power Source: 12V/24V
- Operation Temperature: -20°C ~+ 75°C (RH95% Max)
- Storage Temperature: -40°C ~+ 85°C (RH95% Max)
- Built-in Microphone

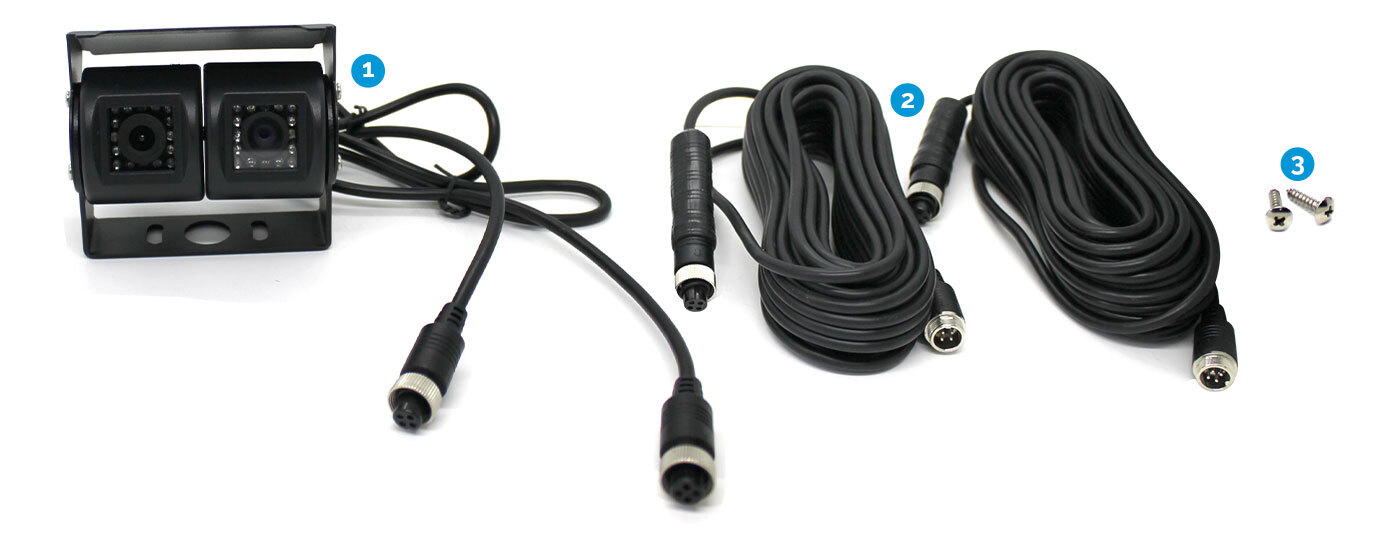

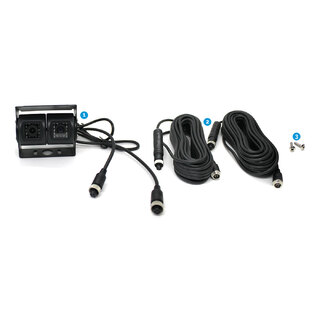

WHAT'S INCLUDED
1. 1x Heavy Duty 4PIN Dual Reverse Camera
2. 2x 5M 4PIN cable
3. Screws
