Toyota Hilux 2020-2024 Elinz Reverse Camera T537SA Only - Requires T-Harness and Power Cable

Upgrade your Toyota Hilux 2020-2024 with the Elinz Reverse Camera T537SA. Designed for models without a factory camera, it offers plug-and-play installation (T-Harness and power cable sold separately), 800TVL resolution, and IP68 waterproofing for clear, reliable performance in any weather.

With a 1/3" CMOS sensor and adjustable viewing angles, it ensures safer reversing while seamlessly integrating with your factory screen.

PRODUCT HIGHLIGHTS



Toyota Hilux 2020-2024 Compatible

Fits all Toyota Hilux 2020-2024 models like WorkMate, Rogue, SR, SR5, Rugged X whether you have a Single, Double Cab or Cab-Chassis that did not come with a camera from factory with this type of factory screen.

• Plug and Play Installation
  • Seamlessly integrate the reverse camera with your Toyota Hilux factory screen without cutting the factory wiring or removing the factory head unit from your dashboard.
  • T-Harness is NOT INCLUDED.
• Auto-Activation
  • The reverse camera will automatically turn and images will be displayed instantly when you put the gear in reverse.
• 800TVL Resolution
  • With high quality 800TVL resolution it ensures that you can see every detail clearly when reversing.
• CMOS Sensor
  • This reliable and high-quality reverse camera is equipped with 1/3" CMOS sensor to provide you with quality and detailed images and greater clarity than other aftermarket reversing cameras in the market.
• IP68 Waterproof Connectors
  • The threaded and O-ring sealed connectors between the camera and power cable makes it more durable and secure connection. It fully protects your reverse camera in all kinds of weather conditions.
  • Power Cable is NOT INCLUDED.
• Parking Guidelines ON/OFF
  • You can cut the GREEN wire loop to enable/disable parking lines on a reverse camera.
• Viewing Options
  • Camera comes with blue and white wire loops which allows you to flip the image horizontally or vertically without changing the camera bracket. So whether you are installing the camera on the bumper or underneath the tray you can easily manage the viewing options by cutting the wire loops.
  • Blue Wire Loop: Vertical Image Flip
  • White Wire Loop: Horizontal Image Flip.
• Angle of View
  • The camera has a horizontal viewing angle of 120°, vertical viewing angle of 90° and diagonal viewing angle of 170°. Perfect angle so you can better understand the situation behind your vehicle.
• IP68 Waterproof Camera
  • Leave your worries about heavy rains and other weather conditions, camera can withstand different weather situations.

ITEM DESCRIPTION

• Image Sensor: 1/3" CMOS
• Resolution: 800 TVL
• Angle of View: 170° Diagonal, 120° Horizontal, 90° Vertical
• Power Supply: DC 12V
• Vehicle Connection: 26 Pin (T-Harness NOT INCLUDED)
• Connector IP Rating: IP68
• Operating Temperature: -30°C to +80°C
• Camera IP Rating: IP68
• Camera Wire Loops:
  • BLUE Wire Loop = Vertical Image Flip
  • WHITE Wire Loop = Horizontal Image Flip
  • GREEN Wire Loop = Parking Guidelines On/OFF

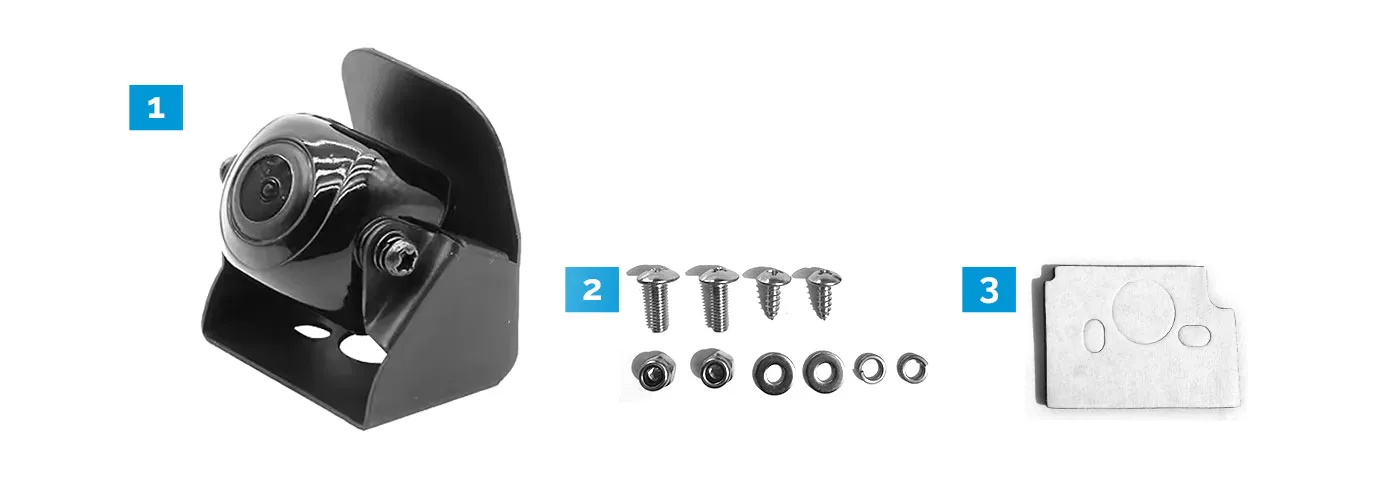

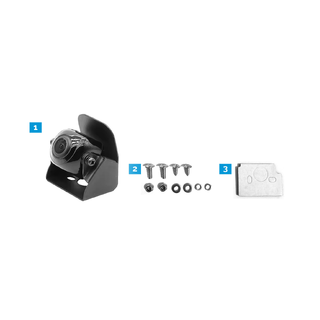

WHAT'S INCLUDED

1. 1x Reverse Camera
2. Set of Screws & Washers
3. 1x Sticker Adhesive
