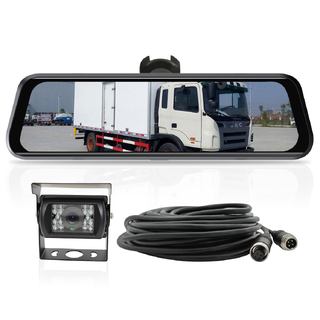

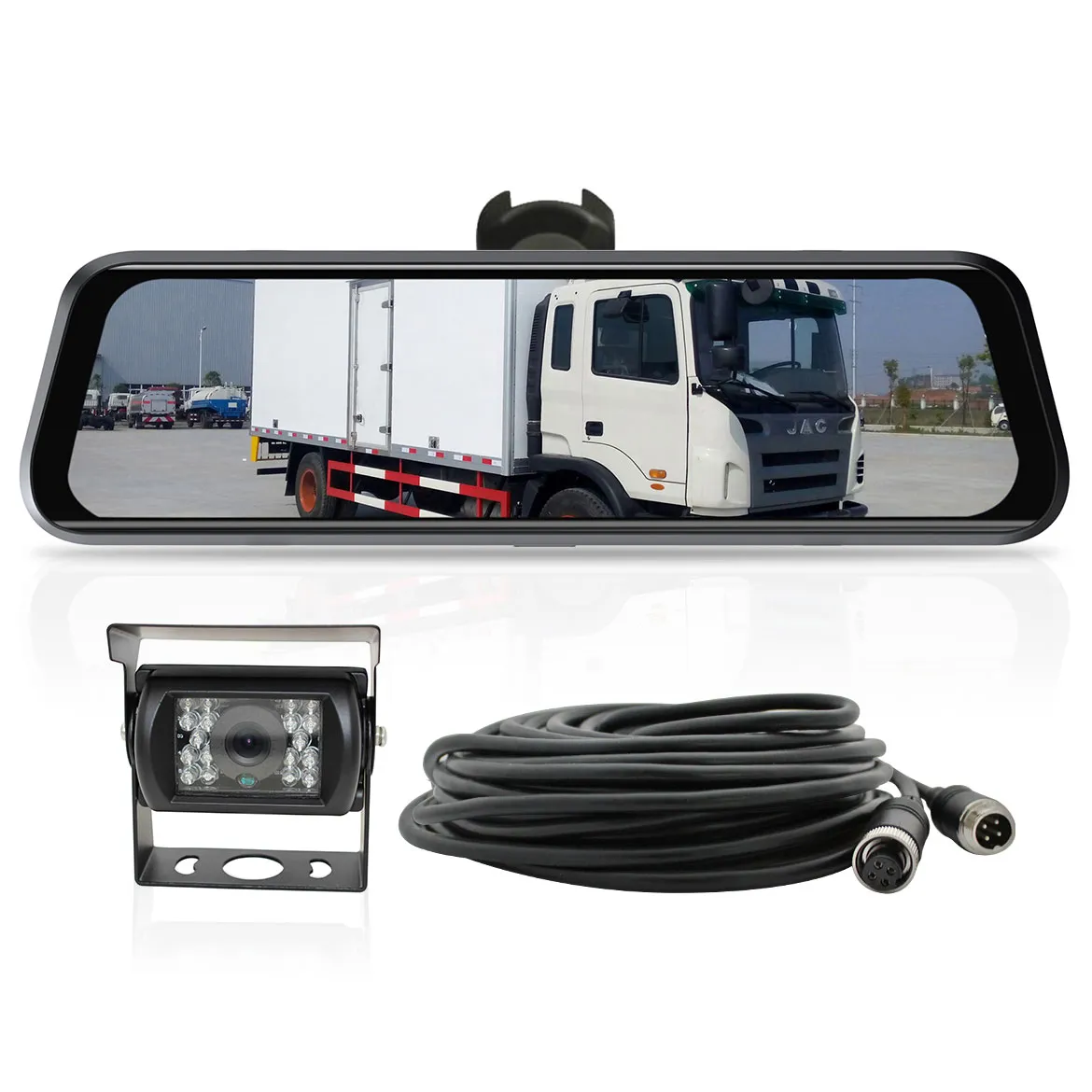

Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor Heavy Duty 1080P Reversing Camera 10M Cable

The Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor delivers ultra-clear rear visibility with its high-resolution 320×1280 display and smart dual-view functionality. Built for reliability and seamless compatibility with K Series AHD cameras, it ensures stable performance, safer reversing, and dependable operation in any weather.

The Elinz K Series Heavy Duty AHD 1080P Reversing Camera delivers crisp Full HD clarity and a wide 120° viewing angle for safer, more confident maneuvering. Built for demanding environments, it features night vision, rapid shutter speed, and an IP69K-rated housing for reliable performance in any condition.

PRODUCT FEATURES

Monitor

  • 9.6 Inch Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Power Wire Inverse Protection - Protects against incorrect power wiring.
  • Working Temperature - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cdm
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2
  • Camera Angles: Rear vision and reverse vision by trigger
  • Guideline: On / Off / Adjustable

Camera

  • High-Definition Clarity - 1920×1080 resolution for clear and detailed video capture.
  • Wide Viewing Angle - 120° horizontal field of view behind the vehicle.
  • Night Vision Capability - Equipped with 18 IR LEDs for zero-lux (0 Lux) visibility with F2.0 aperture
  • Rapid Shutter Speed - From 1/50-60 up to 1/15000 seconds
  • Durability and Protection - Rated IP69K for superior water and dust resistance
  • Operating Temperature Range - -20°C and 65°C
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors
  • Image Sensor: 1/3" Full HD camera
  • Signal System: PAL / NTSC
  • SNR: >48dB
  • Video Output: 1.0 Vp-p, 75 Ohm
  • Power Supply: DC 12-24V
  • Current Consumption: <190mA
  • Connector: 4PIN Aviation

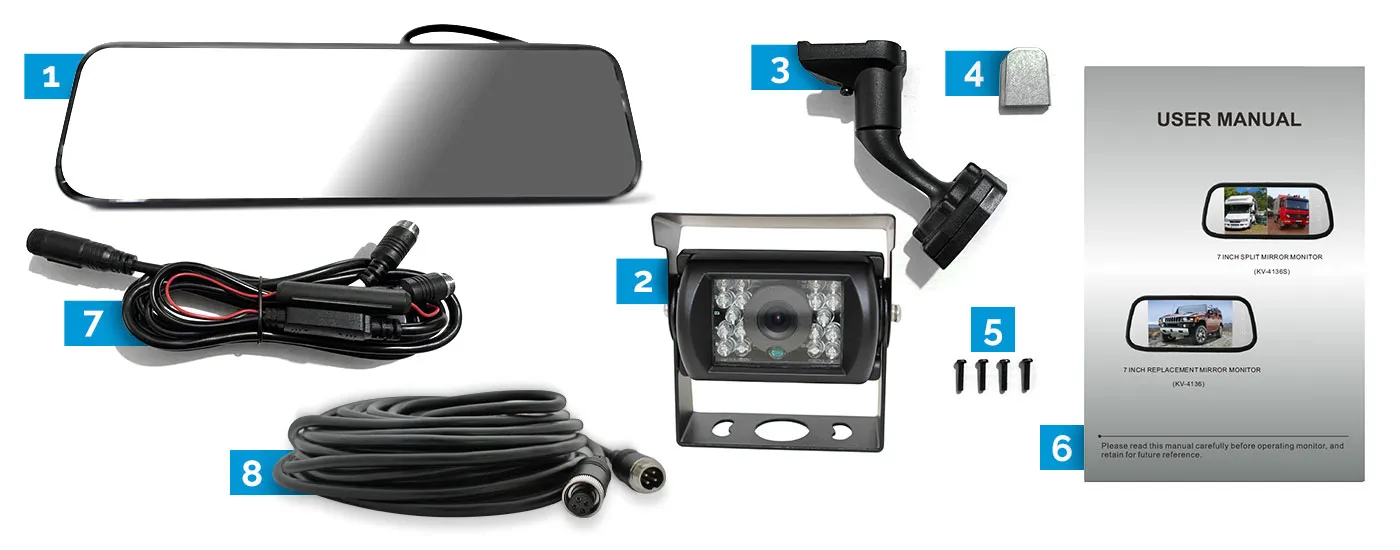

What's Included

1. 1x 9.6" Car Mirror Monitor

2. 1x Heavy Duty Camera

3. 1x Bracket

4. 1x T-Slot

5. 4x Screws

6. 1x User Manual

7. 1x Power Cable

8. 1x 10M 4PIN Cable
