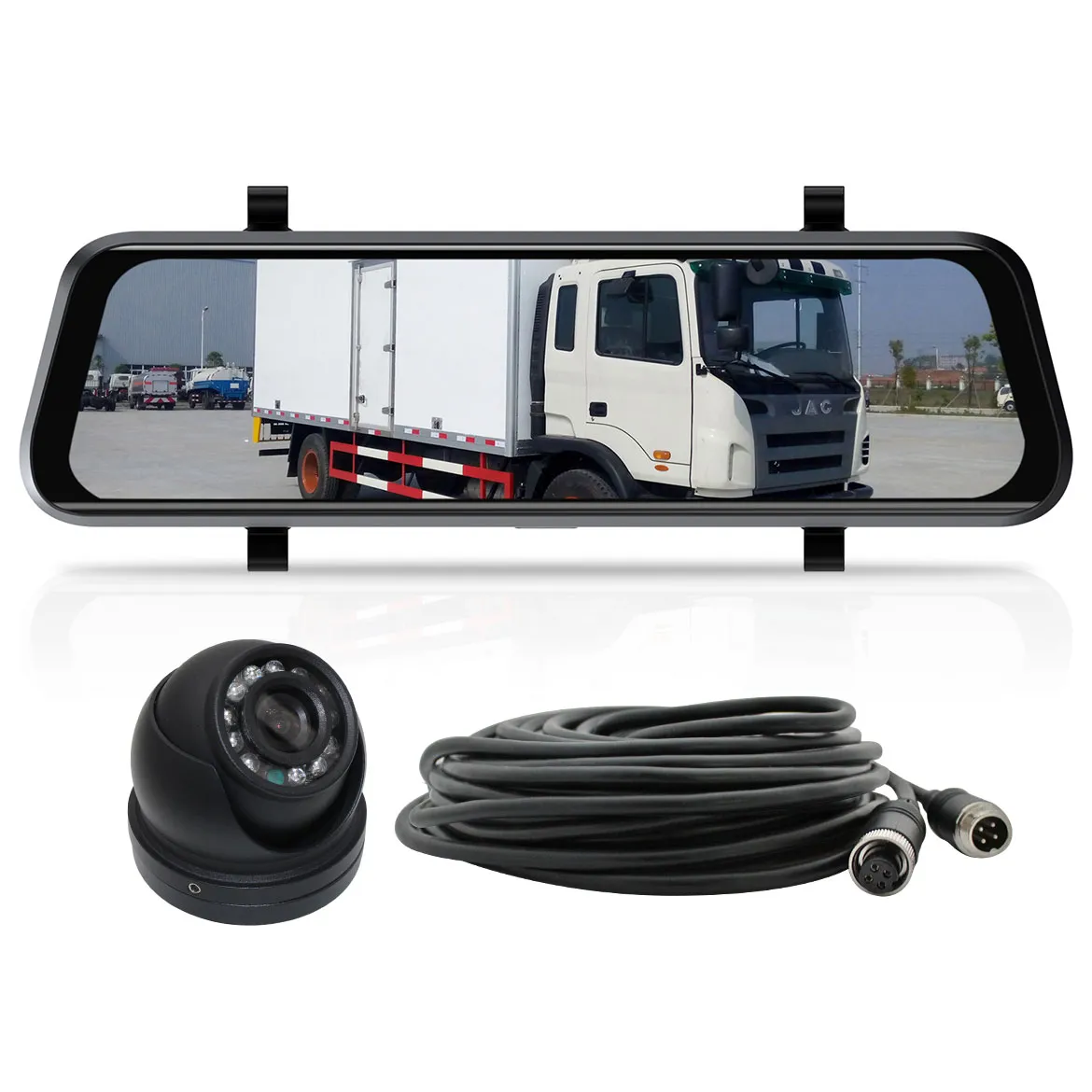

Elinz K Series 9.6" Full Screen Display Replacement Mirror Monitor Dome AHD 1080P Reversing Camera 10M Cable

The Elinz K Series 9.6" Full Screen Display Replacement Mirror AHD Monitor delivers ultra-clear rear visibility with its high-resolution 320×1280 display and smart dual-view functionality. Built for reliability and seamless compatibility with K Series AHD cameras, it ensures stable performance, safer reversing, and dependable operation in any weather.

The Elinz K Series Dome AHD 1080P Camera delivers crisp, high-definition footage with a 1920×1080 resolution, 100° wide viewing angle, and powerful night vision supported by 12 IR LEDs for true zero-lux performance. Its 1/3" Full HD sensor, fast shutter speed range, and full compatibility with all Elinz K Series AHD Monitors ensure clear imaging and seamless plug-and-play connectivity.

PRODUCT FEATURES

Monitor

  • 9.6 Inch Full Display Mirror Monitor - High-resolution 320×1280 screen delivers detailed and clear images for enhanced rear and reverse viewing.
  • Dual View Function - Supports standard rear vision view and automatically switches to reverse view when the vehicle is shifted into reverse by using a single camera only.
  • Compatibility - Fully compatible with all Elinz K Series AHD Cameras, ensuring seamless plug-and-play connection and optimal video performance.
  • Anti-Interference PCB Design - Ensures stable, reliable video signals by minimizing interference.
  • Wide Operating Voltage and Camera Output - Operates on DC 10-30V input and supplies DC 12V output to connected cameras, compatible with various vehicle systems.
  • Adjustable Guide Lines - Guide line feature can be turned on, off, or adjusted for safer parking and reversing.
  • Operation Memory Function - Remembers last settings for user convenience and faster setup.
  • Power Wire Inverse Protection - Protects against incorrect power wiring.
  • Working Temperature - Functions reliably in temperatures ranging from -25°C to +70°C for all-weather use.
  • Signal System: PAL/NTSC/AUTO
  • Brightness: 600 cdm
  • Contrast Ratio: 400:1
  • Video Inputs: Dual AHD1 & AHD2
  • Camera Angles: Rear vision and reverse vision by trigger
  • Guideline: On / Off / Adjustable

Camera

  • High Resolution Imaging - 1920×1080 resolution for sharp and clear video footage.
  • Wide Horizontal Angle - 100° field of view provides a broad perspective for effective monitoring.
  • Night Vision - Equipped with 12 IR LEDs enabling zero-lux (0 Lux) visibility at F2.0 aperture for clear images in complete darkness.
  • Image Sensor - 1/3" Full HD camera sensor delivers vivid and detailed images.
  • Fast Shutter Speed - Range from 1/50-60 to 1/15000 seconds ensuring clarity in various lighting conditions.
  • Compatibility - Fully compatible with all Elinz K Series AHD Monitors, ensuring seamless plug-and-play connection and optimal video performance.
  • Image Sensor: 1/3" Full HD camera
  • Power Supply: DC12V
  • Signal System: PAL / NTSC
  • Connector: 4PIN Aviation

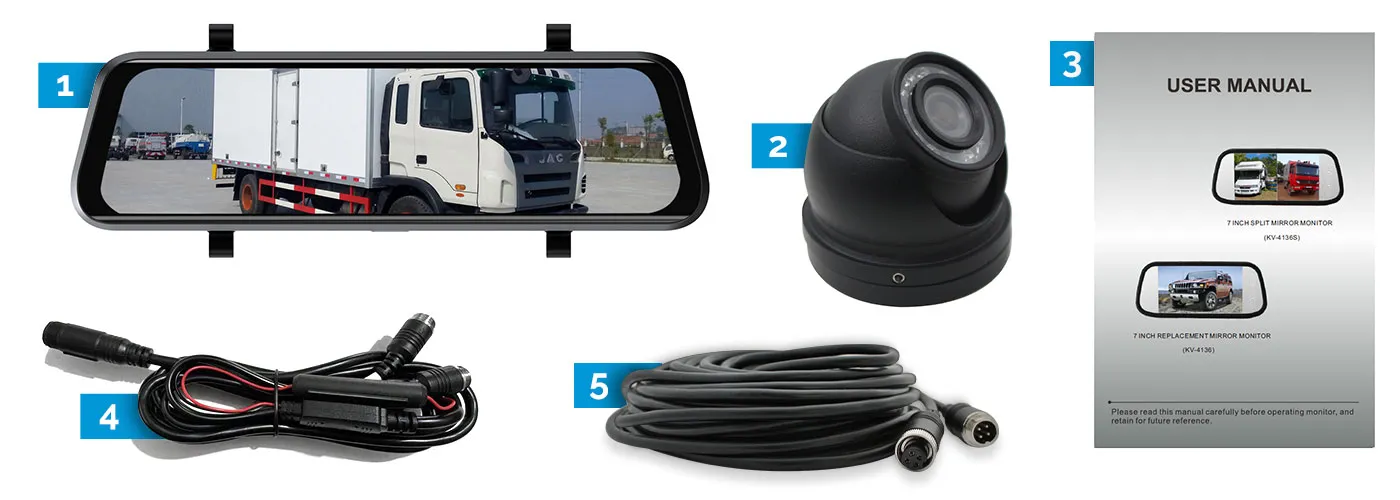

What's Included

1. 1x 9.6" Clip-on Mirror Monitor

2. 1x Dome Camera

3. 1x User Manual

4. 1x Power Cable

5. 1x 10M 4PIN cable
