Elinz 7" AHD Monitor 4 Channel DVR Quad Screen 4PIN

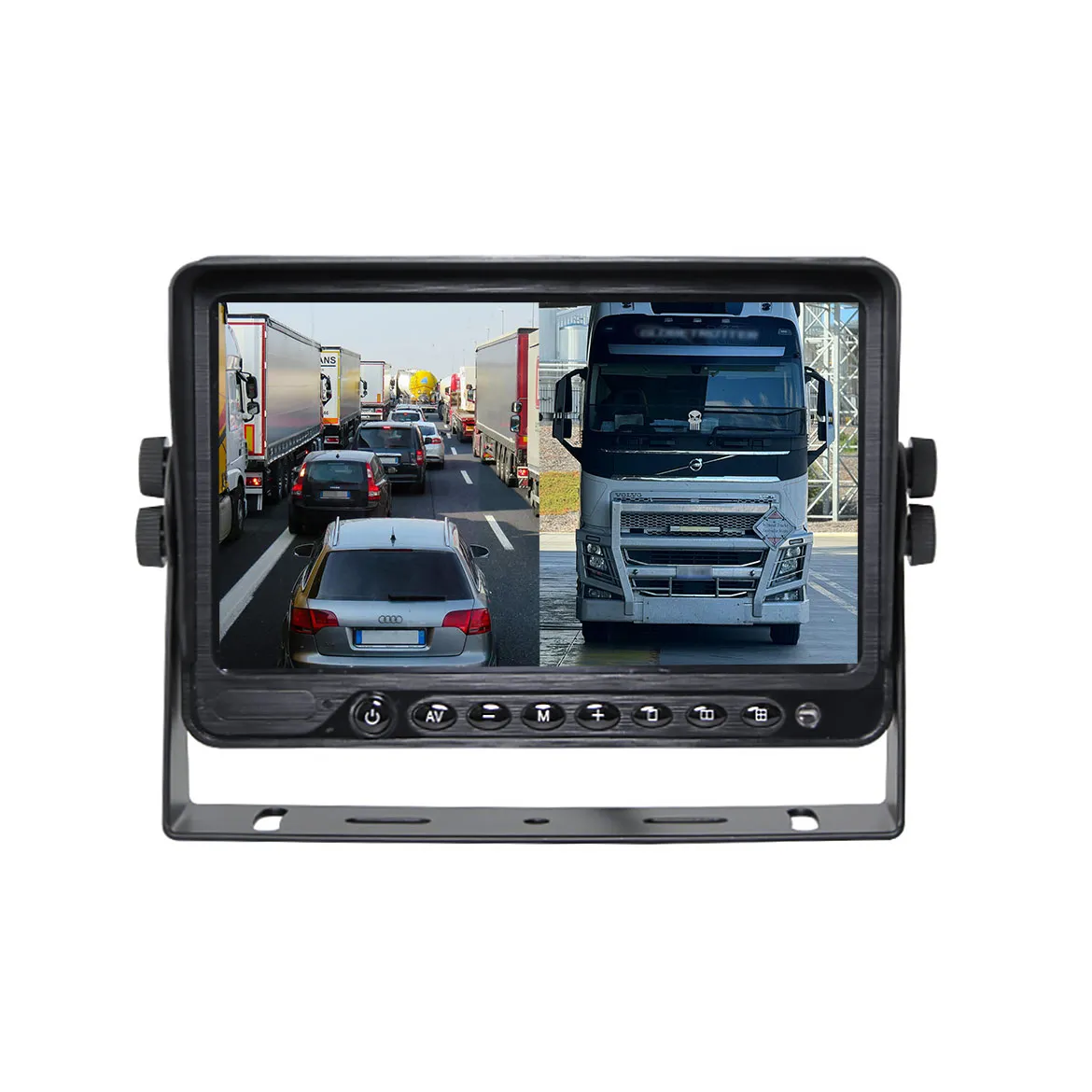

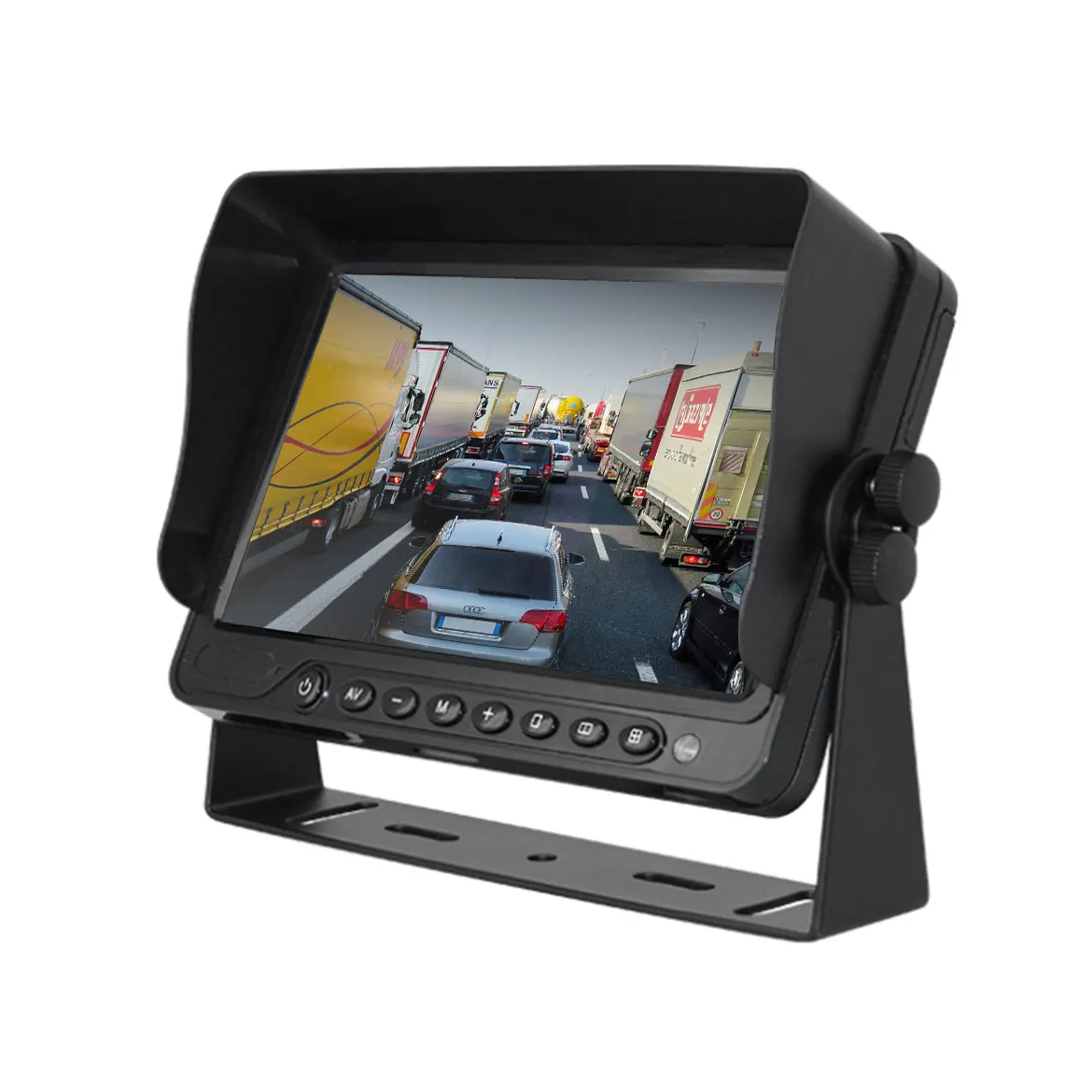

The Elinz 7" AHD Monitor is a compact display system designed to support up to four AHD cameras with clear 1024 x 600 resolution. It features built-in DVR recording with support for up to 256GB SD storage and offers multiple viewing modes, including single, split, and quad screen. Suitable for 12V–24V setups, it connects via a 4-pin system and is compatible with various AHD camera models.

PRODUCT FEATURES/SPECIFICATIONS

• Screen Size: 7 inch
• Screen Resolution: 1024 x 600
• Video Signal: AHD
• Video Channels: Supports up to 4 cameras
• Video System: PAL
• DVR Function: Yes
• Recording: Real‑Time
• Storage Capacity: Supports up to 256GB SD Card

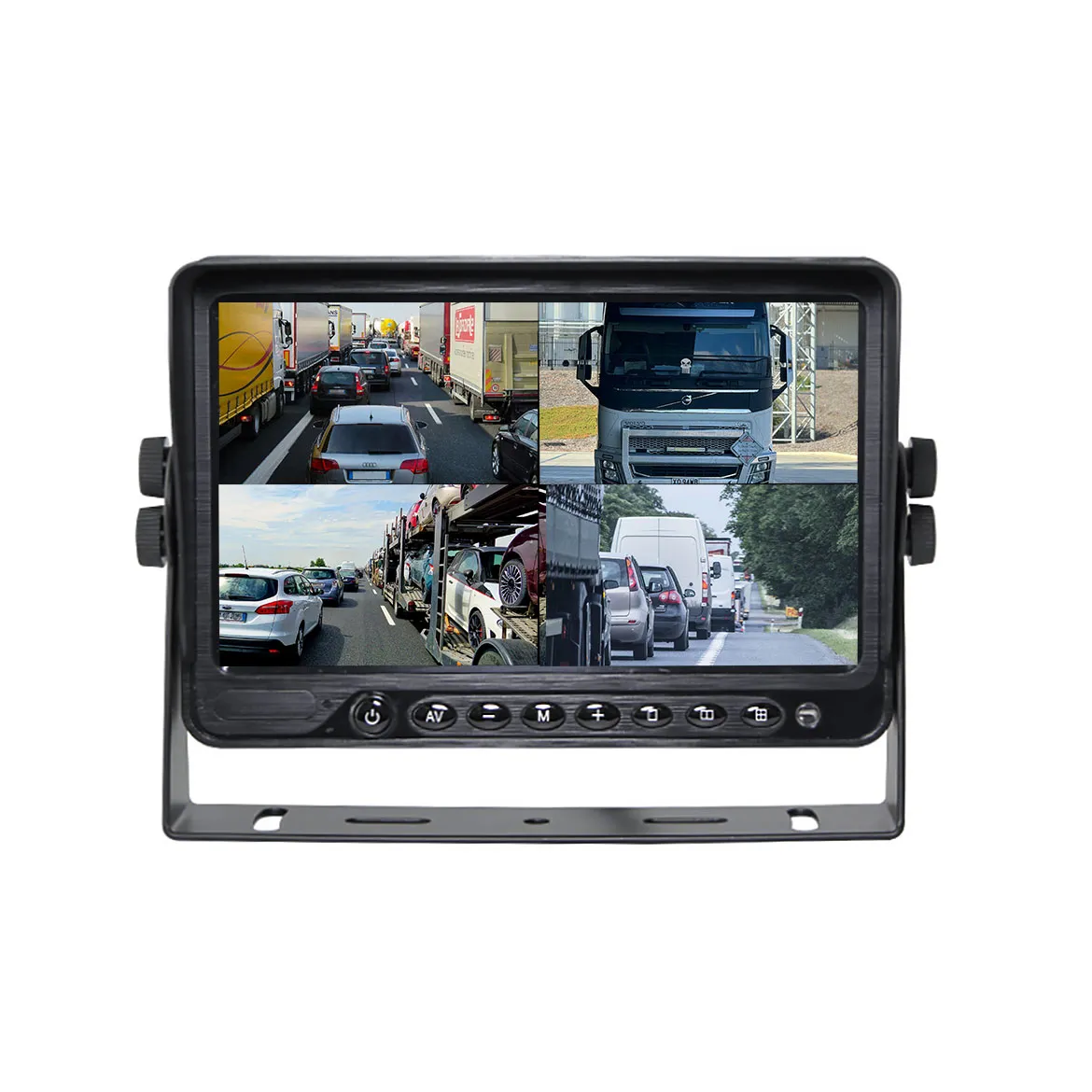

• Display Modes: Single, Split, Quad Screen
• Connection: 4-Pin
• Speakers: n/a
• Operating Voltage: DC12V-24V
• Compatible Cameras: RVBUSIDEAHD, RVBUSIDESMLAHD, RVDOMEAHD, RVDOMEMICAHD, RVDOMEBLKAHD, RVMICAHD, RV2LMICAHD, RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD and RV4PIN12LEDAHD

Note:
Not compatible with Elinz K-Series AHD cameras

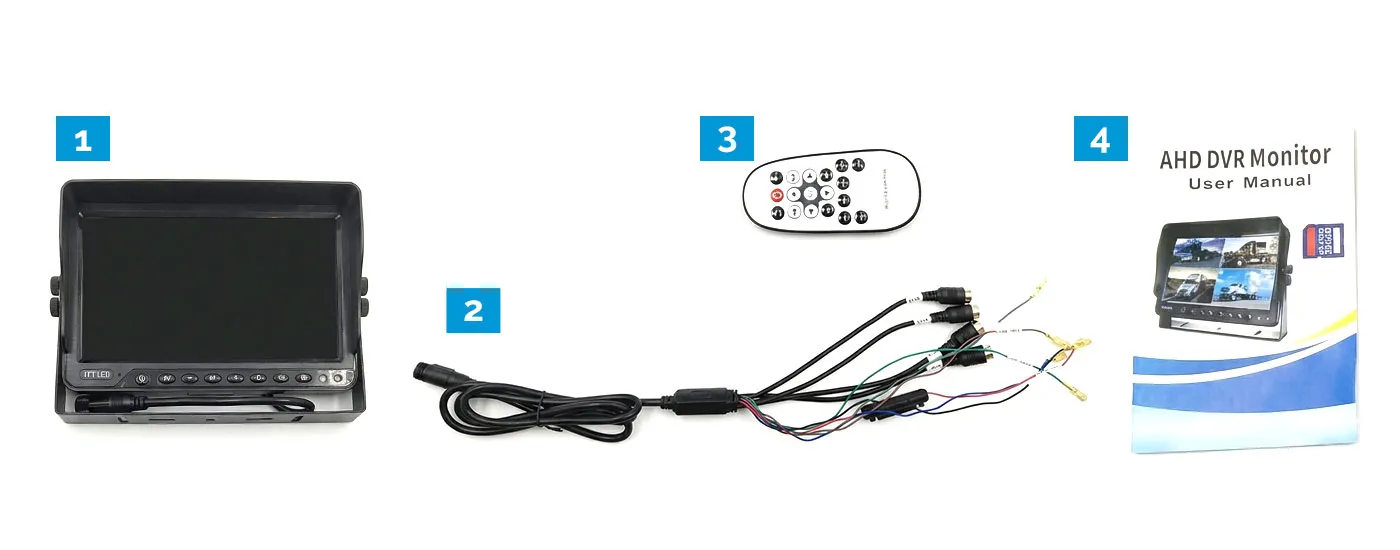

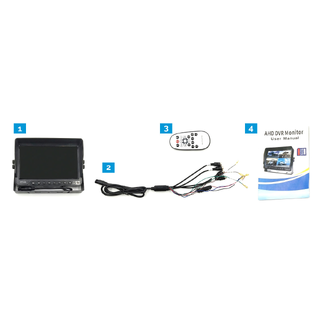

What's Included
