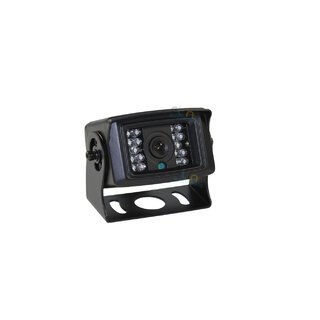

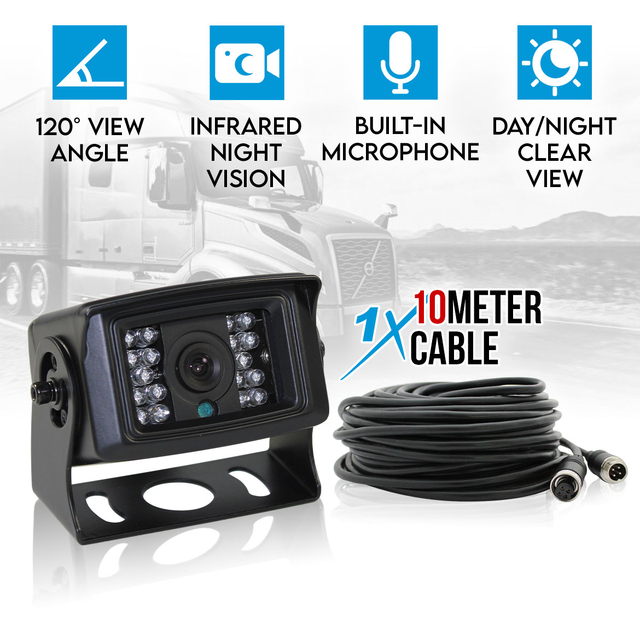

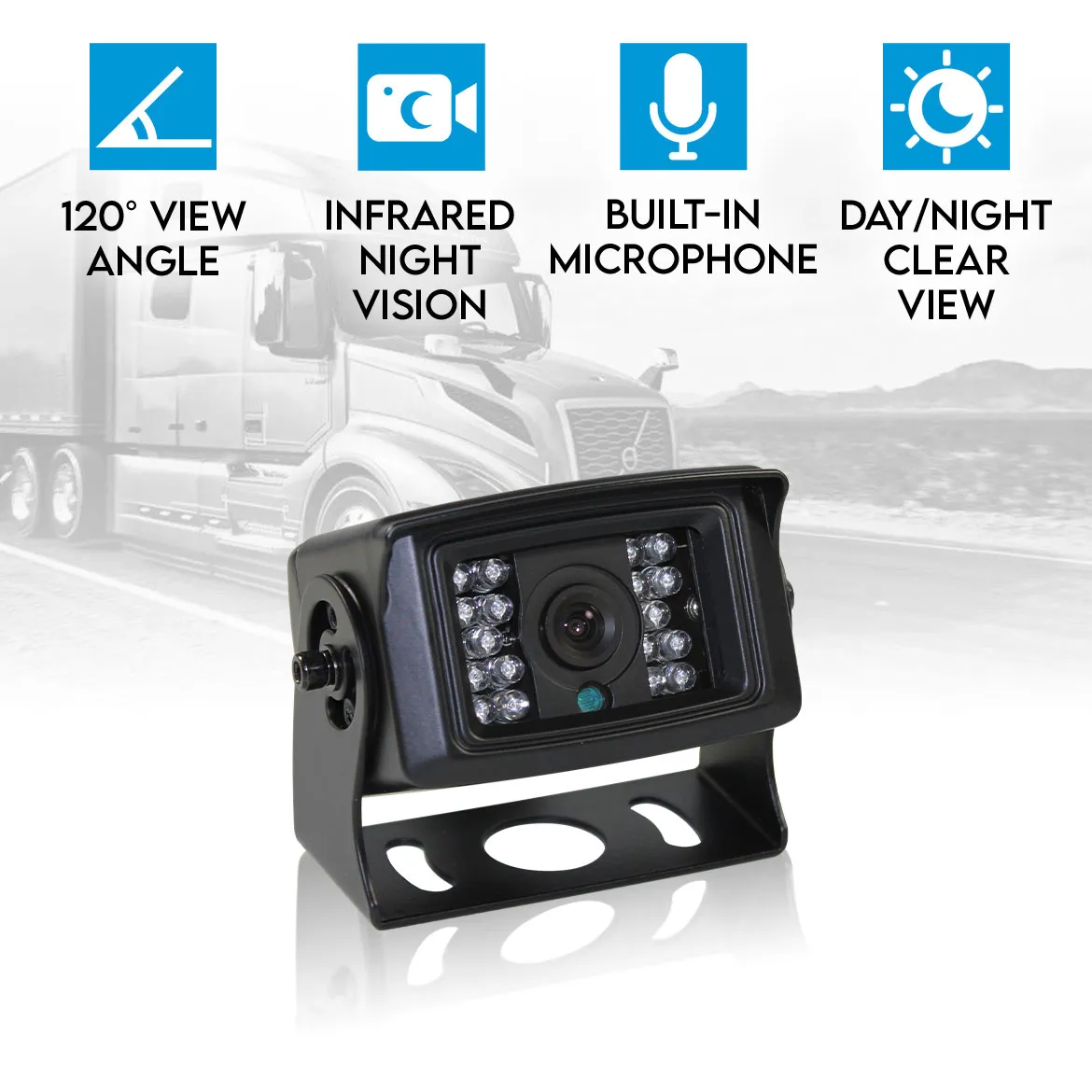

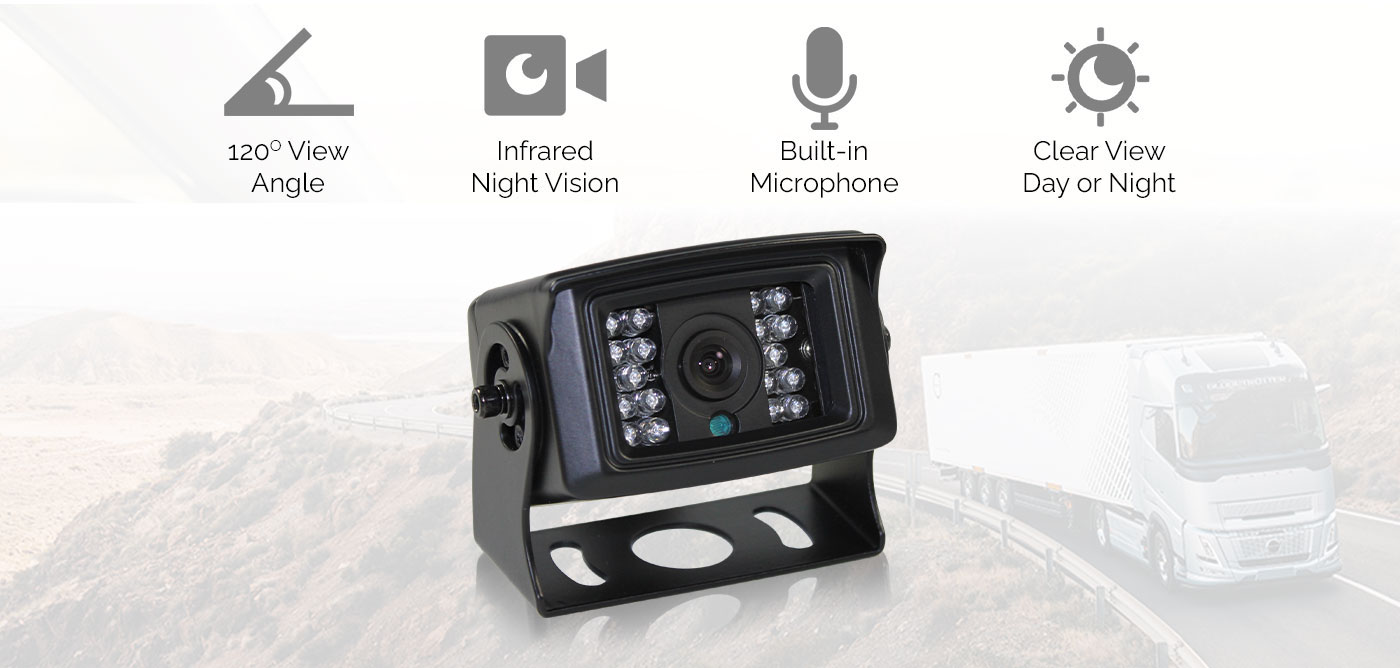

Elinz 4 PIN Heavy Duty 12V 24V CCD IR Reversing Camera with built-in Microphone

SKU: RVMCS

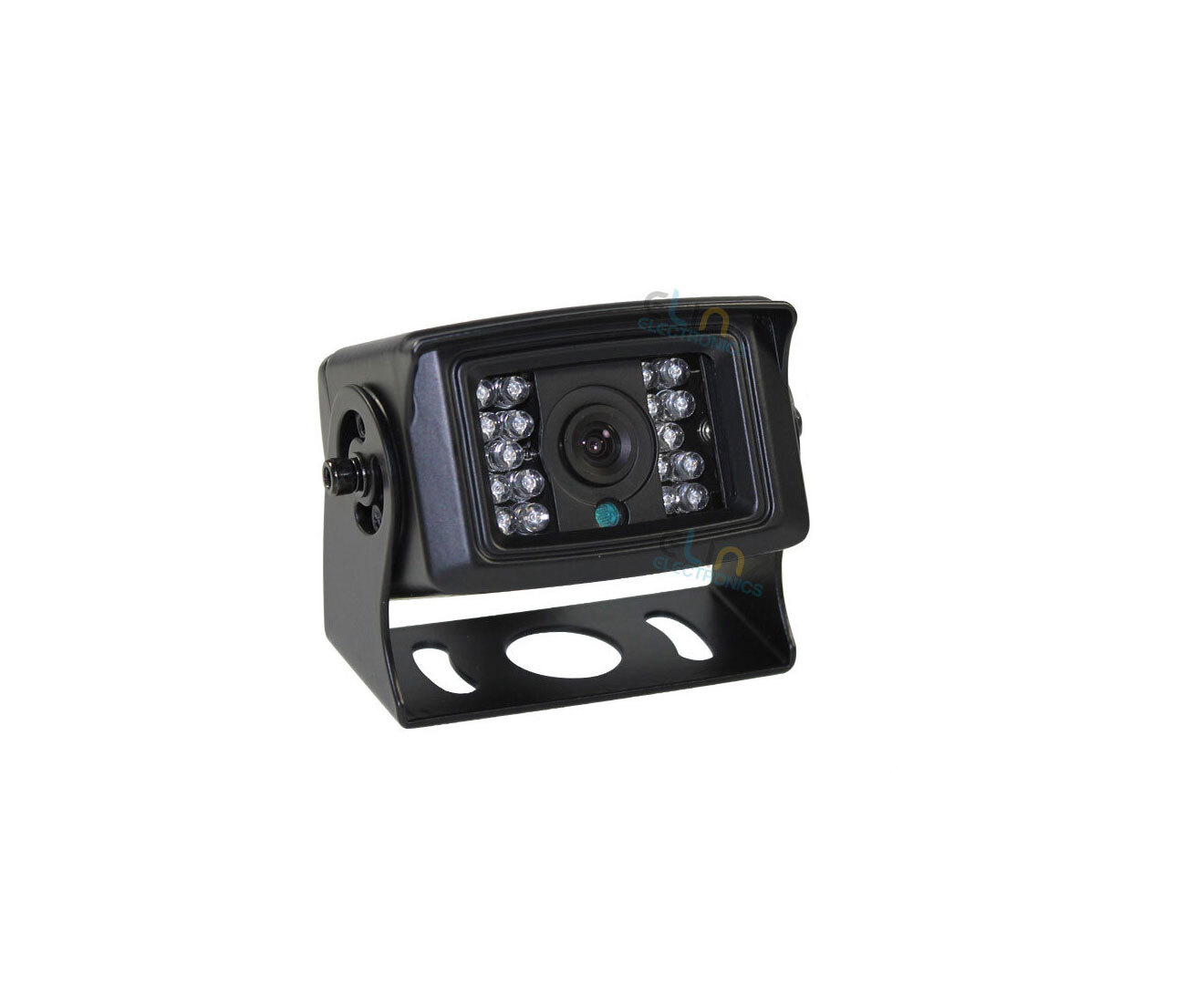

Round heavy duty reversing camera with image of truck



side camera mounted on truck with caption "90 degrees wide view angle"

600 TVL 4PIN CCD Camera System

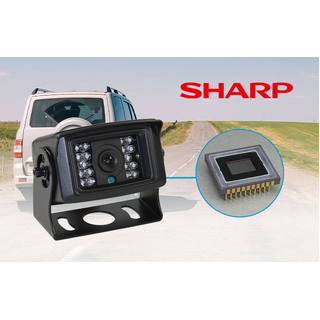

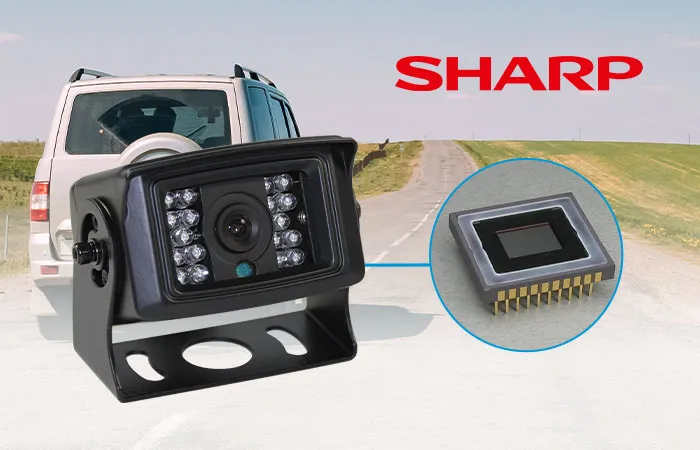

  • The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
  • High resolution 600 TVL camera for clear image and video
  • 1/4 CCD sharp sensor

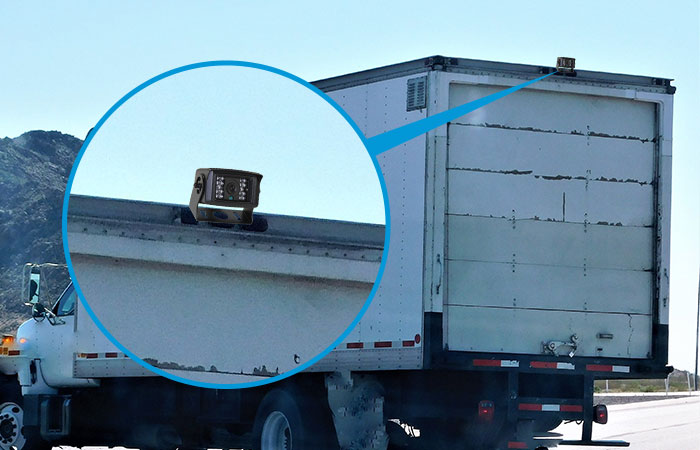

Compact Reversing Camera on truck

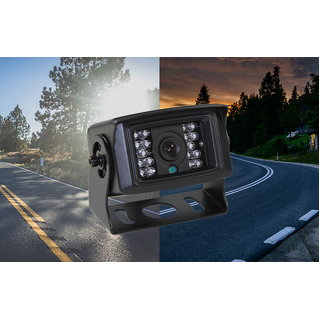

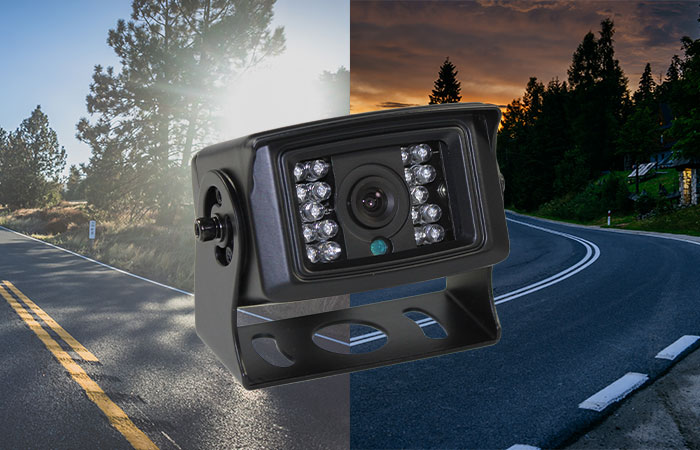

LED Night Vision

  • Day and night colour CCD camera
  • 18 LEDs IR LED lights turn on automatically when visibility is low.
  • Provide maximum visibility and will turn off automatically in well-lit areas.



22kpa handstick vacuum cleaner

Tough and Heavy-duty Camera

  • This camera is built and designed to last.
  • Vibration resistant, especially designed for mobile usage
2 speed adjustment vacuum

Suitable for 12V/24V Vehicles

  • Suitable for use with trucks/ caravans/ cars etc.
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera



Foldable Aluminum Alloy Tube

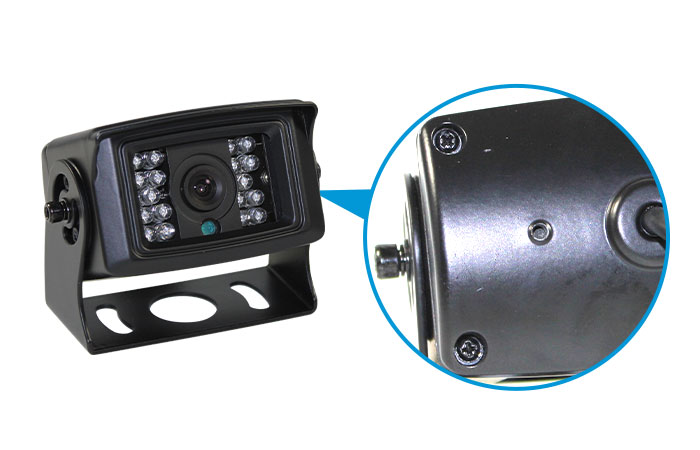

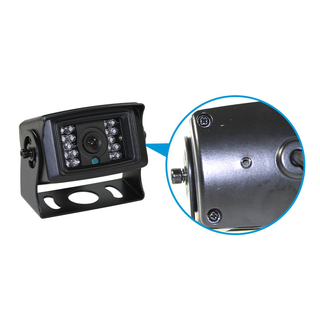

Built-in Mic

  • Allows the driver to hear someone at the back of the caravan giving instructions when reversing
installation diagram for reversing camera in shock pad

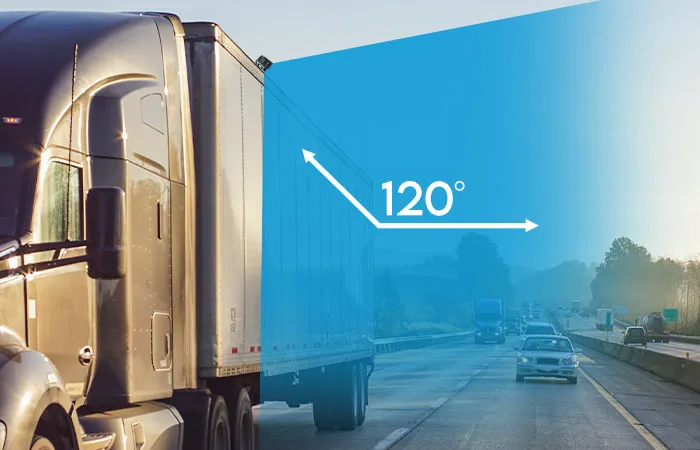

120 Degree View Angle

  • The 120 Degree Angle provides clear wide view so you can see any vehicles, person or obstacle on your rear view.



Elinz 4 PIN Heavy Duty 12V 24V CCD IR Reversing Camera with built-in Microphone

This camera is built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.

The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness. They also have night vision as each camera comes 18 individual infrared LED to enable users to see clear images, even at night or in low light conditions.

This new line of reversing camera features a 120-degree viewing angle so it does not produce fish-eye view. When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.



PRODUCT HIGHLIGHTS

  • 600 TVL 4PIN CCD Camera System
    • The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness.
    • High resolution 600 TVL camera for clear image and video
    • 1/4 CCD sharp sensor
  • LED Night Vision
    • Day and night colour CCD camera
    • 18 LEDs IR LED lights turn on automatically when visibility is low.
    • Provide maximum visibility and will turn off automatically in well-lit areas.
  • Tough and Heavy-duty Camera
    • This camera is built and designed to last.
    • Vibration resistant, especially designed for mobile usage
  • Suitable for 12V/24V Vehicles
    • Suitable for use with trucks/ caravans/ cars etc.
    • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Built-in Mic
    • Allows the driver to hear someone at the back of the caravan giving instructions when reversing
  • 120 Degree View Angle
    • The 120 Degree Angle provides clear wide view so you can see any vehicles, person or obstacle on your rear view.

ITEM DESCRIPTION

  • IR LED : 18pcs
  • Usable Illumination : 0LUX(LED ON)
  • S/N Ratio : ≥48dB
  • Gamma Characteristic : 0.45
  • Video Output: 1Vp-p,75ohm
  • Operation Temperature : -20°C~+70°C RH95% Max
  • Built-in microphone
  • 600 TVL
  • Lens: f = 2.5mm
  • Lens Angle: 120°
  • N.W : 350g
  • Connector Port: 4-pin aviation

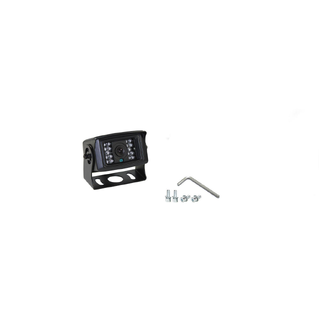

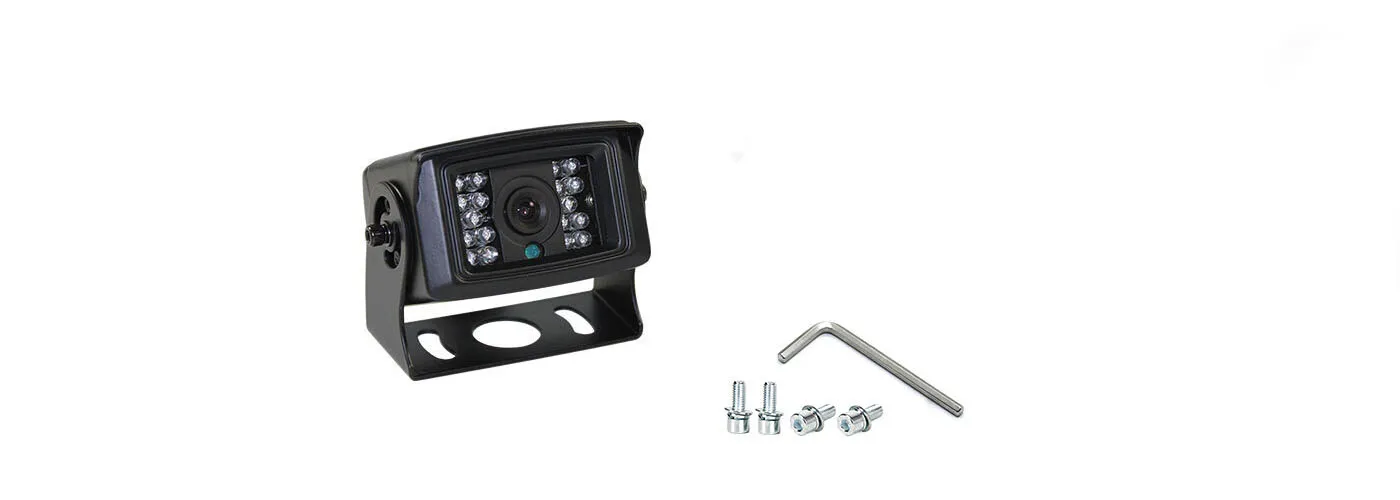

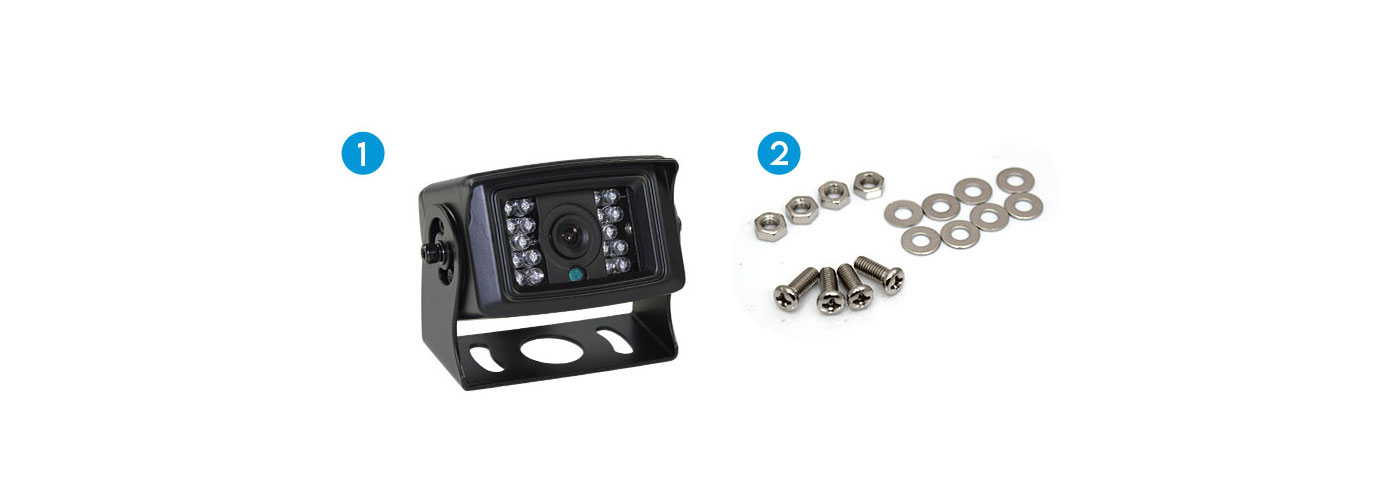

reversing camera, 4pin cable, screws with caption "what's included"

WHAT'S INCLUDED

1. 1x Reversing Camera

2. Nuts & Bolts
