23" LED Light Bar 3 Rows bundle 2x 18W 4 inch Driving Worklight

SKU: LED3ROW23-L4INCH

23 Inch LED Light Bar and 4 inch Worklight
Triple Rows LED Light Bar

Triple Rows LED Light Bar

  • Light the entire forward viewing area, giving greater visibility without eye fatigue
IP67/IP68 Waterproof

IP68 Waterproof

  • LED Light bar can be used in extreme weather conditions
Light Bar and Worklight Lumen output

Good Lumen Output Combination

  • 54600LM 3 Rows LED light bar and 1800LM Worklight bar
Flood Spot Beam Combo Light Bar

Flood Spot Beam Combo

  • Ultra long distance for spot beam, and ultra wide spread for flood beam
Light Bar Light illumination

Perfect Lightning Source

  • Light the entire forward viewing area, giving greater visibility without eye fatigue
Light Bar Breather

Safe to Use

  • LED light bar has breather at side to prevent moisture building up inside
Light Bar Flood and Spot Beam Comparison

Flood and Spot Beam Comparison

  • Elinz have wider coverage and longer distance with 10 degree spot and 120 degree flood while Others have 30 degree spot and 90 degree flood only

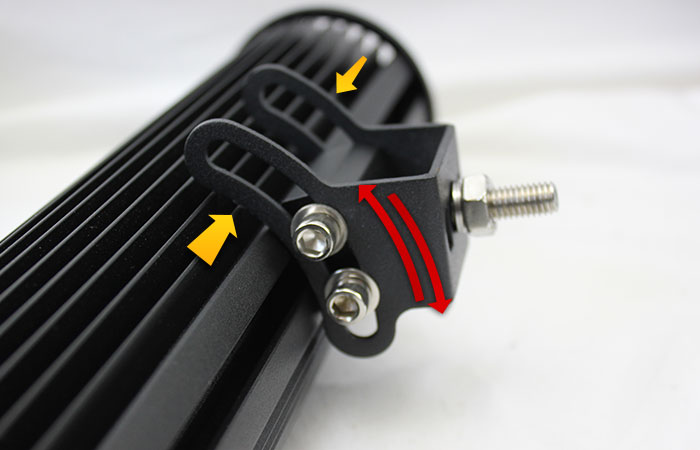

Movable Brackets

2 Movable Brackets

  • Brackets can move left and right, you dont need to worry about whether they fit in the mounting holes anymore
DT Plug

DT Plug

  • For easy installation
LED light bar 6063 Aluminum Body

6063 Aluminum Body

  • High quality 6063 aluminum body, durable to withstand any harsh condition.
  • Great performance of waterproof, dustproof, shockproof and anti-corrosion

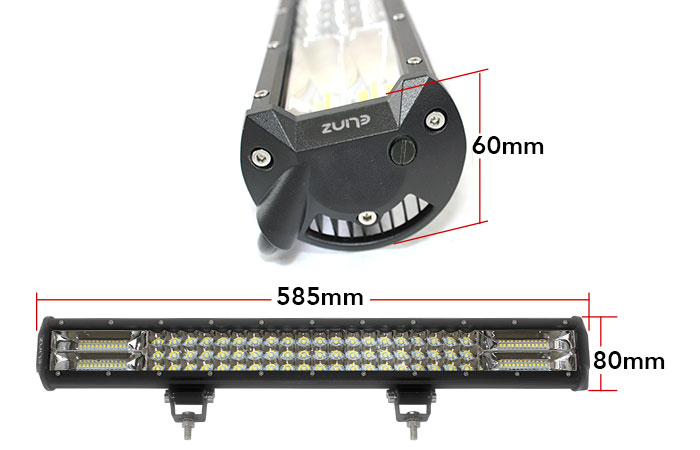

LED Light Bar Dimensions

LED Light Bar Dimensions

LED Work Light Dimensions

LED Work Light Dimensions

MORE INFORMATION

23" LED Light Bar 3 Rows bundle 2x 18W 4 inch Driving Worklight

This 23 inch LED light bar with 3 rows has a beam combination of flood and spot beam. It has a waterproof rating of IP68, you can be sure that the lighting device will continue to function despite being exposed to huge amounts of rain or flood water.

This LED light bar has a breather, which allows the moisture to get out and won't build up inside the lens. It has 10 degree spot beam, which can reach further distance, as compared to others with 30 degree spot beam and it has 150 degree flood beam which covers wider spread, as compared to others of only 90 degree flood beam.

Light bar is energy-efficient because it has 108 pieces of high-intensity bulbs, it can deliver excellent light output without consuming too much energy.

PRODUCT HIGHLIGHTS

23 inch LED Light Bar Work Driving FLOOD SPOT COMBO 3 Rows
  • Beam: Combo (10 degree spot beam & 150 degree flood beam)
    • The Combination beam of flood and spot style illumination provide denser, further reaching light.
    • Reach further distance and covers wider spread
    • Deliver excellent light output
  • Color Temperature: White 7000K-7500K
    • The light output of these LED light bar is simply phenomenal, they produce a mass of clean white daylight (7000K-7500K), free of artifacts and focus dead spots.
    • They light the entire forward viewing area, giving greater visibility without eye fatigue.
  • Waterproof: IP68
    • Lighting device will continue to function despite being exposed to huge amounts of rain or flood water.
  • 50,000 hours life time
    • Saves up money as you can use the light bar for a long time
  • Lumen Output: 54600LM
  • LED light bar has a breather
    • Allows the moisture to get out and won't build up inside the lens
    • Material: Black Die-cast Aluminum profile
    • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.
2x 18W 4 inch LED Work Light Bar
  • LED light bulbs that is made from USA
    • LED(s): 6pcs*3W intense LED
  • Light Illumination
    • Beam: 60 degree Flood beam
    • Lumens : 1800lm Up to 80 percent efficiency in light output
  • Housing And Lens
    • Material: Diecast aluminum housing, PC Lens
    • 6063 aluminum body
  • Lifespan over 50,000 hours
  • Ideal for touring vehicles, 4x4 Competitions
    • Unique Durable Mar/UV resistant plating technology
    • Military standard breather
    • Sealed waterproof connector and Dual-oversized heat sink
    • Low power consumption
  • Widest color spectrum
  • Enable millisecond adjustments in light
  • Suitable vertical fins design for better cooling
  • Longer valid irradiation distance than normal halogen bulb

ITEM DESCRIPTION

23" LED Work Driving Light Bar FLOOD SPOT COMBO
  • LED Quantity: 108pcs High intensity LEDS ( 60LED SPOT BEAM and 48LED FLOOD BEAM)
  • Operating Voltage: DC 10-30V (Fit 12V/24V vehicle)
  • Beam: Combo (10 degree spot beam & 120 degree flood beam)
  • Color Temperature:White 7000K-7500K
  • Bracket : Post brackets with DT plug wire harness
  • Waterproof: IP68
  • Life time:about 50,000 hours life time
  • Material: Black Die-cast Aluminum profile, PC lens, solid bottom slip
  • Theoretical Lumens Output: 54600LM
  • Distance: 1 Lux @ 500 meters
  • Warranty : 1 Year
2x 18W 4 inch LED Work Light Bar
  • Power: 18W
  • Protection Rate : IP67
  • Color Temperature: 6000K
  • Mounting Bracket: Alu firm bracket
  • Working Life: 50,000 hours above
  • Beam: 60 degree flood beam
  • Dimension: 4 inch
  • Voltage : 10 ~ 30V
  • Working Temperature: -40 ~ 85 degree Celsius

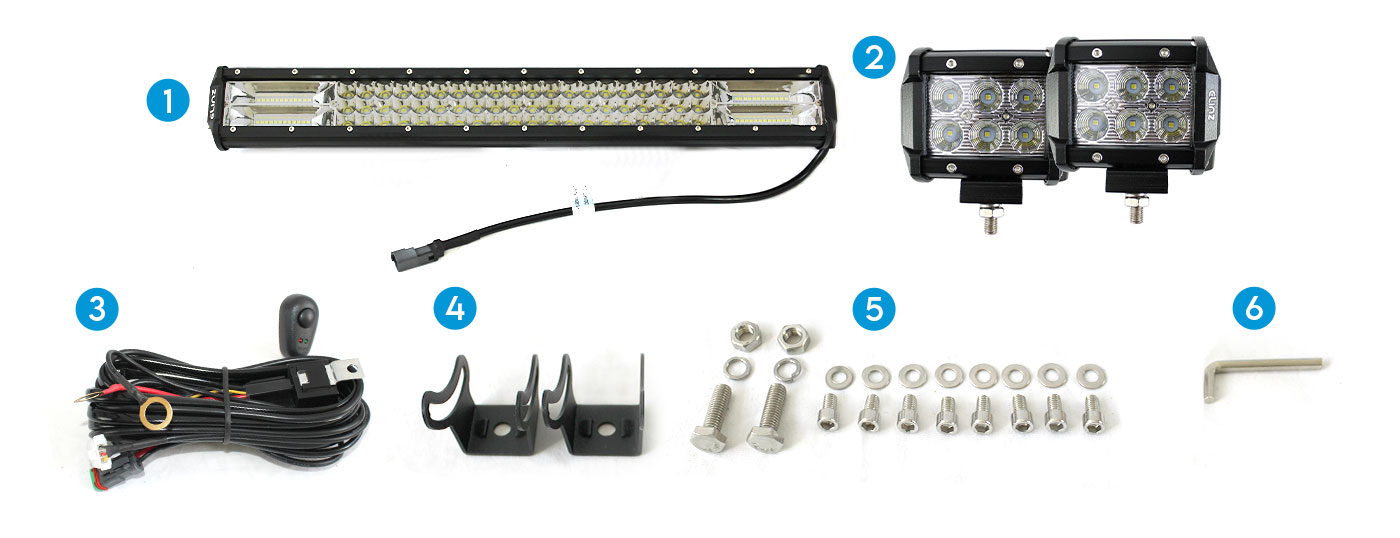

WHAT'S INCLUDED

1. 23" LED Light Bar

2. 2x 4" LED Light Bars

3. Power Cables

4. 2x Mounts

5. Nuts & Bolts

6. 1x Allen Wrench

23 Inch LED Light Bar, 4 inch Worklight and accessories
