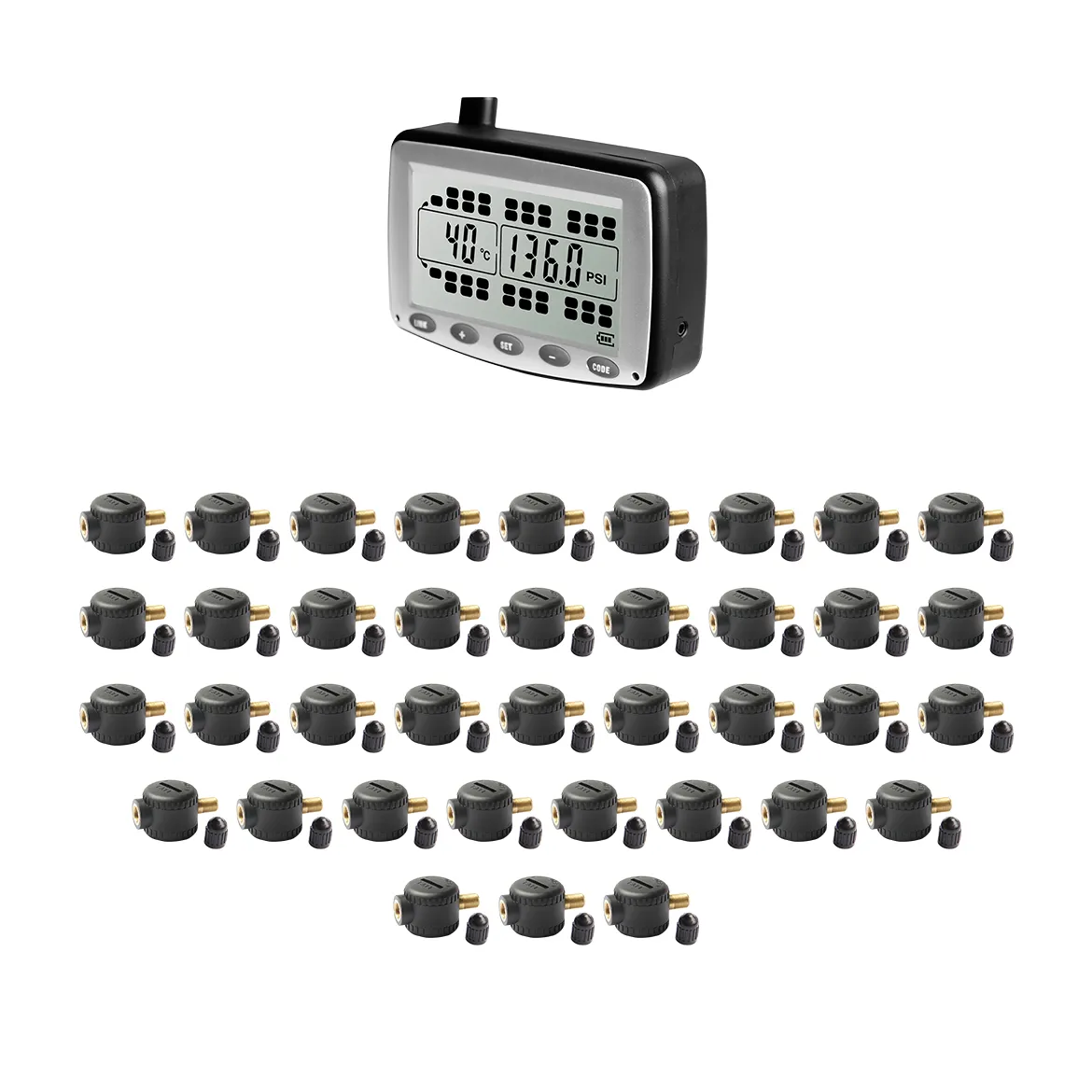

Truck TPMS Tyre Pressure Monitoring System with Low-Pressure Flow-Thru Sensors 0-87 PSI

The Truck TPMS with Low-Pressure Flow-Thru Sensors (0–87 PSI) delivers reliable real-time tyre pressure and temperature monitoring for trucks and commercial vehicles. Supporting up to 38 tyres, it features easy flow-thru sensors, a clear 3.5" LCD display with alerts, and advanced safety alarms to help prevent blowouts, improve fuel efficiency, and extend tyre life. Designed for convenience, it includes simple programming, trailer linking, and a built-in rechargeable battery for dependable daily operation.

PRODUCT FEATURES

• Real-time Monitoring
  • Provides real-time pressure and temperature for each tyre, which prevents dangerous blowouts, improves fuel efficiency, extends tyre life through even wear. Monitor your tyre pressure accurately from 0 to 189 PSI and temperature data within ±1.5 PSI or ±3°F accuracy.

• Monitors up to 38 Tyres
  • Perfect for Heavy-duty Commercial Vehicles, B-Doubles, Heavy Trucks, Semi-trucks, Tractor-Trailer, etc.

• Low Pressure Flow-Thru Sensors (0-87 PSI)
  • It comes with Low Pressure Flow-Thru Sensors that helps you add or adjust tire pressure without removing the sensor. Accurately detects tyre pressures from 0 to 87 PSI these are designed for typical passenger cars, SUVs, Utes, etc.

• Large LCD Screen
  • With a large 3.5 inch LCD screen, this tpms tire pressure monitor system ensures visible and audible warning when abnormal conditions occur.

• Connecting/Disconnecting Trailer
  • When the trailer is not connected to the tractor, press the "LINK" and "-" buttons at the same time to remove temporarily. Press the "LINK" and "+" buttons at the same time when the trailer is connected again to the tractor.

• Repeater Installation
  • To overcome signal range limitations we highly recommend installing a repeater in the battery box of every trailer. Repeater is sold separately.

• Built-in Rechargeable Battery.
  • The monitor has a built-in 850mAh lithium-ion rechargeable battery which will function for up to 60 hours before requiring a re-charge.

• Easy Sensor Programming
  • Programming the sensors is easy and you can do it even before installing the sensors.

• Power-Saving Mode
  • When your vehicle is parked and stationary for 10 minutes, the monitor goes into power saving mode and will automatically turn on as soon as vibration is detected.

• 5 Alarms Modes for Enhanced Safety
  • High-Pressure Alarm: Triggers if a tyre pressure exceeds a safe, pre-set threshold, which can be caused by heat build-up or overinflation.
  • Low-Pressure Alarm: Alerts the driver when tyre pressure drops below a minimum safe level, which is a key safety feature to prevent underinflation, potential tyre damage, and accidents.
  • High-Temperature Alarm: Warns if the internal temperature of a tyre exceeds a certain limit, often an indication of overwork, underinflation, or a mechanical issue.
  • Fast Leakage Alarm: Provides an immediate warning in the event of a quick loss of air pressure, such as from a puncture.
  • Sensor Low Battery Alarm: Indicates when a specific TPMS sensor's internal battery is running low, ensuring the system remains functional.

• TPMS Sensor ID Learning Steps
  • Step 1: In standby mode, press and hold the "CODE" button for 3 seconds to enter learning ID mode.
  • Step 2: Press the "+"/"-" button to select the desired tyre.
  • Step 3: Place the sensor close to the monitor then press the "CODE" button.
  • Step 4: After all sensors are programmed to the monitor, press and hold the "CODE" button for 3 seconds to save the settings.

• Wide Sensor Compatability
  • Designed to work with High-Pressure Flow-Thru TPMS Sensor (TPMS-HPE22), High-Pressure Anti-theft External TPMS Sensor (TPMS-HPSP3), Low-Pressure External TPMS Sensor (TPMS-LPSO) and Low-Pressure Flow-Thru TPMS Sensor (TPMS-LPE01)

• Hardwire Kit
  • Connects the display to your vehicle's fuse box, provides a clean, permanent power source to TPMS monitor even when the vehicle is parked. Hardwire kit power cable is included.

PRODUCT SPECIFICATIONS

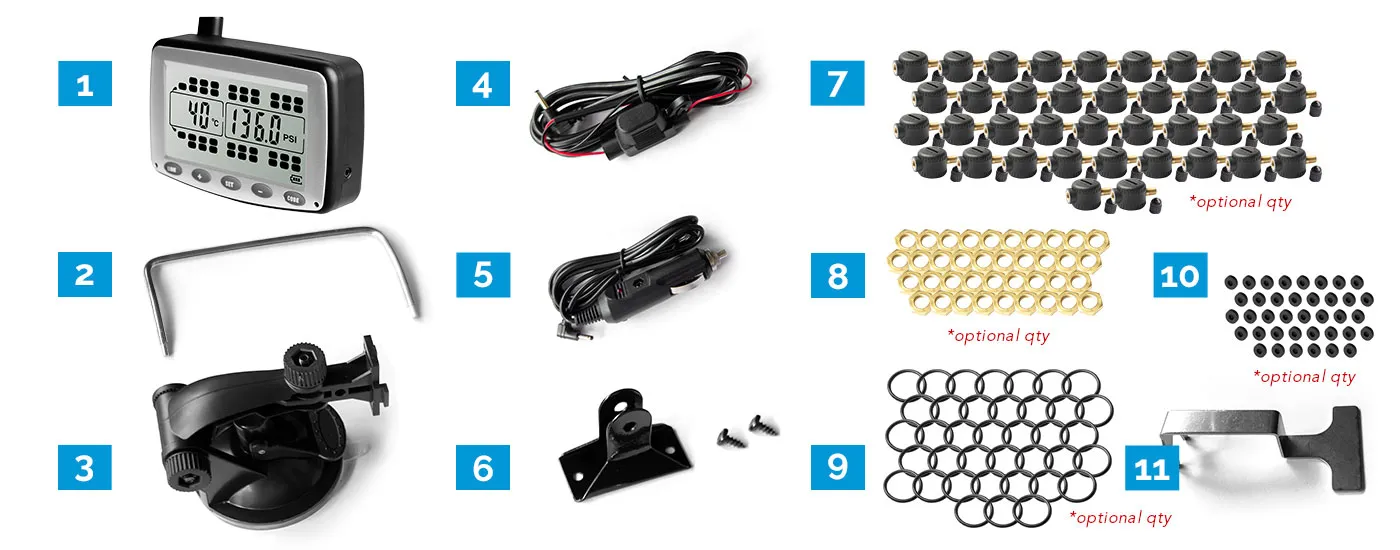

What's Included
