Seagate CCTV Surveillance 2TB Internal Hard Disk Drive 3.5" Desktop HDD DVR NVR

24/7~ 7200 RPM~Video Backup

(SKU: CCTHDISK2TB)
WAS From AUD $147.00
NOW AUD $137.00
Sale Ends in
00:00 am, 30 September 2021
In Stock


Payment made easy


Share:

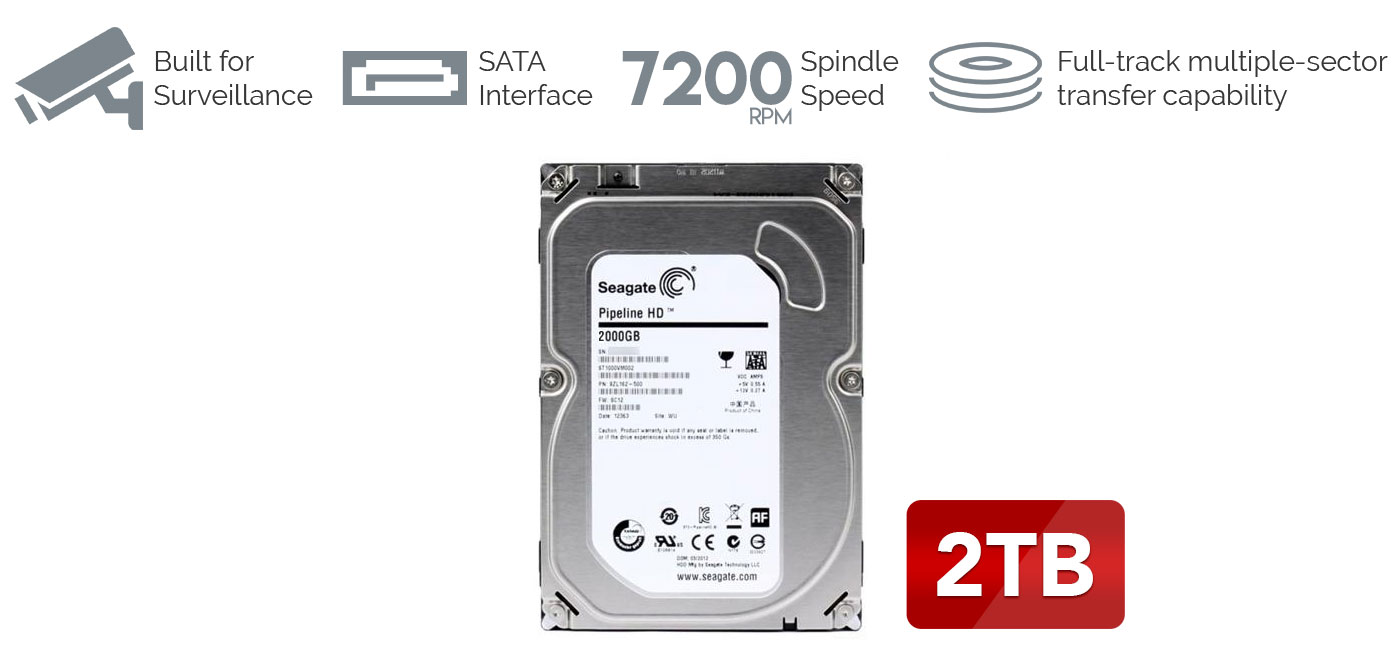

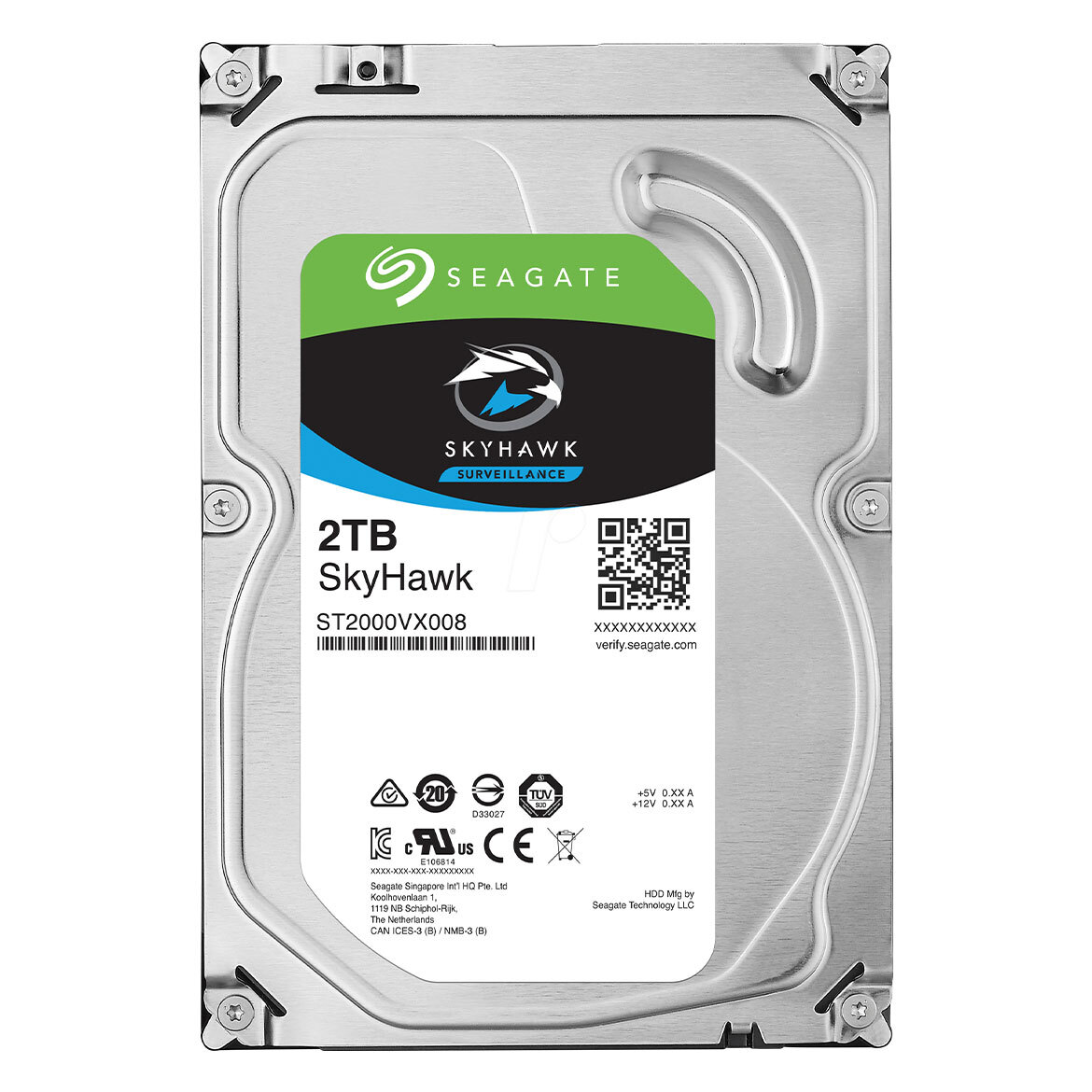

Seagate CCTV Surveillance 2TB Internal Hard Disk Drive 3.5" Desktop HDD DVR NVR

SKU: CCTHDISK2TB

Seagate CCTV 2TB Internal Hard Disk Drive
CCTV Surveillance 2TB Internal HDD

Built for Surveillance

  • Built for CCTV 24/7 surveillance applications.
Reliable and Stable Hard Drive

Reliable and Stable

  • Enhanced caching capabilities enable superior video recording quality.
SATA interface Hard Drive

SATA interface

  • The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. Data-transfer rates with a default of 6Gb/s.
7200 RPM HDD

7200 RPM

  • 7200 RPM spindle speed
Hard drive transfer capability

Full-track multiple-sector transfer capability

  • Full-track multiple-sector transfer capability without local processor intervention
Quick Transfer Rate HDD

Quick Transfer Rate

  • High instantaneous (burst) data-transfer rates with a default of 6Gb/s.
Seaget Hard Drive Exceptional Performance

Exceptional Continuous and Writing Performance

  • Enhanced caching capabilities enable superior video recording quality.and faster data-transfer rates compared to other brands.
Error Recovery Surveillance 1TB HDD

Built-in Error Recovery

  • Protect your drive from unwanted data loss
Easy to install Hard drive

Easy to install

  • Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
Low Noise 3.5 HDD

Low Noise

  • Best-in-class acoustic performance means virtually silent operation 1.9 bels.

MORE INFORMATION

Seagate CCTV Surveillance 2TB Internal Hard Disk Drive is suitable for your NVR and DVR secuirty camera systems. Enhanced caching capabilities enable superior video recording quality, and faster data-transfer rates compared to other brands.

Full-track multiple-sector transfer capability without local processor intervention. It is a very reliable storage for your security camera systems. Easy installation and configuration with true plug-and-play connectivity.

SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns. It has Streaming video optimization that is consistent command completion times.

Get this Seagate Hard drive today.

PRODUCT HIGHLIGHTS

  • Built for Surveillance
    • Built for CCTV 24/7 surveillance applications
  • Reliable and Stable
    • Enhanced caching capabilities enable superior video recording quality
  • SATA interface
    • The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. Data-transfer rates with a default of 6Gb/s
  • 7200 RPM
    • 7200 RPM spindle speed
  • Full-track multiple-sector transfer capability
    • Full-track multiple-sector transfer capability without local processor intervention
  • Quick Transfer Rate
    • High instantaneous (burst) data-transfer rates with a default of 6Gb/s
  • Exceptional Continuous and Writing Performance
    • Enhanced caching capabilities enable superior video recording quality, and faster data-transfer rates compared to other brands
  • Built-in Error Recovery
    • Protect your drive from unwanted data loss
  • Easy to install
    • Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options
  • Low Noise
    • Best-in-class acoustic performance means virtually silent operation 1.9 bels
  • Built-in error recovery for non-stop video streaming
  • Compliant with RoHS requirements in China and Europe
  • Enhanced caching capabilities enable superior video recording quality.
  • Full-track multiple-sector transfer capability without local processor intervention
  • High instantaneous (burst) data-transfer rates with a default of 6Gb/s.
  • Limit settings for 1.5Gb/s and 3.0Gb/s are available via S.M.A.R.T. Command Transport command.
  • Native Command Queuing with command ordering to increase performance in demanding applications
  • Performance-tuned for seamless video applications
  • Perpendicular recording, Tunneling Magnetoresistive (TMR) recording heads and EPRML technology, for increased areal density
  • Quiet operation
  • Reliability for 24×7 video applications
  • SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
  • Spread Spectrum Clocking (SSC) for the SATA interface is supported and enabled
  • State-of-the-art cache and on-the-fly error-correction algorithms
  • Streaming video optimization - consistent command completion times
  • Support for S.M.A.R.T. drive monitoring and reporting
  • Supports ATA8 streaming commands
  • Supports latching SATA cables and connectors
  • Supports the power-up in standby (PUIS) feature
  • Supports Trusted Send/Receive Security Protocol
  • Workload rating of 180TB/year
  • Worldwide Name (WWN) capability uniquely identifies the drive

ITEM DESCRIPTION

  • Model: CCTHDISK2TB
  • Formatted capacity (512 bytes/sector)* 2000GB (2TB)
  • Guaranteed sectors 3,907,029,168
  • Heads 8
  • Disks 4
  • Bytes per sector 512
  • Default sectors per track 63
  • Default read/write heads 16
  • Default cylinders 16,383
  • Recording density, KBPI (Kb/in max) 1523
  • Track density, KTPI (ktracks/in avg.) 237
  • Areal density, (Gb/in2 avg) 324
  • Spindle speed 7200
  • Internal data transfer (Mb/s max) 1300
  • Sustained data transfer rate OD (MB/s max) 152
  • I/O data-transfer rate (MB/s max) 600
  • ATA data-transfer modes supported
    • - PIO modes: 0 to 4
    • - Multiword DMA modes: 0 to 2
    • - Ultra DMA modes: 0 to 6
  • Cache buffer 64MB
  • Weight: (maximum) 710g (1.565 lb)
  • Average latency 4.16ms
  • Power-on to ready (sec max) 15
  • Standby to ready (sec max)) 15
  • Track-to-track seek time (ms typical) 0.5 read / 0.8 write
  • Average seek, read (ms typical) <8.5
  • Average seek, write (ms typical) <9.5
  • Startup current (typical) 12V (peak) 2.8A
  • Voltage tolerance (including noise) 5V ± 5% / 12V ± 10%
  • Ambient temperature
    • - Operating ambient temperature 5° to 60°C
    • - Nonoperating ambient temperature –40° to 70°C
  • Operating temperature (Drive case max °C) 75
  • Temperature gradient 20°C (operating), 30°C (nonoperating)
  • Relative humidity 5% to 90% (operating) 5% to 95% (nonoperating)
  • Relative humidity gradient 30% per hour max
  • Altitude, operating –60.96m to 3048m (–200 to 10,000+ ft.)
  • Altitude, nonoperating (below mean sea level, max) –60.96m to 12,192m (–200 ft. to 40,000+ft.)
  • Operational Shock (max at 2 ms) Read 70 Gs / Write 40 Gs
  • Non-Operational Shock (max at 2 ms) 300 Gs
  • Vibration, operating
  • 5Hz–22Hz: 0.25 Gs, Limited displacement
  • 22Hz–350Hz: 0.50 Gs
  • 350Hz–500Hz: 0.25 Gs
  • Operation Rotational vibration 20–1500Hz: 12.5 rads/s²
  • Vibration, nonoperating 10–500 Hz: 4.9 Grms ref
  • Drive acoustics, sound power
  • Idle** 2.7 bels (typical) , 2.9 bels (max)
  • Performance Seek 3.0 bels (typical), 3.3 bels (max)
  • Nonrecoverable read errors 1 sector per 1015 bits read
  • Annualized Failure Rate (AFR) 0.73% based on 8760 POH
  • Load-unload cycles 300,000 (25°C, 50% rel. humidity) (600,000 design life testing)
  • Supports Hotplug operation per Serial ATA Revision 2.6 specification Yes

WHAT'S INCLUDED

1. 1x 2TB Seagate Video 3.5 HDD
