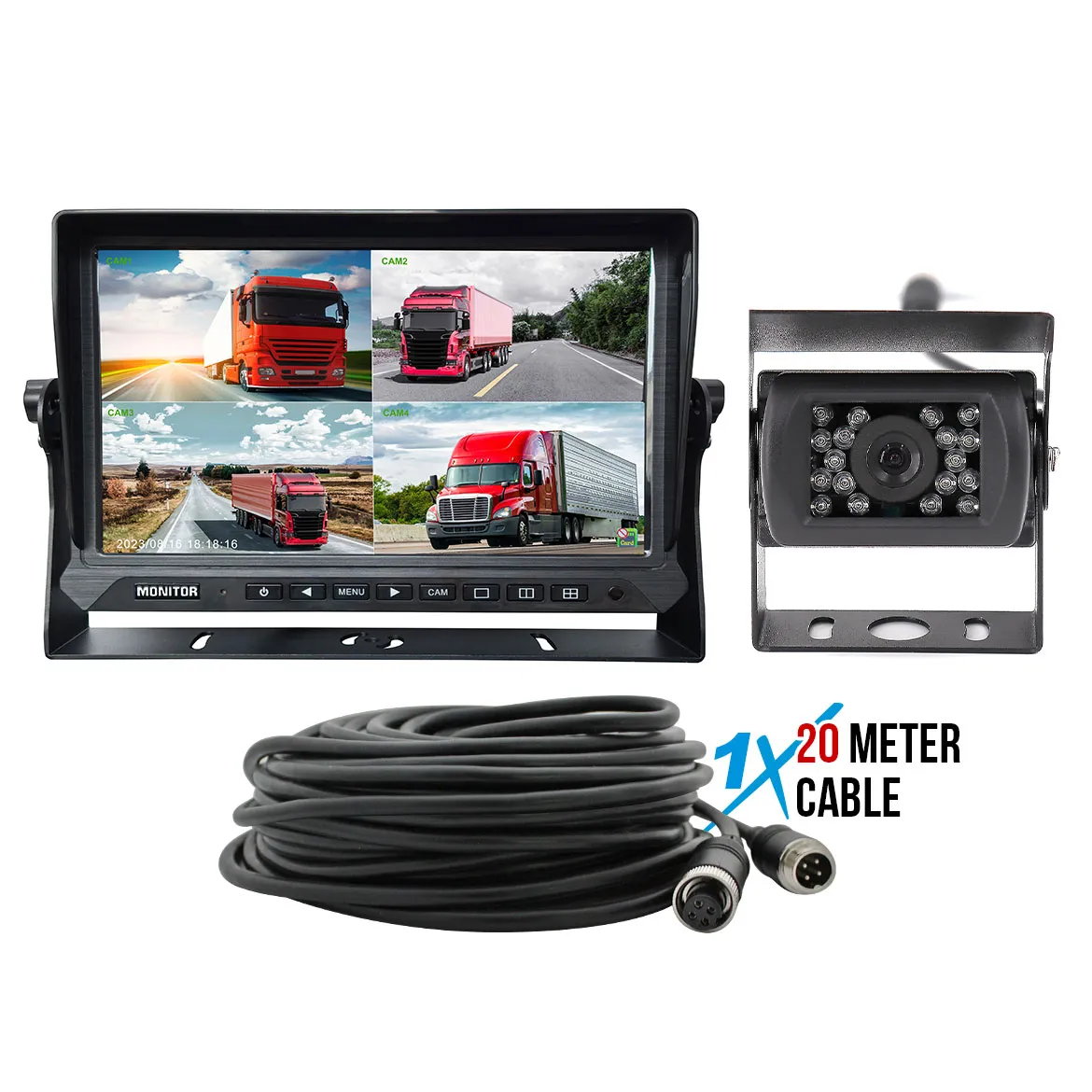

Elinz 10" AHD Quad Split Screen DVR Monitor 1080P Reversing Camera Kit 20M Cable

The Elinz 10" AHD Quad Split Screen DVR Monitor 1080P Reversing Camera Kit with 20M Cable is a professional-grade safety solution designed for trucks, caravans, RVs, buses, and commercial vehicles. Featuring a large 10-inch high-definition monitor with quad split-screen viewing, built-in DVR recording, and a 1080P AHD reversing camera, it provides exceptional visibility and monitoring of multiple vehicle blind spots. The included 20-metre cable allows flexible installation on longer vehicles, while the IP68 waterproof camera and infrared night vision ensure reliable performance in all weather and lighting conditions.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Size: 10 inch
  • Monitor Type: AHD
  • Display Technology: LCD
  • Built-in DVR: Supports high-capacity SD cards up to 512GB
  • Screen Resolution: 1024*600
  • Video Input: 720P/1080P
  • Video Channels: 4CH
  • Display: Full screen/2 or 3 Split/Quad View
  • Storage Capacity: Supports up to 512GB SD Card
  • Connection Type: 4PIN
  • Power Consumption: <5W
  • Operating Temperature: -30~ +70 ºC
  • Input Voltage: DC12V-36V
  • Output Voltage: DC12V

CAMERA

  • Heavy Duty AHD Camera with 18pcs IR LEDs
  • 120 Degree Wide Angle Viewing
  • Advanced 20M 4PIN Cable
  • Image sensor: 1/3" 1.3MP CCD Sensor
  • Effective Pixel: PAL 1290(H)*720(V)
  • Illuminance: 0.1 Lux, Infrared night vision
  • CDS night version change: Change to black and white image automatically in the night
  • Horizontal Resolution: 1/3Megapixel/720P
  • Image: Mirror image
  • S/N Ratio: 39db(TYP)69db(MAX)(AGC OFF)
  • Electronic Shutter: Auto 1/25(30)-1/50,000
  • Exposure: Auto*2-*512
  • System: PAL
  • Video Output: CVBS 1.0 vp-p/75 ohms
  • Waterproof Level: IP68
  • Shockproof Level: 4G
  • Power Requirements: DC 12V-24V

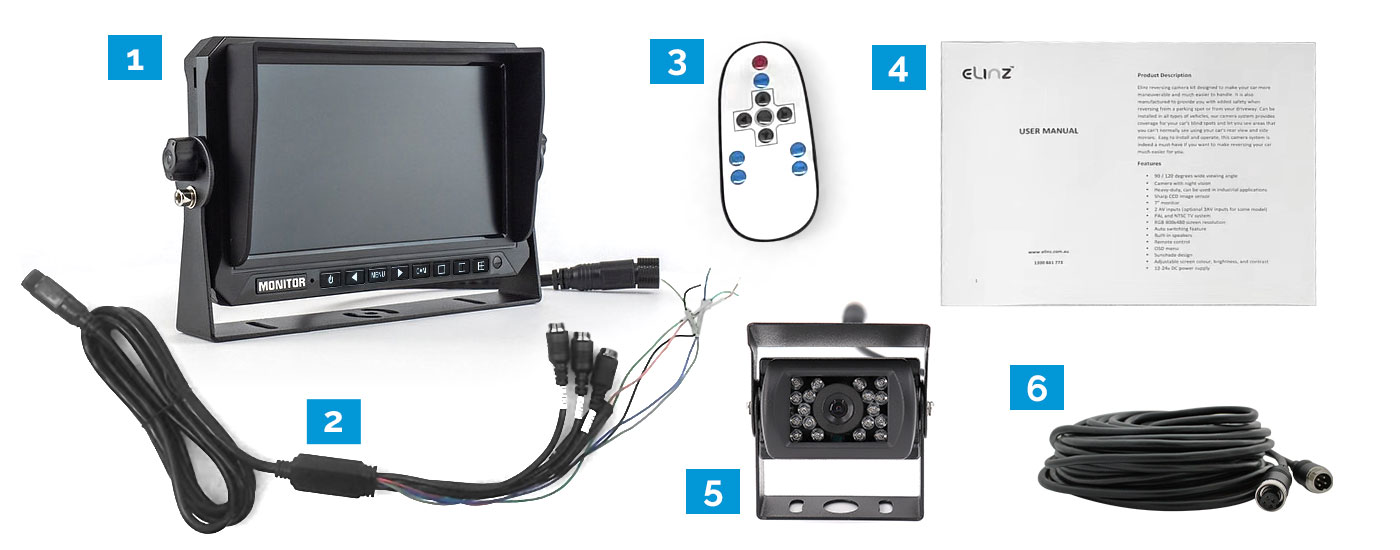

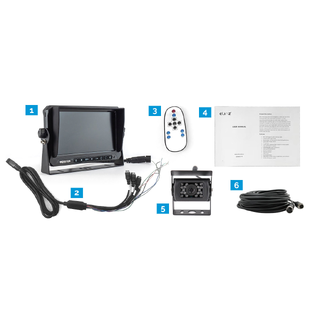

What’s Included

1. 1x Monitor

2. 1x Power Cord

3. 1x Remote (Batteries not included)

4. 1x User Manual

5. 1x AHD Camera

6. 1x 20m 4-Pin Cable
