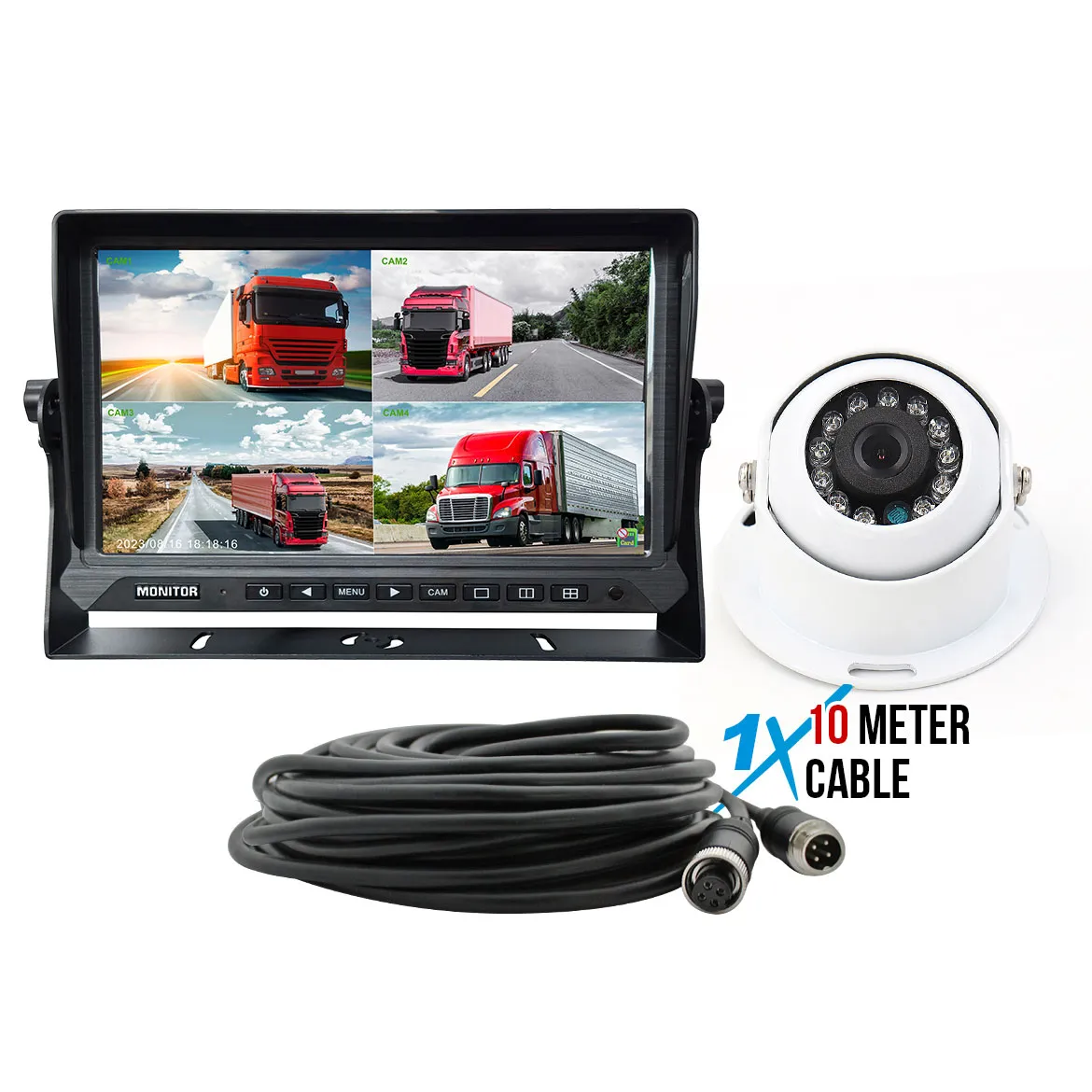

Elinz 10" AHD Quad Screen DVR Monitor 1080P Dome Reversing Camera 10M Cable

The Elinz 10" AHD Quad Screen DVR Monitor and 1080P Dome Reversing Camera Kit delivers enhanced visibility and safety for trucks, caravans, buses, and commercial vehicles. Featuring a large 10-inch LCD monitor with 4-channel quad-view display, built-in DVR recording, and support for up to 512GB SD storage, it allows you to monitor multiple camera feeds simultaneously. The included heavy-duty 1080P AHD dome camera offers a wide 120° viewing angle, infrared night vision, and IP68 waterproof protection for reliable performance in all driving conditions.

PRODUCT SPECIFICATIONS

MONITOR

  • Screen Size: 10 inchScreen Size: 10 inch
  • Monitor Type: AHD
  • Display Technology: LCD
  • Built-in DVR: Supports high-capacity SD cards up to 512GB
  • Screen Resolution: 1024*600
  • Video Input: 720P/1080P
  • Video Channels: 4CH
  • Display: Full screen/2 or 3 Split/Quad View
  • Storage Capacity: Supports up to 512GB SD Card
  • Connection Type: 4PIN
  • Power Consumption: <5W
  • Operating Temperature: -30~ +70 ºC
  • Input Voltage: DC12V-36V
  • Output Voltage: DC12V

CAMERA

  • Heavy Duty Dome Camera
  • Video Signal: AHD (Analog High Definition)
  • Resolution: 1080P
  • Effective Pixels: 1920(H)*1080(V)
  • Eliminate Blind Spots
  • 120° Field of View Angle
  • Night Vision: IR
  • Image Sensor: CMOS
  • Video System: PAL
  • Connection: 4-PIN
  • Metal Case
  • Viewing Type: Reverse
  • Microphone: No
  • Working Voltage: DC 12V
  • Waterproof Rating: IP68

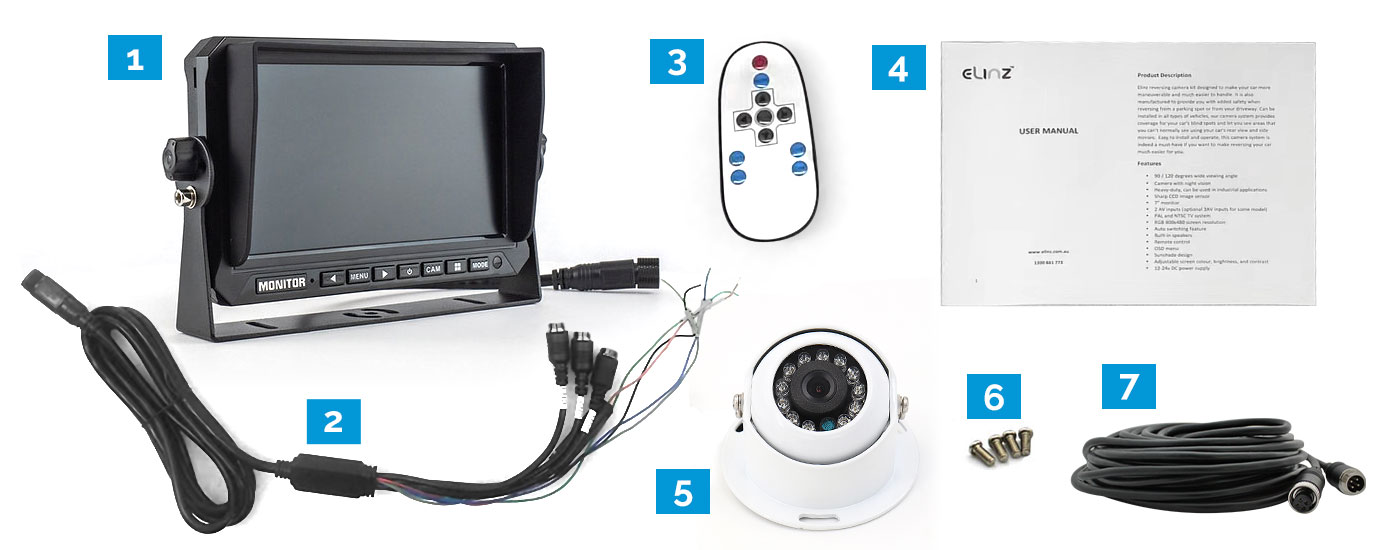

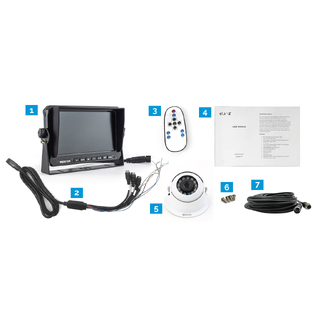

What’s Included

1. 1x 10" AHD Monitor

2. 1x Power Cord

3. 1x Remote (Batteries not included)

4. 1x User Manual

5. 1x Dome Reversing Camera

6. 4x Screws

7. 1x 4PIN Cable 10M
