Elinz 7" DVR Splitscreen Monitor Dual Lens 4 PIN Dash Camera Mic 12V 24V 600TVL CCD

130 degree viewing angle~Support Video and Audio record

(SKU: DVR7N-RV4PINDOBSHOT)
AUD $275.00
In Stock


Payment made easy


7" DVR Splitscreen Monitor Dual Lens 4 PIN Dash Camera Mic 12V 24V 600TVL CCD

SKU: DVR7N-RV4PINDOBSHOT

7inch DVR Splitscreen Monitor Dual Lens 4 PIN Camera

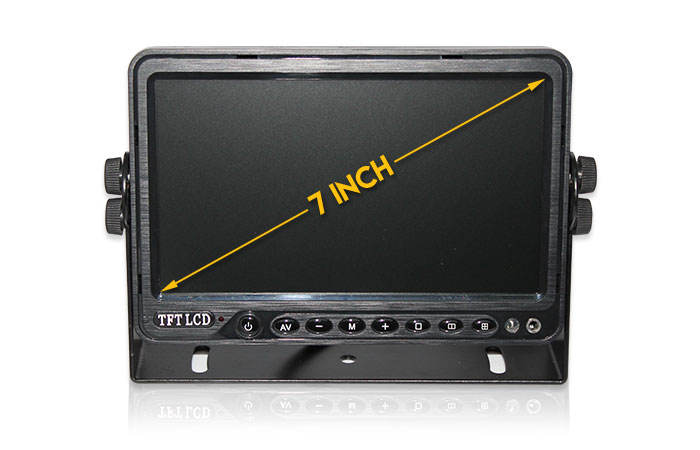

7 inch digital TFT

7 inch digital TFT

  • Quadscreen recording support up to 4 cameras
  • All camera views can be shown on the screen at all times when driving.
  • The monitor can show single, dual, triple and quad image if you switch over AV button.

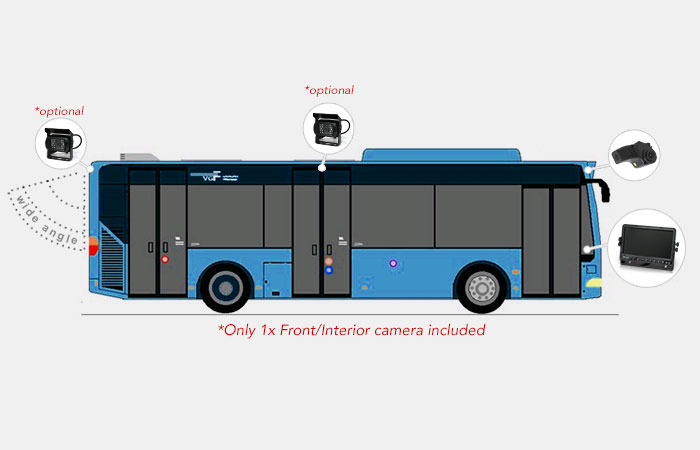

Monitor Video and Audio Output

Video and Audio Input

  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures

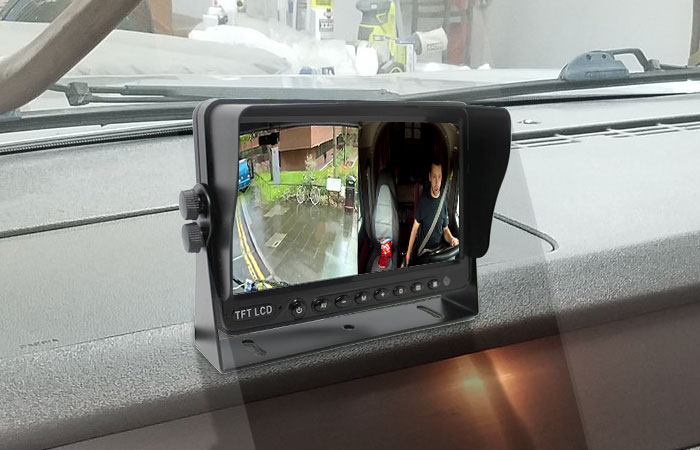

Monitor Sunshade design

Sunshade Design

  • protects your monitor from the glare of the sun ad helps you see videos clearly

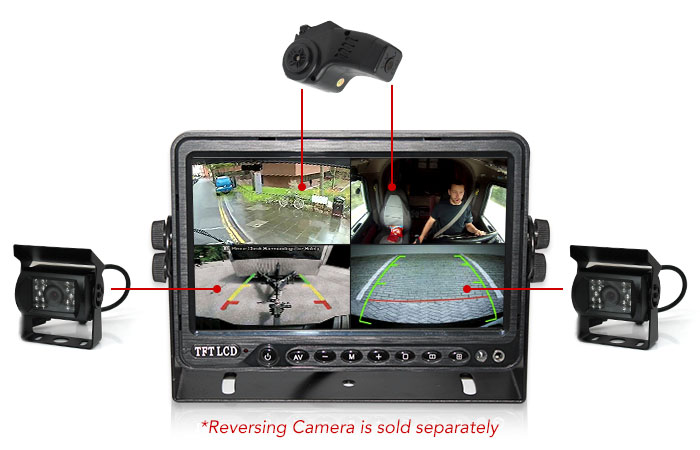

Vehicle compatibility Front Camera

Front & Interior Camera Plus Reversing Camera

  • You can add a reversing camera in this package and be able to view your back while reversing. The monitor included allows you to display 4 screens.
Double Shot CameraFront Interior

Double Shot Camera

  • This camera has dual camera lens, it can easily be connected to a DVR monitor to record traffic conditions in front of you and what is happening inside your vehicle at the same time.
  • *DVR monitor to be purchased separately.
Night Vision CCD Camera

Night Vision

  • With 4IR LEDs it can capture great night vision inside the vehicle. The IR LEDs will automatically turn on at night and will not distract the driver
DVR function camera

DVR Compatible

  • This double shot camera is suitable for Bus, Trucks, Caravan and other vehicles with 4PIN DVR monitors
130 degree angle dual camera

130 Degree Wide Angle View

  • 130 degree wide angle that gives you wider view to cover more lanes of traffic ahead and reduces blind spots
600TVL CCD Dual Lens Camera

600TVL

  • This Camera uses CCD imaging sensor to provide better picture's clarity color contrasting and sharpness
Camera Built-in Mic

Built-in Mic

  • Built-in microphone to record audio and video at the same time
Advanced 4PIN Connection

Advanced 4PIN Connection

  • Camera comes with 2*5meter 4PIN cable to connect directly to DVR monitors, Allowing the monitor to power up the camera no need to connect another power cable to camera
Vehicle compatibility Front Camera

Suitable for all types of vehicles

  • Whether you own a Truck, Bus, Caravan, Camper, Van, 4WD, or a four-door sedan, this product is compatible with your vehicle. It can be fitted to both 12V and 24V motor vehicles

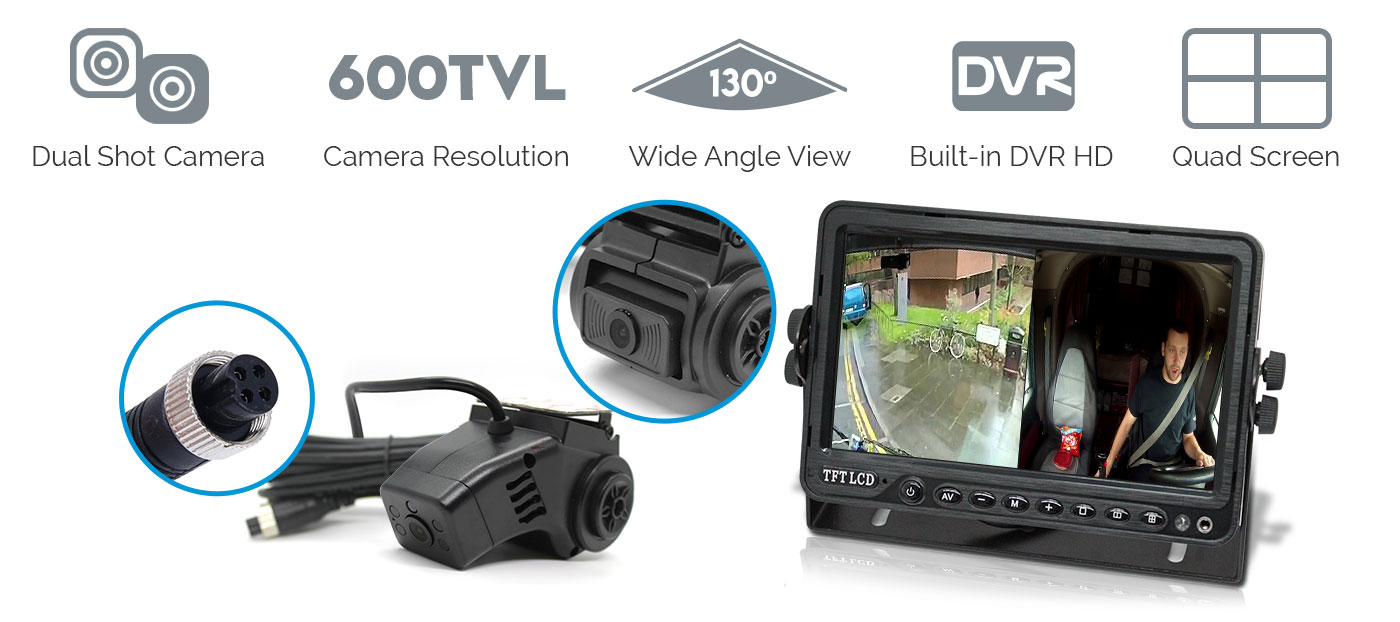

Product Views Dual Lens Camera

Product Views

Monitor dimensions

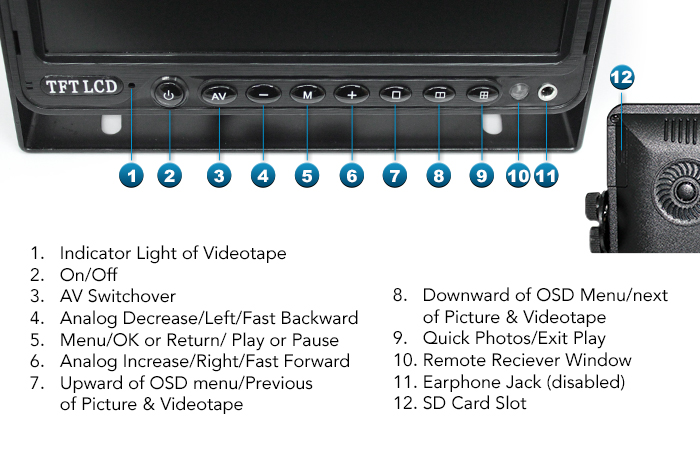

Monitor Parts/Buttons

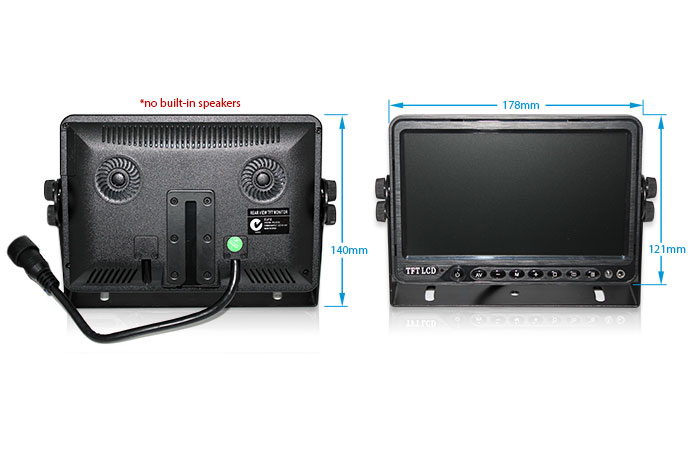

Monitor dimensions

Monitor Dimensions

Dimensions 4PIn Dual Lens Camera

Camera Dimensions

Monitor dimensions

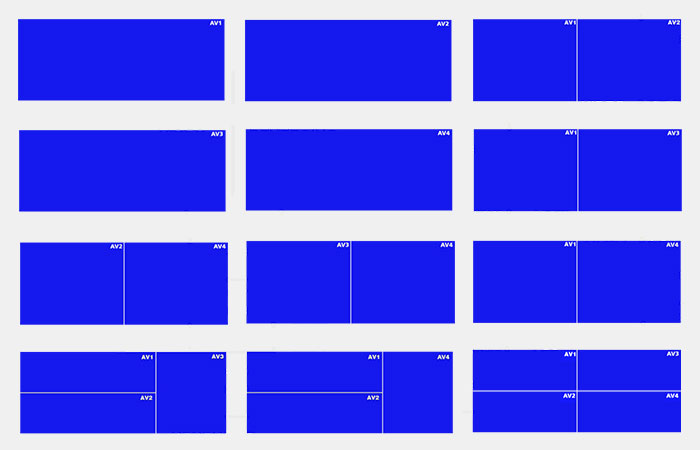

Monitor Display Modes



MORE INFORMATION

This 7” DVR monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential. It is recommended for buses, trucks, caravans and heavy equipment vehicles

This monitor offers the ability to show the images of four cameras at once on the screen. This can be used on both 12V or 24V vehicles.

It comes with a Double shot camera that functions as dash cam to record traffic conditions and at the same time record video on what is happening inside the vehicle. It has 6 IR LEDs that will provide you clear video even at night plus a 600TVL Camera which uses CCD imaging sensor to provide better picture's clarity color contrasting and sharpness.

This camera has 130 degree wide angle that gives you wider view to cover more lanes of traffic ahead and reduces blind spots and Built-in microphone to record audio and video at the same time.

PRODUCT HIGHLIGHTS

  • 7 inch digital TFT panel with 4 Channels simultaneously to full time live recording
    • Quadscreen recording support up to 4 cameras.
    • All camera views can be shown on the screen at all times when driving.
    • The monitor can show single, dual, triple and quad image if you switch over AV button.
  • 4 ways video input, 4 ways audio input, 1 way video output
    • Full image/4 images adjustable
    • Picture adjust with single and quad pictures.
  • Sunshade Design
    • protects your monitor from the glare of the sun ad helps you see videos clearly
  • Double Shot Camera
    • This camera has dual camera lens, it can easily be connected to a DVR monitor to record traffic conditions in front of you and what is happening inside your vehicle at the same time.
    • *DVR monitor to be purchased separately.
  • Night Vision
    • With 4IR LEDs it can capture great night vision inside the vehicle. The IR LEDs will automatically turn on at night and will not distract the driver.
  • DVR function
    • This double shot camera is suitable for Bus, Trucks, Caravan and other vehicles with 4PIN DVR monitors
  • 130 Degree Wide Angle View
    • 130 degree wide angle that gives you wider view to cover more lanes of traffic ahead and reduces blind spots
  • 600TVL
    • This Camera uses CCD imaging sensor to provide better picture's clarity color contrasting and sharpness
  • Built-in Mic
    • Built-in microphone to record audio and video at the same time.
  • Advanced 4PIN Connection
    • Camera comes with 2*5meter 4PIN cable to connect directly to DVR monitors, Allowing the monitor to power up the camera no need to connect another power cable to camera
  • Suitable for all types of vehicles
    • Whether you own a Truck, Bus, Caravan, Camper, Van, 4WD, or a four-door sedan, this product is compatible with your vehicle. It can be fitted to both 12V and 24V motor vehicles

ITEM DESCRIPTION

DVR Monitor
  • 7 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 4 ways video input,4 ways audio input, 1 way video output
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in:4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply
4PIN Camera
  • Image Sensor: CCD
  • Resolution: 600TVL
  • Viewing Angle: 130 degree
  • IR LED: 4pcsΦ8 IR LED
  • IR Distance: 5m
  • Audio: with Mic
  • Minimum Illumination: 0Lux (IR ON)
  • Operating Temperature: - 25℃~+85℃

WHAT'S INCLUDED

1. 1x 7" DVR Splitscreen Monitor

2. 1x Sunshade

3. 1x Power Cable

4. 1x Remote control

5. 1x User Manual

6. 2x 5m 4PIN Cable

7. 1x Double Shot Camera

8. 1x Adhesive

Front Interior Dual Camera Lens
