23" LED Light Bar 3 Rows Work Driving bundle 180W H4 Headlight Kit Philips 4WD

50000hrs life~Waterproof~12V/24V~Free Shipping

AUD $145.00
In Stock

Payment made easy

23" LED Light Bar 3 Rows Work Driving bundle 180W H4 Headlight Kit Philips 4WD

Product Details
More Information
3 rows 23 inch LED light bar bundled with H4 180W Headlights Kit an innovation of lighting equipment for your vehicles has finally arrived. The combination of flood and spot beam on your light bar and high low beam on your headlights a perfect night driving companion.

Light bar with headlights are seamless lighting device for your boat, off-road vehicle, heavy machinery, or farming equipment.

With a waterproof rating of IP68, you can be sure that the lighting device will continue to function despite being exposed to huge amounts of rain or flood water. Elinz LED light bar has a breather, which allows the moisture to get out and won't build up inside the lens. It has 10 degree spot beam, which can reach further distance and it has 150 degree flood beam which covers wider spread. Light bar is energy-efficient because it has 108 pieces of high-intensity Philips bulbs, it can deliver excellent light output without consuming too much energy.

While this Philips LED Headlights have lumen output of 9000LM providing high efficient bright light. With heatsink installed, bulbs won’t heat up and it has an excellent heat-dissipation structure.

What are you waiting for? Better get them now!
Product Highlights

LED Light Bar

  • Beam: Combo (10 degree spot beam & 150 degree flood beam)
    • The Combination beam of flood and spot style illumination provide denser, further reaching light.
    • Reach further distance and covers wider spread
    • Deliver excellent light output
  • Color Temperature: White 7000K-7500K
    • The light output of these LED light bar is simply phenomenal, they produce a mass of clean white daylight (7000K-7500K), free of artifacts and focus dead spots.
    • They light the entire forward viewing area, giving greater visibility without eye fatigue.
  • Waterproof: IP68
    • Lighting device will continue to function despite being exposed to huge amounts of rain or flood water.
  • 50,000 hours life time
    • Saves up money as you can use the light bar for a long time
  • Lumen Output: 54600LM
  • LED light bar has a breather
    • Allows the moisture to get out and won't build up inside the lens
  • Material: Black Die-cast Aluminum profile
    • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.

H4 Headlights Kit

  • 2pcs 90W Philips-Chip Headlight kit
    • Light Source Model: CSP
    • High Efficiency and Intense Brightness
  • Cutting-edge Design (built-in driver)
  • 9000LM ( per unit) 18000LM ( pair) Luminous Flux
    • Higher current densities, driving higher lumen output per device
    • H4 Philips Lumileds Chip
  • High power & super bright with exceptional long life(50,000 hours)
    • LED’s light up instantly and don’t have to warm up.
    • LED headlight bulbs light up and can make precisely cut area of where they shine into (unlike with halogen where the light is bright in the center, but faded around the sides).
  • Light Output 6500K
    • A pleasant white light, sharp around the corners
  • Easy to install
    • Direct plug-in replacement, no extra wiring required
    • Doesn’t take more than 20 minutes of your time.
  • Heat Dissipation Theory: Aviation Aluminum 6063
    • With excellent heat-dissipation structure
    • Aluminum 6063 generally considered to be an extrusion alloy that is heat treatable for strengthening.
    • Better thermal contact to the substrate through Metal – metal interface of the bottom epi layer to the heat sink
  • IP65 waterproof protection grade
    • 100% water proof, and temperature proof.
  • High and Low Beam
    • With high and low beam, perfect to replace H4 xenon or halogen headlight.
  • Heatsink
    • Each LED light has its own cooling fan which can help them last longer
    • Completely waterproof, rainproof, and work in extreme weather conditions.
    • To keep the back of these bulbs in operating temperature.
  • Low Power Consumption
    • They need very low power to work compared to classic halogen bulbs.
    • LEDs are for instance used on certain car models and on a couple of other hybrids on which electricity plays a key role, not necessarily for the headlights as a top choice on the market.
Product Specifications

LED Light Bar

  • LED Quantity: 108pcs High intensity Philips LEDS ( 60LED SPOT BEAM and 48LED FLOOD BEAM)
  • Operating Voltage: DC 10-30V (Fit 12V/24V vehicle)
  • Beam: Combo (10 degree spot beam & 150 degree flood beam)
  • Color Temperature:White 7000K-7500K
  • Bracket : Post brackets with DT plug wire harness
  • Waterproof: IP68
  • Life time:about 50,000 hours life time
  • Material: Black Die-cast Aluminum profile, PC lens, solid bottom slip
  • Theoretical Lumens Output: 54600LM
  • Distance: 1 Lux @ 500 meters
  • Warranty : 2 Years

H4 Headlights Kit

  • Input Power: 90W/pc - 180W/pair
  • Socket : H4
  • Beam Angle: Flexible
  • Operating Voltage: 12-24V
  • Luminous Flux: 9000LM (perunit) 18000LM(pair)
  • IP Rate: IP65
  • Light Source Model: CSP
  • Color Temperature: 6200k
  • Heat Dissipation Theory: Aviation Aluminum 6063
  • Operating Life: 50000H
  • Operating Temperature: negative 40°C ~ + 80°C
  • Weight: 0.5Kg

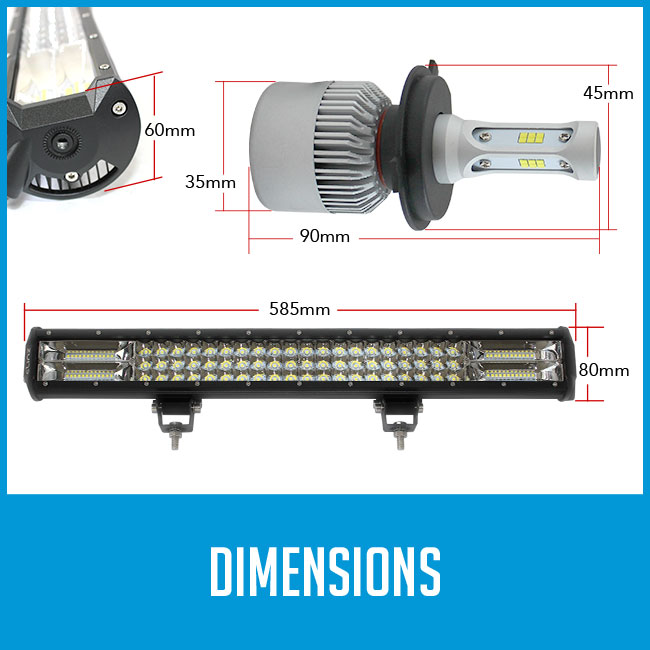

  • Dimension: 45mmx35mmx90mm


Barcode # 0606015373711
Shipping Weight 2.5000kg
Shipping Width 0.800m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.008000m3
