Cosmoblaze 20" 120W CREE LED Light Bar Driving WORK FLOOD SPOT COMBO 4WD 6063 AL

Free Wiring Kit★Extruded 6063 aluminium★IP69K★5 YRS WTY

WAS From AUD $430.00
NOW AUD $149.00
Sale Ends in
12:00 pm, 10 August 2018
Sold Out - Backorder Available

Payment made easy

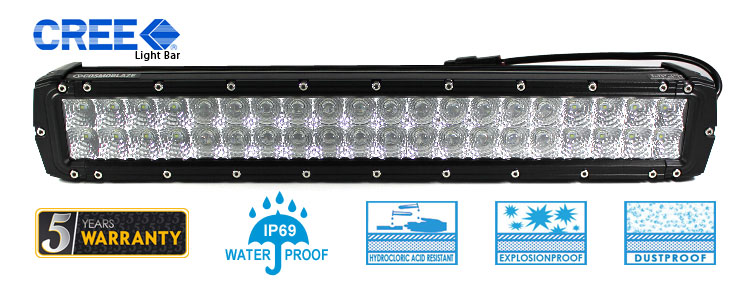

Cosmoblaze 20" 120W CREE LED Light Bar
Driving 2 rows FLOOD SPOT COMBO

led light bar cosmoblaze main image cosmoblaze led bar light features

Our all-new Cosmoblaze 20” 120W light bar is proven to provide you with maximum visibility at night, based on our years of experience in delivery great quality lighting. The light bar has 2 rows of light bulbs, and each row has 20 pieces of energy efficient CREE LED light bulbs. It has Flood and Spot beam combo giving you a clear bright light over a long distance and covers a wide area to give you clear visibility on surroundings as well.

This light bar is made with aluminium housing making it durable and has a waterproof rating of IP69, which allows it to work well no matter how heavy the rainfall is. These features will make the product stand out against its competitors and will definitely satisfy your lighting needs.

  • 9-32V, 40*3W CREE led
  • CREE LED light bulbs that is made from USA

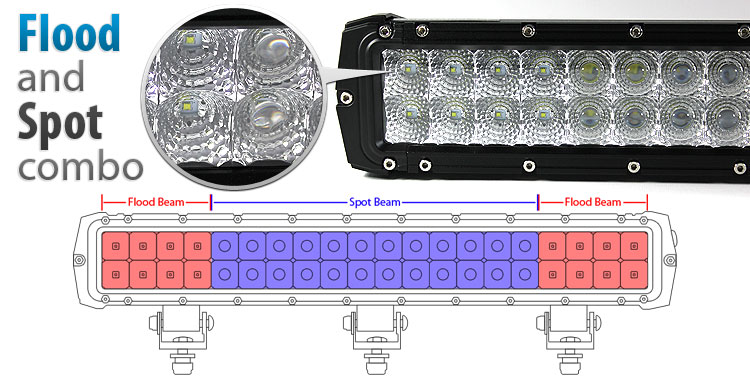

  • Flood and Spot Combo
  • Raw lumen: 9600 lm
  • Max lumen: 13200 lm
  • Color Temperature: 6500K
  • Spot beam distance: 1664m
  • Flood beam distance: 1428m
  • 6063 extruded aluminium housing
  • Length: 20inches
  • Operation Temp: -40˚C ~ +150˚C
  • Amperes : 4.65A~4.95A
  • Cast Alloy Leg Mount
  • 50,000+hours average lifespan
  • Cast Alloy Leg Mount

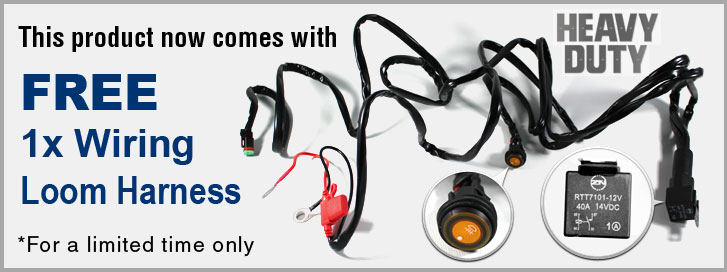

  • Wiring kit included
  • Dual-oversized heat sink
  • Low power consumption
  • IP69 Rating
  • Military standard breather
  • Unique Durable Mar/UV resistant plating technology

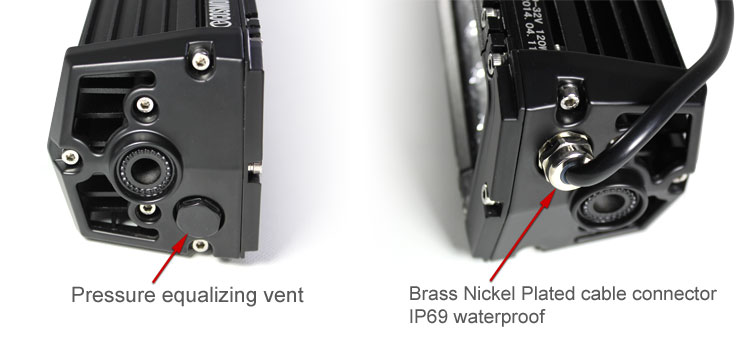

  • Sealed waterproof connector
  • High Temperature, Low Temperature, Temperature shock, UV, Humidity, Salt Fog, Sand and Dust, Vibration, Altitude, CE&Rohs certification
  • Ideal for touring vehicles, 4x4 Competitions.
light bar cosmoblaze waterproof connector cosmoblaze led light bars flood spot beamlight bars cosmoblaze lumen specifications cree led light bars dimensions led light bar in Australia accessories
positive Fast! All good. glenn4350 ( Feedback Score Of 305Teal star icon for feedback score in between 100 to 499) During past month
positive No probs A+++ howitt3 ( Feedback Score Of 529Purple star icon for feedback score in between 500 to 999) During past 6 months
positive Great seller Fast postage shau_thoms ( Feedback Score Of 11Yellow star icon for feedback score in between 10 to 49) During past 6 months
positive Good seller. fast postage. wkagr ( Feedback Score Of 160Teal star icon for feedback score in between 100 to 499) During past 6 months
positive good solid product quick delivery jackaroo99blueexjn ( Feedback Score Of 189Teal star icon for feedback score in between 100 to 499) During past year

Click-here-reversing-camera kit options


Barcode # 0686494500013
Shipping Weight 3.0000kg
Shipping Width 0.055m
Shipping Height 0.550m
Shipping Length 0.865m

End result O.K.

By: on 29 June 2017
I am happy with the fitted product but getting there was a bit of a hassle. I encountered the following problems along the way. (1) There were no instructions supplied with the product. (2) The supplied brackets were that tight they needed to be knocked in with a rubber mallet. Due to there tight fitting the coating was scraped off in a few places. (3) The supplied wiring loom was incorrect as it was supplied with connections to be connected to the battery. This is illegal as the light has to be wired to the high beam! In addition the relay was wired incorrectly. THREE STARS. Bruce.

Good quality but light penetration not as claimed.

By: on 2 April 2017
I bought the cosmoblaze 20inch double row light bar based on online reviews like this one ( where it rated very strongly against some big name brands like rigid industries. i have it mounted to the front of my FG Ford Falcon, which i must say, already has very good high beams. I've driven through the night to Brisbane, from Adelaide, and it works very well to light up the sides of the road and well in to the distance. Having said that, it only just outshines the high beams for distance, and nowhere near the claimed 560odd metres. In my experience, its probably closer to 300m. of effective light. It is quite 'white' on the colour side as well which also impacts its effectiveness at penetrating long distances and can reflect quite badly off roadside signs. Overall, for the money, it still represents very good value, as the build quality is very good. Just don't expect it to light up over 500m in to the distance as claimed. Also note, i wanted to rate it 4 stars but you can't actually change the 5 star rating on the review.

Easy to Install

By: on 14 November 2016
Light bar is easy install. It was useful on the road and offroad driving.

Easy to Install

By: on 14 November 2016
Light bar is easy install. It was useful on the road and offroad driving.

Driving Light for Highway

By: on 26 April 2016
It is good to have a spot/flood light for the country roads and this does the job. It feels and looks like a durable quality product, easy to install with the moveable bracket mounts and easy to adjust angles. It lights the road and surrounds well enough to give notice of anything ahead.

Write a product review

1. Does the unit have single row or double row of LED lights?
This unit has a double row of CREE LED light bulbs.
2. Does the unit overheat easily?
No, it doesn't. Its housing is made from extruded aluminium and it has dual oversized heat sink for better heat dispersal.
3. What type of illumination does the unit offer?
This unit can produce both flood and spot style of illumination.
