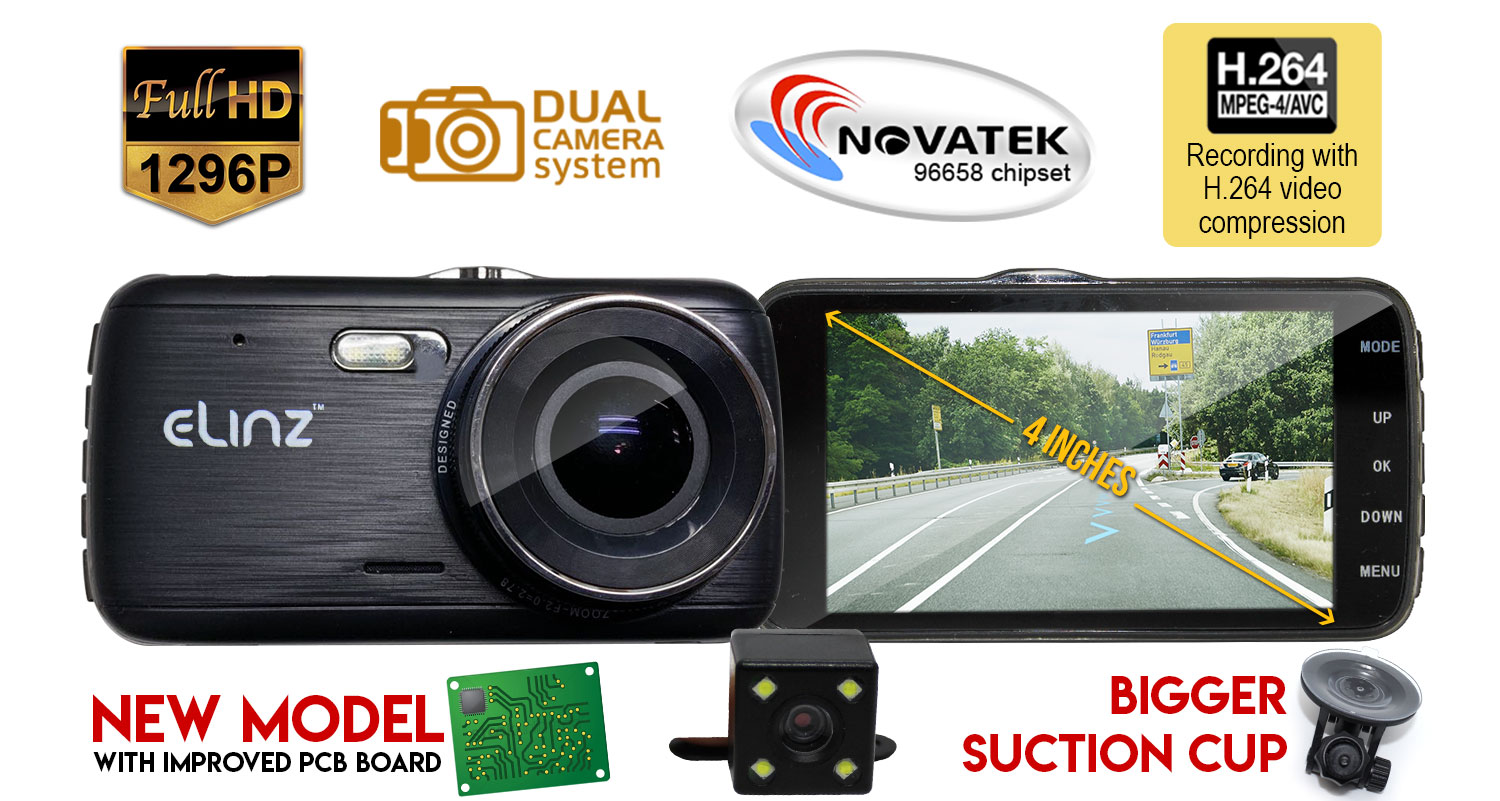

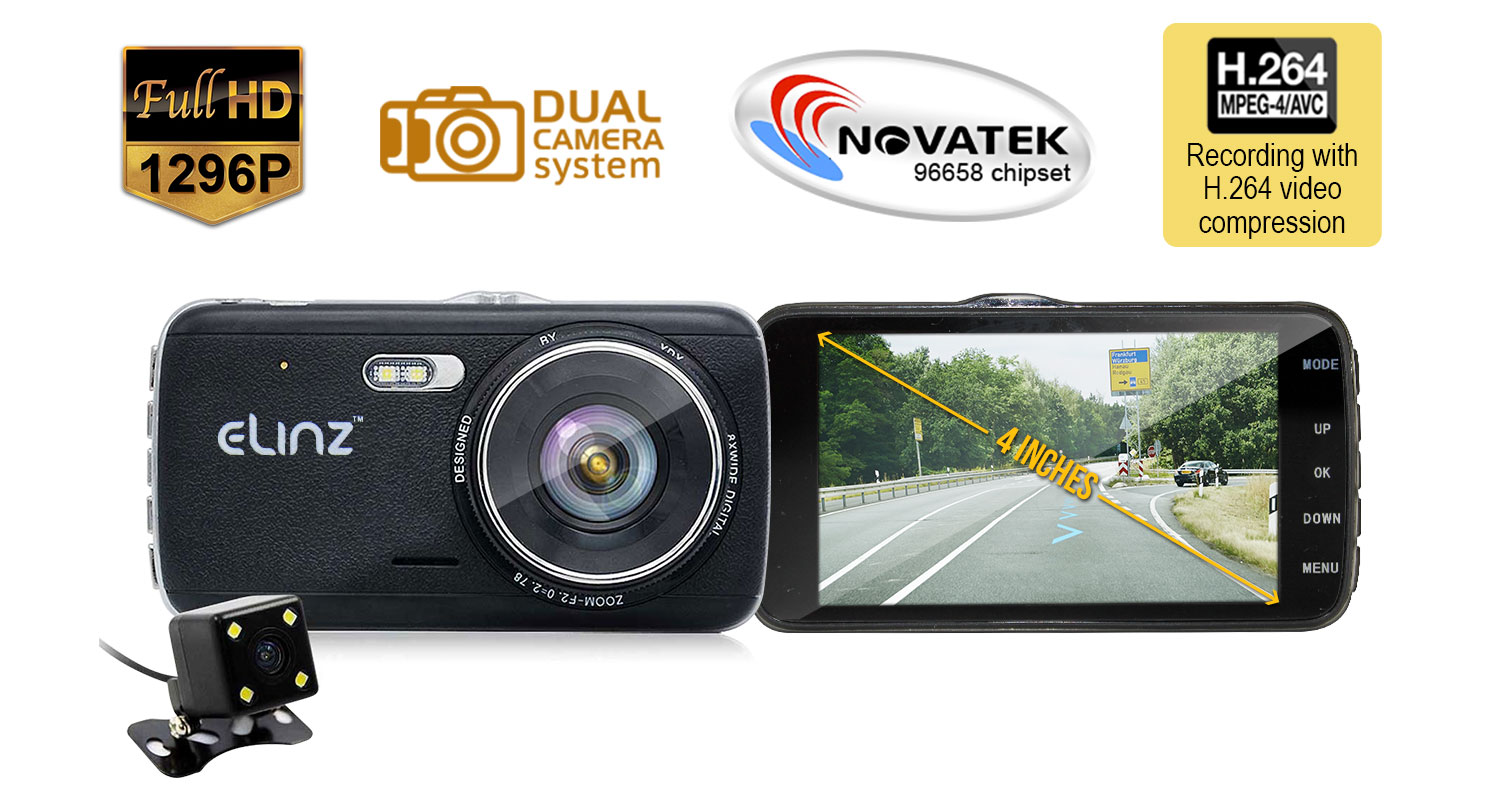

Dash Cam Dual Camera Reversing Recorder Car DVR Video 170° FHD 1080P 4.0 LCD

Anti-shake~Polymer~High Quality Novatek~WDR~12MP

WAS From AUD $115.00
NOW AUD $108.00
Sale Ends in
00:00 am, 5 May 2017
In Stock

Payment made easy

Dash Cam Dual Camera Reversing Recorder Car DVR Video 170° FHD 1080P 4.0 LCD

main 4PIN cameramain 4PIN camera
Dash Cam Dual Camera Reversing Recorder Car DVR Video 170° FHD 1080P 4.0 LCD
This product uses a high performance Novatek chip that provides the high definition video, dynamic images seamless. Support FHD1080P real full HD video. Double up as a dash cam and reversing camera monitor kit with 4 Types of Display Mode (1)Front camera only, (2) Rear camera only, (3) Split screen for dash cam as small corner image, (4) Split screen for reversing camera as small corner image.

With built-in G-sensor that automatically activate video lock to protect evidence video and Night vision supported which can give you a clear video even at night.

*SD card is not included

Key Features

  • LCD Size
    • 4.0 Inch LCD screen
  • Wide Angle View
    • Front: 170 degree wide angle (6 fisheye lens)
    • Back: 120 degree
  • Video resolution : 1920*1080 HD 1080P high resolution that can display video clearly.
  • Automatic Recording
    • When engine is switched on, the recorder automatically starts to open the recording function.
    • When engine is switched off, the recorder automatically saves the contents of the recorder and shut down. Recorded video segment is stored in the TF card.
    • When the memory is full, the recorder will cover the earlier recorded image.
  • Loop Recording
    • Support Gap-Less Loop Recording
    • Full 1080P High Definition video (Loop) recording you don’t need to worry on limited storage.
  • Gravity Sensor
    • Automatically activate video lock to protect evidence video.
  • Motion Detection
    • When the lens senses a moving object, the state of the machine will change into camera and will start recording.
  • Night Vision
    • Support night vision which gives you a clear video even at night
  • Support TF card: (SD Card not included)
    • You can use a High Speed Memory card, Class 10 to save important videos to protect it from being overwritten.
  • Battery: Built-in battery
    • 3.7V 200mAh high rate polymer battery
  • Audio: Built-in Microphone /Speaker
  • Rear View Function
    • In any state if there is reverse, reverse image is displayed on screen
  • Emergency Locking Function
  • Protect the current video from being covered or overwrite.
  • Camera Switching Function
  • Suction Cup mount
    • Keeping it intact & in place as you drive, making it safe easy to operate.
  • Anti-shake technology with the newest and best technology to effectively avoid image blurring caused by moving objects.
  • Chipset : Novatek 96655
    • (BEST CHIPSET) 1080P 30fps, AVI format, H.264 compression, support WDR(HDR). Adopt 55nm processing technology, the chipset integrates cutting-edge technologies, including 4x FHD video decoding technology, intelligence power performance scaling system, HD multi-screen display processing, High speed and efficiency system architecture.
  • Image Processing : WDR (Wide Dynamic Range)
    • Adopt internationally advanced double (long & short) exposure techniques, reformat video images to be optimal. Images is commonly overexposed in the strong sunshine, and hardly to be taken in the dim light conditions, WDR capability gets the issue resolved.
  • Connect to PC: Insert TF card case with a USB cable to connect computers , you can watch or copy videos to your computer.

Item Description

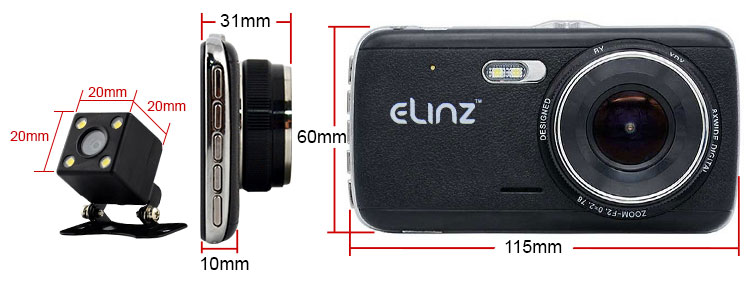

  • Size: 109.9×62.2×11.87mm
  • Weight: 58g
  • Front camera: 1080P/720P/480P@30FPS 12MP
  • Back camera: 720*480@30fps 5MP
  • Video Format: MOV
  • Video Code:H.264
  • Power Frequency:50-60 Hz
  • USB port :Micro USB2.0
  • Power Supply Port:5V /1.5A
  • TV output: NTSC/PAL
  • TF card: Support up to 32GB
  • Video voice: On/Off
  • Languages: English, Chinese, western, Portuguese, German, Italian, simplified, traditional, Russian, Japanese
  • System Requirement: Windows XP/7/8 SP3/Vista and Mac10.2 or above
  • Operating temperature: -10 C ~ 60 C
  • Storage temperature: -10 C ~ 70 C
  • Power Supply: Vehicle mounted power 5V/1.5A

Product Sample Video

channel Truck reverse camera


channel Truck reverse camera

4 Types of Display Mode

channel Truck reverse camera

Wide Dynamic Range

channel Truck reverse camera


channel Truck reverse camera

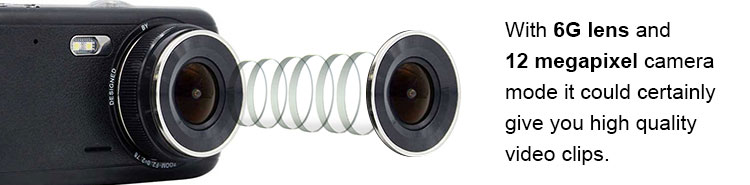

6G Camera Lens

channel Truck reverse camera

Night Vision

channel Truck reverse camera


channel Truck reverse camera

Parking Mode Sensor and Motion Detection

channel Truck reverse camera

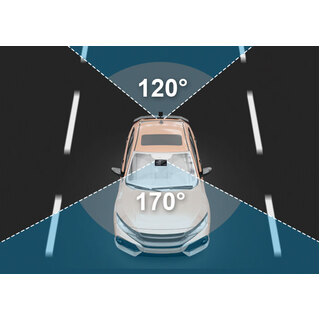

Wide Angle View

channel Truck reverse camera

Windshield Mount

channel Truck reverse camera

Functionality and Advantages

channel Truck reverse camerachannel Truck reverse camera


channel Truck reverse camera


channel Truck reverse camera

Dash Cam Installation Step by Step Instructions

  1. Connect one end of the car charger to your USB port on the car DVR.
  2. Connect the other end to your cigarette lighter, start your car engine, start the DVR automatically.
  3. Fix the chuck bracket onto somewhere near your rearview mirror to avoid line of sight.
  4. Plug the USB pin into the USB port on the DVR. Lay down charger lead along wire direction.
  5. Wiring till the top right corner of car door, slightly separate side plate to get the lead hidden. It works in all vehicles.
  6. Going to the edge of door, slightly push adhesive tape aside to hide the lead.
  7. Arriving at the base, measure the approximate location/length of charger plug and cigarette lighter, keep all the rest of lead here.
  8. Plug car charger into cigarette lighter. Recording gets started.

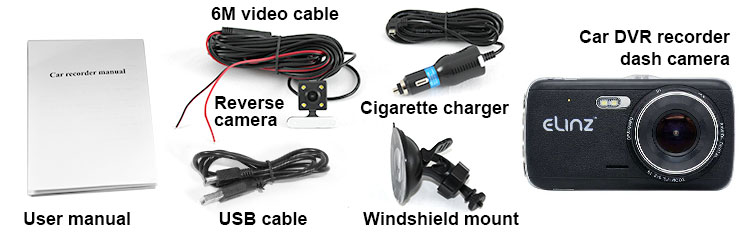

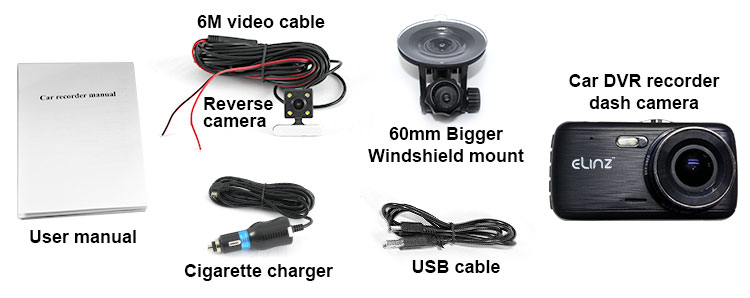

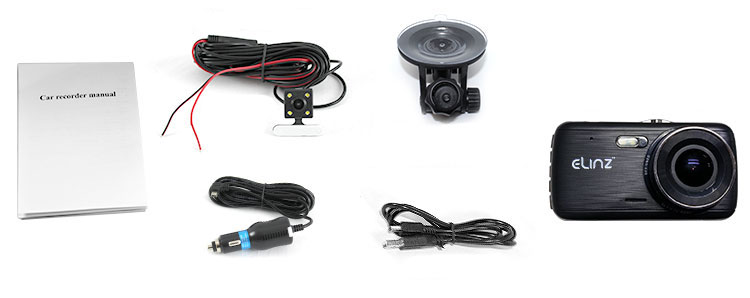

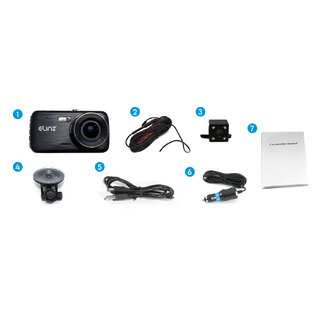

What's included


Shipping Weight 0.5000kg
Shipping Width 0.220m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001980m3
