7 Core Wire Trailer Cable Automotive Boat Caravan Truck Coil V90 PVC Insulated
100% Pure Copper Wire~Rubber-Sheathed Cable~Oxygen Free
7 Core Wire Trailer Cable Automotive Boat Caravan Truck Coil V90 PVC Insulated
You can use this core wire cable on Trailers, Caravan, 4wd, Cars, Motorhome, Bike and many others. When investing, make sure you spend it on the right items.
- 8/.32 8 AMP wire cable

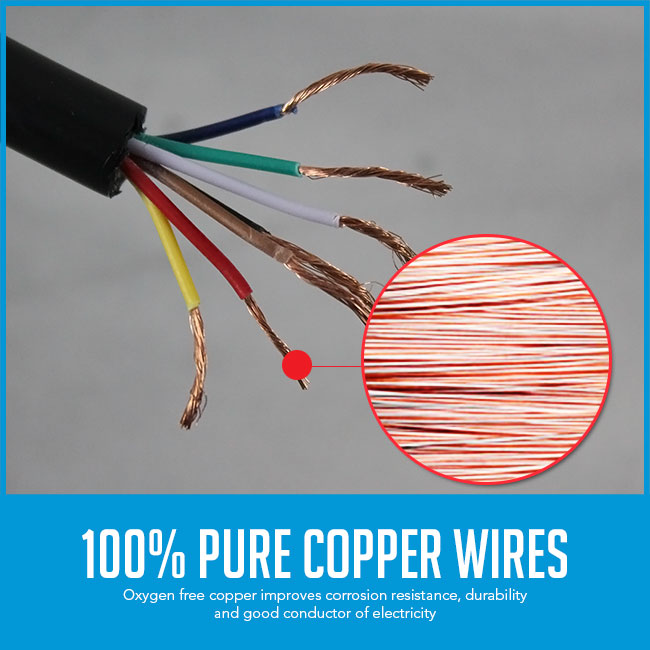

- 100% pure copper wires
- Oxygen free copper improves corrosion resistance, durability and good conductor of electricity

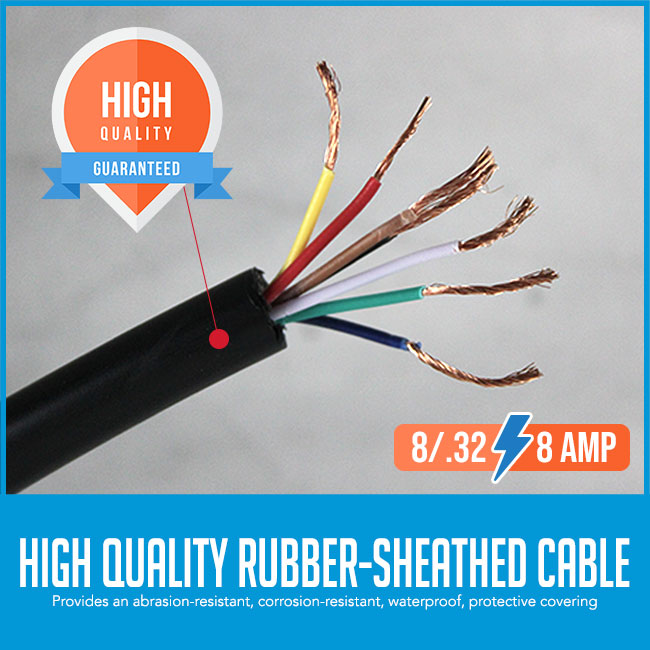

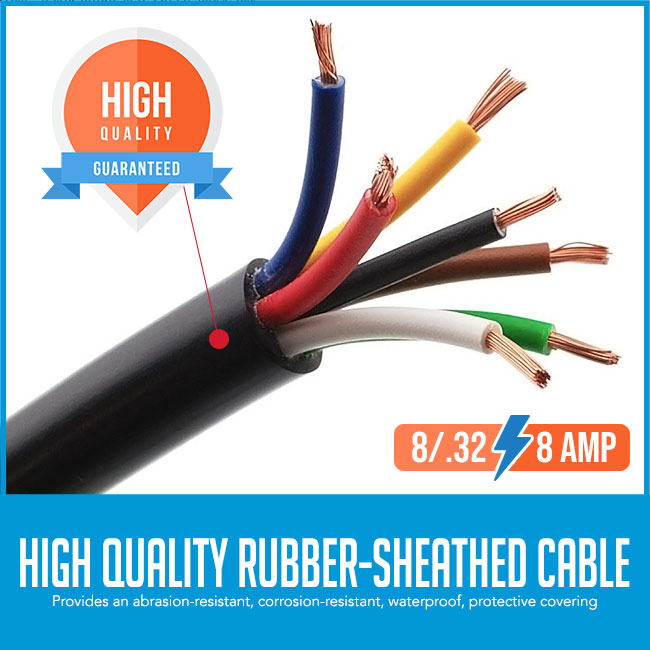

- High quality rubber-sheathed cable
- Provides an abrasion-resistant, corrosion-resistant, waterproof, protective covering
- Suitable for many applications
- Including Trailers, Caravan, 4wd, Cars, Motorhome, Bike And many others
- 7 core Trailer cable
- Conductor = OXYGEN FREE Plain Copper Wire to AS/NZS 1125
- Insulation = V90 PVC to AS/NZS 3808
- Core Colours = 1. White 2. Yellow 3. Brown 4. Red 5. Green 6. Black 7. Blue
- Sheath = 5V90 PVC to AS/NZS 3808
- Sheath colour = Black
- MM Thickness = 1.5mm
- Number of cores = 7
- Amp Rating at 30C = 8amps
- Insulation thickness = .4
- Sheath thickness = .6
- Electrical resistance at 20c (ohm/km) = 29.9Strand Number & Size = 8/.32

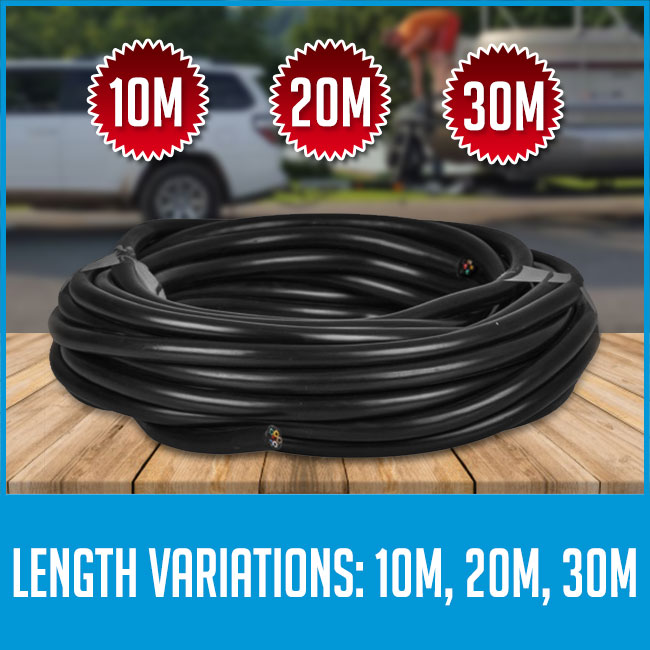

- Length: 10, 20, 30 Meters
